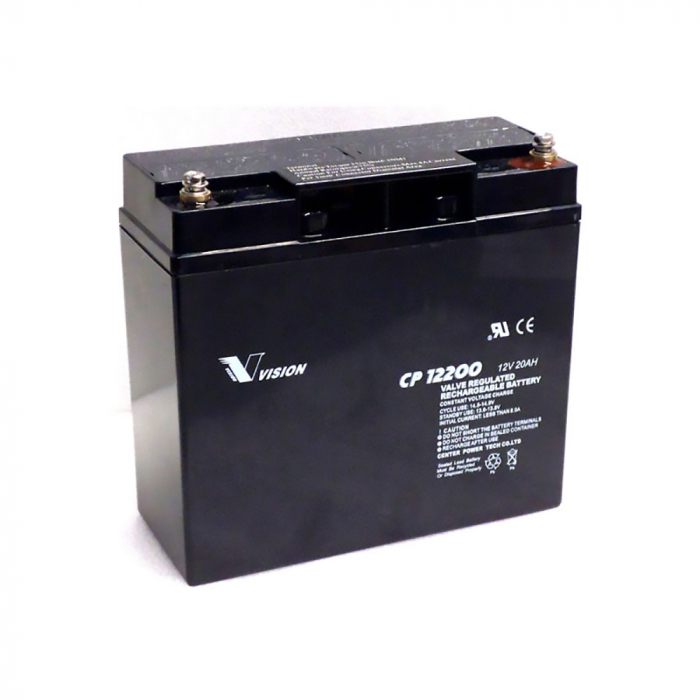

AGM battery 12 V, 20 Ah

Description | Technical data | Variants | Downloads

Versatile 20 Ah AGM battery – suitable for IVT Power Station PS-300

The maintenance-free lead-battery 12 V, 20 Ah can be used as a replacement battery for the Power Station PS-300 . It is suitable for energy storage, power supply for DC consumers, as an energy source for inverters and for photovoltaic applications. A complete seal makes it maintenance-free, leak-proof and can therefore be used in any position.

Main features

AGM technology
Efficient gas recombination of up to 99 %
Can be installed in any orientation
Long service life
Maintenance-free operation
Low self discharge

Delivery content

AGM battery 12 V, 20 Ah

Recommended use

This AGM battery is suitable as a replacement for IVT Power-Station PS-300. Furthermore, this battery is suitable for motorbikes, scooters, mopeds, jet skis, ride-on lawn mowers, quads, snowmobiles, 12 V solar systems and much more.

Technical Data

Battery type	AGM
Nominal voltage	12 V
Battery capacity	20 Ah
Nominal capacity	20 h/20 Ah 10 h/18.5 Ah 5 h/17.15 Ah 1 h/13.4 Ah
Internal resistance	Fully charged battery +25 °C / 15 mOhms
Self discharge	3 % of capacity declined/month at +20 °C
Operating temperature	Discharge: -20 to +60 °C Charge: -10 to +60 °C Storage: -20 to +60 °C
Discharge current (max.)	300 A (5 s)
Charging current (max.)	8 A
Short circuit currrent	1000 A
Charging methods	Constant voltage charge (+25 °C)
Temperature compensation	-30 mV/oC
Dimensions (L x W x H)	181 x 77 x 167 mm
Weight	5.9 kg
