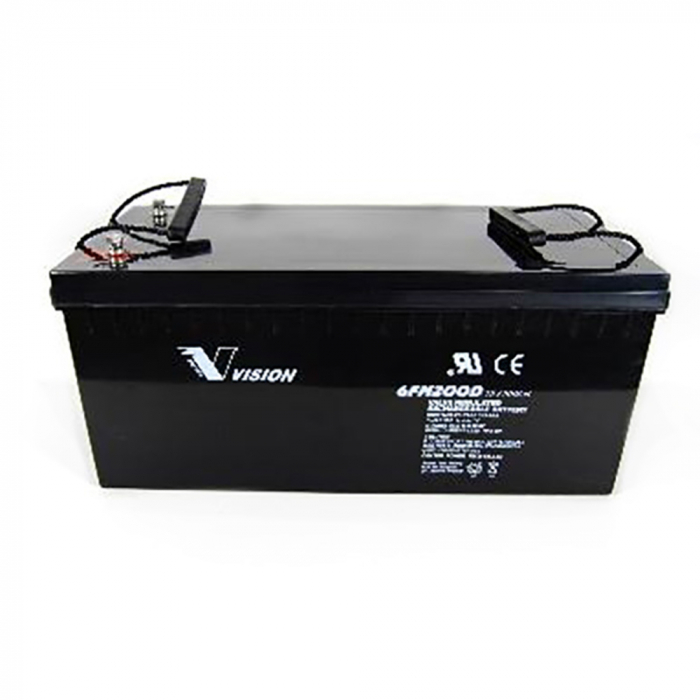

AGM battery 12 V, 200 Ah

Versatile battery with advanced AGM technology

This battery is particularly suitable for main power supply with many charging and discharging cycles. A special valve regulates the pressure, so the gases can escape if the pressure builds up excessively. The battery is completely sealed and maintenance-free, leak-proof and can be installed in any orientation.

Main features

• AGM technology
• Efficient gas recombination of up to 99 %
• Can be installed in any orientation
• Long service life
• Maintenance-free operation
• Low self discharge

Delivery content

• AGM battery 12 V, 200 Ah

Recommended use



Ideal for use in construction machines, trucks, travel coaches, boats in craft vehicles as well as in mobile homes and caravans, also in connection with 12 V solar systems or wind power.

Technical Data

Battery type	AGM
Nominal voltage	12 V
Battery capacity	200 Ah
Nominal capacity	10 h/200 Ah 5 h/174.5 Ah 1 h/130 Ah
Internal resistance	Fully charged battery +25 °C / 3.5 mOhms
Self discharge	3 % of capacity declined/month at +20 °C
Operating temperature	Discharge: -20 to +60 °C Charge: -10 to +60 °C Storage: -20 to +60 °C
Discharge current (max.)	1000 A (5 s)
Charging current (max.)	60 A
Short circuit currrent	3300 A
Charging methods	Constant voltage charge (+25 °C)
Temperature compensation	-30 mV/oC
Dimensions (L x W x H)	522 x 238 x 218 mm
Weight	65 kg

---
