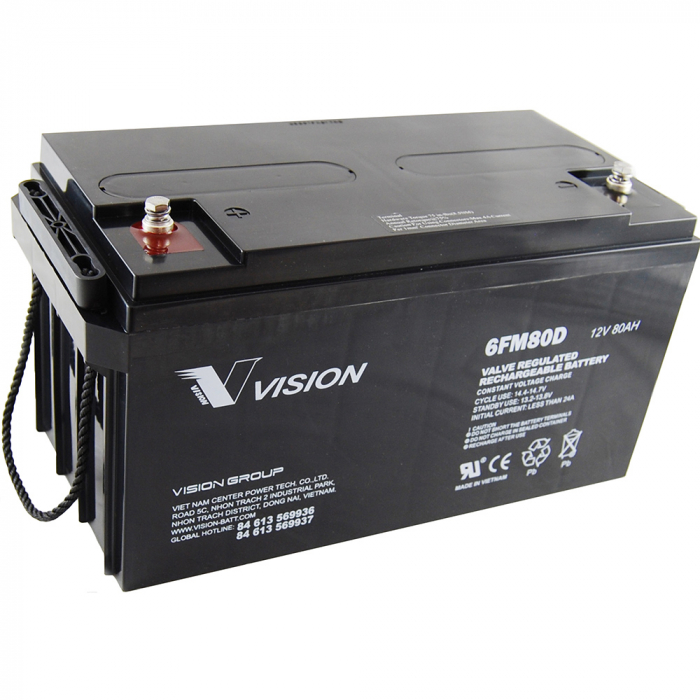

AGM battery 12 V, 80 Ah

Description | Technical data | Variants | Downloads

Versatile battery with advanced AGM technology

This battery is particularly suitable for main power supply with many charging and discharging cycles. A special valve regulates the pressure, so the gases can escape if the pressure builds up excessively. The battery is completely sealed and maintenance-free, leak-proof and can be installed in any orientation.

Main features

AGM technology
Efficient gas recombination of up to 99 %
Can be installed in any orientation
Long service life
Maintenance-free operation
Low self discharge

Delivery content

AGM battery 12 V, 80 Ah

Recommended use

Ideal for use in construction machines, trucks, travel coaches, boats in craft vehicles as well as in mobile homes and caravans, also in connection with 12 V solar systems or wind power.

Technical Data

Battery type	AGM
Nominal voltage	12 V
Battery capacity	80 Ah
Nominal capacity	10 h/80 Ah 5 h/66 Ah 1 h/47.9 Ah
Internal resistance	Fully charged battery +20 °C / 5.5 mOhms
Self discharge	3 % of capacity declined/month at +25 °C
Operating temperature	Discharge: -20 to +60 °C Charge: -10 to +60 °C Storage: -20 to +60 °C
Discharge current (max.)	750 A (5 s)
Charging current (max.)	24 A
Short circuit currrent	1900 A
Charging methods	Constant voltage charge (+25 °C)
Temperature compensation	-30 mV/oC
Dimensions (L x W x H)	350 x 167 x 179 mm
Weight	24 kg
