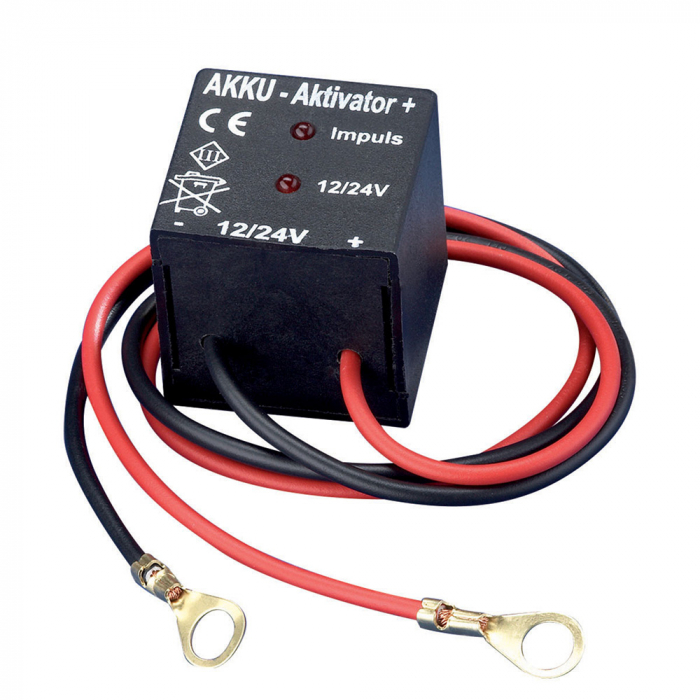

Battery Activator IVT 12 V/24 V, 10-200 Ah

Battery activator for 12 V and 24 V batteries, with E-certification

The compact and easy-to-use Battery Activator 12 V/24 V is used for the maintenance of lead batteries with a capacity of 10 Ah - 200 Ah. With this small and extremely light helper, the service life of all 12 V and 24 V lead batteries can be considerably extended. It prevents the formation of sulphate deposits on new batteries and breaks down already formed sulphate layers on used batteries.

The battery activator is suitable for permanent installation in all vehicles with road registration. It can remain permanently connected to the vehicle's starter battery. It does not require an external power supply because it is powered exclusively by the battery. At set intervals, it feeds the absorbed energy back into the battery in the form of current pulses. The very low power consumption is only 4 mA - 7 mA.

The microcontroller-controlled battery activator is constructed in SMD technology, encapsulated and thus protected against water jets (IP 65). Proper functioning of the device is indicated by the two LEDs.

The battery activator is also suitable for solar batteries up to 200 Ah.




Delivery content

• Battery Activator IVT 12 V/24 V, 10-200 Ah
• Operating instructions DE, GB, FR, NL

Recommended use



Technical Data

Rechargeable battery type	Lead batteries (Acid, Gel, AGM)
Battery voltage	12 V, 24 V
Operating voltage range	10 V - 32 V
Battery capacity	10 Ah - 200 Ah
Current consumption	4 mA - 7 mA
Charging current impulse	80 A - 200 A
Impulse interval	5 s - 20 s
Operating temperature range	-25 °C to +85 °C
IP protection housing	IP 65
Cable length	43.5 cm
Dimensions (L x W x H)	39 x 30 x 30 mm
Weight	45 g

---
