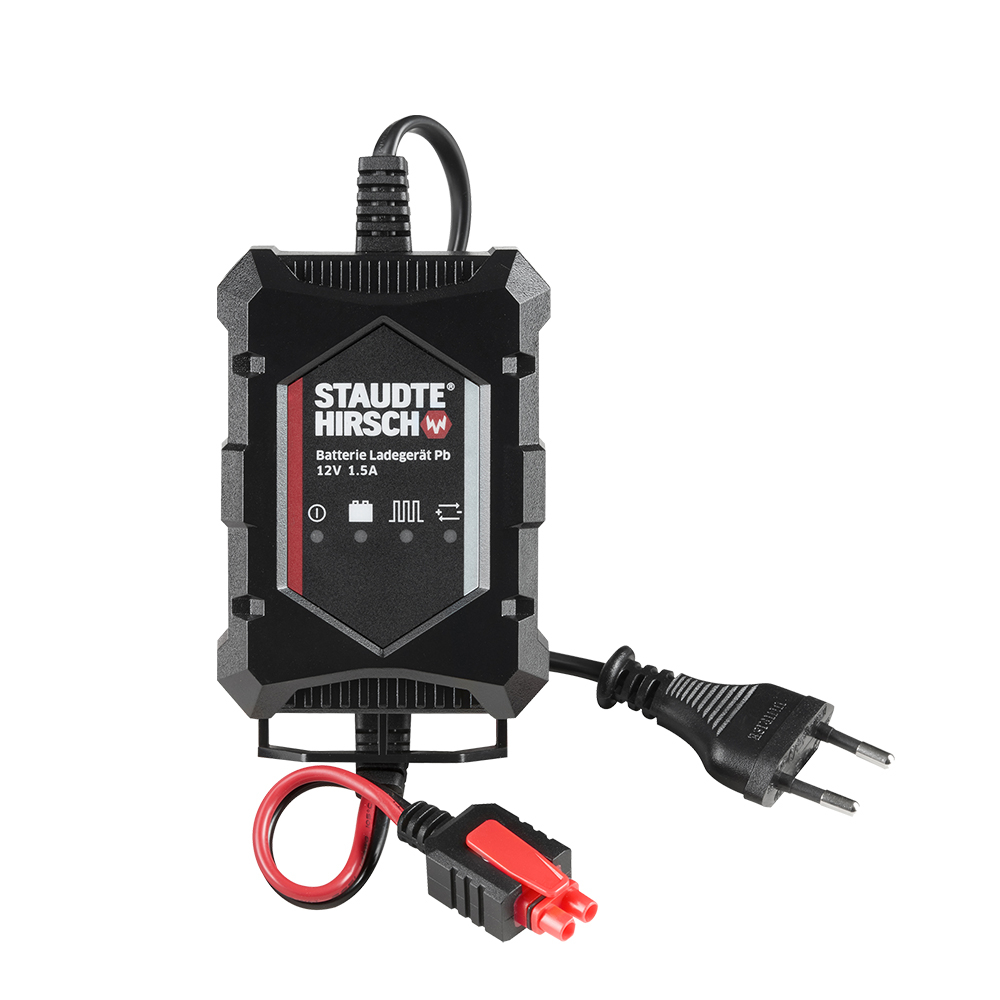

Battery Charger Staudte Hirsch Pb SH-3.110, 12 V, 1.5 A

Suitable for 12 V lead batteries ( Acid, Gel, AGM)
Charging in IU charging method
Desulphation: reactivates deep-discharged batteries
Float charging – always ready for immediate use
Optimal for continuous use in seasonal vehicles
Protection against short-circuit, reverse polarity and overcharging
Clear LED display
Compact and lightweight – ideal for on the road
Delivery includes 2-piece charging adapter set

Item no. 331100 | EAN 4030072331104

42,49 EUR

VAT incl.

Become a sales partner

Request an offer

Important characteristics and features

Features & Functions

IU charging method

Charging curve and charging method

Battery Charger Pb SH-3.110: Grafik UI Ladekurve

The Battery Charger Pb SH-3.110 charges according to the IU charging method, i.e. the charging current decreases while the battery voltage remains constant.

Desulphation function: protection against harmful sulphate deposits

Desulphation function: protection against deposits

Both in charging mode and in float charging, short current pulses are applied to the battery to break down harmful sulphate deposits. This regenerates an already damaged battery and considerably increases its performance and service life. The efficiency of the pulse operation is higher the longer the charger remains connected to the battery.

The desulphation function also benefits new batteries. Here, the SH-3.110 lead-acid charger prevents sulphate deposits from forming in advance. The full performance of the battery is maintained. After reaching the cut-off voltage (13.8 V), the device maintains the charge of the battery. This means that it can also remain connected permanently.

Float charging phase – ideal for longer periods of inactivity

Float charging for longer periods of inactivity

Thanks to the float charging phase included in the multi-step charging process, the battery capacity is constantly monitored, optimally recharged if necessary and capacity losses due to self-discharge are compensated immediately.

This fully automatic feature guarantees the instant operability of your vehicle at all times and ensures that your battery is fully efficient even after long periods of inactivity.

Safe operation – protection against short circuit, reverse polarity and overcharging

Defective, short-circuited and reverse-poled rechargeable batteries are automatically detected by the charger. In these cases, the charging process is not started. If the battery is connected with reversed polarity, the error indicator (LED) lights up.

Clear LED display

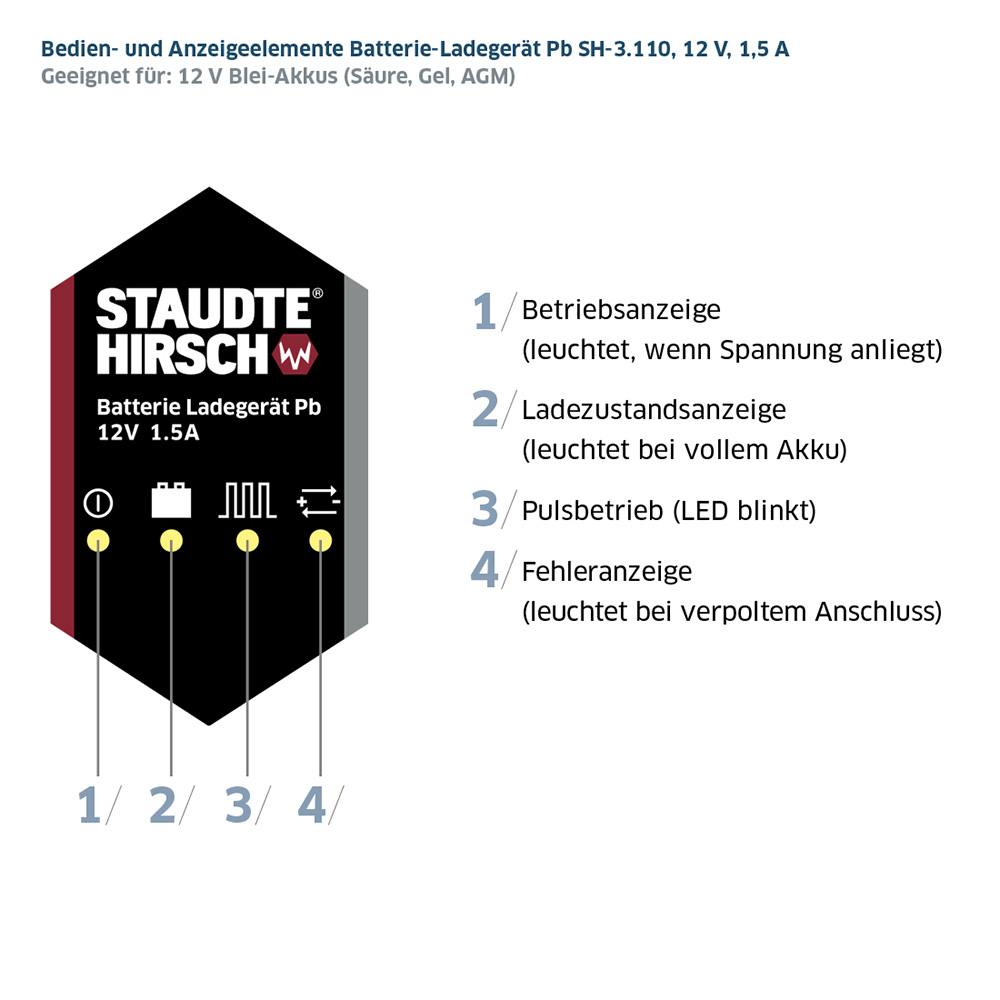

Battery Charger Pb SH-3.110: Graphic LED display

1 Operating indicator (mains voltage applied)
2 Charging status indicator
(LED lights up when battery is full)
3 Pulse mode (LED flashes)
4 Fault indicator
(LED lights up when the polarity is reversed)

The clear LED display gives you information about the operating status and the charging status of the battery at any time. Possible errors are indicated visually.

Robust housing (IP 20)

Thanks to its robust housing (IP 20), the charger can be used safely and reliably. Thanks to its practical mounting rail, it can be firmly mounted, for example, on the garage wall.

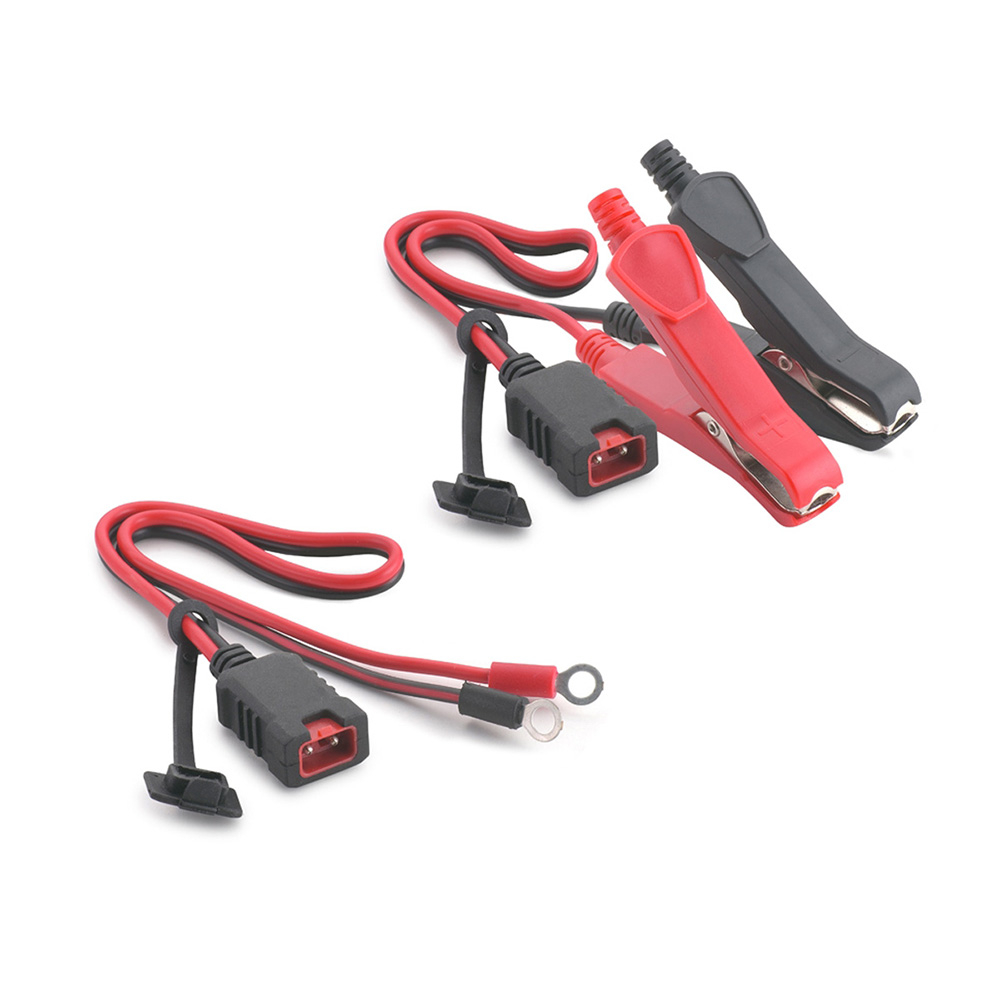

Included charging adapters – Conveniently connect and exchange

Charging adapters – Connect and exchange easily

The 2-piece, water-protected (IP 44) adapter cable set, which is included in the delivery content, allows for a versatile and flexible use

Quick contact plug: connection between charger and adapter cable

Quick contact plug: connection between charger and adapter cable

Simply connect and exchange
Thanks to the quick-contact plug, the required adapter cable can simply be connected to the charger cable and, if necessary, replaced with another one.

Accessory Adapter cable with battery clamps

Adapter cable with battery clamps
By means of the completely isolated batteryclamps, the charger can be quickly and safely connected to or disconnected from the battery.
Product no. 911000.K
To the product >

Accessory Adapter cable with eyelet rings

Adapter cable with eyelet rings
It can be permanently connected to hard-to-reach batteries. Advantage: The eyelets only have to be fixed to the battery once. After that, the charger can be connected to e.g. the motorcycle with little effort using the quick-contact plug. (Diameter eyelet rings outside 12 mm, inside 6.5 mm).
Product no. 911000.O
To the product >

These and other adapter cables can also be ordered separately

	3-piece adapter cable set Item no. 911000.A To the set >
	Adapter cable with battery clamps Item no. 911000.K To the product >
	Adapter cable with eyelet rings Item no. 911000.O To the product >
	Adapter cable with 12 V plug Item no. 911000.Z To the product >
	Adapter cable with open ends for retrofitting Item no. 911000.S To the product >

3 year manufacturer warranty

Products of IVT and Staudte Hirsch are manufactured to a high quality and following strict quality guidelines. We are certain about the longevity so that we add another year to the statutory manufacturer warranty free of charge (rechargeable batteries excluded).

Delivery content

Battery Charger Staudte Hirsch Pb SH-3.110, 12 V, 1.5 A
Adapter cable with battery clamps
Adapter cable with eyelet rings
Instruction manual in DE, GB

Recommended use

Car, ride-on mower, quad bike, motorcycle, motor scooter, moped, golf trolley, snowmobile and many more.

Technical Data

Input
Operation voltage	100 - 240 V AC, 50/60 Hz
Input current (max.)	0.45 A
Power consumption	28 VA
Output
Suitable battery voltage	12 V
Charging current (max.)	1.5 A ± 10 %
Rechargeable battery type	12 V lead batteries (Acid, Gel, AGM)
Battery capacity	2.0 - 35.0 Ah
Charging method	IU
Cut-off-voltage	13.8 V ± 0.2 V
General
Reverse current	< 0.5 mA
IP protection	IP 20 (charger) IP 44 (adapter cable set)
Cable length	1.80 m (mains cable) 0.50 m (connection cable incl. adapter)

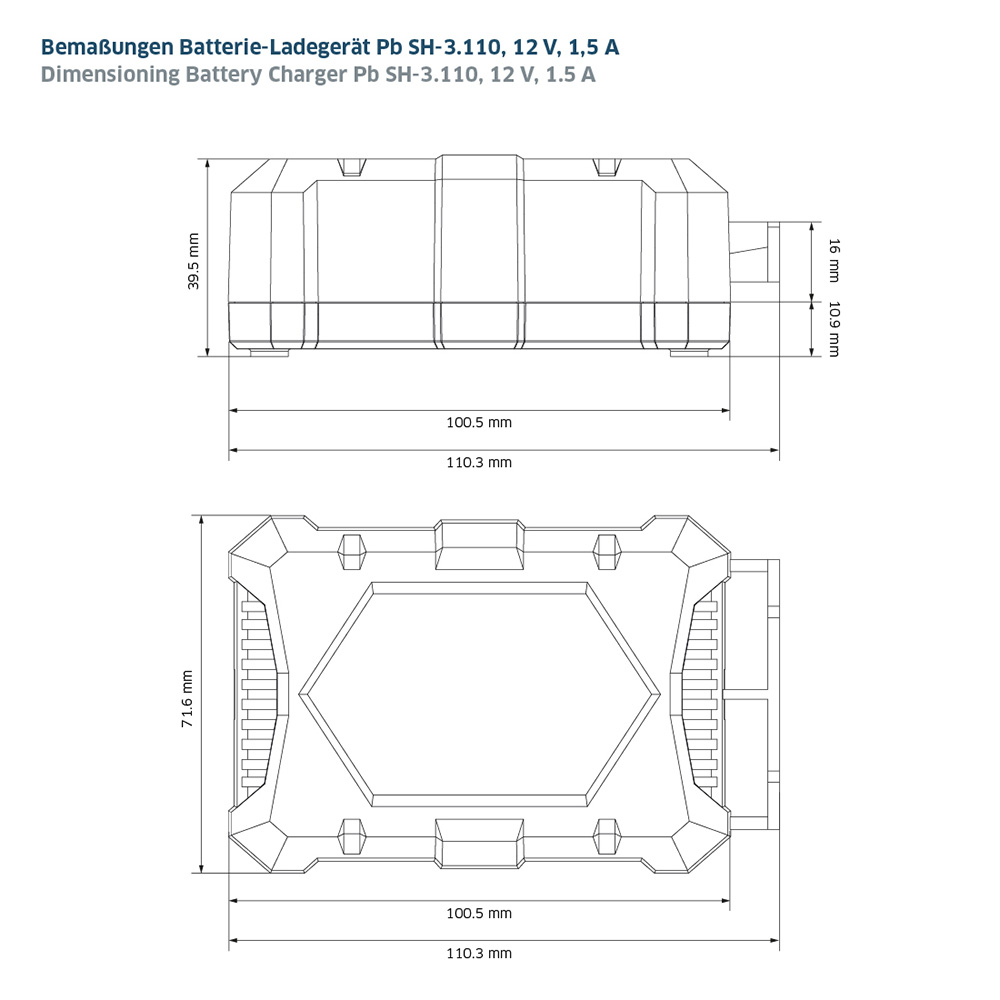

Dimensions (L x W x H)	110 x 70 x 40 mm
Weight	260 g (without accessories) 380 g (with accessories)
