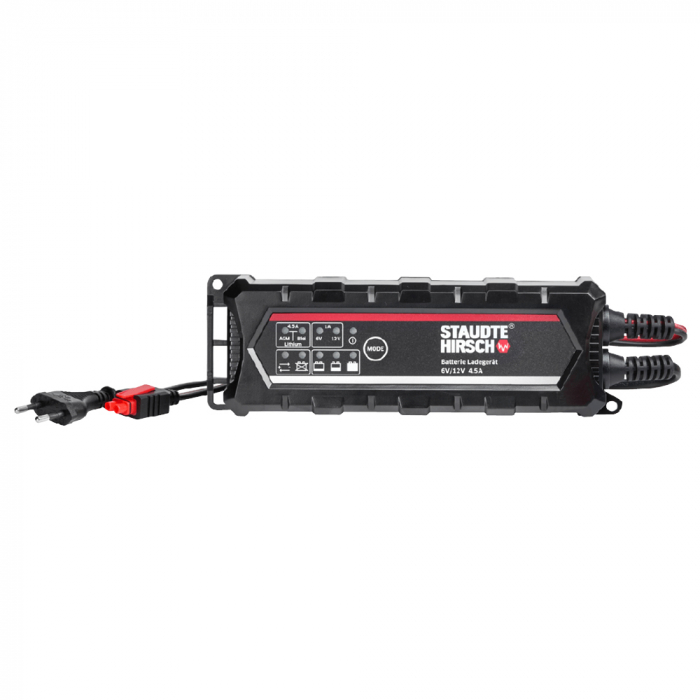

Name: Battery Charger Staudte Hirsch SH-3.130, 6 V/12 V, 4.5 A
Brand: Staudte Hirsch
SKU: 331300
Price: 61.80 EUR
Availability: InStock

Important characteristics and features

Features & Functions

Advantages of the intelligent, multi-step charging

The fully automatic multi-step charging method guarantees that your battery is charged fully and gently in the shortest possible time and according to its type.

Mode	Battery type	Battery capacity	Charging current	Cut-off- voltage
AGM	12 V AGM	from 14 Ah	4.5 A	14.7 V
SLA/Gel	12 V lead-acid 12 V lead-gel	from 14 Ah	4.5 A	14.4 V
Lithium	12 V LiFePO₄ with BMS	from 25 Ah	4.5 A	14.4 V
6 V Motorbike	6 V lead	< 14 Ah	1 A	7.2 V
12 V Motorbike	12 V lead	< 14 Ah	1 A	14.4

The fully automatic multi-step charging method guarantees that your battery is charged fully and gently in the shortest possible time and according to its type.

Mode	Specification
AGM	Battery type: 12 V AGM, from 14 Ah Charging current: 4.5 A Cut-off-voltage: 14.7 V
SLA/Gel	Battery type: 12 V lead-acid, from 14 Ah 12 V lead-gel, from 14 Ah Charging current: 4.5 A Cut-off-voltage: 14.4 V
Lithium	Battery type: 12 V LiFePO₄ with BMS, from 25 Ah Charging current: 4.5 A Cut-off-voltage: 14.4 V
6 V Motorbike	Battery type: 6 V lead, < 14 Ah Charging current: 1 A Cut-off-voltage: 7.2 V
12 V Motorbike	Battery type: 12 V lead, < 14 Ah Charging current: 1 A Cut-off-voltage: 14.4 V

Regeneration step for the reactivation of deep discharged batteries

Regeneration step for deep discharged batteries

When a battery is connected to the charger, the device first determines independently what the charging status of the battery is (deep discharged, partially discharged). If the battery is detected as deep discharged, the charging process will automatically start in regeneration mode. A lower charging current is used to bring the deep discharged battery back to a voltage at which the regular charging function can be started.

Should this be no longer possible, the battery is detected as defective and the error is indicated by an optical signal.

Float charging phase – ideal for longer periods of inactivity

Float charging for longer periods of inactivity

Thanks to the float charging phase included in the multi-step charging process, the battery capacity is constantly monitored, optimally recharged if necessary and capacity losses due to self-discharge are compensated immediately.

This fully automatic feature guarantees the instant operability of your vehicle at all times and ensures that your battery is fully efficient even after long periods of inactivity.

Integrated: auto-memory function

The auto-memory function ensures that the battery charger returns automatically to the previously selected mode after power is restarted following a supply voltage failure.

Safe operation – protection against short circuit, reverse polarity and overcharging

Defective, short-circuited or reverse-poled rechargeable batteries are automatically detected by the charger and indicated by visual warning signals.

Clear display – easy to use

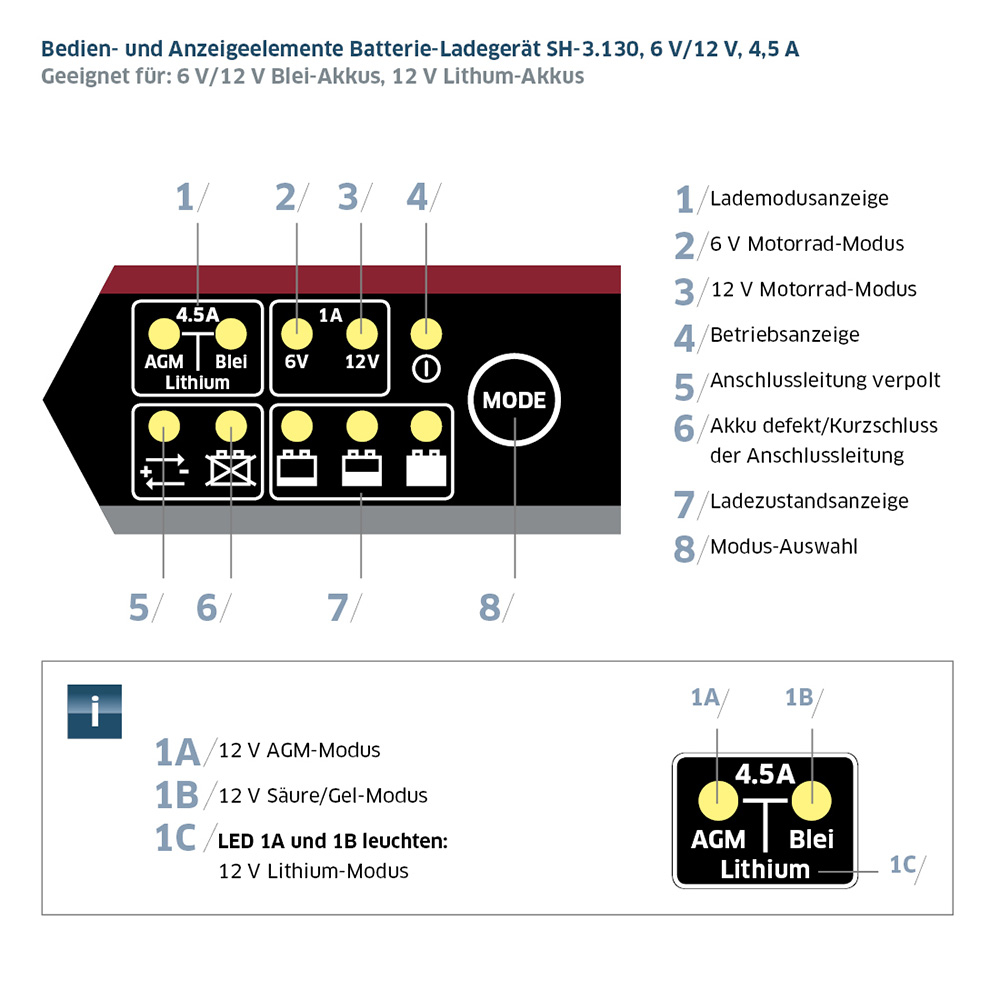

Battery Charger SH-3.130: Graphic operation and display panel

Clear operation and display panel
1 Charging mode indicators
2 6 V Motorbike mode
3 12 V Motorbike mode
4 Operating display
5 Connection cable with reverse polarity
6 Battery defective/short circuit of connection cable
7 Charging status indicators
8 Mode selection

The clearly arranged operation and display panel has charging mode, charging status and error indicators. It keeps you informed about the selected operating mode, the selected battery type and its charging status, at all times. Possible errors are visually displayed.

With the MODE button you can easily and conveniently make the desired settings or select the charging method.

Jet-water-protected and dust-tight housing (IP 65)

Its robust, jet-water-protected and dust-tight housing (IP 65) allows the charger to be used safely and reliably outdoors in rain or snow.

Thanks to its practical mounting rail, it can be firmly mounted, for example, on the garage wall.

Included charging adapters – Conveniently connect and exchange

Charging adapters – Connect and exchange easily

The 2-piece, water-protected (IP 44) adapter cable set, which is included in the delivery content, allows for a versatile and flexible use

Quick contact plug: connection between charger and adapter cable

Quick contact plug: connection between charger and adapter cable

Simply connect and exchange
Thanks to the quick-contact plug, the required adapter cable can simply be connected to the charger cable and, if necessary, replaced with another one.

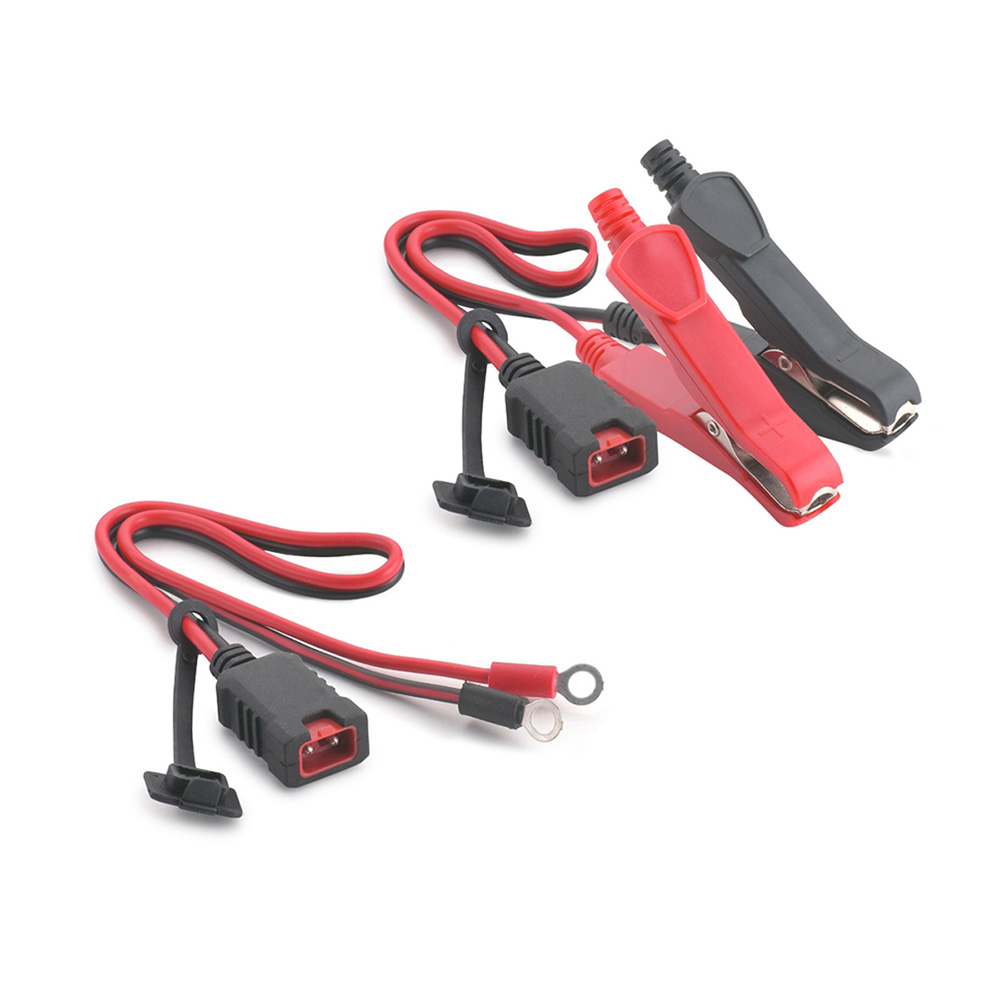

Accessory Adapter cable with battery clamps

Adapter cable with battery clamps
By means of the completely isolated batteryclamps, the charger can be quickly and safely connected to or disconnected from the battery.
Product no. 911000.K
To the product >

Accessory Adapter cable with eyelet rings

Adapter cable with eyelet rings
It can be permanently connected to hard-to-reach batteries. Advantage: The eyelets only have to be fixed to the battery once. After that, the charger can be connected to e.g. the motorcycle with little effort using the quick-contact plug. (Diameter eyelet rings outside 12 mm, inside 6.5 mm).
Product no. 911000.O
To the product >

These and other adapter cables can also be ordered separately

	3-piece adapter cable set Item no. 911000.A To the set >
	Adapter cable with battery clamps Item no. 911000.K To the product >
	Adapter cable with eyelet rings Item no. 911000.O To the product >
	Adapter cable with 12 V plug Item no. 911000.Z To the product >
	Adapter cable with open ends for retrofitting Item no. 911000.S To the product >

12 V AGM mode

The 12 V AGM mode is suitable for charging 12 V AGM batteries from 14 Ah. The maximum charging current is 4.5 A. The final charge voltage is 14.7 V.

Step 1: Softstart phase
The first charging step serves to put a deep discharged battery back into a chargeable state. The softstart phase is not necessary if the battery voltage is at least 10.0 V.

Step 2: Bulk phase
In this step, the battery is constantly charged with max. 4.5 A charging current.

Step 3: Absorption phase
In step 3, the battery is charged with constant voltage.

Step 4: Floating phase
After reaching the cut-off-voltage (14.7 V), the battery is constantly supplied with current. Capacity losses through self-discharge are compensated immediately.

12 V SLA/Gel mode

The 12 V SLA/Gel mode is suitable for charging 12 V lead-acid and lead-gel batteries from 14 Ah. The maximum charging current is 4.5 A. The final charge voltage is 14.4 V.

Step 1: Softstart phase
The first charging step serves to put a deep discharged battery back into a chargeable state. The softstart phase is not necessary if the battery voltage is at least 10.0 V.

Step 2: Bulk phase
In this step, the battery is constantly charged with max. 4.5 A charging current.

Step 3: Absorption phase
In step 3, the battery is charged with constant voltage.

Step 4: Floating phase
After reaching the cut-off-voltage (14.4 V), the battery is constantly supplied with current. Capacity losses through self-discharge are compensated immediately.

12 V Lithium mode

The 12 V Lithium mode is suitable for charging 12 V LiFePO₄ batteries from 25 Ah with integrated battery management system. The maximum charging current is 4.5 A. The final charge voltage is 14.4 V.

Step 1: Check phase
If the battery management system (BMS) is switched off due to low battery voltage, it is reactivated by a control signal from the battery charger. Not until then does the charging process start.

Step 2: Softstart phase
The softstart phase serves to put a deep discharged battery back into a chargeable state. This charging step is not necessary if the battery voltage is at least 10.0 V.

Step 3: Bulk phase
In this phase of the charging process, the battery is constantly charged with max. 4.5 A charging current.

Step 4: Absorption phase
In this charging step, the battery is charged with constant voltage.

Step 5: Floating phase
After reaching the cut-off-voltage (14.4 V), the battery is constantly supplied with current. Capacity losses through self-discharge are compensated immediately.

6 V and 12 V Motorbike mode

The motorbike mode is suitable for charging small 6 V or 12 V batteries under 14 Ah. The cut-off-voltage is 7.2 V (for 6 V batteries) or 14.4 V (for 12 V batteries) in the respective mode. The charging current is limited to 1.0 A.

6 V Motorbike mode – Charging curve and charging method

Battery Charger SH-3.130: Graphic 6 V Motorbike mode charging curve

Battery Charger SH-3.130: Graphic 6 V Motorbike mode charging curve

12 V Motorbike mode – Charging curve and charging method

Battery Charger SH-3.130: Graphic 12 V Motorbike mode charging curve

Step 1: Softstart phase
The first charging step serves to put a deep discharged battery back into a chargeable state. The softstart phase is not necessary if the battery voltage is at least 5.0 V (6 V motorbike mode) or 10.0 V (12 V motorbike mode).

Step 2: Bulk phase
In this step, the battery is constantly charged with max. 1.0 A charging current.

Step 3: Absorption phase
In step 3, the battery is charged with constant voltage.

Step 4: Floating phase
After reaching the cut-off-voltage of 7.2 V (6 V motorbike mode) or 14.4 V (12 V motorbike mode), the battery is constantly supplied with current. Capacity losses through self-discharge are compensated immediately.

3 year manufacturer warranty

Products of IVT and Staudte Hirsch are manufactured to a high quality and following strict quality guidelines. We are certain about the longevity so that we add another year to the statutory manufacturer warranty free of charge (rechargeable batteries excluded).

Delivery content

Battery Charger Staudte Hirsch SH-3.130, 6 V/12 V, 4.5 A
Adapter cable with battery clamps
Adapter cable with eyelet rings
Instruction manual in DE, GB

Recommended use

Car, transporter van, mobile home, tractor, ride-on-mower, quad bike, motorcycle, motor scooter, autocycle, snowmobile, jetski, motor boat, sailing boat and much more.

Technical Data

Input
Operation voltage	100 - 240 V AC, 50/60 Hz
Input current (max.)	1.4 A
Power consumption	75 VA
Output
Suitable battery voltage	6 V 12 V
Charging current (max.)	1.0 A ± 10 % motorbike mode 4.5 A ± 10 % lead and lithium mode
Rechargeable battery type	6 V lead batteries (Acid, Gel, AGM) 12 V lead batteries (Acid, Gel, AGM) 12 V LiFePO₄ batteries
Battery capacity	From 1.2 Ah motorbike mode From 14.0 Ah lead mode From 25.0 Ah lithium mode
Charging method	Multi-step
Cut-off-voltage	6 V battery: 7.2 V ± 0.2 V 12 V battery: 14.4 V ± 0.2 V SLA/Gel and motorbike mode 14.4 V ± 0.2 V lithium mode 14.7 V ± 0.2 V AGM mode
General
Reverse current	< 0.5 mA
IP protection	IP 65 (charger) IP 44 (adapter cable set)
Cable length	1.70 m (mains cable) 1.60 m (connection cable incl. adapter)

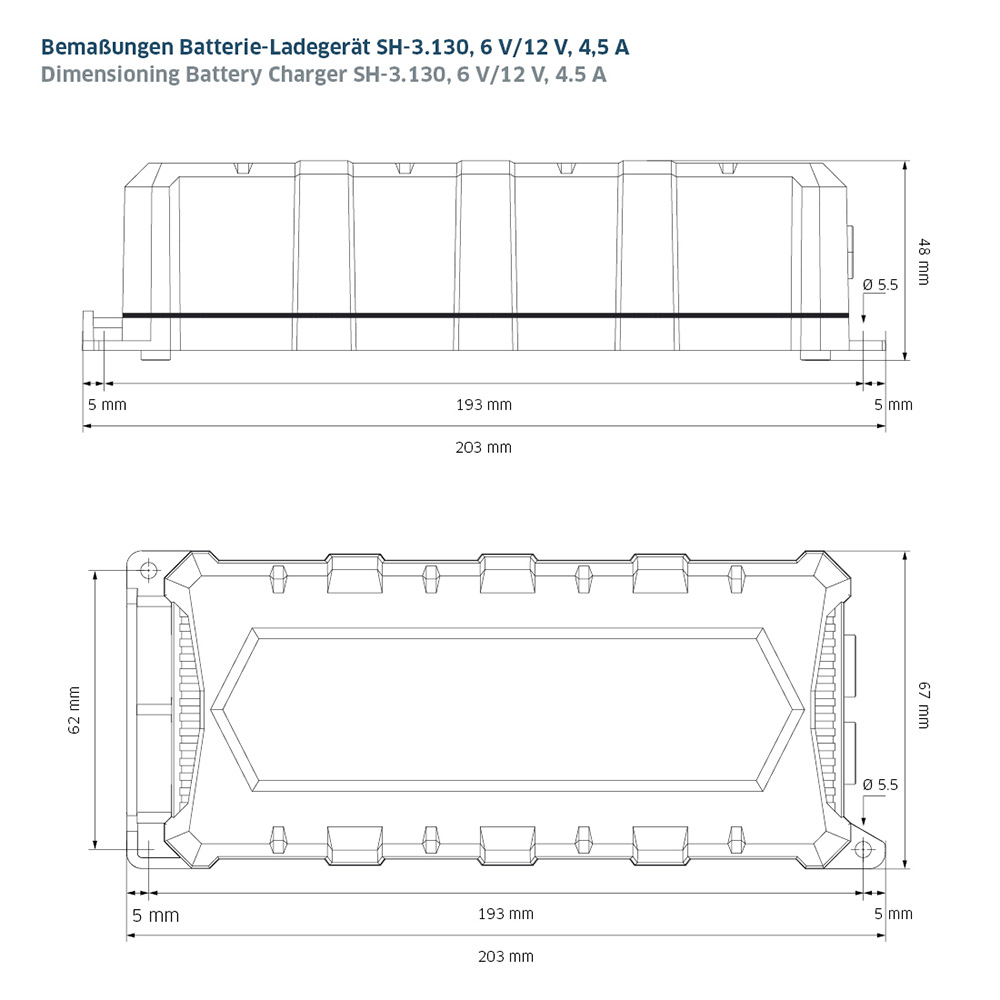

Dimensions (L x W x H)	203 x 48 x 67 mm
Weight	490 g (without accessories) 610 g (with accessories)

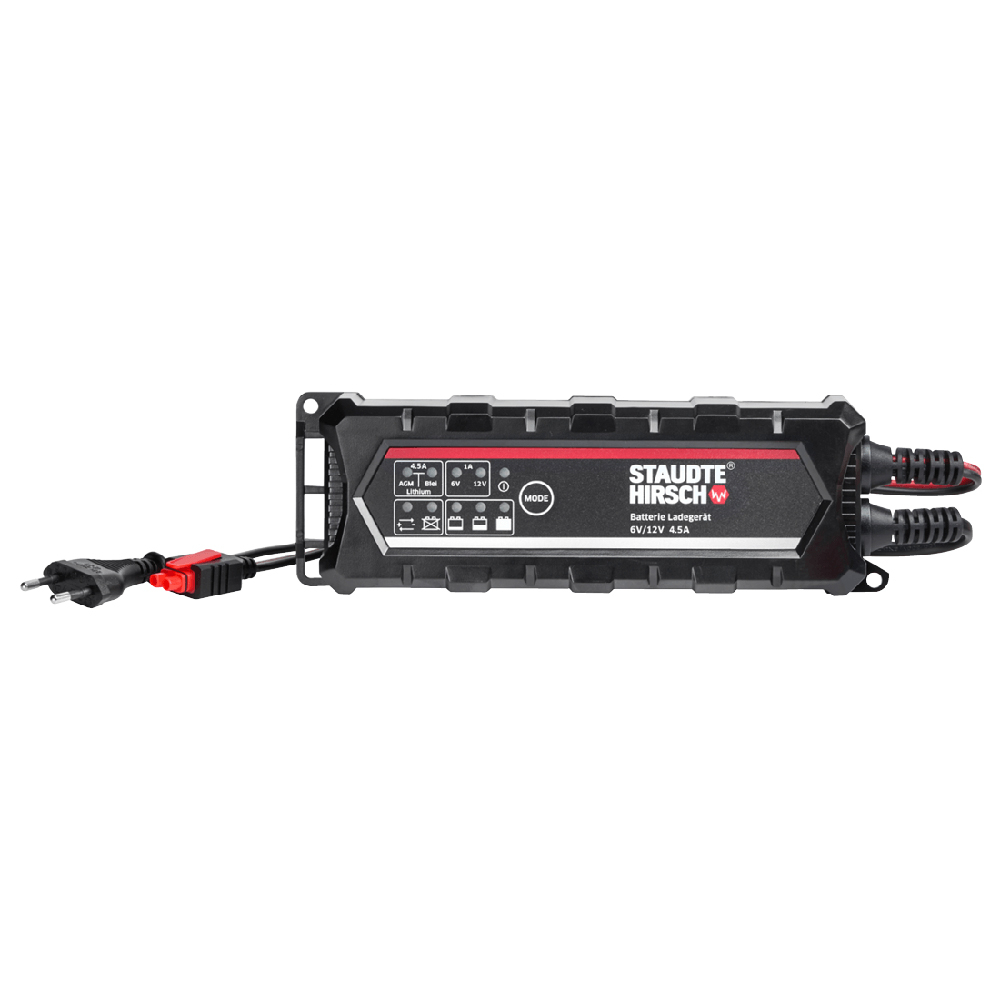

Battery Charger Staudte Hirsch SH-3.130, 6 V/12 V, 4.5 A

Allround charger with special motorbike mode
