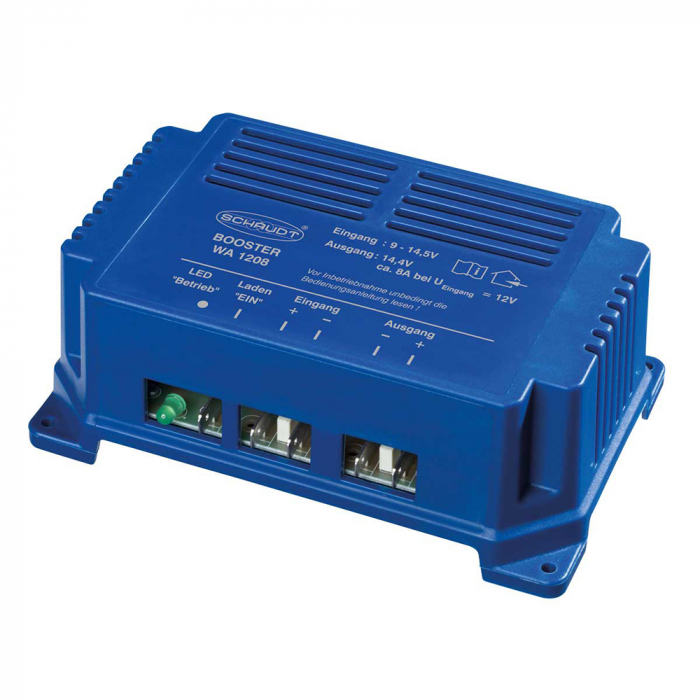

Charging Booster SCHAUDT WA 1208

Optimum charging while driving

The Schaudt Booster WA 1208 is used for optimal charging of lead-acid and lead-gel batteries while driving in caravans with 12 V electrical systems.

The booster raises the charging voltage available in the caravan to max. 14.4 V and the charging current to max. 9 A. As long as the ignition on the towing vehicle is switched on, the booster is active and the caravan battery is charged.

The booster automatically disconnects the caravan battery from the towing vehicle as soon as the engine and ignition are switched off. This prevents the battery in the towing vehicle from discharging.

Delivery content

• Charging Booster Schaudt WA 1208
• Operating instructions in DE, EN




Recommended use



Technical Data

Input voltage (Ue)	12 V DC
Charging current	8 A
Supported battery types	Lead-acid, lead-gel batteries
Battery capacity	from 35 Ah
Return current starter battery	"Motor OFF" < 0.5 mA
Return current second battery	"Motor OFF" 0 mA
Housing	Plastic
Dimensions	148 x 55 x 95 mm
Weight	270 g

---
