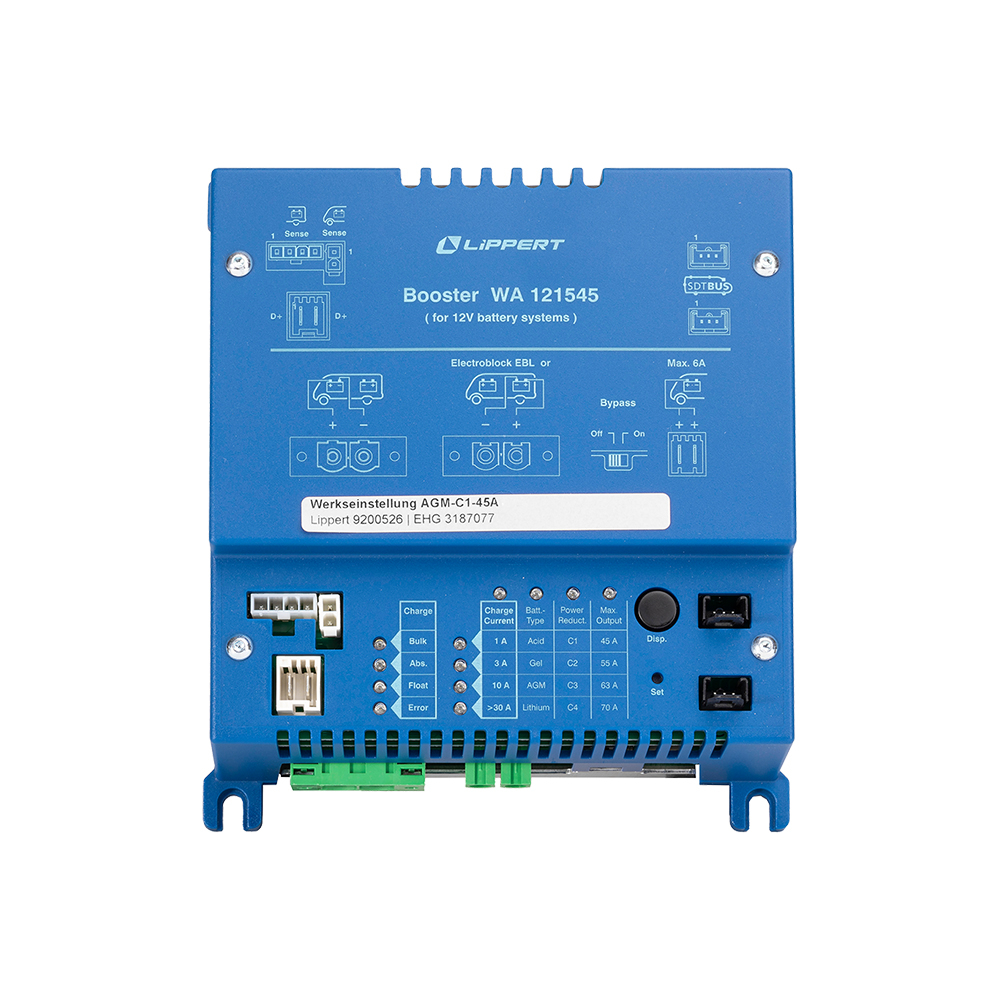

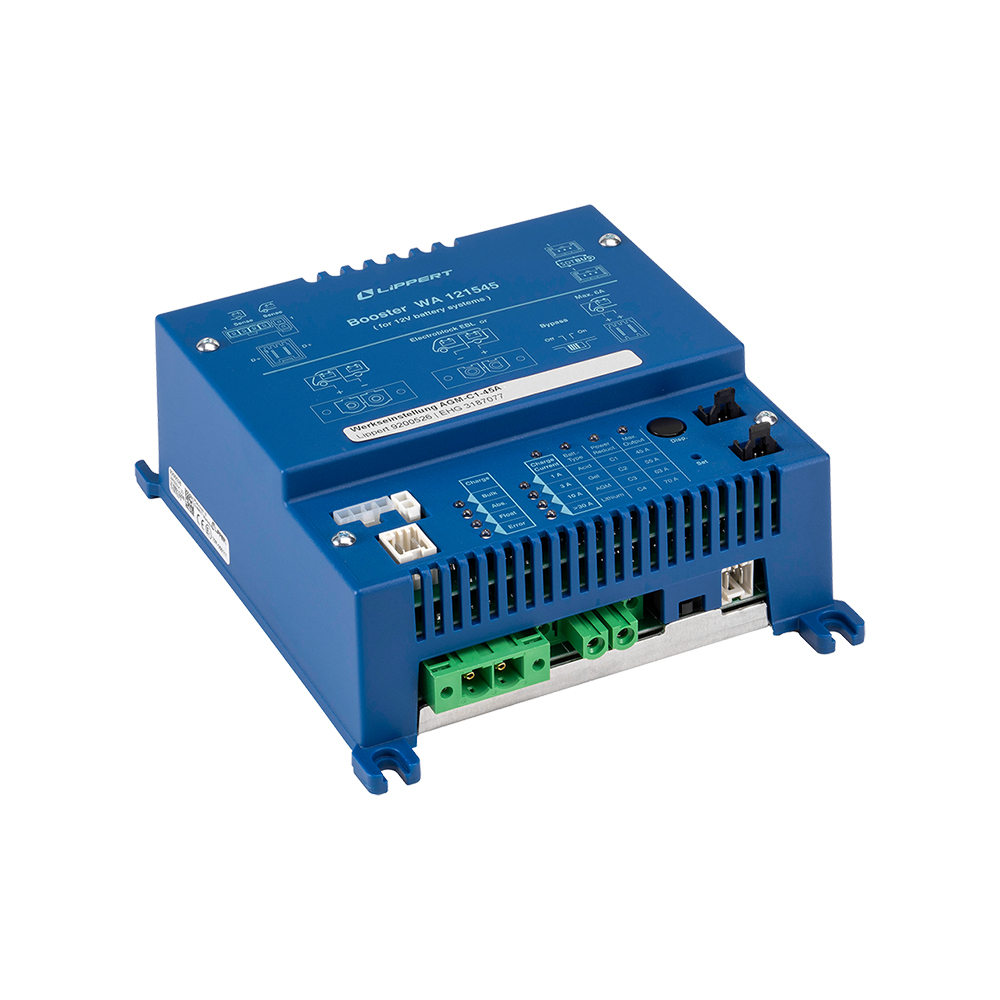

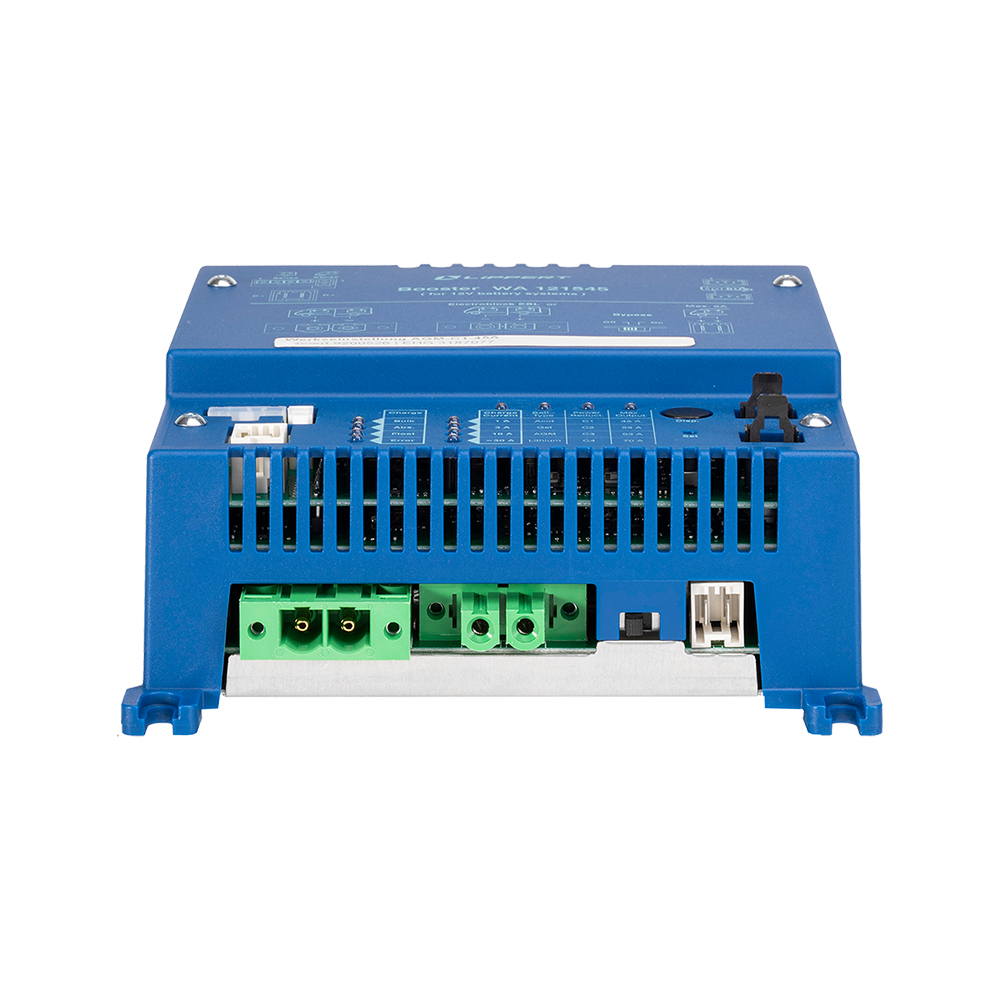

Charging Booster SCHAUDT WA 121545, incl. connection and temperature sensor set

Optimum battery charging while driving

The Schaudt Booster WA 1215545 is used for optimal charging of lead-acid, lead-gel, AGM and lithium batteries while driving in vehicles with 12 V systems (e.g. motorhomes).

The booster is a clocked up/down converter that compensates for fluctuating alternator voltage and provides a high charging current.

The connected secondary battery should have a capacity of min. 80 Ah. It is charged independently of the alternator voltage. When the enclosed battery temperature sensor is connected, the charging voltages are adapted to the battery temperature. Switchover to charge retention is current-dependent and automatic.

When commissioning the charge booster for the first time, changing the battery type or retrofitting with accessories, settings must be made once, otherwise no further settings are required during use.

Since the booster has a very high efficiency, it has a compact and lightweight design. The built-in fan is very quiet and only runs at high power levels.

Important characteristics and features

• Charging characteristics for lead-acid, lead-gel, AGM and lithium batteries
• Absolutely necessary in Euro 6 vehicles
• Suitable for lead-acid, lead-gel, AGM and lithium batteries
• Charging while driving
• Compensates for fluctuating alternator voltage
• Max. Charge current adjustable: 45 A, 55 A, 63 A, 70 A
• Temperature controlled charging
• Clear LED display for operation, charging and device status




Delivery content


• Basic-Set: Booster WA 121545 with 2 connection plugs for starter and starter battery
• Connection-Set: Connection material with fuses
• Sensor-Set: Two cable sets with wires for the voltage sensor, temperature sensor, connection material with fuse
• Instruction manual DE, GB, FR

Technical Data

Input voltage (Ue)	12.0 to 15.0 V (for max. charging current)
Charging current	45 A (max. 70 A)
Supported battery types	Lead-acid, lead-gel, AGM, lithium batteries
Battery capacity	min. 80 Ah/max. 700 Ah
Charging characteristic	IUoU
Temperature compensation	Yes, with the enclosed temperature sensor
Efficiency	= 93 % (at max. charging current)
Return current starter battery	"Motor OFF" < 0.1 mA
Return current second battery	"Motor OFF" < 0.4 mA
Control current	"Motor ON": "D +" connection: < 1 mA
Housing	Aluminum
Dimensions	160 x 79 x 160 mm (without mounting feet) 186 x 79 x 186 mm (including mounting feet)
Weight	1.15 kg

Recommended use




In all vehicles with 12 V system, where a secondary battery is required (e. g. inverter operation).

---
