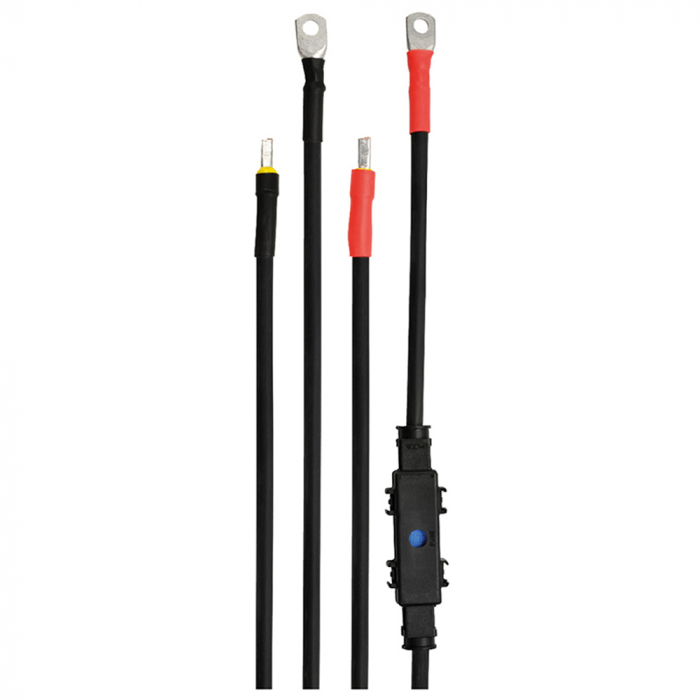

Connection Cable IVT for DSW-Inverters 2 m 35 mm²

Connection cable set, suitable for Digital Sine Wave Inverter 1200 W 12/24 V and 2000 W 24 V

IVT connection cables are safe and precisely matched to the respective inverter in terms of conductor cross-section and cable length. The workmanship of our connection cables guarantees a particularly long service life even under high loads.

The cable set is already pre-assembled with matching ring lugs and ferrules for connection to the battery and the inverter. The color-coded cable ends support fast and reverse polarity protected connection.

All original IVT connection cables are supplied including fuse holder and 200 A fuse.


This connection cable set is suitable for the following inverters

• Digital Sine Wave Inverter DSW-1200, 12 V
• Digital Sine Wave Inverter DSW-1200, 24 V
• Digital Sine Wave Inverter DSW-2000, 24 V

Delivery content

• Connection cable 2 m 35 mm² for DSW inverter



Technical Data

Conductor cross-section	35 mm2
Cable diameter	7 mm
Cable length (incl. connectors)	2 m
Conductor material	Cu
Weight	1.43 kg

---
