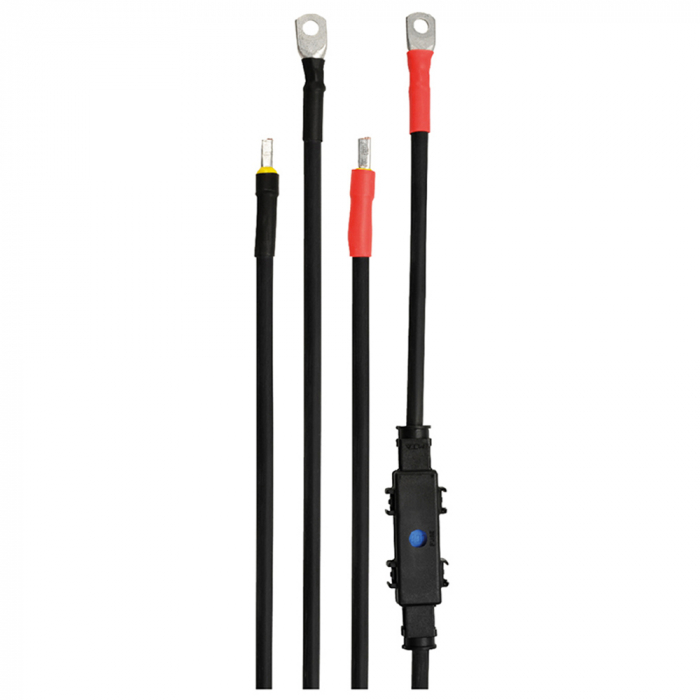

Connection Cable IVT for DSW-Inverters 4 m 25 mm²
Connection Cable IVT for DSW-Inverters 4 m 25 mm²

Connection Cable IVT for DSW-Inverters 4 m 25 mm²

  • Suitable for IVT inverters DSW-300 12 V & 24 V, DSW-600 W 12 V & 24 V, DSW-1200 24 V
  • Conductor cross section 25 mm²
  • Cable length 4 m
  • Pre-assembled with cable end sleeves and eyelet rings
  • Color coded cable ends
  • Including fuse holder with 200 A fuse

Item no. 430065 | EAN 4030072430654

87,67 EUR

VAT incl.

Become a sales partner
Request an offer
Description  |  Technical data  |  Compatible with  |  Variants  |  Downloads

Connection cable set, suitable for Digital Sine Wave Inverter 300 W 12/24 V, 600 W 12/24 V and 1200 W 24 V

IVT connection cables are safe and precisely matched to the respective inverter in terms of conductor cross-section and cable length. The workmanship of our connection cables guarantees a particularly long service life even under high loads.

The cable set is already pre-assembled with matching ring lugs and ferrules for connection to the battery and the inverter. The color-coded cable ends support fast and reverse polarity protected connection.

All original IVT connection cables are supplied including fuse holder and 200 A fuse.


This connection cable set is suitable for the following inverters

  • Digital Sine Wave Inverter DSW-300, 12 V
  • Digital Sine Wave Inverter DSW-300, 24 V
  • Digital Sine Wave Inverter DSW-600, 12 V
  • Digital Sine Wave Inverter DSW-600, 24 V
  • Digital Sine Wave Inverter DSW-1200, 24 V

Delivery content
  • Connection cable 4 m 25 mm2 for DSW inverter


CE Made in Europe 3 years warranty

Technical Data

Conductor cross-section 25 mm2
Cable diameter 6 mm
Cable length (incl. connectors)  4 m
Conductor material Cu
Weight 2.18 kg

Compatible with

Digital Sine Wave Inverter IVT DSW-300, 12 V, 300 W

Item no. 430101

319,00 EUR
VAT incl.

Digital Sine Wave Inverter IVT DSW-300, 24 V, 300 W

Item no. 430102

318,86 EUR
VAT incl.

Digital Sine Wave Inverter IVT DSW-600, 12 V, 600 W

Item no. 430103

425,00 EUR
VAT incl.

Digital Sine Wave Inverter IVT DSW-600, 24 V, 600 W

Item no. 430104

425,85 EUR
VAT incl.

Digital Sine Wave Inverter IVT DSW-1200, 24 V, 1200 W

Item no. 430106

597,06 EUR
VAT incl.
