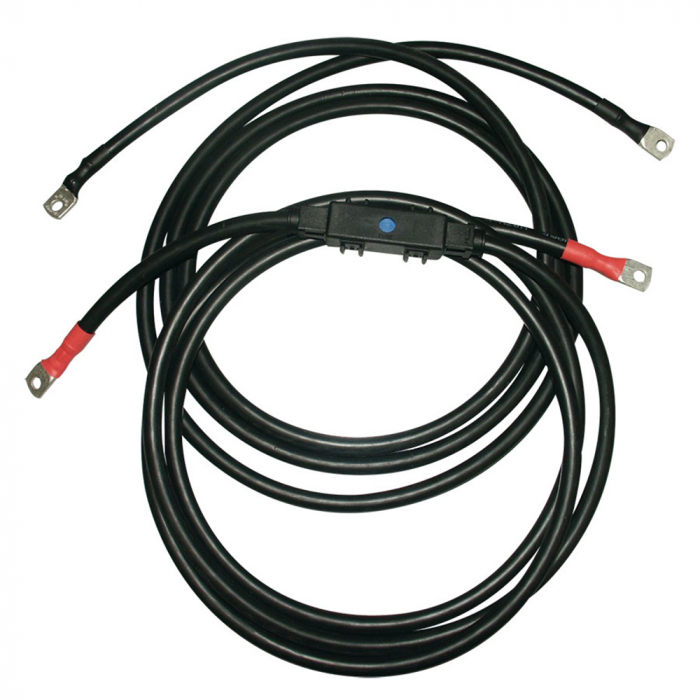

Connection Cable Set IVT for SW-Inverter 1 m 25 mm²
Connection Cable Set IVT for SW-Inverter 1 m 25 mm²

Connection Cable Set IVT for SW-Inverter 1 m 25 mm²

  • Suitable for IVT inverters SW-1200 12 V
  • Conductor cross section 25 mm2
  • Cable length 1 m
  • Pre-assembled with eyelet rings
  • Color coded cable ends
  • Including fuse holder with 200 A fuse

Item no. 421002 | EAN 4030072421027

47,45 EUR

VAT incl.

Become a sales partner
Request an offer

Connection cable set, suitable for Sine Wave Inverter 1200 W 12 V

IVT connection cables are safe and precisely matched to the respective inverter in terms of conductor cross-section and cable length. The workmanship of our connection cables guarantees a particularly long service life even under high loads.

The cable set is already pre-assembled with matching ring lugs and ferrules for connection to the battery and the inverter. The color-coded cable ends support fast and reverse polarity protected connection.

All original IVT connection cables are supplied including fuse holder and 200 A fuse.


This connection cable set is suitable for the following inverters

  • Sine wave inverter SW-1200, 12 V

Delivery content
  • Connection cable set 1 m, 25 mm2 for SW inverter


CE Made in Europe 3 years warranty

Technical Data

Conductor cross-section 25mm
Cable diameter 6 mm
Cable length (incl. connectors)  1 m
Conductor material Cu
Weight 0.61 kg

Compatible with

.
