Connection Cable Sprinter IVT for DSW-Inverters 3 m 25 mm²

Connection cable set for Mercedes Sprinter
from series 907 suitable DSW inverter 300 W as well as 600 W

Mercedes-Benz uses new connection boxes for the Sprinter from series 907 (2018), for which the standard version of the DSW connection cables do not fit. The new Sprinter connection cable sets for DSW inverters have been specially designed for this vehicle type.


This connection cable set is suitable for the following inverters

• Digital sine wave inverter DSW-300, 12 V
• Digital sine wave inverter DSW-600, 12 V

IVT connection cables are safe and exactly matched to the respective inverter in terms of conductor cross-section and cable length. The workmanship of our connection cables guarantees a particularly long service life even under high loads.

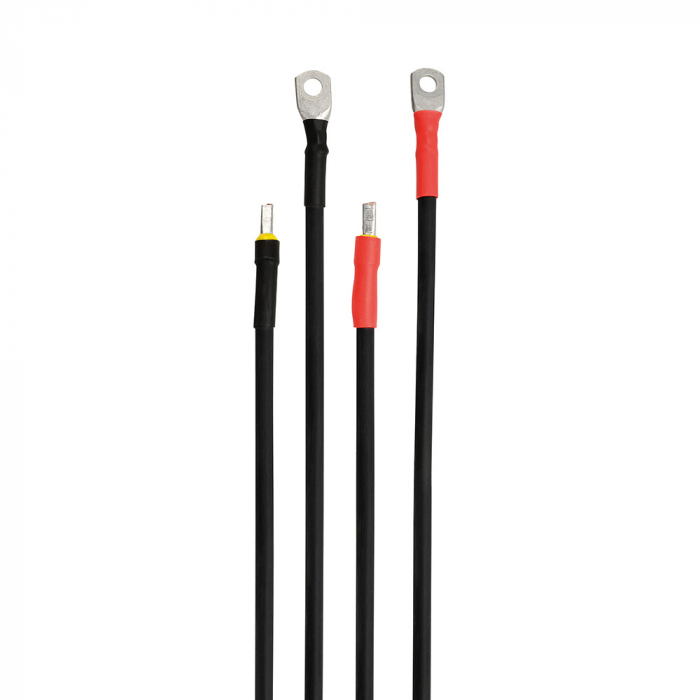

The cable set is already pre-assembled with matching ring lugs and wire end ferrules for connection to the battery and the inverter.The color-coded cable ends support fast and reverse polarity protected connection to the battery and inverter.

All original IVT connection cable sets Sprinter are supplied with a 200 A fuse (enclosed loose).

Delivery content

• Connection cable set Sprinter 3 m, 25 mm² for DSW inverter
• 200 A fuse



Technical Data

Conductor cross-section	25 mm2
Cable diameter	6 mm
Ring terminal	M8 (+) | M10 (-)
Cable length (incl. connectors)	3 m
Conductor material	Cu
Weight	1.63 kg

---
