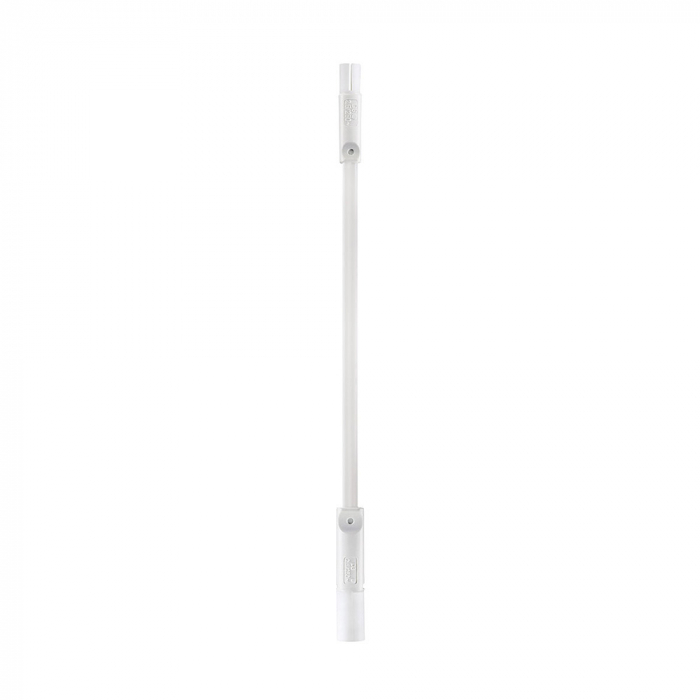

Connection cable, female - male, 2 pole, for Staudte Hirsch Interior Light 12 - 24 V

For simple and invisible electrical installations – Installation system gesis® MICRO from Wieland Electric

With their round design and a diameter of just 8 mm, cables fitted with plug connectors can be routed and installed quickly and inconspicuously.

The 2-pole plug connector system with the denominations GST08i2 can be routed through 8 mm drill holes without needing special tools.

The system consists of prefabricated connecting lines with socket and connector, 2-/6-way distributors, connecting cables with socket and connector and free end. This makes a quick and easy connection possible.

The 2-pole variant GST08i2 provides one coding for connecting machines to the voltage supply (white: 250 V, 6 A) and two low-voltage codings for connecting lights to the machines (blue: 12 V, 6 A).

The system is particularly suitable for LED lighting in confined spaces, e.g. in motorhomes, boats, vans, etc. and wherever the electrical installation should be invisible.

In addition to saving maintenance costs and installation time, flexibility and adaptability are among the many advantages of this system.

Delivery content

• Wieland connection cable, female - male, 2 pole

Recommended use



Technical Data

Rated current	6 A
Rated voltage	50 V
Mech. coding	Code 2
Lockable	No
Number of poles	2
Pole identification	Plus + / Minus -
Conductor cross-section	0.75 mm2
Cable type	H03V2V2H2-F
Protection type	IP 20
Color	white (housing)
Line type	Connection cable female – male
Cable diameter	min. 3.5 mm max. 5.5 mm
Temperature range	Continuous temperature Cable 90 °C
Cable length	1 m
Weight	33 g

---
