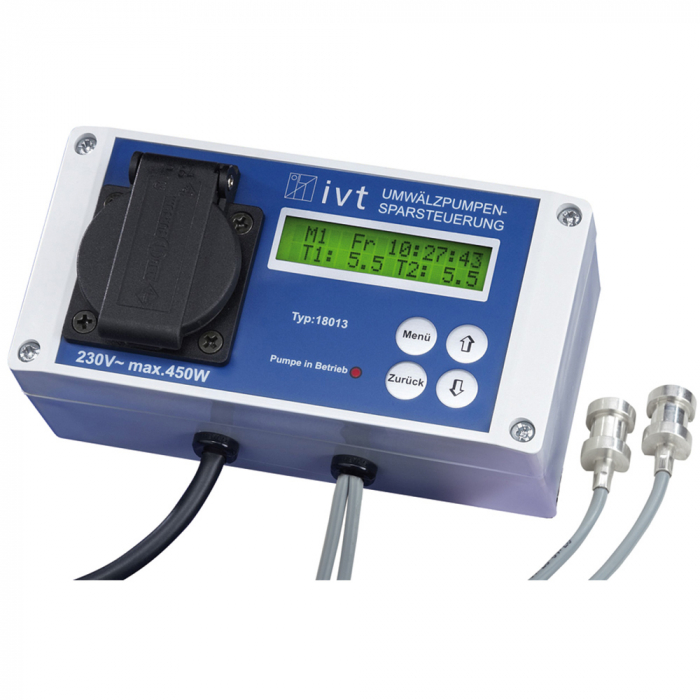

Control for circulation pumps IVT

Control for circulation pump savings – reduce electricity and heating costs

Experience individual comfort and energy saving in one device. The optimal power saver for your hot water generation. With this device, you save money and resources in water heating and thus make an active contribution to environmental protection. In addition, you significantly extend the life of your circulation pump.

Based on a pre-programmed or individually set mode, the device compares the supply and return water temperatures and switches the pump on only when required. Thus, if the temperature difference is too small (adjustable), the pump remains off.

Due to the two preset modes, the device can be put into operation immediately. In the third and fourth mode, you can use the user-friendly menu to individually set the control for circulation pump savings according to your needs. The device can be put into operation without interfering with the water installation.

Delivery content

• Control for circulation pumps
• Operating instructions in DE, GB, FR, NL

Technical Data

Operating voltage	230 V AC, 50 Hz
Power consumption	1.2 W
Protection class	I
Measuring range temperature sensors	0 °C to +100 °C
Switching capacity (max.)	450 W
Display	Two-cell alphanumeric LCD
Storage battery	3 V, CR 2032
Temperature range	0 °C to +50 °C
Cable length connecting cable	150 cm
Cable length temperature sensors	290 cm per sensor
Dimensions (L x W x H)	160 x 80 x 75 mm
Weight	750 g
