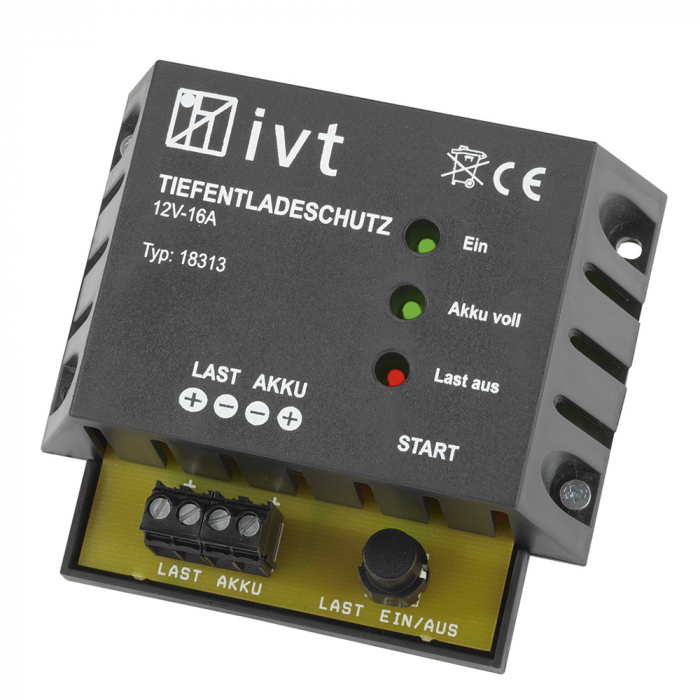

Deep Discharge Protection IVT 12 V, 16 A with battery status indicator

Reliable protection against deep discharge

This compact deep discharge protection device protects your 12 V solar battery from harmful deep discharging. If the load shut-off voltage is reached the load is automatically disconnected with an acoustic signal.

The shut-off voltage can be adjusted freely between 9 V and 14 V by means of the potentiometer. As soon as the battery voltage is higher than the selected shut-off threshold the load output (electrical consumer) can be activated again by means of push button.

Thanks to the clear LED status indicator you can instantly read if the device is ready to use, the battery is fully charged or if the load output if deactivated.

The device protected against short circuit by means of a 20 A flat fuse. The internal current consumption is low with 15 mA idle, while with active load output it is max. 50 mA.

Delivery content

• Deep Discharge Protection 12 V, 16 A
• Operation instructions in DE, GB, FR, NL



Technical Data

Battery system voltage	12 V
Supported battery types	Lead-acid, lead-gel, lead-AGM
Maximum output power	190 W
Maximum load current	16 A
Switchable load output	Yes
Internal current consumption, idle	15 mA
Internal current consumption, load output active	50 mA
Fuse	20 A
Operation temperature range	-25 °C to +50 °C
Display	LED + acoustic
Housing	Plastic
Maximum clamping range	2,5 mm2
Dimensions (L x W x H)	98 x 88 x 35 mm
Weight	100 g
Switching thresholds
Shut-off voltage, factory setting	11.6 V
Shut-off voltage, adjustable range	9 V - 14 V

---
