Name: Ex-protected LED work lamp ATEXBEAM PL-AT800, 3 W, Li-Ion battery
Brand: Atexbeam
SKU: 312218
Price: 408.35 EUR
Availability: InStock

Important characteristics and features

Explosion protection Danger Zone 1, 2, 21, 22

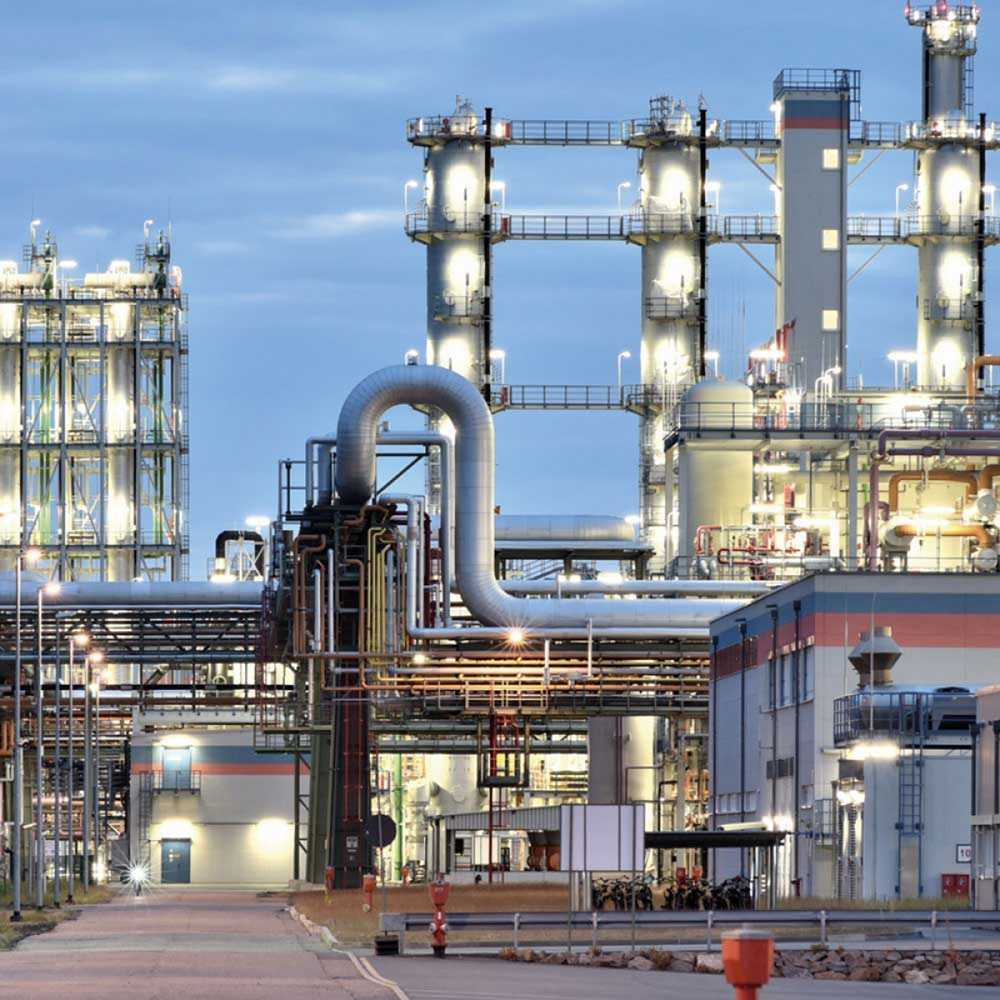

The ATEXBEAM PL-AT800 ex-certified lamp is the ideal equipment for professional rescue and rescue operations as well as maintenance and repair work in explosive atmospheres caused by a mixture of air and flammable gases, vapors or mists.

Ex certification for gas (Zone 1, 2) and dust (Zone 21, 22)

EX II 2G Ex ib IIC T4 Gb
EX II 2D Ex ib IIIC T150°C Db

The robust PL-828 work lamp convinces with optimal illumination of the working area

Craftsmen appreciate the wide beam angle (70°), the powerful 5 W Cree LED and the highly efficient Li-Ion battery for numerous applications in trade and industry.

At maximum brightness level, the light lasts for 4 hours. In dimmed mode, the PL-828 work lamp reliably provides glare-free working light for a whole working day.

Mode	Function
1 \| Flood light	Beam angle 70° Luminosity 100 % Runtime 30 h
2 \| Flood light	Beam angle 70° Luminosity 100 % Runtime 30 h
3\| Flashing mode	Beam angle 70° Luminosity 100 % Runtime 30 h

3 W high-power LED with a long life time

Equipped with a powerful 3 W Luxeon LED, the Ex-light guarantees best visibility for up to 20 hours. Depending on the brightness requirement, two light modes are available.

In the maximum brightness level, the luminaire reliably emits neutral white for 9 hours, and in energy-efficient dimmed mode, up to 20 hours of glare-free work light.

Mode	Function	Luminosity	Runtime
1	Max. Luminosity	100 %	9 h
2	Dimmed mode	50 %	20 h

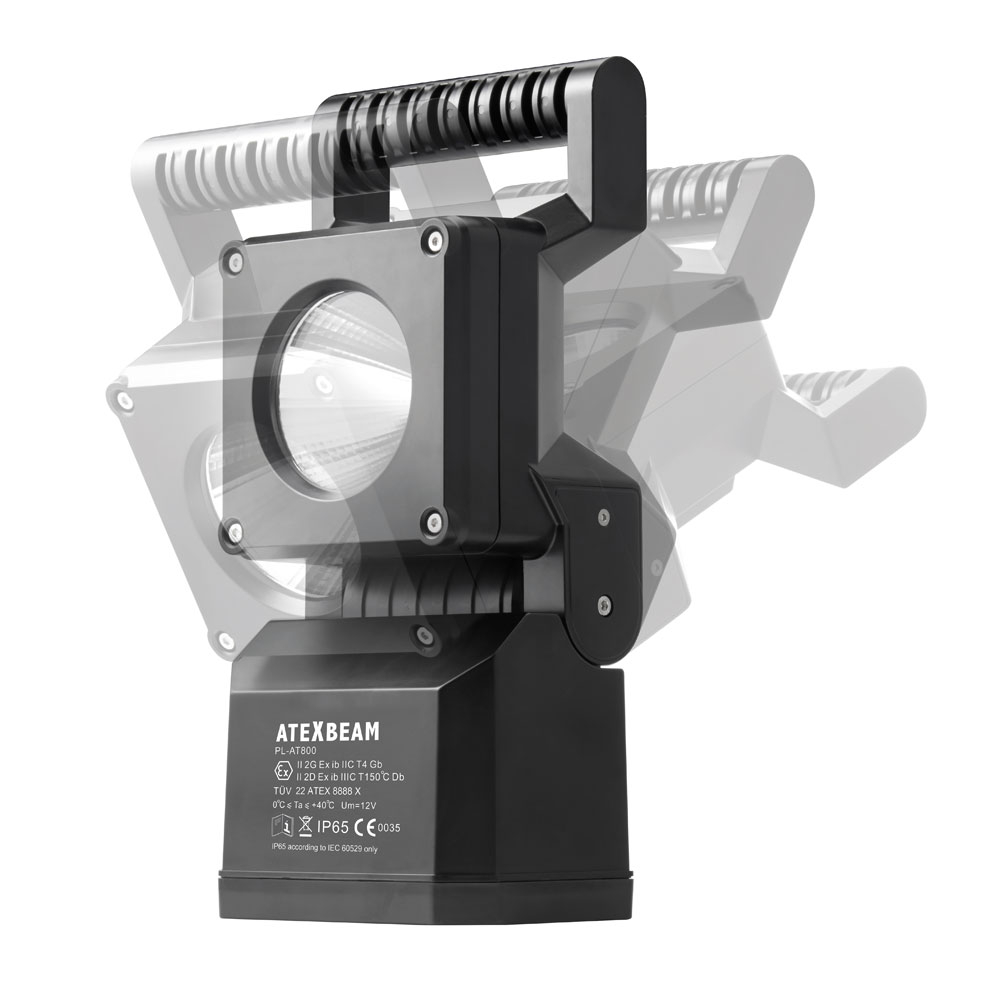

120° swiveling lamp head

In case the LED lamp is used in the workshop or as portable working light its light beam can be aligned individually to the working area thanks to the 120° continuously swiveling lamp head.

Emergency light function included

Reliable emergency light in the case of power outage

Outside the Ex area, the luminaire can also be used as emergency lighting.

Functionality: If the PL-AT800 is in the charging cradle during a power failure and is connected to the mains, it will automatically switch on because to the integrated emergency lighting function. When power is restored, the lamp automatically turns off.???????

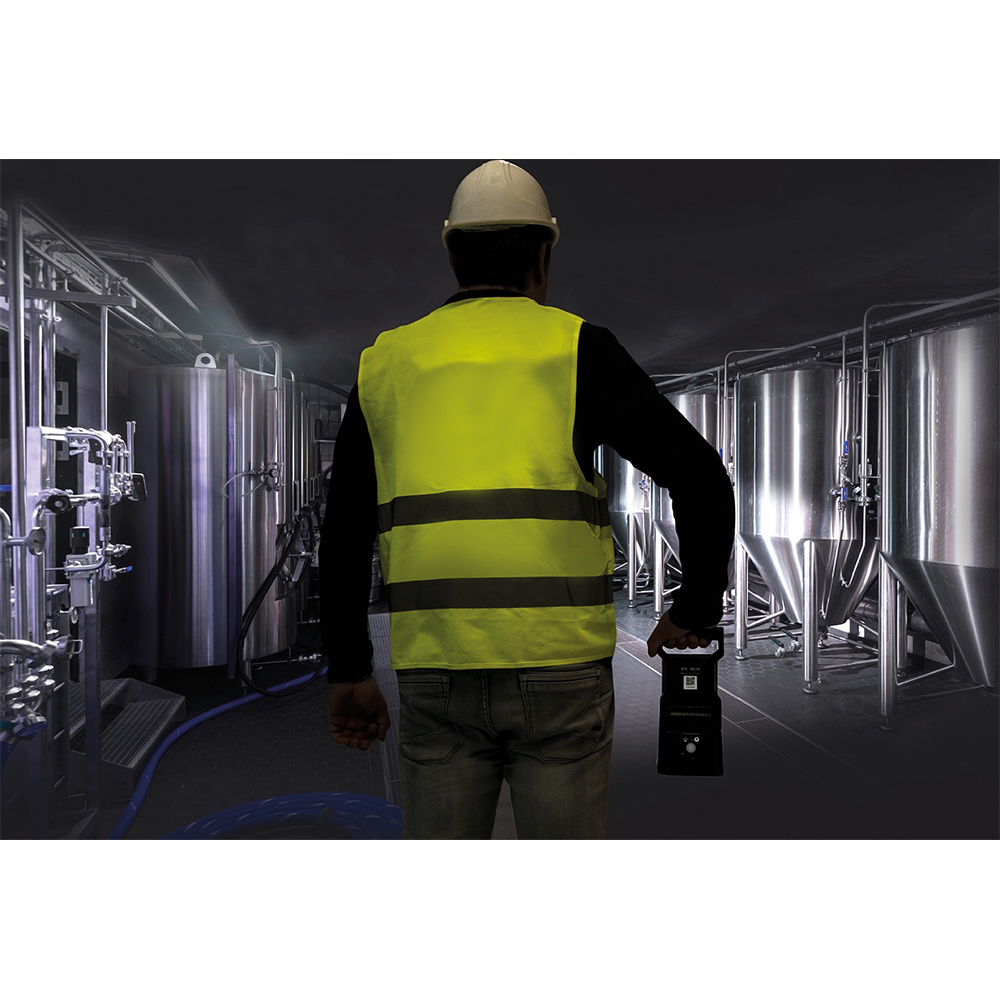

In the event of a power failure, the Ex lamp thus becomes a reliable light source, e.g. in industrial and production halls, machine rooms or other rooms without windows or in the dark.

Li-ion battery – High quality, light, powerful

Ex-protected LED work lamp ATEXBEAM with powerful Li-Ion battery

The versatile Ex-light has a very efficient, against overheating, over-and over-discharge protected Li-Ion battery. The maintenance-free Li-Ion battery with its high energy density guarantees a long service life and also minimizes the weight of the lamp considerably.

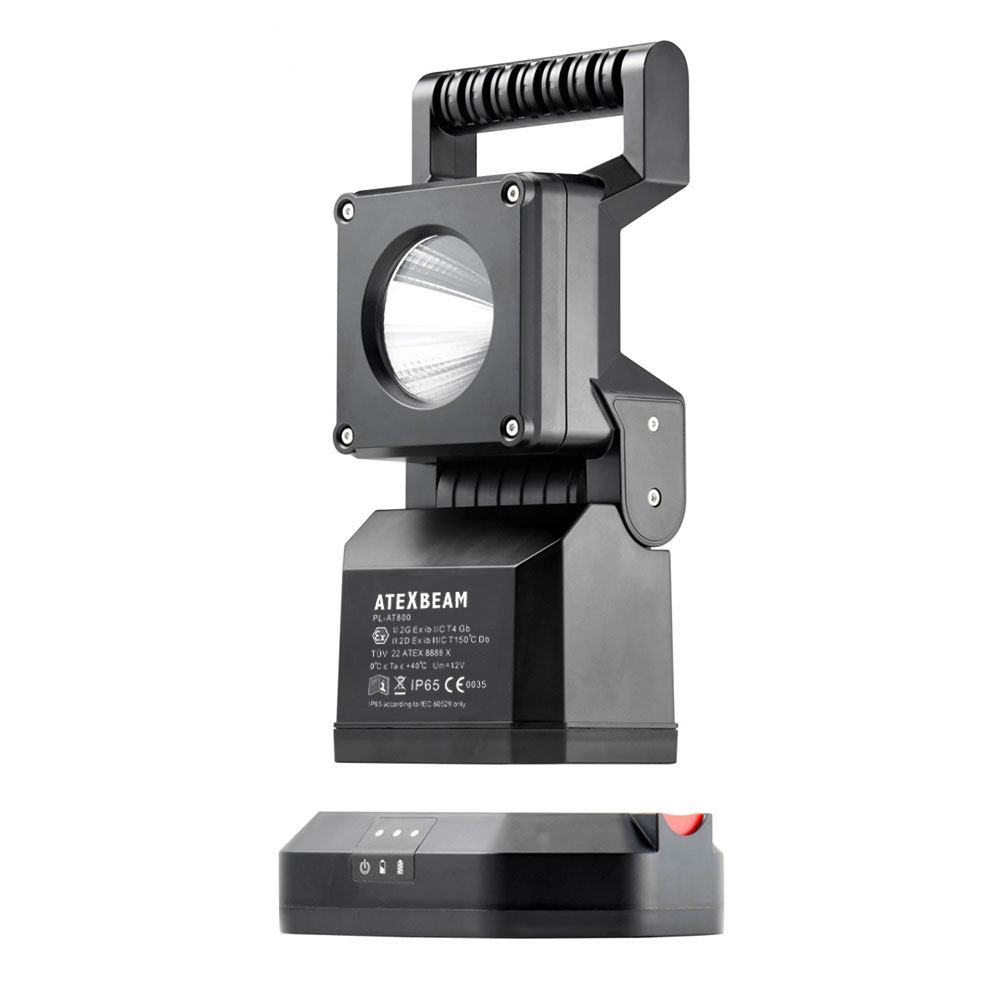

In the practical charging cradle, the Ex-lamp can be securely fixed and charged at the same time. During charging, the current state of charge of the battery can be read on the basis of 3 LEDs on the charging station. During operation, a threatening deep discharge of the battery is indicated by a flashing LED on the back of the battery Ex-lamp is displayed.

Thanks to low self-discharge, the Ex work light remains always ready for use. The 230 V power supply and the charger are included.

Please note:
The charging station is not ex-protected and must therefore not be installed and operated in an explosive atmosphere.

Easy to use – highly visible charge status indicators

Easy to use rotary knob – clear LED display

Easy to use
The rubberized push button switch allows easy operation even with work gloves. The switch can be used to turn the light on or off and select the desired light mode.

Highly visible charge status indicators
During operation, a threatening deep discharge of the battery is indicated by a flashing LED above the push-button switch.

Indestructible dust and waterproof housing – IP 65 to IEC 60529

Antistatic, shock- and impact-resistant housing
The housing of the PL-AT800 is antistatic, extremely robust and made of shock- and impact-resistant heat-resistant plastic with additional glass fiber reinforcement. The high-quality LED module is protected from possible damage by a hardened clear glass.

Dust and waterproof – suitable for indoor and outdoor use
Thanks to the dust and waterproof housing (IP 65 according to IEC 60529), the Ex light can be used both indoors and outdoors.

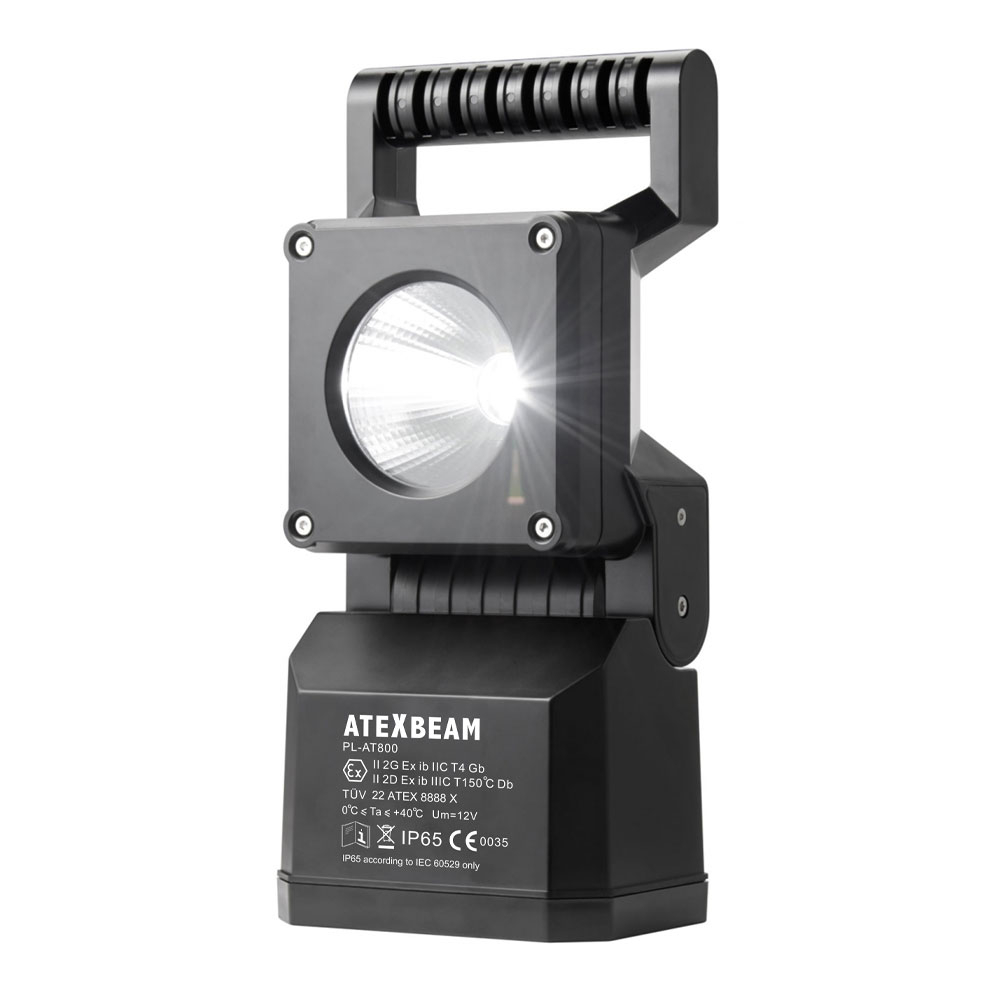

Construction and equimpent of the Ex-certified lamp

Equipment

Comfortable carrying handle
Robust, shock- and impact-resistant housing made of antistatic plastic, dust- and waterproof to IP 65 according to IEC 60529
Tempered transparent glass
3 W high power LED (275 lm)
120° swiveling lamp head
Li-Ion battery 7.4 V, 5800 mAh

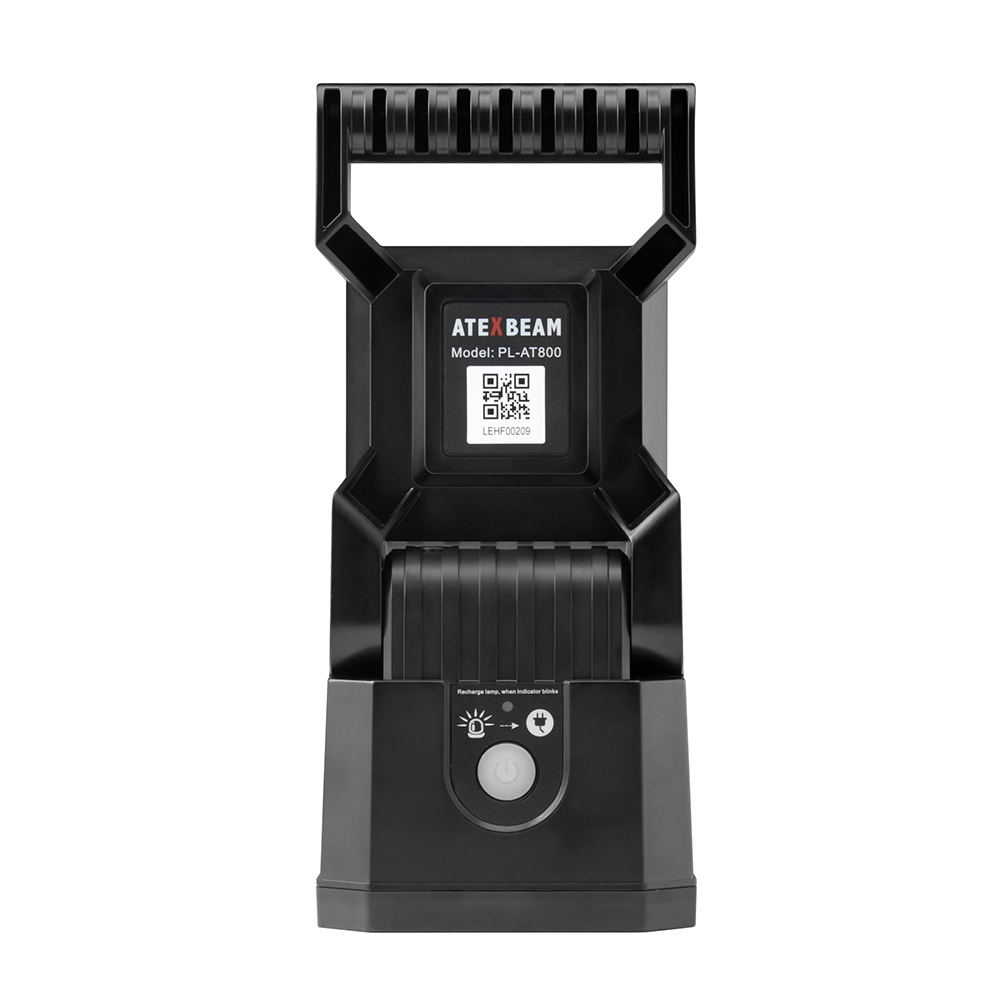

Rear side

Large rubberized push-button switch for selecting the light modes
Visual low battery warning indicator

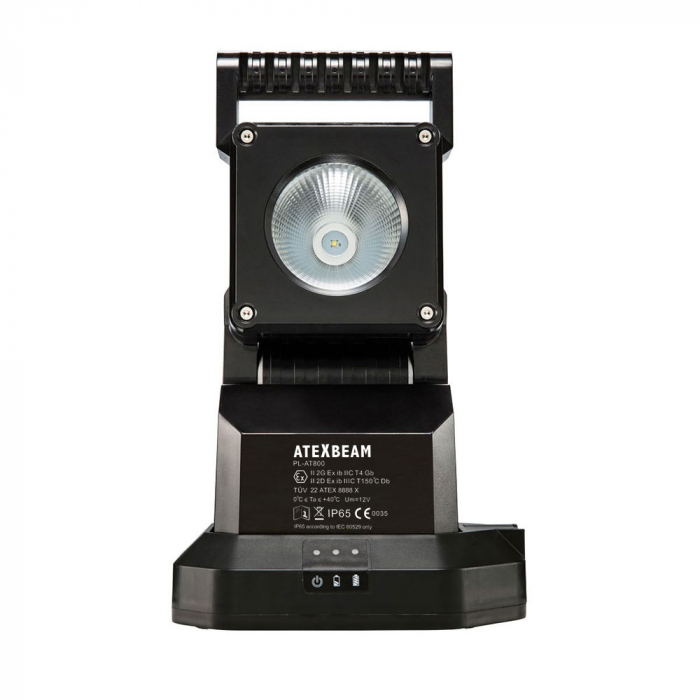

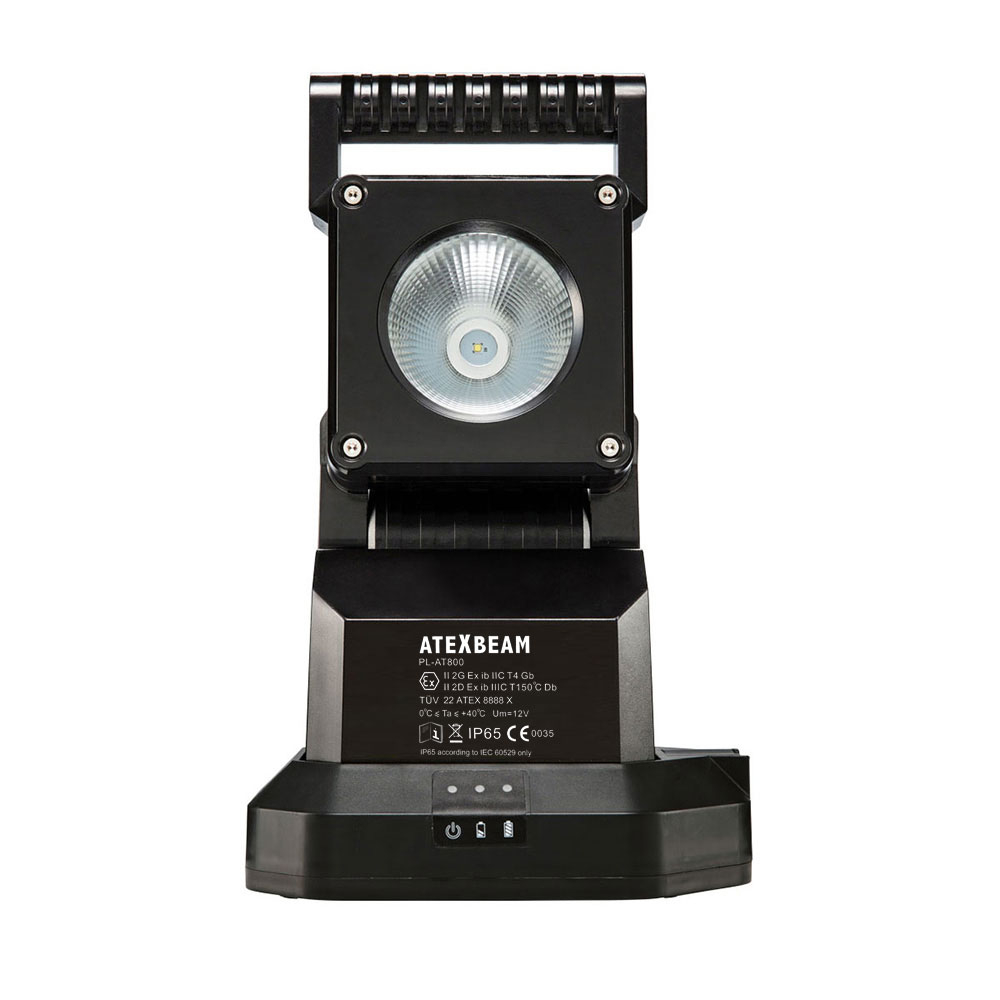

Charging cradle

Safety catch for locking the light
Charge control indicator (LED)
Charging socket at the side

Included accessories

Charging cradle
230 V plug-in power supply

Optional accessories – sturdy wall bracket

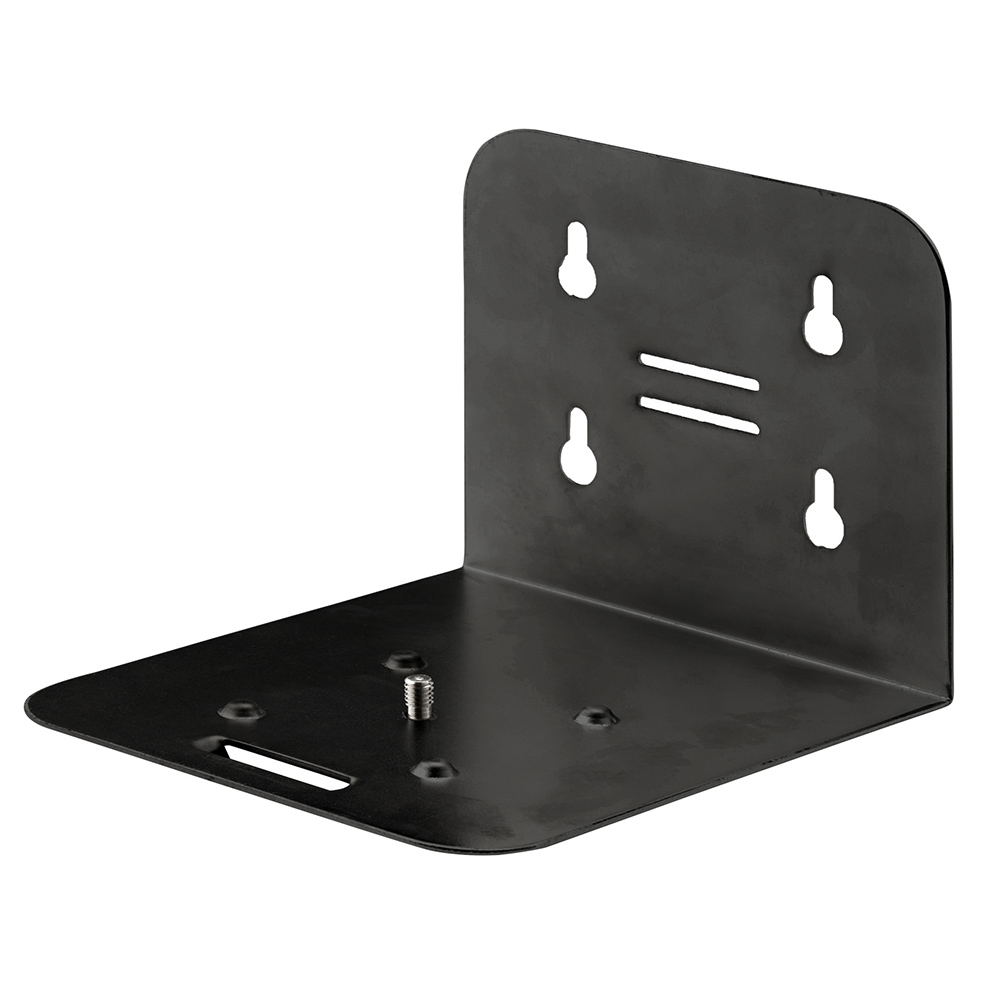

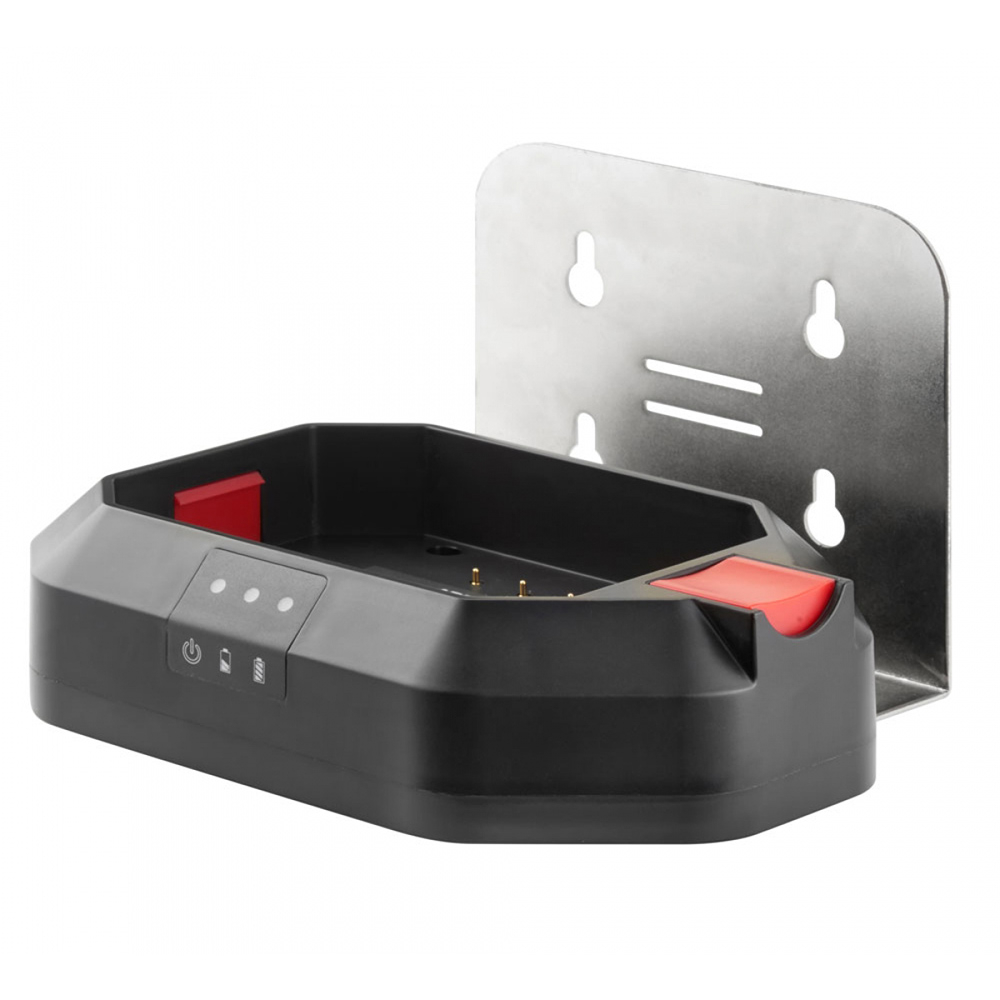

Metal wall bracket

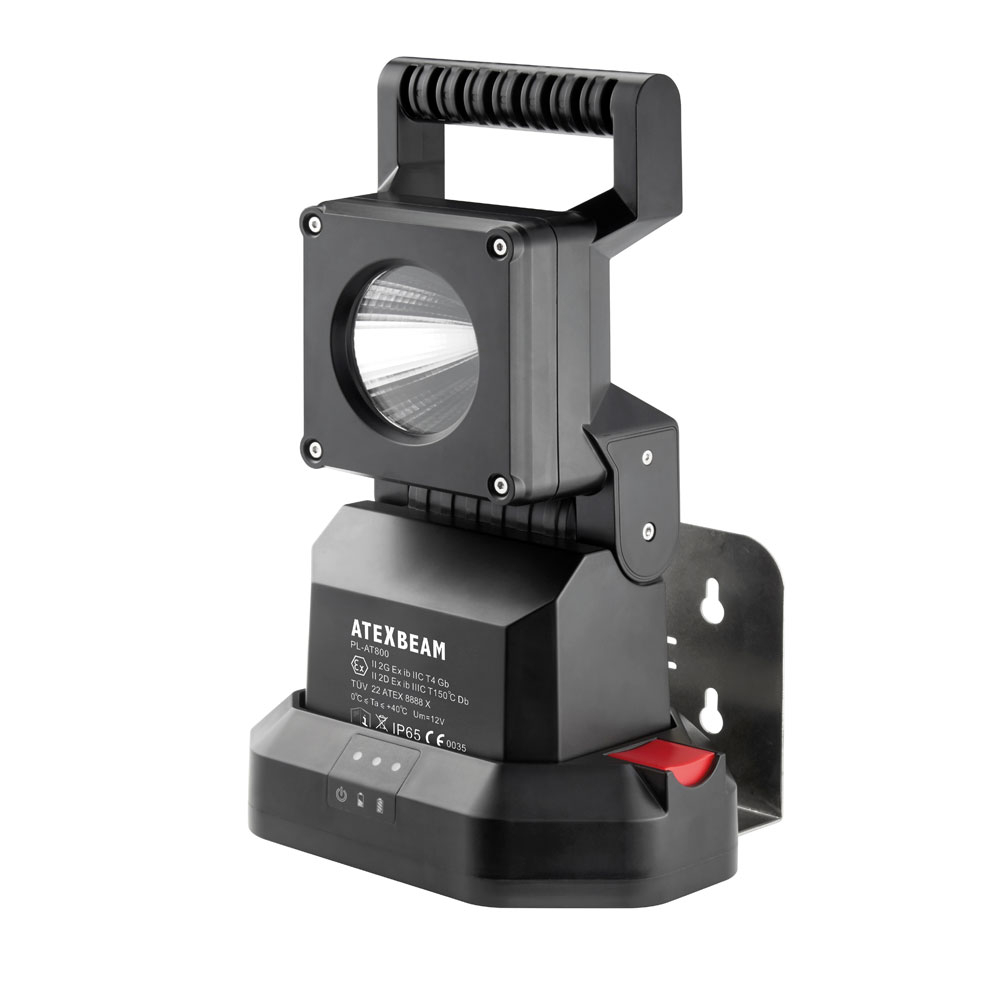

With this sturdy metal wall mount, the LED work lamp and its charging cradle can be fixed securely and always within reach.

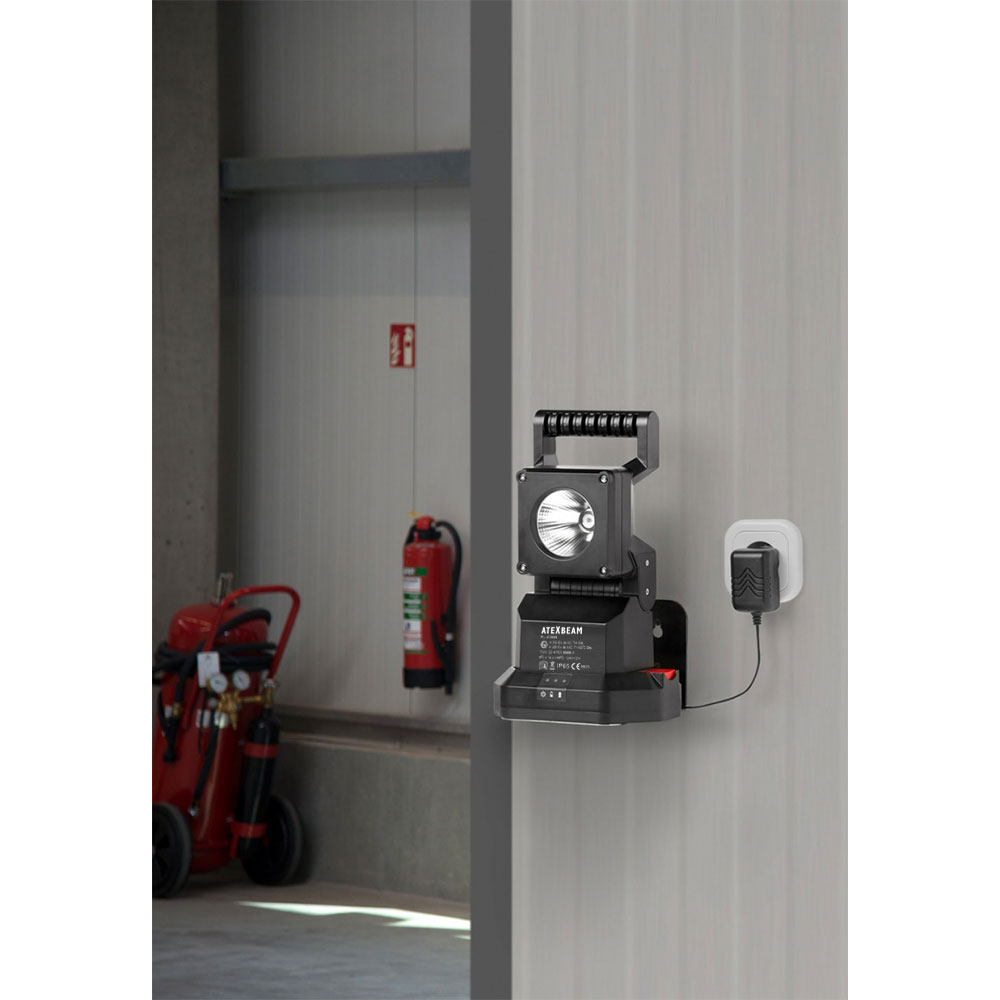

If you want to use the Work Lamp as an emergency light, the Wall mount commends itself as the ideal mounting device.
Item no. 559010
To the product >

3 year manufacturer warranty

The ATEXBEAM AT-800 distributed by IVT is manufactured to a high standard and in accordance with strict quality guidelines. We are so convinced of the durability of this Ex light that we are also extending the statutory manufacturer's warranty for this product by an additional year free of charge.

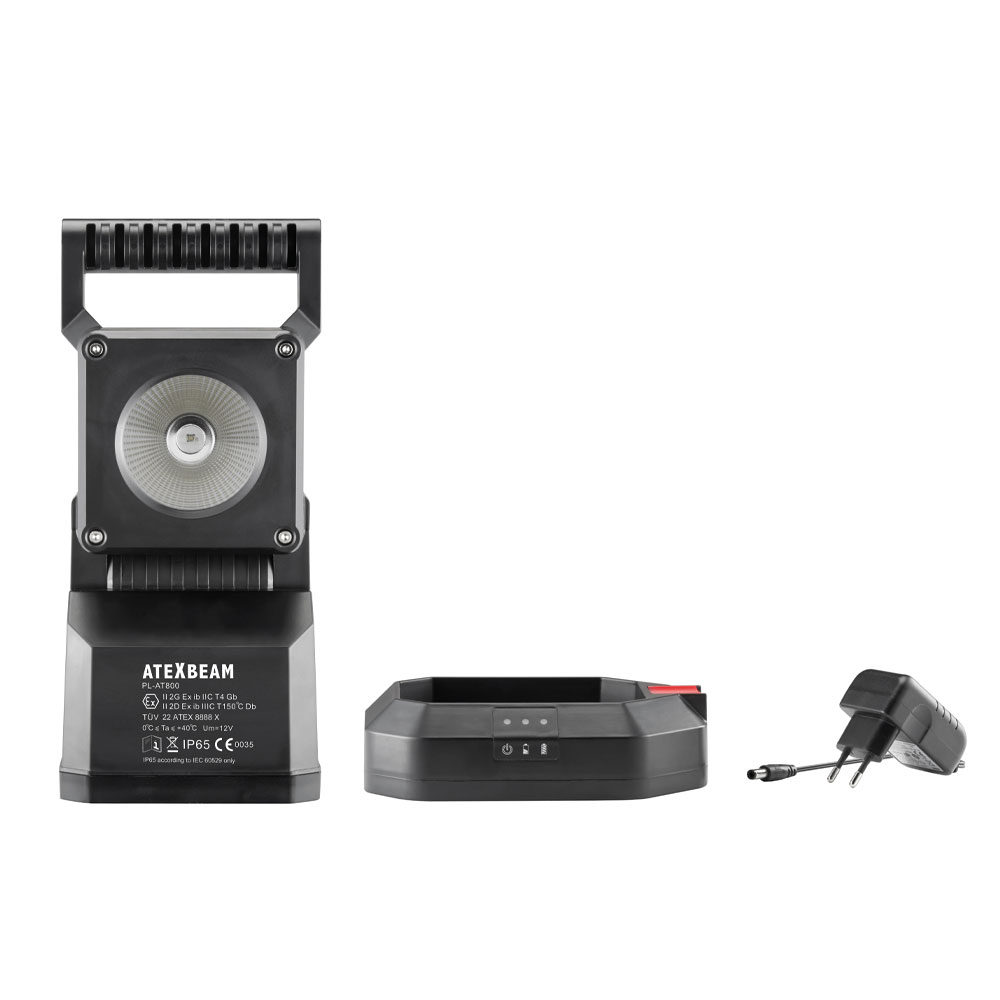

Delivery content

Ex-protected LED work lamp PL-AT800
Charging cradle
230 V power supply
Operating instructions in DE, GB, FR

Ex-protected LED work lamp IVT ATEXBEAM PL-AT800, 3 W, Li-Ion battery

Technical Data

ATEX certification	TÜV 22 ATEX 8888 X
Ex zone	1, 2, 21, 22
Ex identification	EX II 2G Ex ib IIC T4 Gb EX II 2D Ex ib IIIC T150°C Db
Current supply	Li-Ion battery \| 7.4 V \| 5800 mAh
Light sources	LUXEON LED
Power consumption (max.)	3 W
Luminous flux (max.)	275 lm
Efficiency	92 lm/W
Color temperature	4500 K \| neutral white
Lifetime LED	30,000 h
Lightmodes	1: Max. Luminosity 100 % 2: Dimmed 50 %
Run time (max.)	9 h (100 %) 20 h (50 %)
Tilt angle lamp head	120°
Emergency light function	Yes
Charging adapter Power supply	100 - 240 V AC, 50/60 Hz, 1000 mA
Charging time (max.)	11 h
Charging indicator	Yes
Discharge protection	Yes
Overcharge protection	Yes
Protection class	lll
Protection type	IP 65 according to IEC 60529 (Lamp) IP 20 (Charging cradle)
Temperature range	0 °C to +40 °C
Material	Polycarbonate (Housing) Tempered clear glass (Reflector protection)
Color	Black
Dimensions (L x W x H)	95 x 122 x 272 mm (Lamp) 45 x 130 x 173 mm (Charging cradle)
Weight	1.07 kg (Lamp) 0.25 kg (Charging cradle)

ATEX certification	TÜV 22 ATEX 8888 X
Ex zone	1, 2, 21, 22
Ex identification	EX II 2G Ex ib IIC T4 Gb EX II 2D Ex ib IIIC T150°C Db
Current supply	Li-Ion battery 7.4 V \| 5800 mAh
Light sources	LUXEON LED
Power consumption (max.)	3 W
Luminous flux (max.)	275 lm
Efficiency	92 lm/W
Color temperature	4500 K \| neutral white
Lifetime LED	30,000 h
Lightmodes	1: Max. Luminosity 100 % 2: Dimmed 50 %
Run time (max.)	9 h (100 %) 20 h (50 %)
Tilt angle lamp head	120°
Emergency light function	Yes
Charging adapter Power supply	100 - 240 V AC, 50/60 Hz, 1000 mA
Charging time (max.)	11 h
Charging indicator	Yes
Discharge protection	Yes
Overcharge protection	Yes
Protection class	lll
Protection type	IP 65 according to IEC 60529 (Lamp) IP 20 (Charging cradle)
Temperature range	0 °C to +40 °C
Material	Polycarbonate (Housing) Tempered clear glass (Reflector protection)
Color	Black
Dimensions (L x W x H)	95 x 122 x 272 mm (Lamp) 45 x 130 x 173 mm (Charging cradle)
Weight	1.07 kg (Lamp) 0.25 kg (Charging cradle)

Ex-protected LED work lamp ATEXBEAM PL-AT800, 3 W, Li-Ion battery

Ex-certified lamp – Safe use under the most adverse conditions
