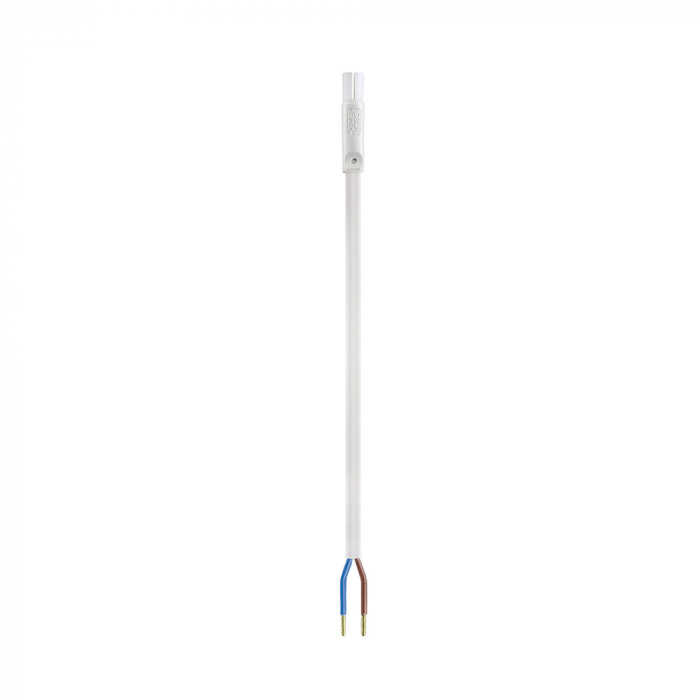

Extension cable, male - open end, 2 pole, for Staudte Hirsch Interior Light 12 - 24 V
Extension cable, male - open end, 2 pole, for Staudte Hirsch Interior Light 12 - 24 V

Extension cable, male - open end, 2 pole, for Staudte Hirsch Interior Light 12 - 24 V

  • Prefabricated connecting lines
  • Diameter of just 8 mm
  • Maintenance cost savings of up to 30 %
  • Simple and unobtrusive installation
  • Ideal for small installation spaces
  • Suitable for Staudte Hirsch LED Interior Lighting

Item no. 559065 | EAN 4049088365034

5,00 EUR

VAT incl.

Become a sales partner
Request an offer

For simple and invisible electrical installations – Installation system gesis® MICRO from Wieland Electric

With their round design and a diameter of just 8 mm, cables fitted with plug connectors can be routed and installed quickly and inconspicuously.

The 2-pole plug connector system with the denominations GST08i2 can be routed through 8 mm drill holes without needing special tools.

The system consists of prefabricated connecting lines with socket and connector, 2-/6-way distributors, connecting cables with socket and connector and free end. This makes a quick and easy connection possible.

The 2-pole variant GST08i2 provides one coding for connecting machines to the voltage supply (white: 250 V, 6 A) and two low-voltage codings for connecting lights to the machines (blue: 12 V, 6 A).

The system is particularly suitable for LED lighting in confined spaces, e.g. in motorhomes, boats, vans, etc. and wherever the electrical installation should be invisible.

In addition to saving maintenance costs and installation time, flexibility and adaptability are among the many advantages of this system.

Delivery content
  • Wieland extension cable, male - open end, 2-pole

Protection class IP 20 CE Made in Europe

Recommended use

Suitable for passenger cars Suitable for transporters Suitable for motorhomes Suitable for caravans Suitable for motorboat Suitable for sailing boat

Technical Data

Rated current 6 A
Rated voltage 50 V
Mech. coding Code 2
Lockable No
Number of poles 2
Pole identification Plus + / Minus -
Conductor cross-section 0.75 mm2
Cable type H03V2V2H2-F
Protection type IP 20
Color white (housing)
Line type Connection cable
plug – open end
Cable diameter min. 3.5 mm
max. 5.5 mm
Temperature range Continuous temperature
Cable 90 °C
Cable length 50 cm
Weight 15 g

Downloads

Data sheet Extension cable, male - open end, 12 - 24 V, Wieland
951 KB
.
