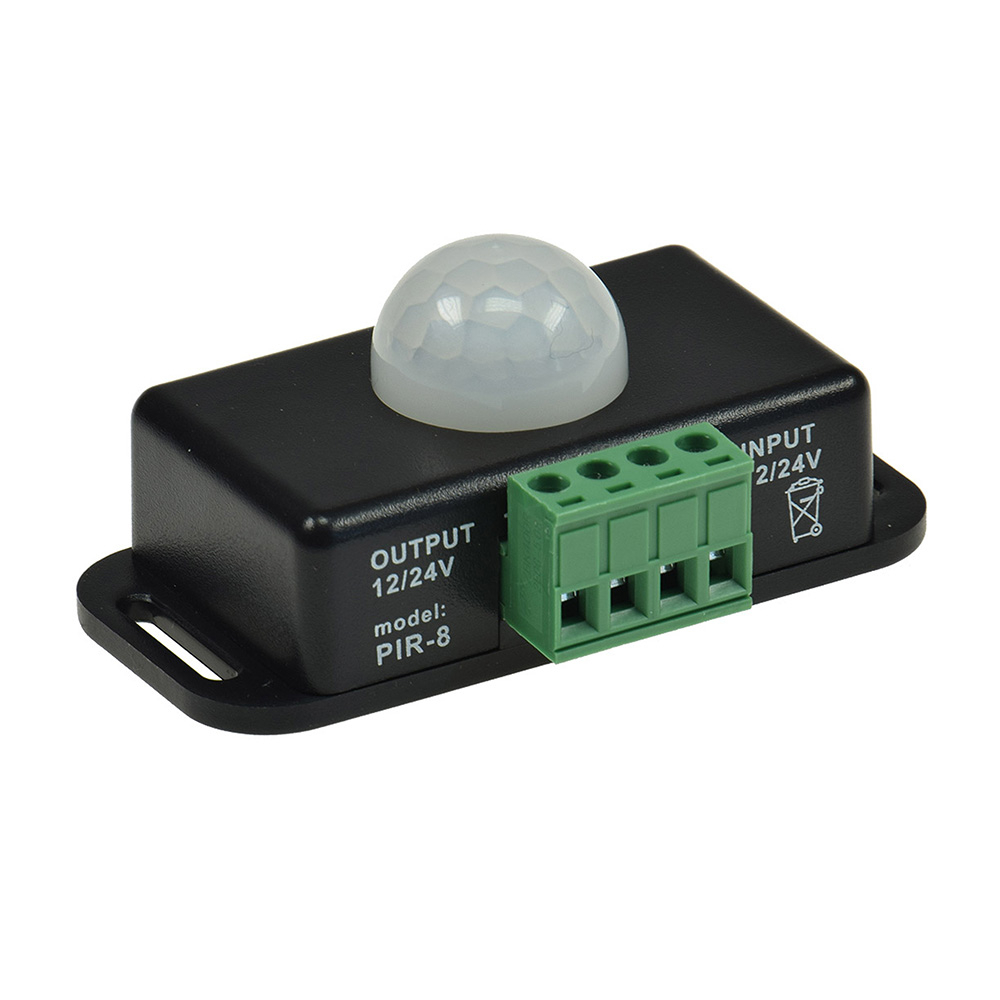

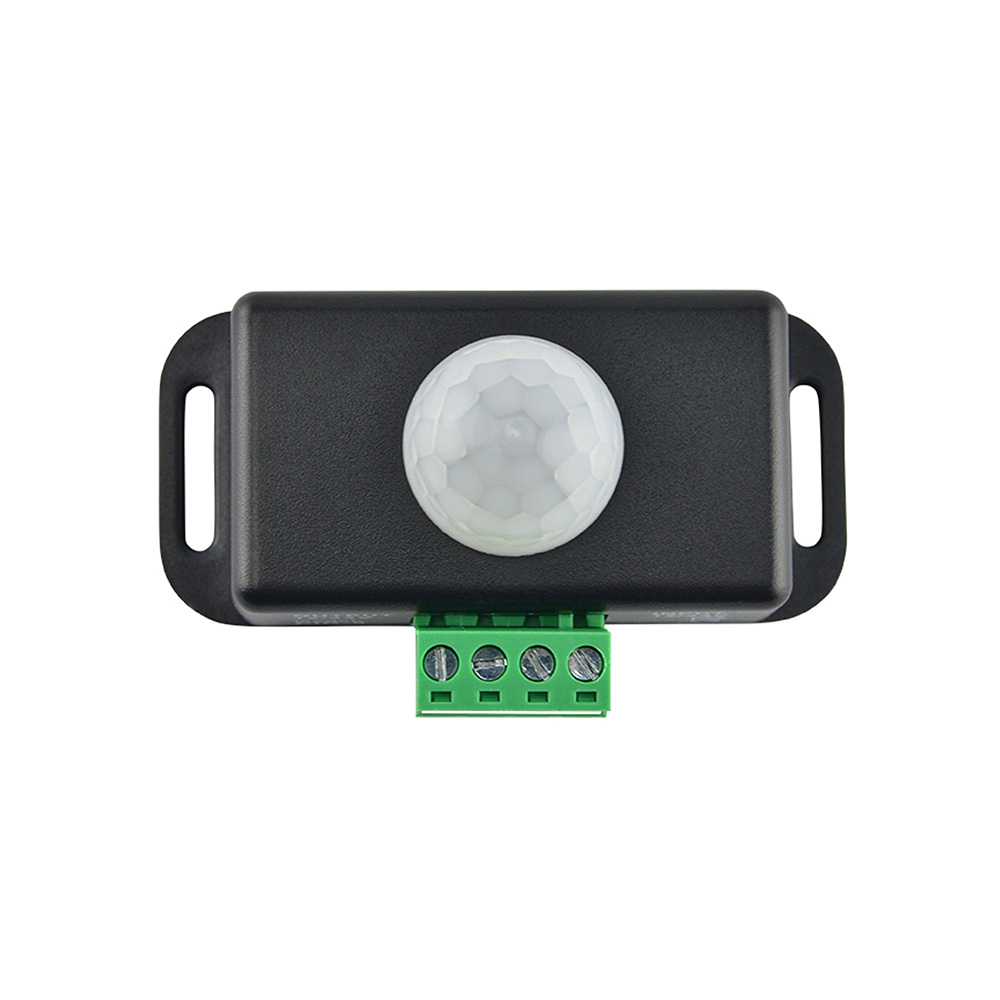

IVT Motion Detector 12 - 24 V DC

IVT Motion Detector 12 - 24 V DC

  • Suitable for Staudte Hirsch LED Interior Lights
  • Suitable for Staudte Hirsch LED Strips
  • Suitable for 12 - 24 V DC
  • On/Off time 1 - 10 minutes
  • Operating range  max. 8 m
  • Detection angle 60°
  • Protection type IP 20

Item no. 312231 | EAN 4030072312332

11,79 EUR

VAT incl.

Become a sales partner
Request an offer
Description  |  Technical data  |  Compatible with  |  Downloads

More comfort and safety –
Motion detector for LED lighting

The IVT Motion Detector 12-24 V DC provides more safety and comfort. When movement occurs within a certain radius, the device switches on automatically.

Practical for LED lighting in cabinets or in confined spaces. No additional switch is needed here. The switching time of the motion detector can be set from 1 – 10 minutes.

Protection class IP 20 CE

Delivery content
  • IVT Motion Detector 12-24 V DC
  • Instruction manual in DE, GB

Recommended use

Suitable for passenger cars Suitable for transporters Suitable for motorhomes Suitable for caravans Suitable for trucks Suitable for coaches Suitable for motorboat Suitable for sailing boat Suitable for 12 V and 24 V solar systems

Technical Data

Input voltage 12 V - 24 V DC
Output voltage 12 V - 24 V DC
Power (max.) 6 A at 12 V (72 W)
3 A at 24 V (72 W)
Operating  range (max.) 8 m
Detection angle ca. 60°
Power consumption 0.1 W (standby)
0.35 W (in operation)

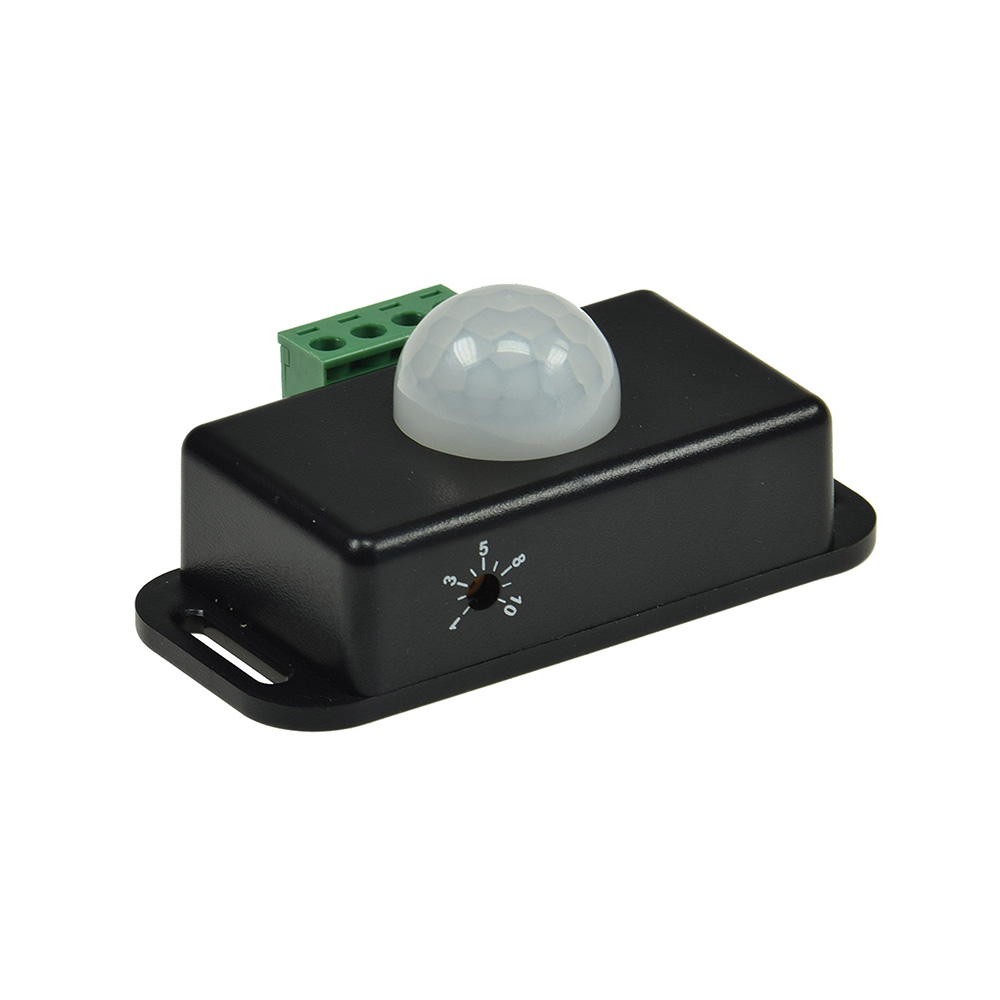

On/Off time 1 - 10 min (adjustable via
screw on the back)
Protection type IP 20
Dimensions (L x W x H)     76 x 45 x 31 mm
Weight 30 g

Compatible with

LED Canopy Light IVT12 V/24 V with 18 LEDs

Item no. 370014

19,80 EUR | 49,78 EUR
VAT incl.

LED Canopy Light IVT 12 V/24 V with 9 LEDs

Item no. 370015

14,90 EUR | 34,95 EUR
VAT incl.
.
