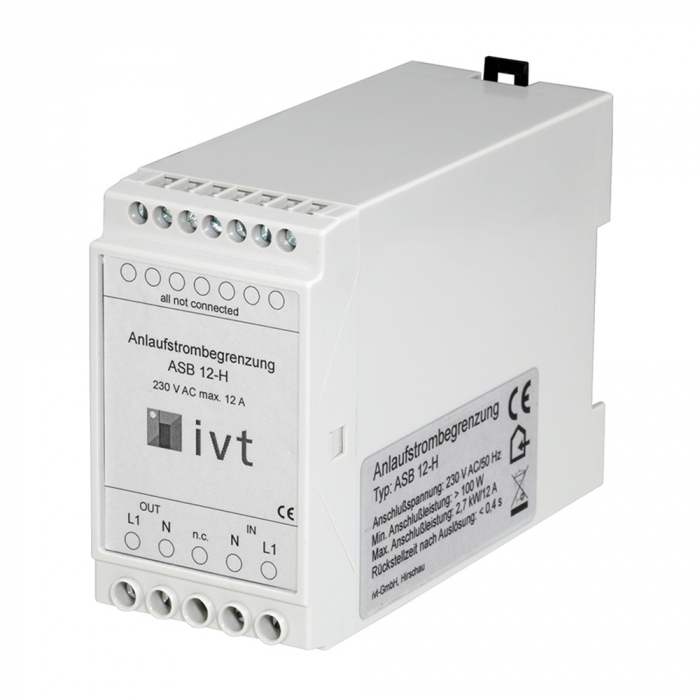

Inrush Current Limiter IVT ASB 12-H

Inrush Current Limiter IVT ASB 12-H prevents unnecessary tripping of fuses

When using power tools such as circular saws, angle grinders, cut-off grinders, compressors, pumps, chippers, cleaning equipment or transformers, it often happens that fuse elements trip unintentionally. This can be traced back to current peaks that occur when such consumers are switched on.

The electronically controlled Inrush Current Limiter IVT ASB 12-H intercepts these high inrush currents and prevents unnecessary tripping of the upstream fuse elements. The minimum connected load is 100 W, the maximum switching capacity 2700 W.

Due to the extremely short reset time (< 0.4 sec), the inrush current limiter is ready for use again shortly after an electrical appliance has been switched off.

Note: The inrush current limiter should not be used for voltage transformers and generators, which are not able to provide the necessary starting current of the respective consumers.

Delivery content

• Inrush Current Limiter IVT ASB 12-H
• Operating instructions in DE, GB, FR, NL

Recommended use
The Inrush Current Limiter IVT ASB 12-H is suitable for DIN rail mounting in control cabinets and distribution boxes in factory buildings and in industrial environments.

Technical Data

Operating voltage	230 V AC, 50 Hz
Switching power (max.)	2700 W
Nominal current (max.)	12 A
Reset time	< 0.4 s
Connection power (min.)	>100 W
Dimensions (L x W x H)	78 x 45 x 108 mm
Weight	220 g

---
