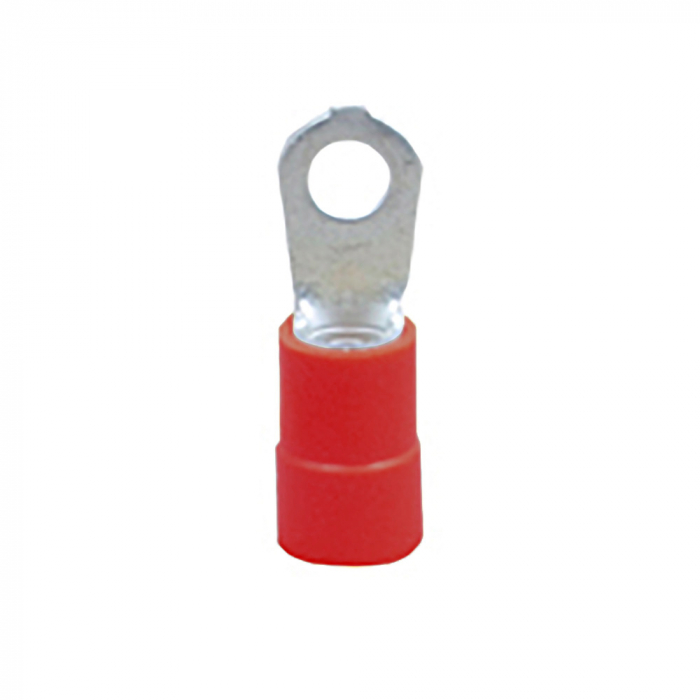

Insulated Ring Terminal 0.5 - 1.0 mm² HR2M4, red (100 pcs.)
Insulated Ring Terminal 0.5 - 1.0 mm² HR2M4, red (100 pcs.)

Insulated Ring Terminal 0.5 - 1.0 mm² HR2M4, red (100 pcs.)

  • Cross section: 0.5 - 1.0 mm²
  • Connecting bolt: 4 mm
  • Surface: galvanised
  • Temperature resistance: -60 °C to +105 °C
  • Halogen free

Item no. 002167

36,71 EUR

VAT incl.

Become a sales partner
Request an offer

Insulated Ring Terminal 0.5 - 1.0 mm2 HR2M4, red (100 pcs.)

For easy connection to electrically conductive components.
Convenient insertion of the conductor through Easy Entry.

The main characteristics
  • Conforms to DIN 46237
  • Material: Cu-ETP according to DIN EN 13600
  • Surface: galvanised
  • For nontension connections
  • Insulation PA (polyamide, nylon)
  • Halogen free
  • Temperature resistance: -60 °C to +105 °C
  • Easy Entry ensures quick and easy conductor insertion

Delivery content
  • Insulated Ring Terminal 0.5 - 1.0 mm2 HR2M4 (Packing unit 100 pcs.)

Technical Data

Cross section 0.5 - 1.0 mm2
Connecting bolt 4 mm
Halogen free Yes
Surface Galvanised
Insulation Polyamide, Nylon
Temperature range -60 °C to +105 °C
DIN-Norm DIN 46237
Material Cu-ETP according to DIN EN 13600
Colour    Red
Weight 80 g/100 pcs.
.
