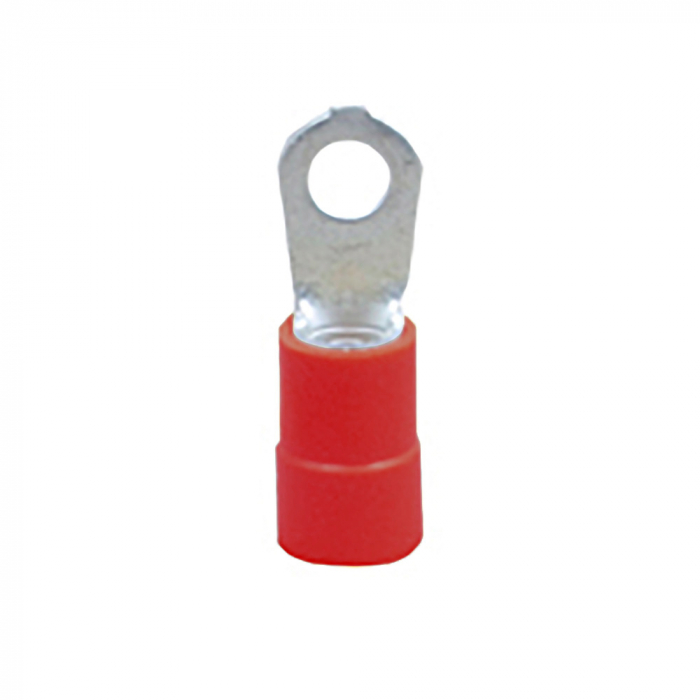

Insulated Ring Terminal 0.5 - 1.0 mm² HR2M5, red (100 pcs.)

Insulated Ring Terminal 0.5 - 1.0 mm² HR2M5, red (100 pcs.)

For easy connection to electrically conductive components.
Convenient insertion of the conductor through Easy Entry.

The main characteristics

• Conforms to DIN 46237
• Material: Cu-ETP according to DIN EN 13600
• Surface: galvanised
• For nontension connections
• Insulation PA (polyamide, nylon)
• Halogen free
• Temperature resistance: -60 °C to +105 °C
• Easy Entry ensures quick and easy conductor insertion

Delivery content

• Insulated Ring Terminal 0.5 - 1.0 mm² HR2M5 (Packing unit 100 pcs.)

Technical Data

Cross section	0.5 - 1.0 mm2
Connecting bolt	5 mm
Halogen free	Yes
Surface	Galvanised
Insulation	Polyamide, Nylon
Temperature range	-60 °C to +105 °C
DIN-Norm	DIN 46237
Material	Cu-ETP according to DIN EN 13600
Colour	Red
Weight	100 g/100 pcs.

---
