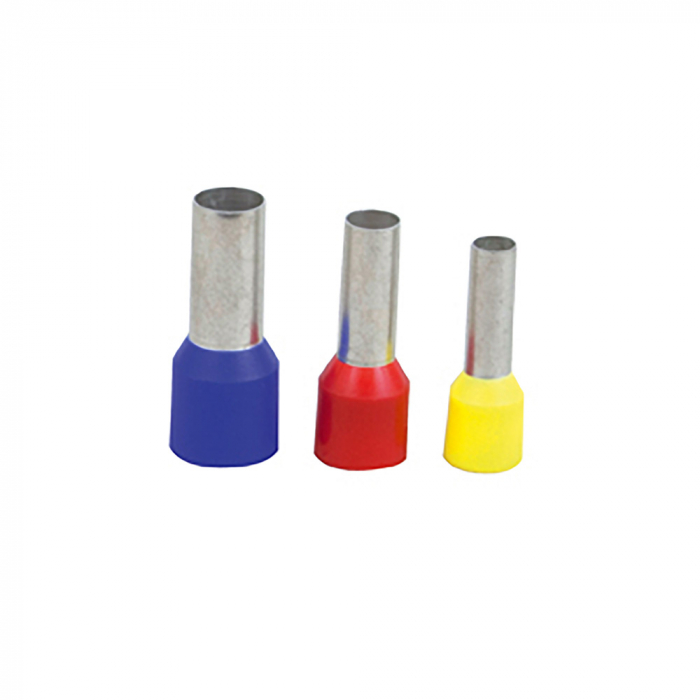

Insulated Wire End Sleeve 1.0 mm² HAE1, red (100 pcs.)
Insulated Wire End Sleeve 1.0 mm² HAE1, red (100 pcs.)

Insulated Wire End Sleeve 1.0 mm² HAE1, red (100 pcs.)

  • Conductor cross section: 1.0 mm²
  • Pin lenght: 8 mm
  • Surface galvanised
  • Temperature resistance -60 °C to +105 °C

Item no. 002180

3,08 EUR

VAT incl.

Become a sales partner
Request an offer
Description  |  Technical data  |  Variants

Insulated Wire End Sleeve 1.0 mm2 HAE1, red (100 pcs.)

For easy attachment to fine stranded copper conductors,
prevents fanning and damage to conductors.

The main characteristics
  • Conforms to DIN 46228, part 4
  • Material: Cu-ETP according to DIN EN 13600
  • Surface: galvanised
  • PP insulation (polypropylene)
  • Temperature resistance: -60 °C to +105 °C

Delivery content
  • Insulated Wire End Sleeve 1.0 mm2 HAE1 (Packing unit 100 pcs.)

Technical Data

Cross section 1.0 mm2
Pin length 8 mm
Surface Galvanised
Insulation Polypropylen
Temperature range -60 °C to +105 °C
DIN-Norm DIN 46228
Material Cu-ETP according to DIN EN 13600
Colour    Red
Weight 60 g/100 pcs.

Alternative product variants

Insulated Wire End Sleeve 10 mm² HAE10, red (100 pcs.)

Item no. 002183

11,82 EUR
VAT incl.

Insulated Wire End Sleeve 35 mm² HAE350, red (50 pcs.)

Item no. 002188

26,47 EUR
VAT incl.
.
