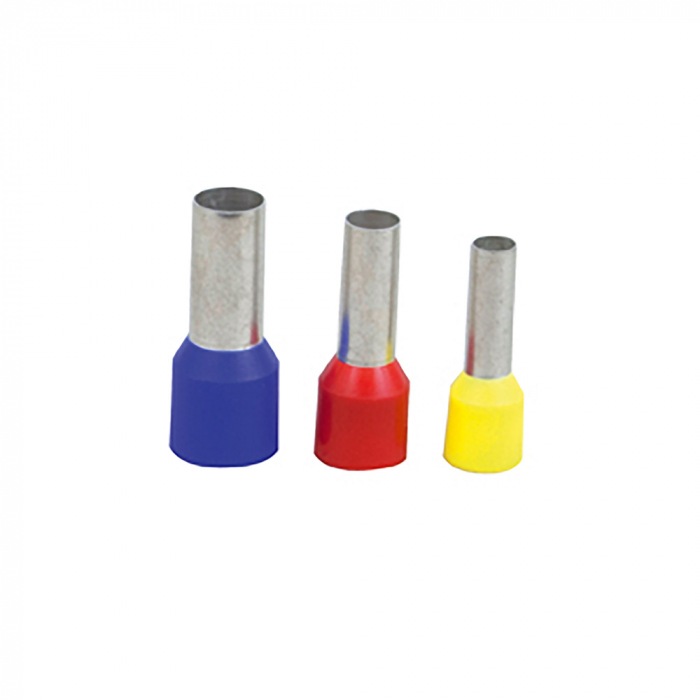

Insulated Wire End Sleeve 16 mm² HAE16, blue (100 pcs.)
Insulated Wire End Sleeve 16 mm² HAE16, blue (100 pcs.)

Insulated Wire End Sleeve 16 mm² HAE16, blue (100 pcs.)

  • Conductor cross section: 16,0 mm²
  • Pin lenght: 12 mm
  • Surface galvanised
  • Temperature resistance -60 °C to +105 °C

Item no. 002185

18,47 EUR

VAT incl.

Become a sales partner
Request an offer
Description  |  Technical data  |  Variants

Insulated Wire End Sleeve 16 mm2 HAE16, blue (100 pcs.)

For easy attachment to fine stranded copper conductors,
prevents fanning and damage to conductors.

The main characteristics
  • Conforms to DIN 46228, part 4
  • Material: Cu-ETP according to DIN EN 13600
  • Surface: galvanised
  • PP insulation (polypropylene)
  • Temperature resistance: -60 °C to +105 °C

Delivery content
  • Insulated Wire End Sleeve 16 mm2 HAE16 (Packing unit 100 pcs.)

Technical Data

Cross section 16 mm2
Pin length 12 mm
Surface Galvanised
Insulation Polypropylen
Temperature range -60 °C to +105 °C
DIN-Norm DIN 46228
Material Cu-ETP according to DIN EN 13600
Colour    Blue
Weight 90 g/100 pcs.
