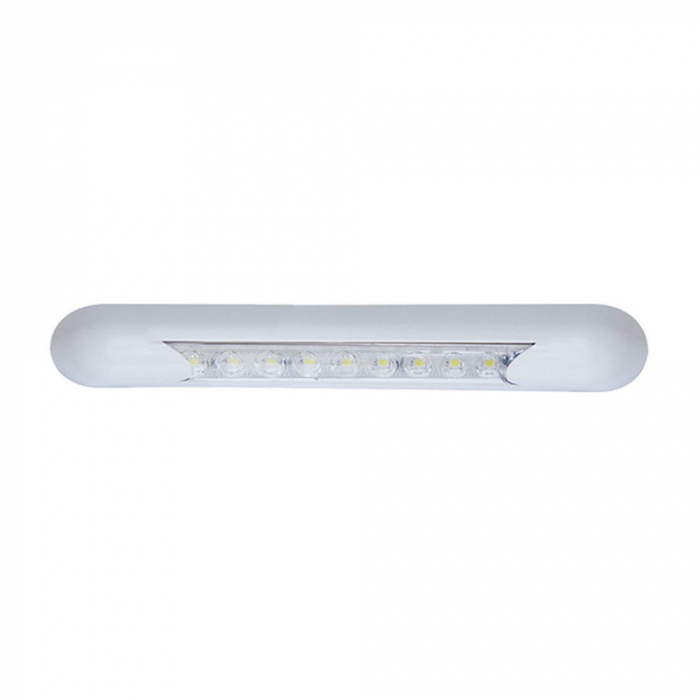

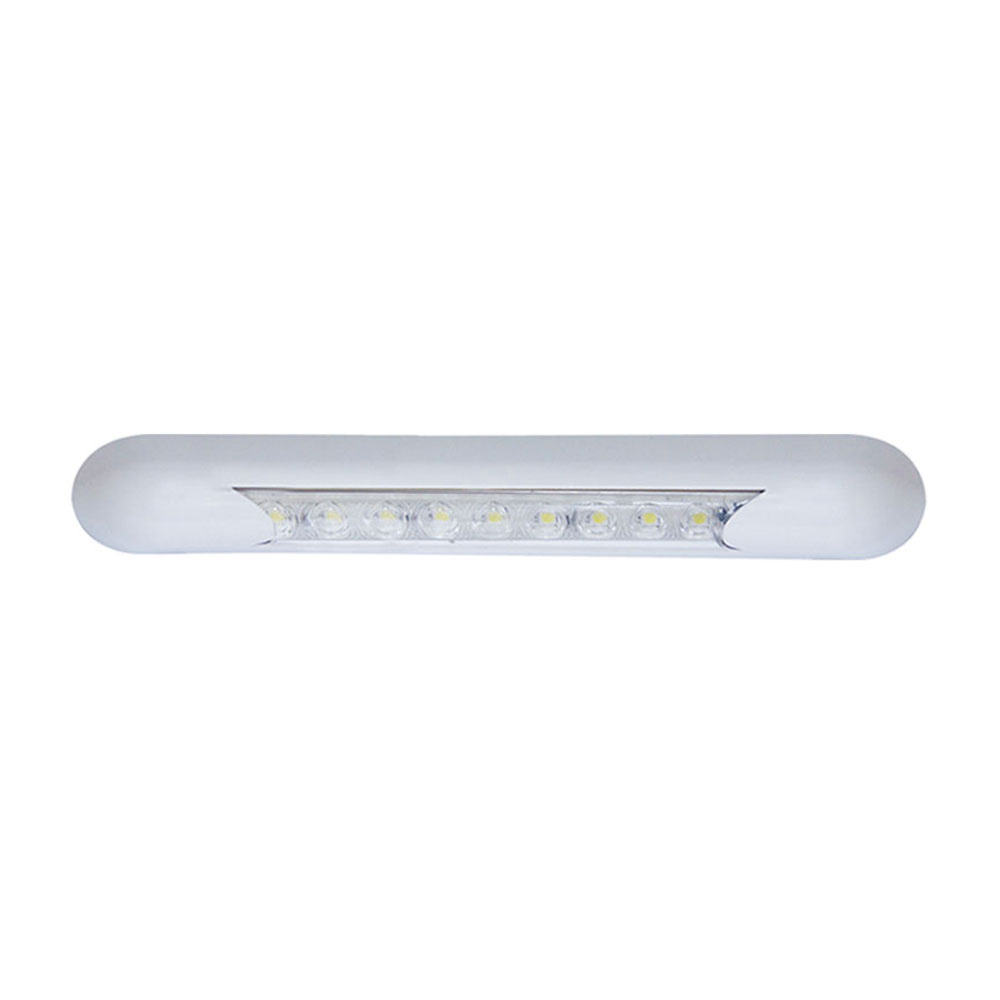

LED Canopy Light IVT 12 V/24 V with 9 LEDs

Energy and space saving –
Waterproof sturdy canopy light for indoor and outdoor

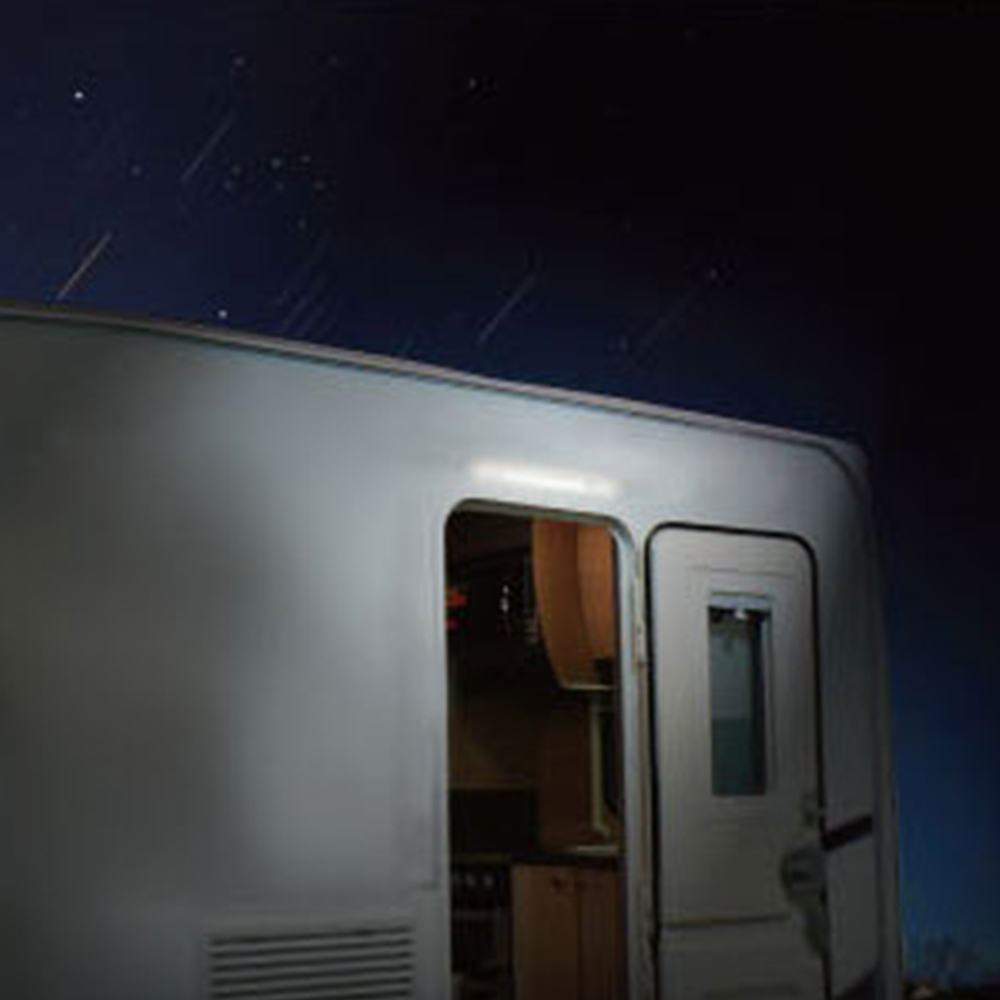

This canopy light with 9 SMD LEDs respectively allows for multiple application in 12 V- as well as in 24 V-systems for example, as lighting in mobile homes, on yachts and boast, in trucks, service vehicles and horse trailers or for operation within autarchic solar systems.

As they are compact, light in weight, space-saving, extremely economic and easy to install by means of two screws.
Despite their small dimensions they provide extensive daylight white light in a beam angle of 45°.

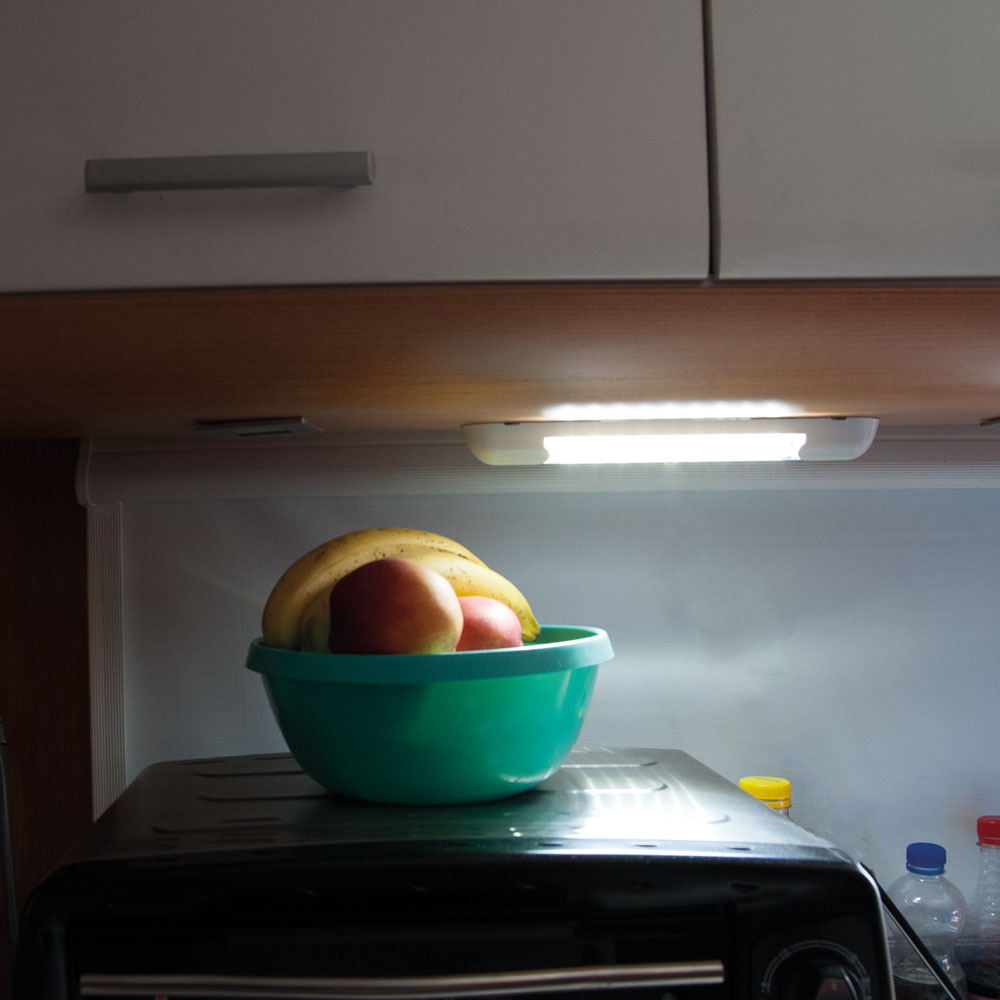

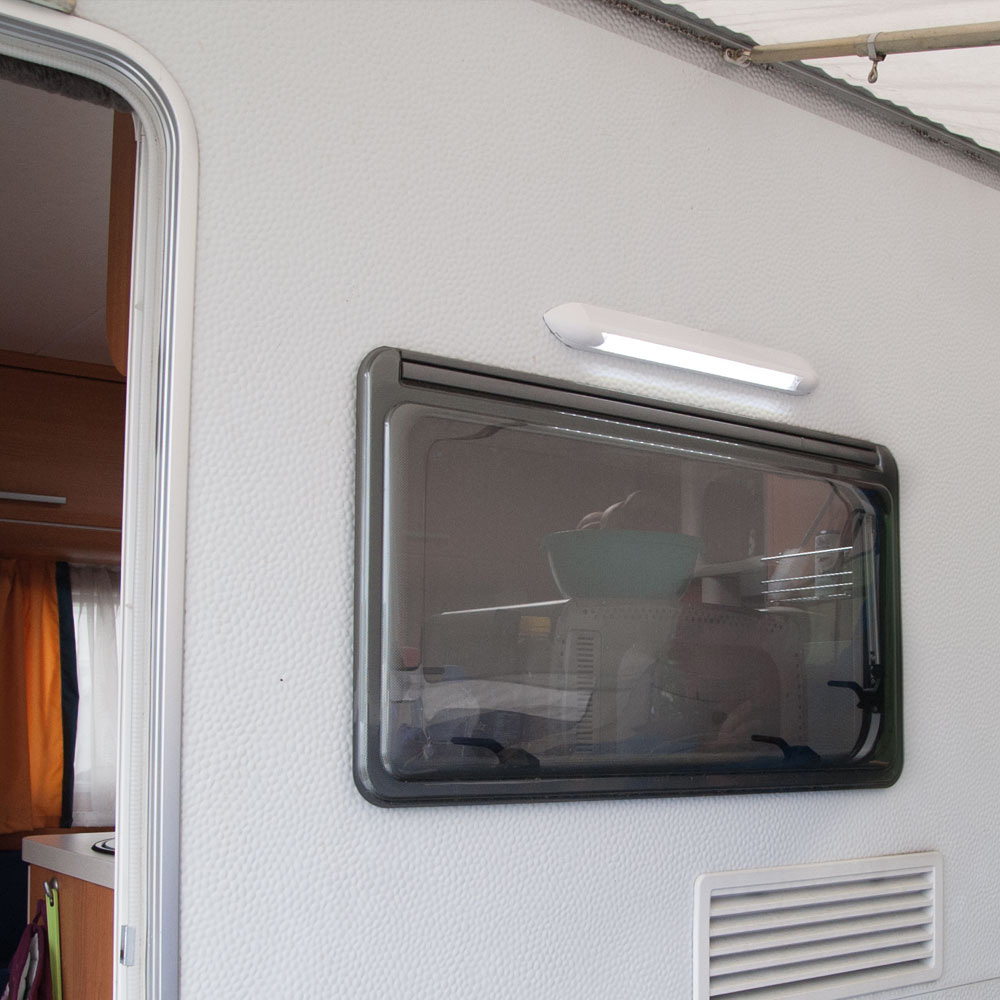

This slim lamps can be used both, indoor and outdoor. Thanks to protection type IP 67 they are dust and watertight. This means they withstand the heaviest rain when used outdoor. Connecting the lamps with reverse polarity is impossible thanks to their electronic switch. With two screws, it can be easily mounted as an under-cabinet light or on the wall as well as ceiling.

In order to operate this subtle LED bar within an autarchic solar system they may be connected directly to the load output of your solar charge controller. A polarity reversal of the light is excluded by the electronic circuit.



Delivery content

• LED Canopy Light  with 9 LEDs

Recommended use



Practice tip: Use in solar systems
The LED canopy lamps are perfectly suitable for use as night lights within autarchic solar systems. IVT’s solar charge controllers of the SCplus/SCDplus series for example, are equipped with a selectable night light function. If solar power is not available the solar controller’s load output automatically turns on after 2 minutes. If the solar radiation returns the load output will be deactivated.

Technical Data

Operation voltage	12 V/24 V DC
Light source	9 x SMD LED
Power consumption (max.)	2.5 W
Luminous flux (max.)	180 lm
Efficiency	72 lm/W
Beam angle	45°
Protection class	lll
Type Protection	IP 67
Temperature range	-20 °C to +40 °C
Length connection cable	100 mm
Material	PVC
Color	White
Dimensions (L x W x H)	287 x 42 x 29 mm
Weight	140 g

---
