LED Interior Light Staudte Hirsch SH-5.653, 12 V DC, 3 W, 305 mm, with Magnet

  • Reliable grip on all magnetic surfaces
  • Durable Osram LED technology
  • Integrated ESD protection
  • Push-button switch ON/OFF
  • 1 m connection cable with pre-tinned ends
  • Compact and timeless design
  • Small mounting height, remarkably lightweight
  • Only 305 mm in length, 17 mm in width and 16 mm in height

Item no. 570025 | EAN 4030072570251

29,95 EUR

VAT incl.

Become a sales partner
Request an offer

Versatile LED Interior Light – Minimal dimensions, easy mounting

The Staudte Hirsch LED Interior Light offers everything you expect from a high-quality interior light: The energy-efficient OSRAM LEDs provide neutral white light (4500 K). The glare-free diffuser ensures homogeneous illumination. The integrated ESD protection (Electrostatic Discharge) protects the LEDs from harmful voltage peaks from the vehicle’s electrical system and increases their service life considerably.

Moreover, the Staudte Hirsch LED Interior Light convinces with the following benefits
  • Quick mounting thanks to firmly gripping magnets (no drilling or adhering required)
  • The integrated on/off push-button switch spares you the installation of an additional switch
  • Easy mounting thanks to the 1 m connection cable with pre-tinned ends

Due to its compact design, its small mounting height and its light weight, the dimensionally stable LED interior light is very versatile and can be utilized even in small spaces.

Light source: High-quality OSRAM LEDs 3 W, 260 lm Suitable for operation at temperatures from -20 °C to +70 °C Magnetic 1 m connection cable with open end Wall mounting Ceiling mounting CE approved: all EU-wide requirements for safety, health and environmental protection are complied with 3 year manufacturer warranty

Important characteristics and features

Powerful OSRAM LEDs guarantee long-term use

+

Light source: High-quality OSRAM LEDs 3 W, 260 lm


Embedded in a sturdy aluminum profile, 30 high-quality Osram LEDs offer a wide area and bright illumination. Despite its low power consumption of 3 W, the 305 mm version achieves a luminous flux of 260 lm. The color temperature is 4500 K (neutral white).

The service life of the LEDs amounts to at least 35,000 h.

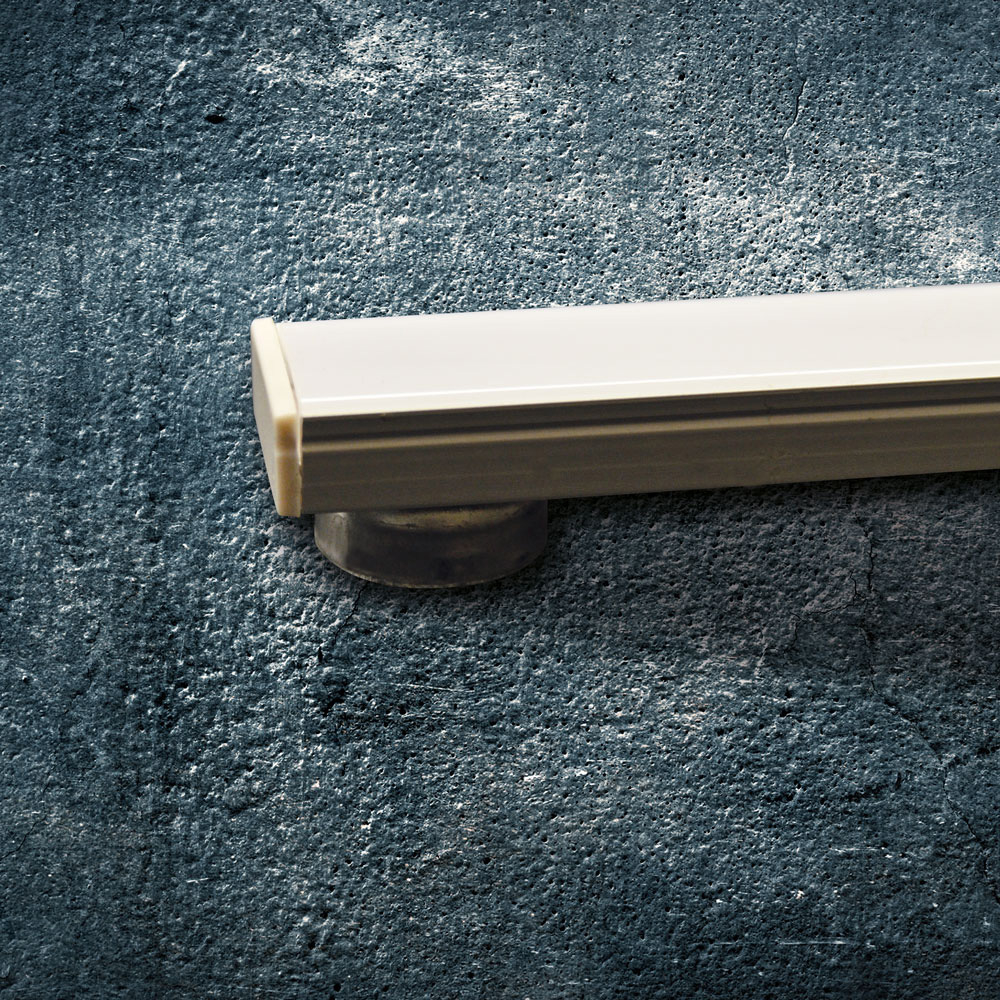

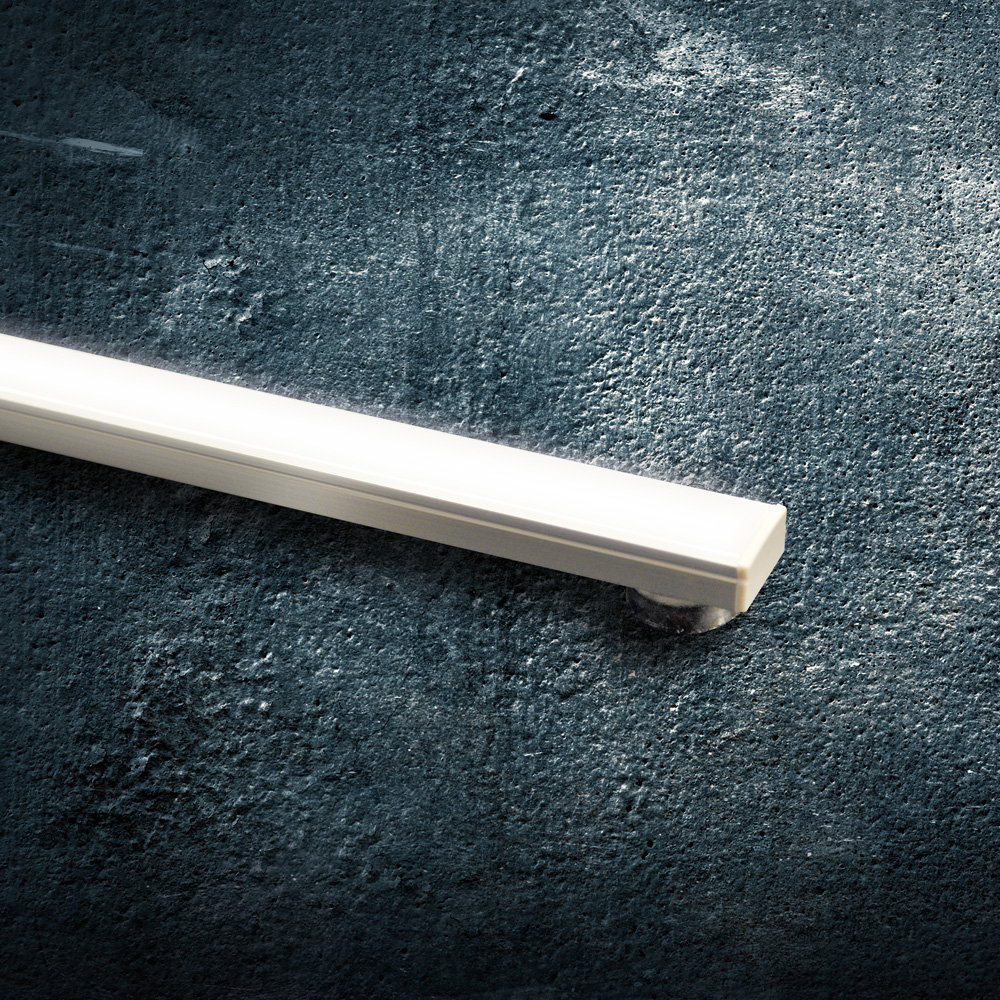

Mounting by means of firmly gripping magnets

+
Mounting by means of firmly gripping magnets
The compact LED Interior Light is equipped with a magnet on each end respectively. They adhere reliably on all magnetic surfaces.

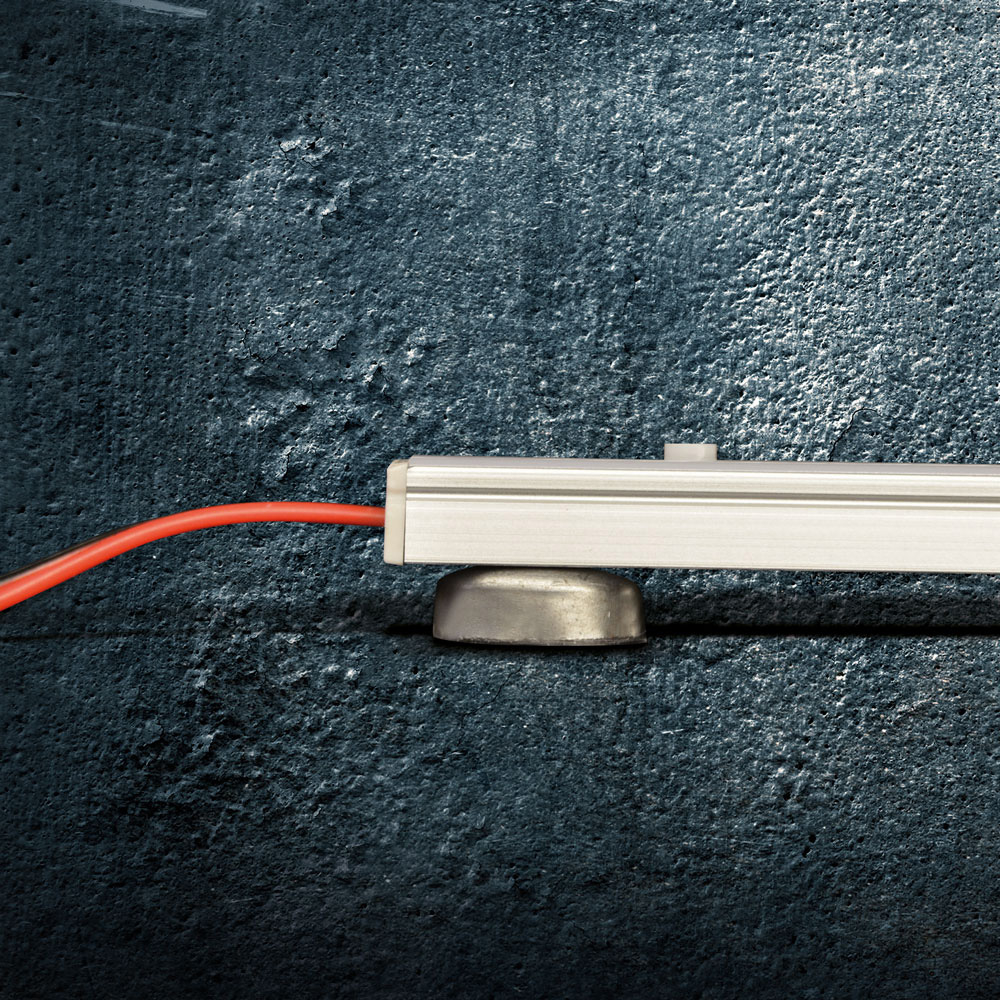

Pre-assembled with 1 m connection cable

+
1 m connection cable with open end

Being pre-assembled with a 1 m twin wire, an uncomplicated connection is possible. The cable ends are already bared and pre-tinned.

Integrated On/Off Push-button switch

+
Integrated On/Off Push-button switch
With the unobtrusive and easy to use switch you can turn the LED Interior light on and off. The cumbersome task of installing an additional switch is no longer necessary.

Can be used reliably with significant temperature fluctuations

+
Suitable for operation at temperatures from -20 °C to +70 °C

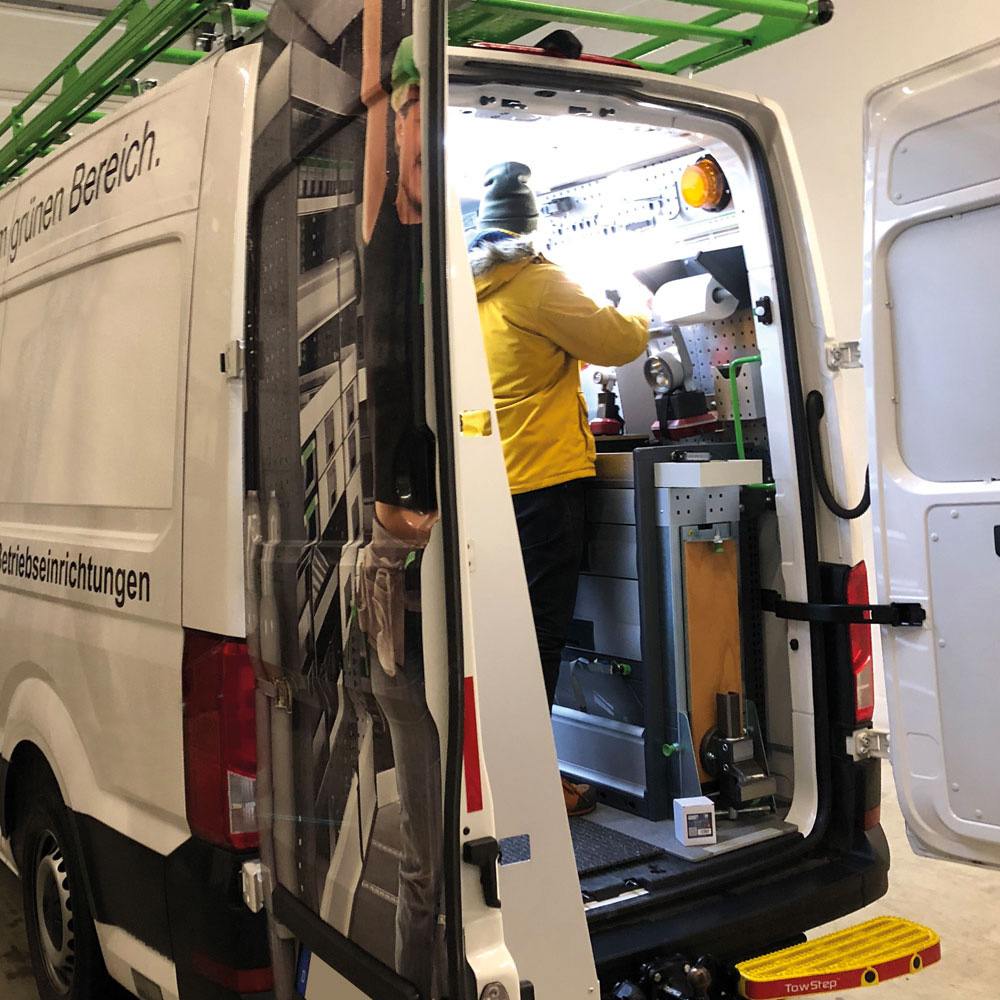

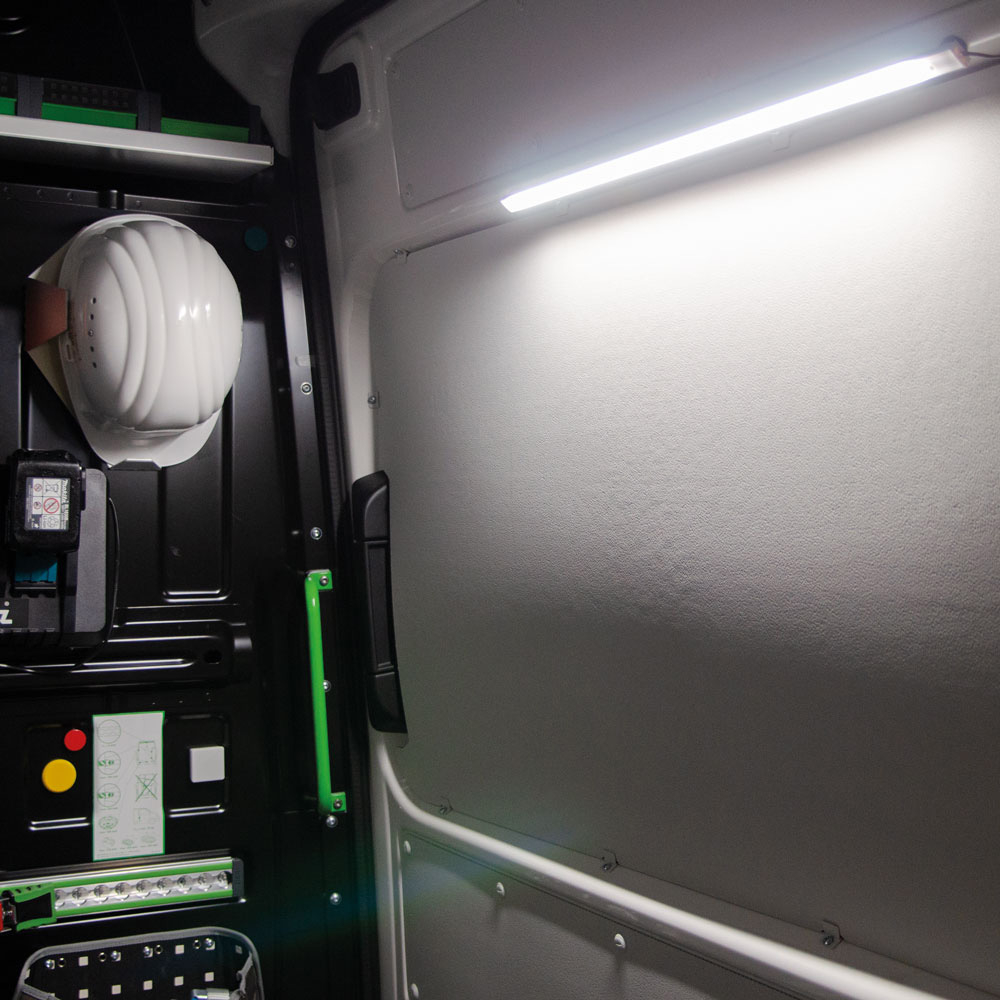

The Staudte Hirsch interior lights function reliably even with significant temperature fluctuations. They are particularly suitable for installation in vehicles of all kinds and for operation as part of a 12 V solar island system.

OEM Service – White Label Solutions on request

+
OEM/White Label Service: Customised solutions on request

Do you wish our products in another configuration? Please call us or send us an e-mail. We will be happy to customize our products according to your specifications or develop individual solutions for you.
To the contact form >

3 year manufacturer warranty

+
3 year manufacturer warranty

Products of IVT and Staudte Hirsch are manufactured to a high quality and following strict quality guidelines. We are certain about the longevity so that we add another year to the statutory manufacturer warranty free of charge (rechargeable batteries excluded).

Delivery content

+
  • LED Interior Light SH-5.653, magnetic version, 3 W, 305 mm

Recommended use

Suitable for passenger cars Suitable for transporters Suitable for motorhomes Suitable for caravans Suitable for motorboat Suitable for sailing boat Suitable for 12 V solar systems

Due to its low energy consumption of only 3 W, the Staudte Hirsch LED interior light is ideally suited for installation in vehicles and boats, as well as for operation as part of a solar system with an operating voltage of 12 V.

Technical Data

Operation voltage 12 V DC
Light source 30 OSRAM LED
Power consumption (max.) 3 W
Luminous flux  (max.) 260 lm
Efficiency 86 lm/W
Color temperature 4500 K
neutral white
Color rendering index CRI 80
Working life LED 35,000 h at 25 °C
Protection class lll
Protection type IP 20
Temperature range -20 °C to +70 °C
Mounting 2 magnets
Switch type On/off push-button switch
Connection cable 1 m twin wire, open ends
Material Housing: Aluminium
Cover: Plastic
Color Silver, milky white
Dimensions (L x W x H)     305 x 17 x 16 mm
(with magnet)
Weight 80 g
(without connection cable)

Downloads

Connection and dimensioning LED Interior Light Series Staudte Hirsch
29.97 KB
.
