LED Portable Lamp IVT PL-830, 3 W, 240 lm, IP 67

LED Portable Lamp IVT PL-830, 3 W, 240 lm, IP 67

  • Main light: 3 W Cree/Luxeon LED (240 lm)
  • Path light: 800 mW SMD LED (40 lm)
  • Extremely sturdy, light in weight and compact
  • Powerful 1600 mAh lead battery
  • Peak runtime of 35 h
  • Peak lighting distance of 200 m
  • 5 lighting modes, including flashing function
  • 2 performance levels
  • Emergency light function
  • Water and dust-proof according to IP 67

Item no. 312205 | EAN 4030072312257

92,50 EUR

VAT incl.

Become a sales partner
Request an offer
Description  |  Features & Functions  |  Technical data  |  Accessories  |  Variants  |  Downloads

Extremely light in weight portable lamp –
absolutely waterproof, with switchable path light

This outstanding Portable Lamp PL-830 offers an unique lighting combination, which seeks its equal: a super-bright main light with a lighting distance of up to 200 m as well as a switchable and energy saving path and orientation light.

The dust and waterproof portable lamp is equipped with a high quality Li-Ion rechargeable battery and thus, guarantees a runtime of up
to 35 h. With its low weight (only 650 g) it is perfectly suitable for mobile use. Thanks to its flashing function it is possible to
warn upcoming traffic of any danger zones or of accidents.

The emergency light function ensures a reliable safety lighting in the case of power outage for example, in public buildings, halls, barns, basements, in rooms and corridors without daylight or in darkness.

3 W LED 240 lm Beam angle 20°, 200 m Lighting time 5 hours, 100 % LED 0.8 W SMD LED 40 lm Lighting time 30 hours, SMD LEDs Beam angle 80°, 20 m 18 hours flashing light Protection class IP 67 1.6 Ah, 7.4 V Li-Ion Emergency light function CE 3 years warranty

Important characteristics and features

Features & Functions

Ingenious lighting in proximity and distance

+

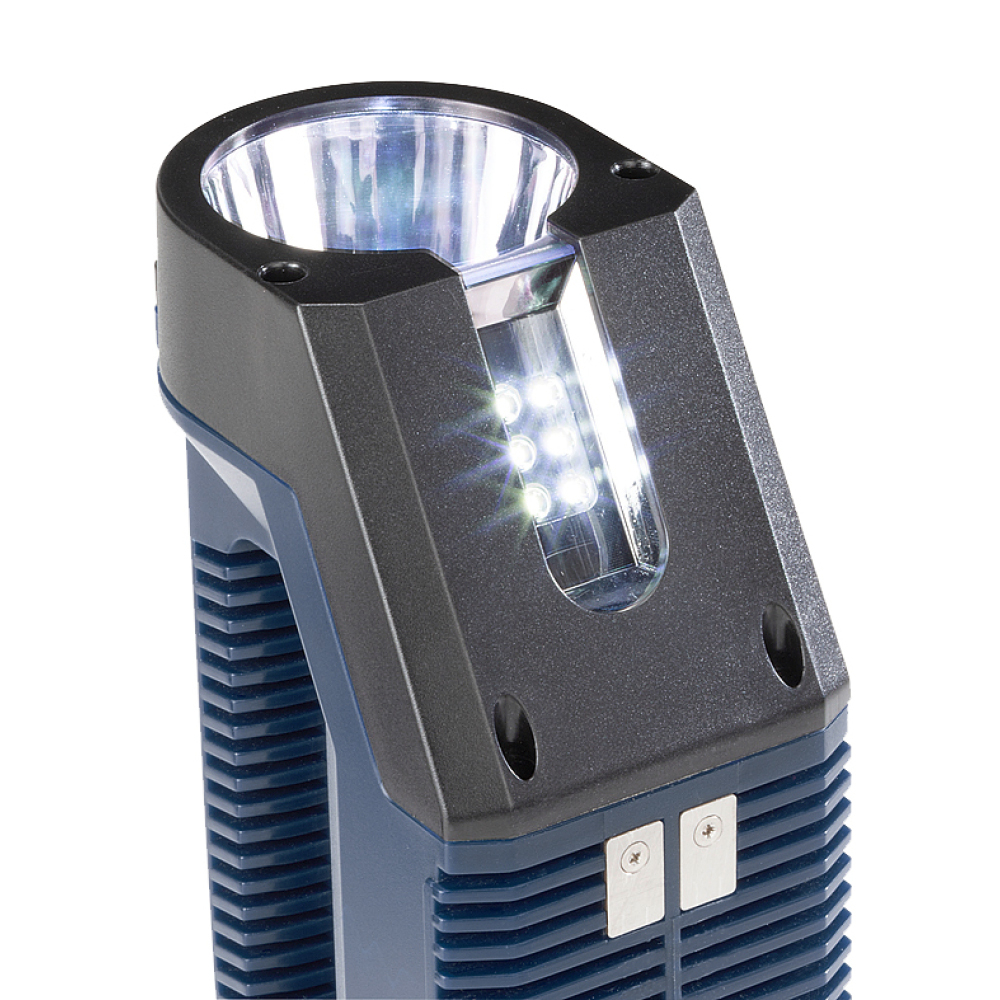

The compact Portable Lamp PL-830 is equipped with a 3 W LED main light source as well as with a selectable series of 6 SMD LEDs which serve as path and orientation light.

You may select between 5 performance modes
The main beam can be selected optionally with 50 % and 100 % power. The path and orientation light can be employed as single function or in combination with the main beam. Furthermore, flashing function is available.

Mode Function Beam angle Luminosity Runtime Lighting range
1 Main light 20° 100 % 5 h 200 m
2 Main light 20° 50 %   8 h 100 m
3 Flashing mode 20° 100 % 18 h 200 m
4 Path light 80° 100 % 35 h 20 m
5 Main and
path light		 20° | 80° 100 % 4,5 h 200 m
The compact Portable Lamp PL-830 is equipped with a 3 W LED main light source as well as with a selectable series of 6 SMD LEDs which serve as path and orientation light.

You may select between 5 performance modes
The main beam can be selected optionally with 50 % and 100 % power. The path and orientation light can be employed as single function or in combination with the main beam. Furthermore, flashing function is available.

Mode Function
1 | Main light Beam angle 20°
Luminosity 100 %
Runtime 5 h
Lighting range 200 m
2 | Main light Beam angle 20°
Luminosity 50 %
Runtime 8 h
Lighting range 100 m
3 | Flashing mode Beam angle 20°
Luminosity 100 %
Runtime 18 h
Lighting range 200 m
4 | Path light Beam angle 20°
Luminosity 100 %
Runtime 35 h
Lighting range 20 m
5 | Main and
    path light		 Beam angle 20° | 80°
Luminosity 100 %
Runtime 4,5 h
Lighting range 200 m

Emergency light in case of power outage

+
LED Portable Lamp IVT PL-830, Emergency light in case of power outage
The PL-830 is equipped with emergency light function. If the PL-830 is stored in the charging bracket and connected to the mains net its emergency light function will be triggered in the case of power outage. The lamp automatically turns on. If the mains power is restored the lamp shuts off again.

In the event of a power failure, the lamp becomes a reliable light source, e.g. in rooms and corridors without windows or in the dark.

Warning light for securing danger zones

+
18 hours flashing light

With the flashing mode follow-up traffic may be warned in the case of an accident or a danger zones may be indicated.

High quality Li-ion battery with 1600 mAh

+
1.6 Ah, 7.4 V Li-Ion

The PL-830 is equipped with a high quality Li-ion battery which is protected against overcharging and deep discharge. With its high energy density the Li-ion battery assures a long runtime and at the same time minimizes the weight of the portable lamp significantly. By means of the low self-discharge it is always ready for use.

Benefits of Li-ion battery technology
  • High energy density
  • Maintenance-free
  • No loss of performance
  • Through memory effect
  • Low self-discharge
  • Lightweight
  • High-performance
  • Long-life

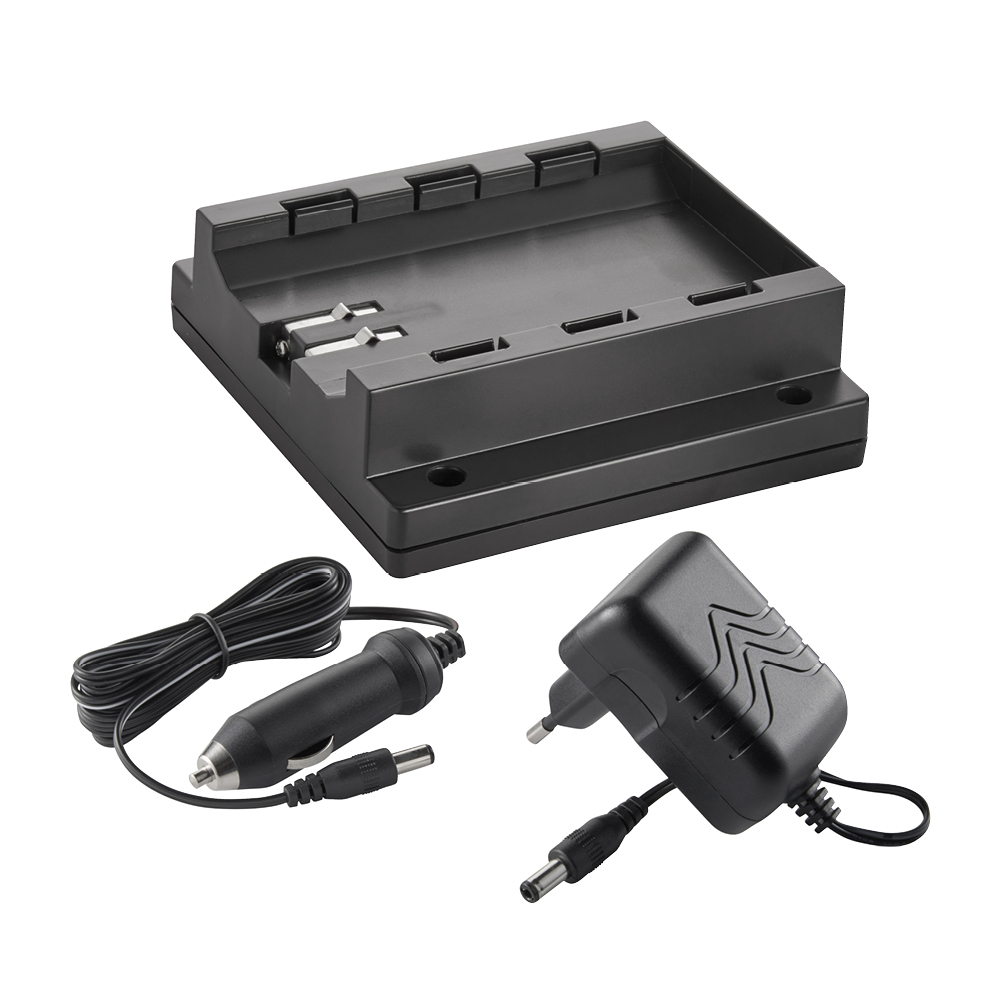

Rechargeable with 230 V, 12 V or optional 24 V

+
Rechargeable with 230 V, 12 V or optional 24 V            Rechargeable with 230 V, 12 V or optional 24 V

Notice: In order to achieve the IP 67 protection (waterproof housing), the lamp itself does not contain a charging socket. The lamp can only be charged in the charging bracket.

For charging you my optionally use the 230 V plug-in power supply on the mains net or the 12 V car charging adapter on your vehicle’s cigarette lighter.

For vehicles with 24 V on-board voltage, a 12 V/24 V car charging adapter is available as an optional accessory.
 Optional accessories: 12 V/24 V car charging adapter
Optional accessories: 12 V/24 V car charging adapter
Item no. 559030
To the product >>

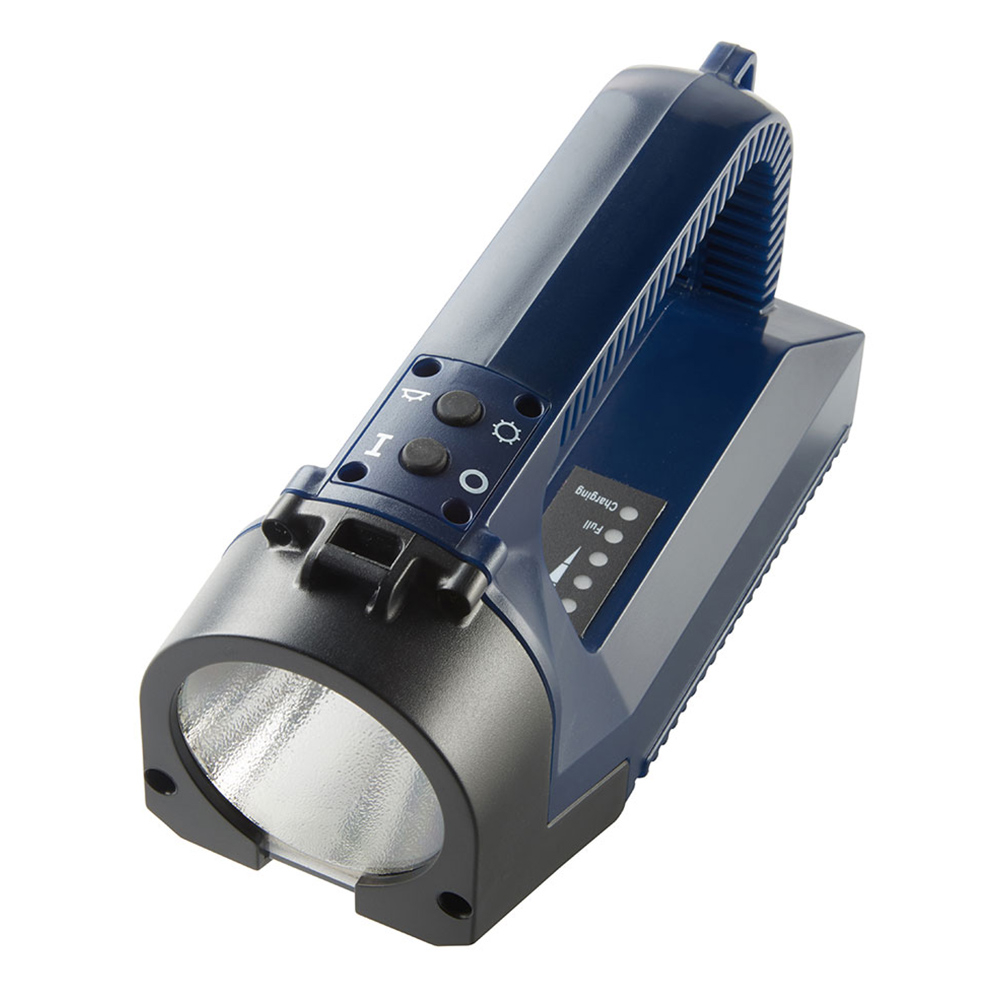

User-friendly: one-hand operation, LED display

+
User-friendly: one-hand operation and LED display
The two rubberized pressure switches allow for easy operation even with gloves. The hand lamp can be switched on and the desired light mode can be selected with one hand.

The current charging status of the battery is always indicated by the clear LED display beneath the lamp’s handle.

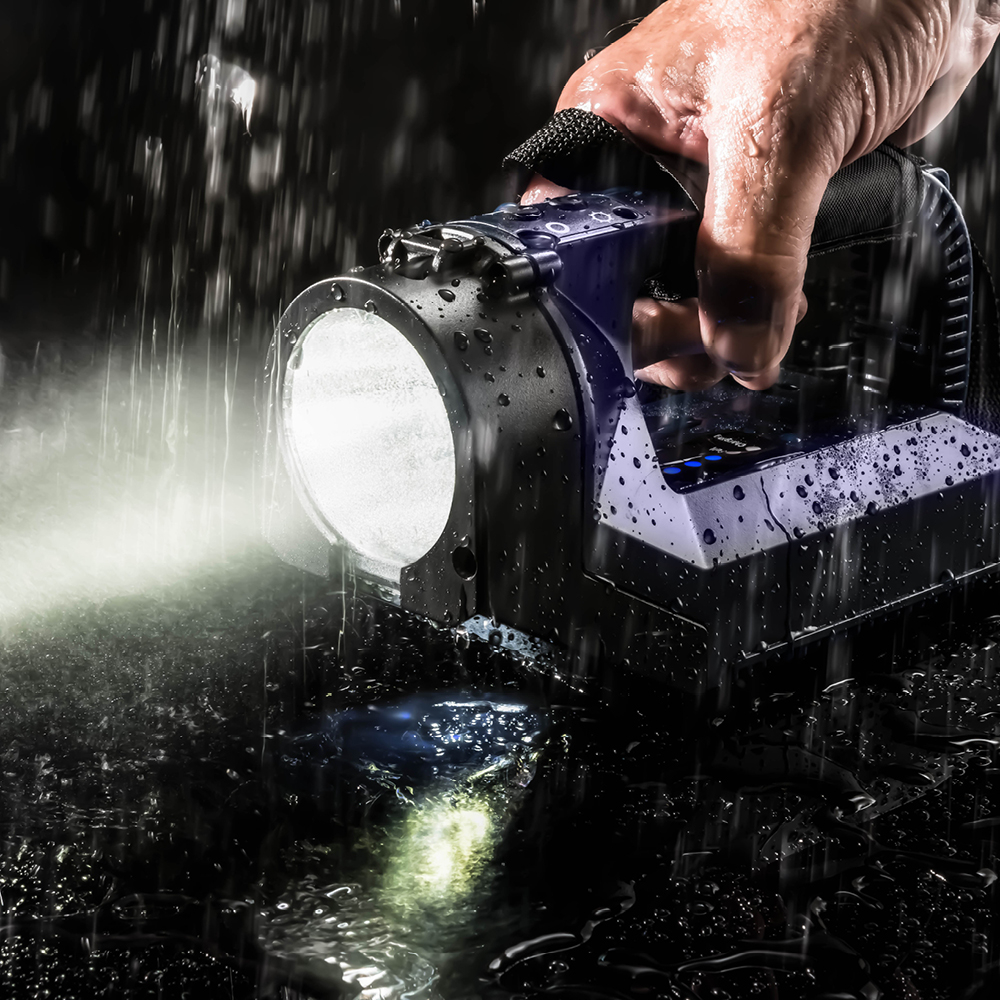

IP 67 - Built for use under most harsh conditions

Built for use under most harsh conditions

+
LED Portable Lamp IVT PL-830, IP 67 - Built for use under most harsh conditions
The sturdy housing is made of impact-proof plastic and is protected against the intrusion of dust and water according to protection type IP 67. The PL-830 3 W even withstands a temporary immersion in water up to a depth of 1 m.

The low weight of only 650 g, the sturdy water tight housing, the compact form and the practical carrying strap turn the LED portable lamp into the perfect companion in all weather conditions.

Construction and equipment of the hand lamp

+

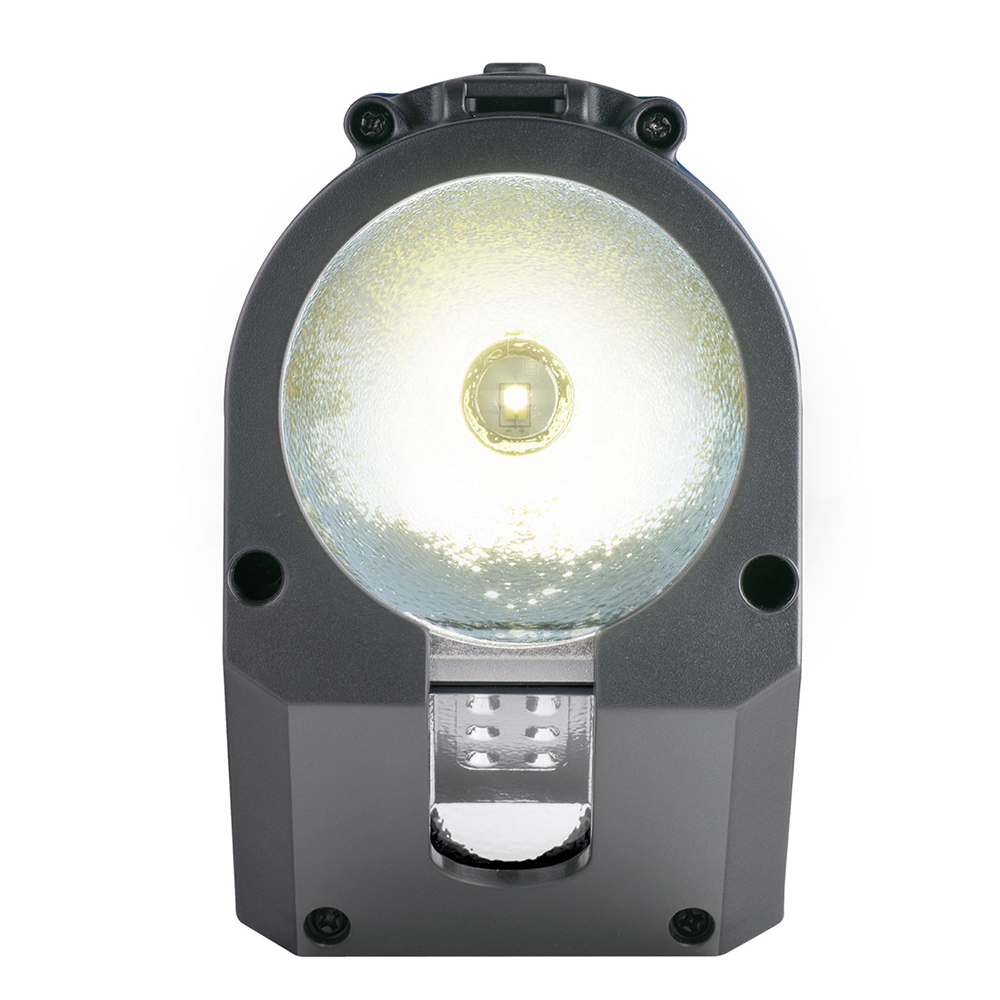

Construction and equipment of the hand lamp: Side view Construction and equipment of the hand lamp: frontal view

Equipment
  • Sturdy carrying handle
  • Rubberized pressure switches (On/Off, selection of light modes)
  • Compact, water and dust proof housing (IP 67) made of impact-resistant plastic
  • Powerful light beam: 3 W Cree/Luxeon LED (240 lm)
  • Energy-efficient path/orientation light: 800 mW SMD LED
  • Powerful 1,6 Ah Li-Ion battery
  • Visual charge status display

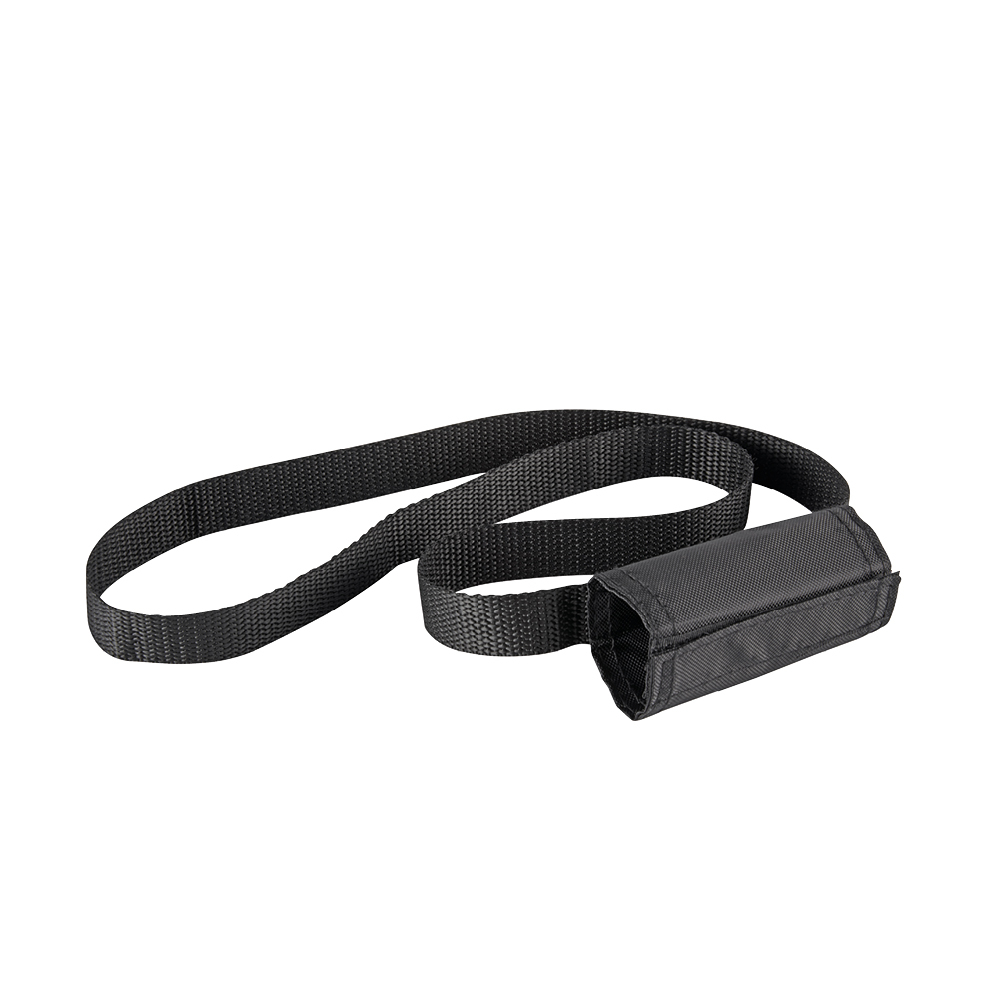

  • Removable shoulder carrying strap

Removable shoulder carrying strap

3 year manufacturer warranty

+
3 years warranty

IVT products are manufactured to a high quality and following strict quality guidelines. We are certain about the longevity so that we add another year to the statutory manufacturer warranty free of charge. Rechargeable batteries and batteries are excluded from this warranty.

Delivery content

+
  • LED Portable Lamp PL-830, 3 W
  • Charging bracket
  • 230 V plug-in power supply
  • 12 V car charging adapter
  • Shoulder carrying strap
  • Instruction manual in DE, GB, FR, NL

Note: The accessories can also be ordered separately.
LED Portable Lamp IVT PL-830: Use as a hand lamp during search operations

Recommended applications

The IVT portable lamp PL-830 is suitable for long-lasting operations with rescue and search teams, security staff, facility protection, patrols, agriculture and forestry, in crafting, as reliable companion in private cars and trucks.

Furthermore, the battery lamp is a reliable companion for outdoor activities such as camping, exploration tours, night hikes, the evening dog walk and much more.

Technical Data

Current supply Li-ion battery
7.4 V, 1600 mAh
Light sources main light 1 x Cree/Luxeon LED
Light sources path light 6 x SMD LED
Power consumption, max. 3 W | Cree/Luxeon LED
0.8 W | SMD LED
Luminous flux, max. 240 lm | Cree/Luxeon LED
40 lm | SMD LED
Efficiency 80 lm/W | Cree/Luxeon LED
50 lm/W | SMD LED
Color temperature 5300 - 6500 K
daylight white
Cree/Luxeon LED
Lighting modes 1: Main light 100 %
2: Main light 50 %
3: Flashing light
4: Path light
5: Main light 100 % + path light
Lighting range (max.) 200 m
Operation time (max.) 35 h
Beam angle Main light 20°
path light 80°
Emergency light function Yes
Charging adapter
Plug-in power unit
100 - 240 V AC, 50/60 Hz
Car Charging adapter 12 V DC
Charging time 5 h
Charging control display Yes
Deep discharge protection Yes
Overcharge protection Yes
Protection class lll
Type of protection IP 67
Temperature range -10 °C to +40 °C
Material Plastic
Color Dark blue, black
Dimensions (L x W x H)     210 x 80 x 120 mm (lamp)
140 x 138 x 44 mm (wall bracket)
Weight 0.65 kg (lamp)
0.18 kg (wall bracket)

Accessories

Charging bracket for PL-830, 3 W

Item no. 209

9,95 EUR
VAT incl.

Power supply unit 12 V/500 mA

Item no. 312205.N

12,95 EUR
VAT incl.

12 V car charging adapter

Item no. 100.1

4,95 EUR
VAT incl.

Sholder strap for IVT lamps

Item no. 100.4

4,95 EUR
VAT incl.

Alternative product variants

LED Work Lamp IVT PL-828, 5 W, 350 lm

Item no. 312224

108,90 EUR
VAT incl.

LED Work Lamp IVT PL-850, 3 W, 240 lm

Item no. 312208

89,00 EUR
VAT incl.

LED Work Lamp Staudte Hirsch SH-5.100, 2 x 8 W, 1040 lm

Item no. 551000

229,00 EUR
VAT incl.

LED Hand Lamp Staudte Hirsch SH-5.300, 3 W, 225 lm

Item no. 553000

89,00 EUR
VAT incl.

Downloads

Operating instructions Portable Lamp IVT PL-830
