LED Strip Staudte Hirsch SH-5.610 12 V DC, 1 m, flexible, self-adhesive, with connection cable

Super bright LED strip – Absolutely waterproof, insensitive and self-adhesive

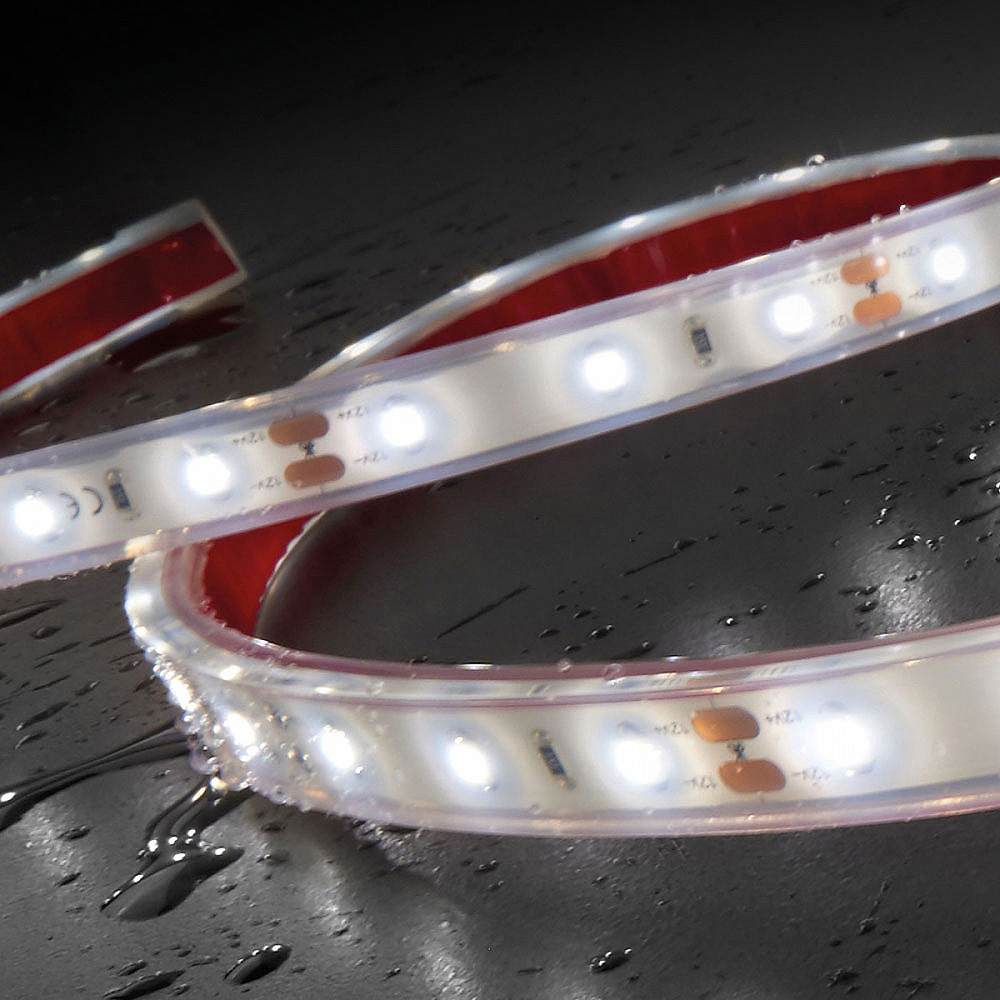

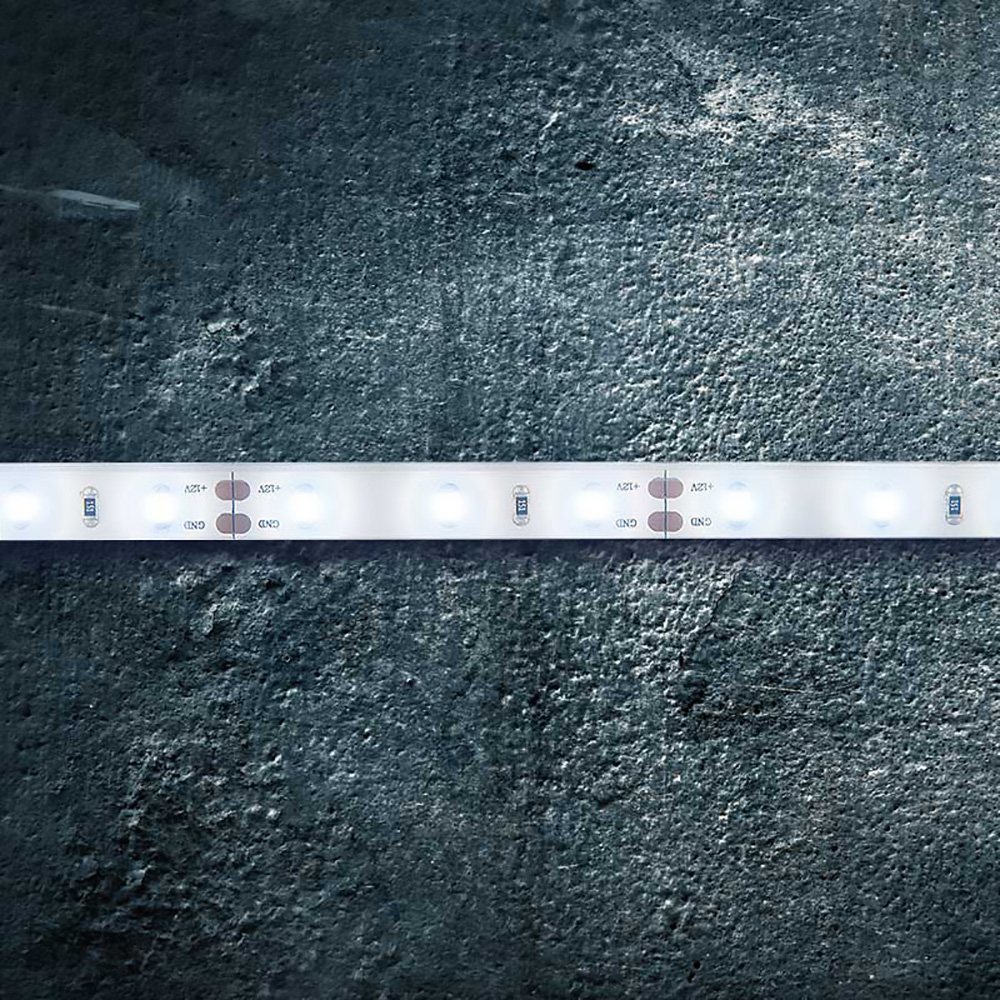

This extremely flexible Staudte Hirsch LED strip with 60 ultra-bright SMD LEDs per meter can be used for a wide variety of indoor and outdoor applications. Thanks to 413 lm and a light color of 4500 K (neutral white), it provides large-area illumination. Due to the potting, the LED strips are dust-proof according to IP 65 and optimally protected against rain and water jets from any angle.

Important characteristics and features

60 SMD LEDs – Super-bright, energy and space saving

+

60 SMD LEDs – Super-bright, energy and space saving

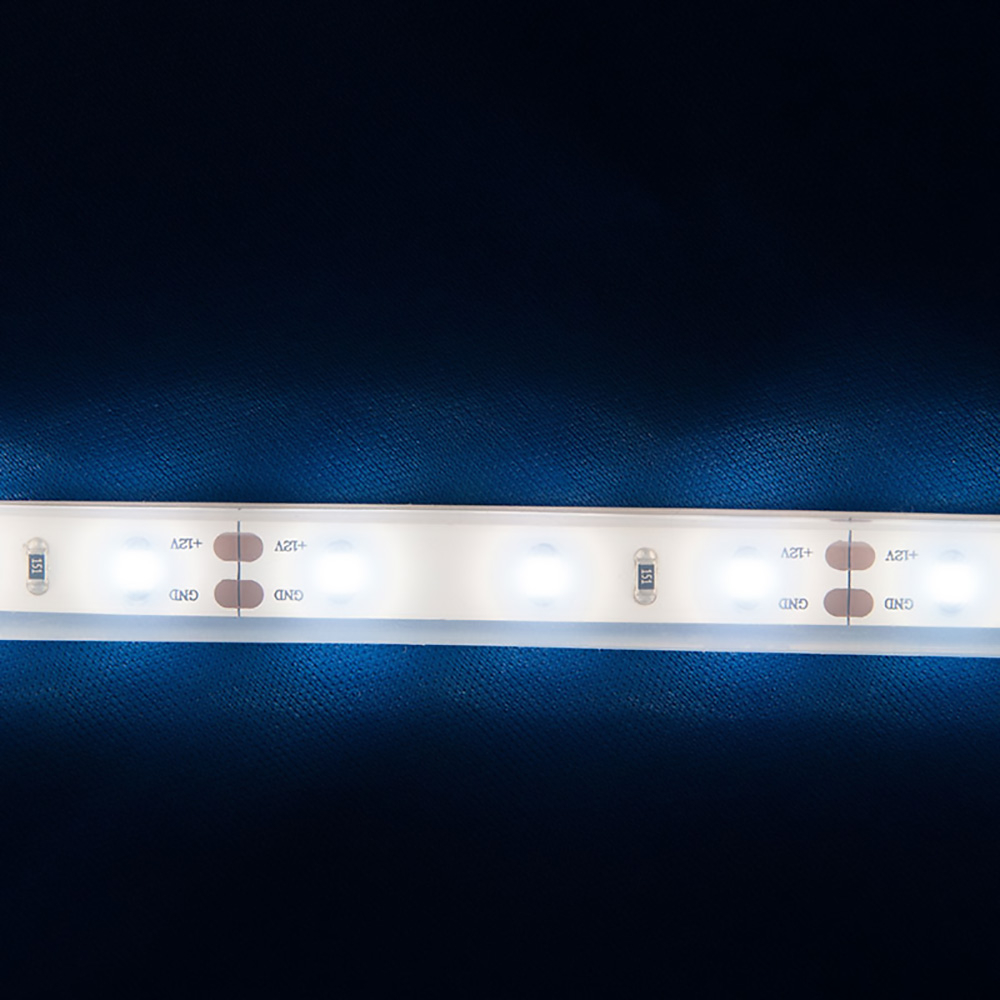

60 SMD LEDs per meter guarantee a large-area and bright lighting in the smallest space indoors and outdoors. Despite low power consumption of max. only 4.8 W/m, a luminous flux of 413 lm is achieved. The color temperature is 4500 K (neutral white).

The service life of the LEDs is at least 36,000 h.

Sticks permanently - 3M^TM adhesive tape

+

The high-quality light strip is self-adhesive due to the 3MTM adhesive tape attached to the back. Even with strong temperature fluctuations or in humid environments, these resistant LED strips adhere permanently to the desired location.

Ideal for vaulted surfaces and low installation heights

+

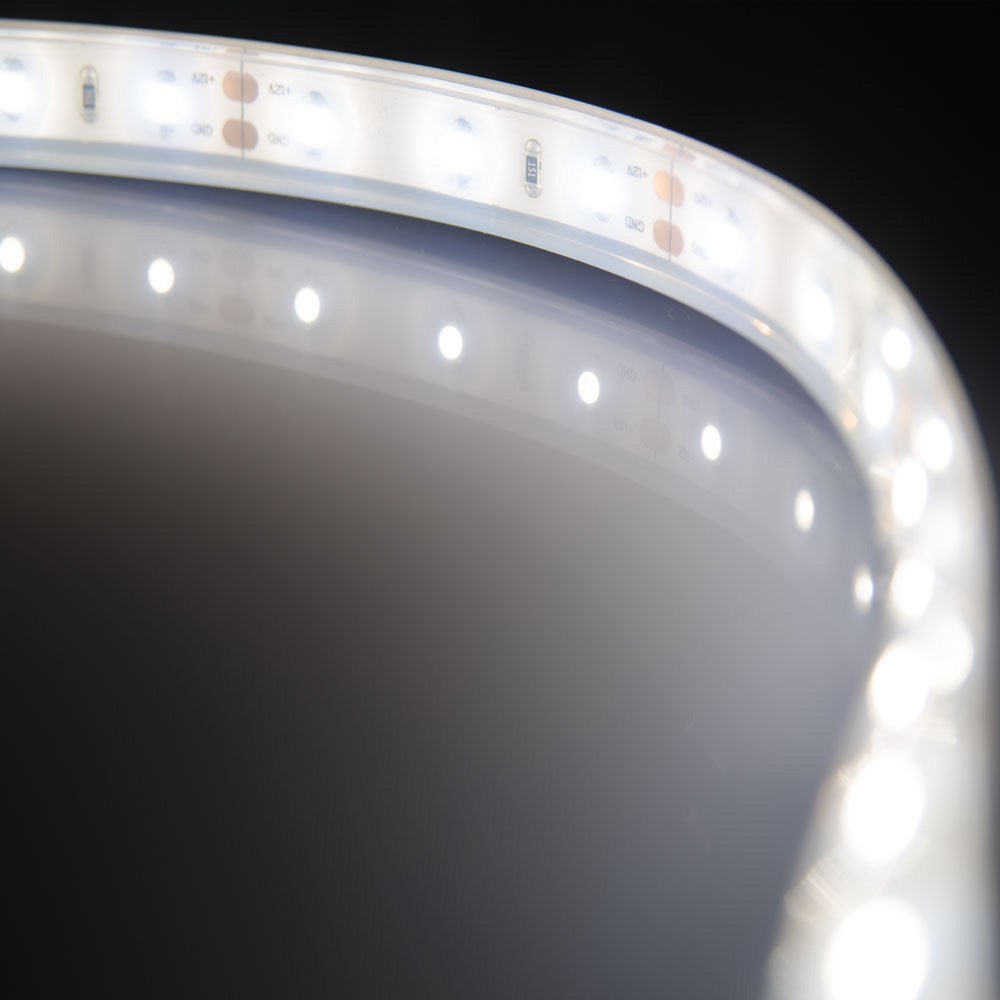

The extremely flexible LED strip is ideal for vaulted surfaces and low installation heights.

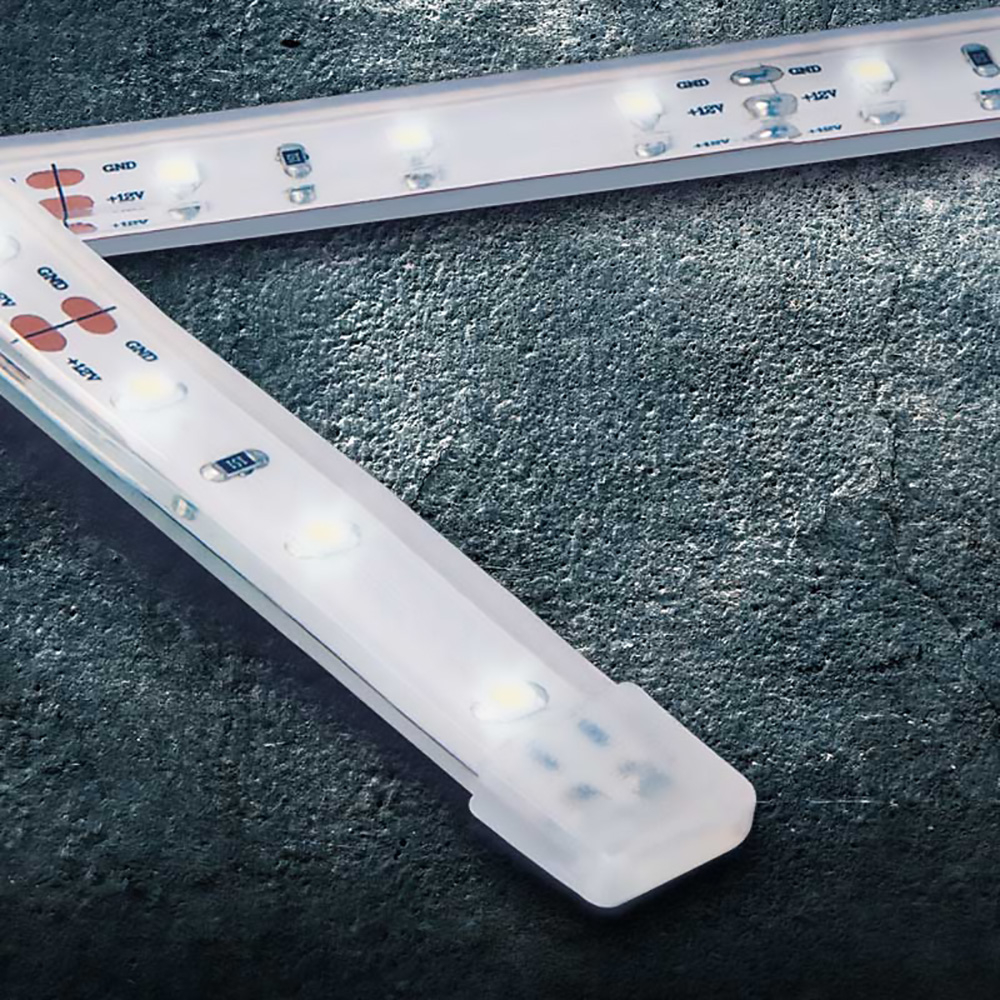

The length of the LED strip can be adapted flexibly. It can be shortened individually every 50 mm. Yet please consider that the cut LED strip will not meet the specified IP grade after being shortened.

Withstands high mechanical stresses

+

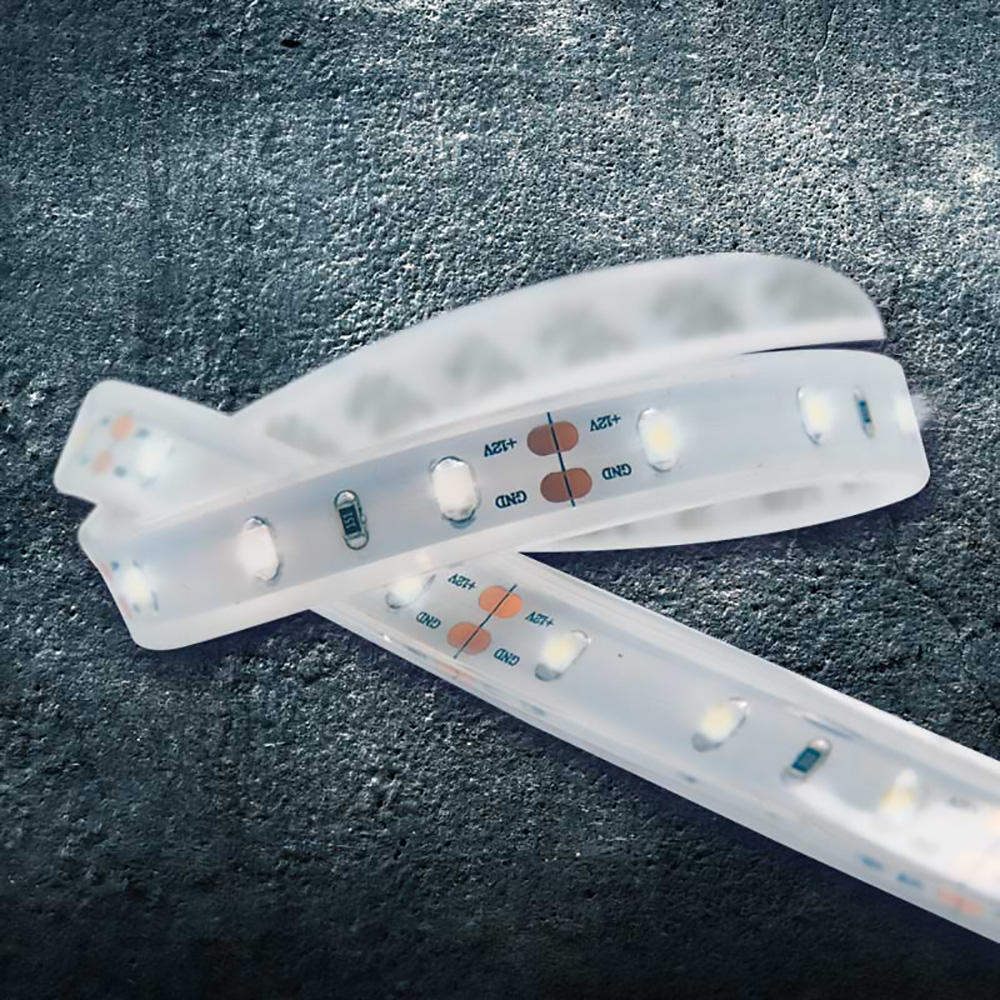

The bright SMD LEDs are protected from possible damage by a 5 mm thick silicone coating. Even high mechanical loads, caused by shocks or the like survive the Staudte Hirsch LED strips undamaged.

Individually shortenable

+

The length of the LED strip can be flexibly adjusted. It can be shortened individually every 50 mm. However, you should note that the cut LED strip no longer has the specified IP degree after shortening.

Water resistant according to IP 65 due to potting

+

The LED strip is suitable for both indoor and outdoor use. Due to the potting, the LED strip is protected against dust and water according to IP 65.

Easy connection - Pre-assembled with 1 m connection cable

+

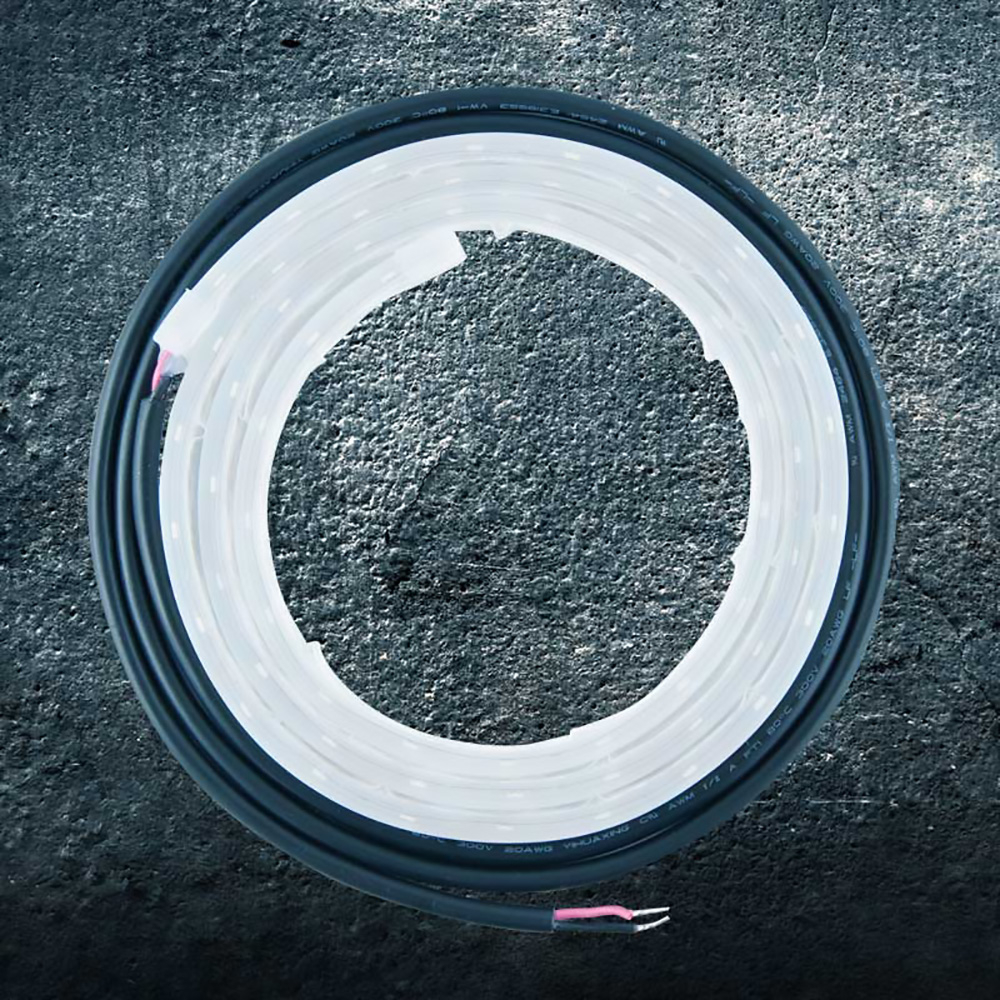

Pre-assembled with a 1 m twin cable, which is already stripped and pre-tinned at the end, uncomplicated connection is possible.

OEM Service – White Label Solutions on request

+

Do you wish our products in another configuration? Please call us or send us an e-mail. We will be happy to customize our products according to your specifications or develop individual solutions for you.
To the contact form >

3 year manufacturer warranty

+

Products of IVT and Staudte Hirsch are manufactured to a high quality and following strict quality guidelines. We are certain about the longevity so that we add another year to the statutory manufacturer warranty free of charge (rechargeable batteries excluded).

Delivery content

+

LED Strip SH-5.610, 12 V DC, 1 m, with connection cable

Recommended use

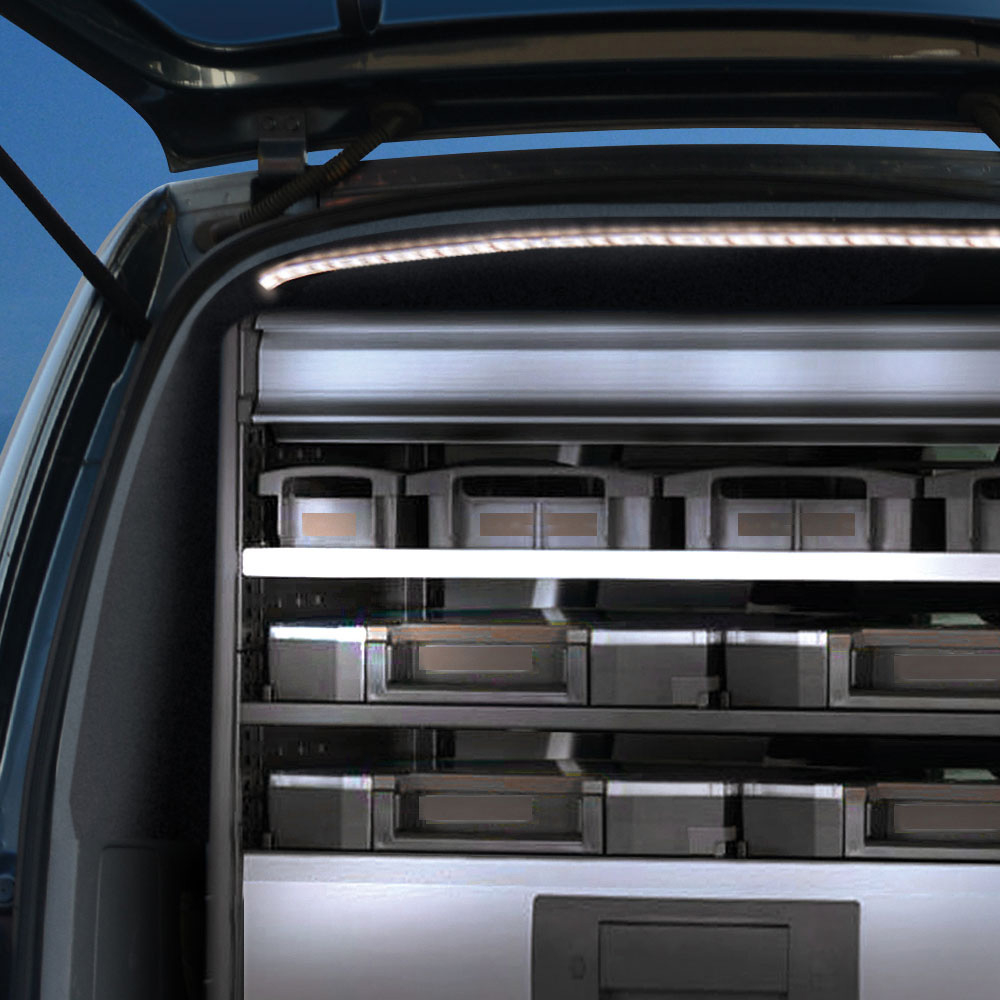

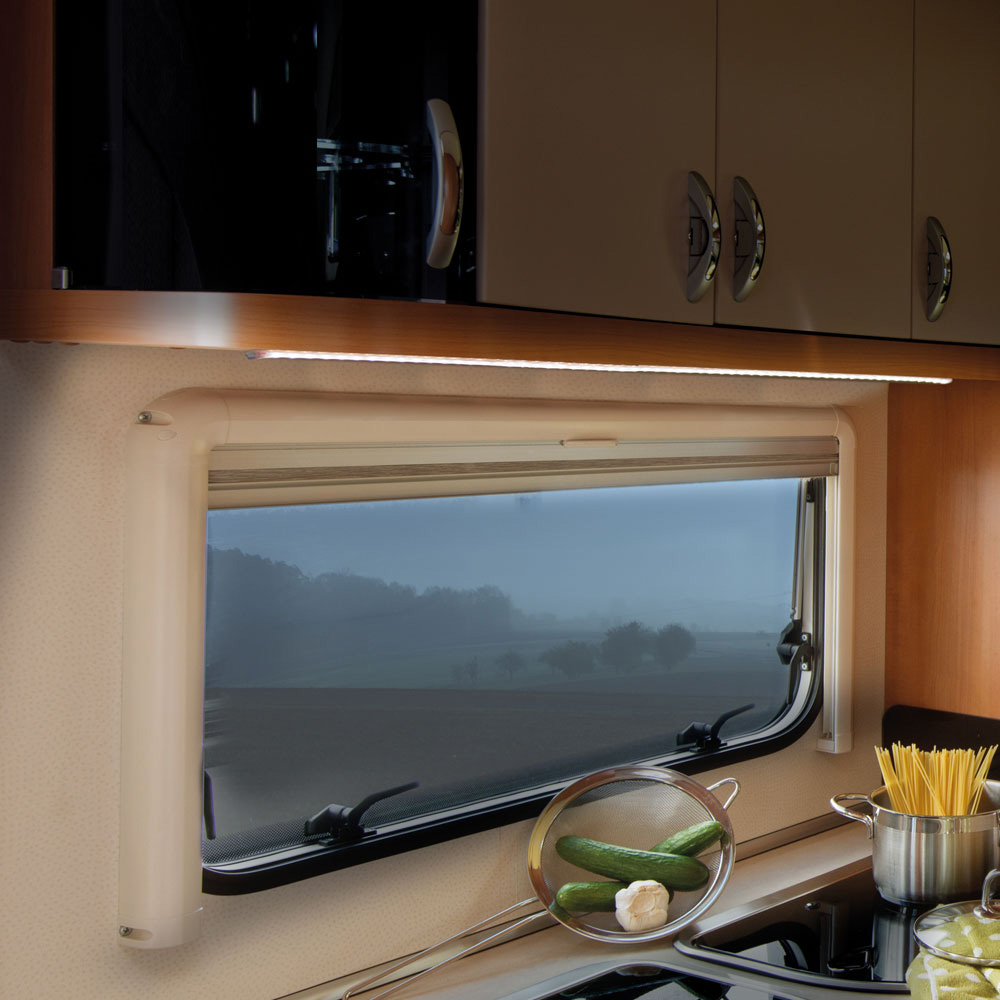

Due to its low energy consumption of only 4.8 W, the Staudte Hirsch LED strip is ideally suited for installation in vehicles and boats, as well as for operation as part of a solar system with an operating voltage of 12 V.

Technical Data

Operation voltage	12 V DC
Light source	60 SMD LED 3528
LED distance	16 mm
Power consumption (max.)	4.8 W/m
Luminous flux (max.)	413 lm
Efficiency	86 lm/W
Color temperature	4500 K neutral white
Color rendering index	CRI 80
Working life LED	> 36,000 h
Dimable	By reducing the supply voltage
Protection class	lll
Protection type	IP 65
Temperature range	-25 °C to +70 °C
Mounting	3M^TMadhesive tape
Connection cable	1 m twin wire, open ends
Dimensions (L x W x H)	1000 x 12 x 5 mm
Weight	75 g (without connection cable)
