LED Strip Staudte Hirsch SH-5.622 24 V DC, 2 m, flexible, self-adhesive, with connection cable

  • 24 V DC Operating voltage
  • Super bright with a luminous flux of 826 lm
  • Easy mounting with 3MTM tape
  • Water resistant to IP 65 by potting
  • LED lifetime at least 36,000 h
  • Length 2 m, every 100 mm individually adjustable
  • Pre-assembled with 1 m connection cable

Item no. 570032 | EAN 4030072570329

54,80 EUR

VAT incl.

Become a sales partner
Request an offer

Super bright LED strip – Absolutely waterproof, insensitive and self-adhesive

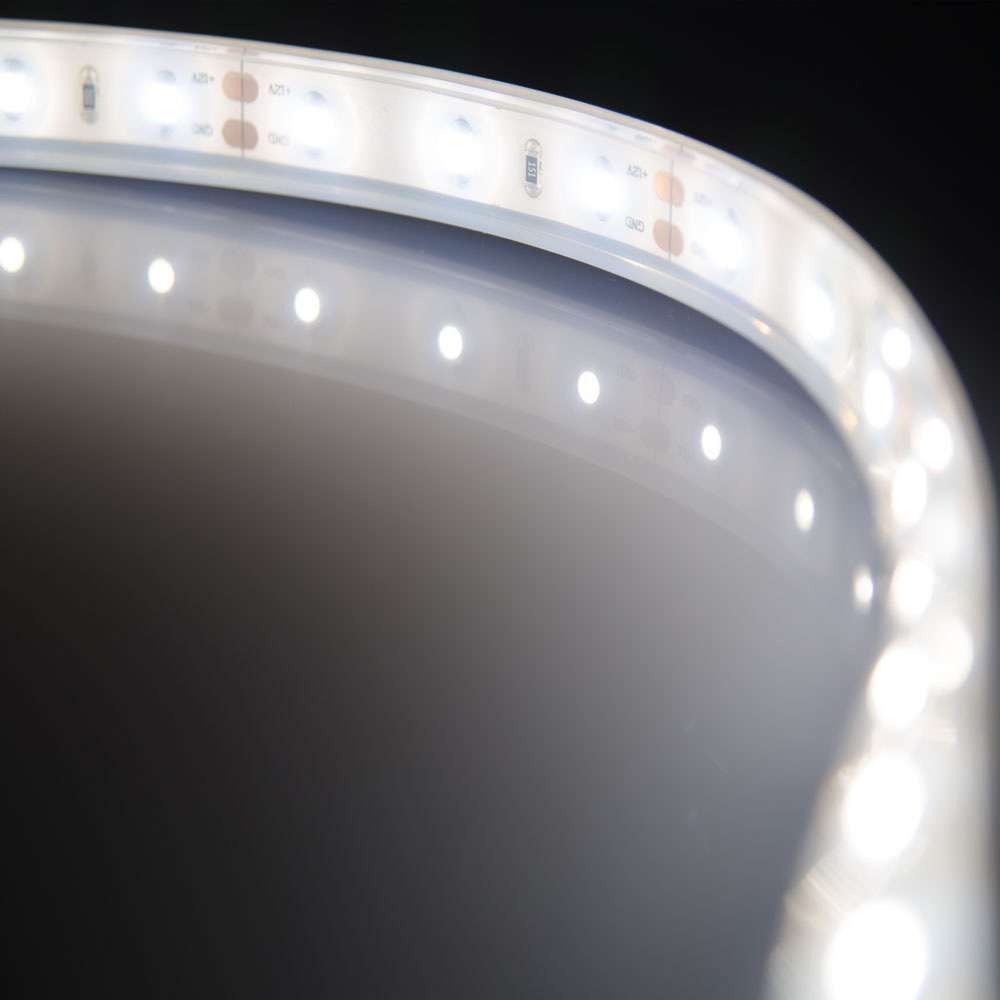

This extremely flexible Staudte Hirsch LED strip with 120 ultra-bright SMD LEDs can be used for a wide variety of indoor and outdoor applications. Thanks to 826 lm and a light color of 4500 K (neutral white), it provides large-area illumination. Due to the potting, the LED strips are dust-proof according to IP 65 and optimally protected against rain and water jets from any angle.

Bright illumination: 826 lm with the 2 m version Suitable for operation at temperatures from -25 °C to +70 °C Housing protected against dust, rain and jet water IP 65 1 m connection cable with open end Wall mounting Ceiling mounting CE approved: all EU-wide requirements for safety, health and environmental protection are complied with 3 year manufacturer warranty

Important characteristics and features

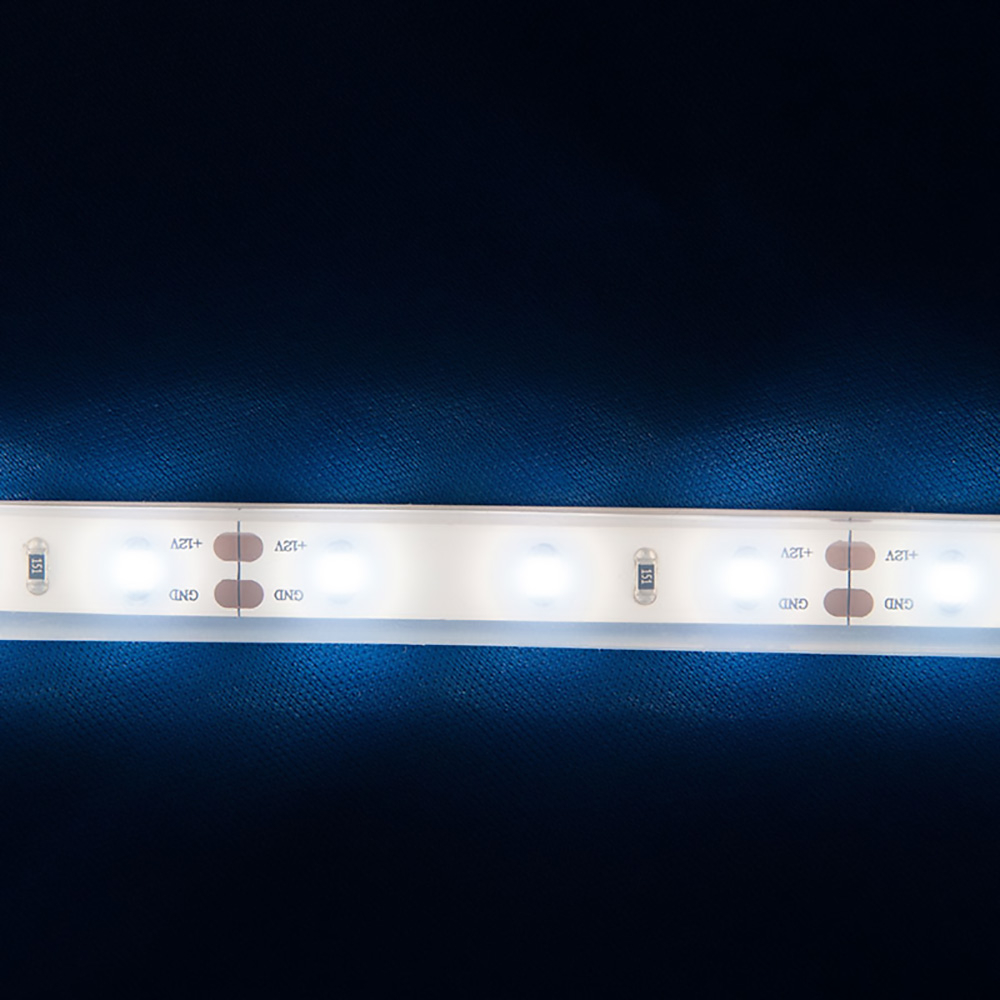

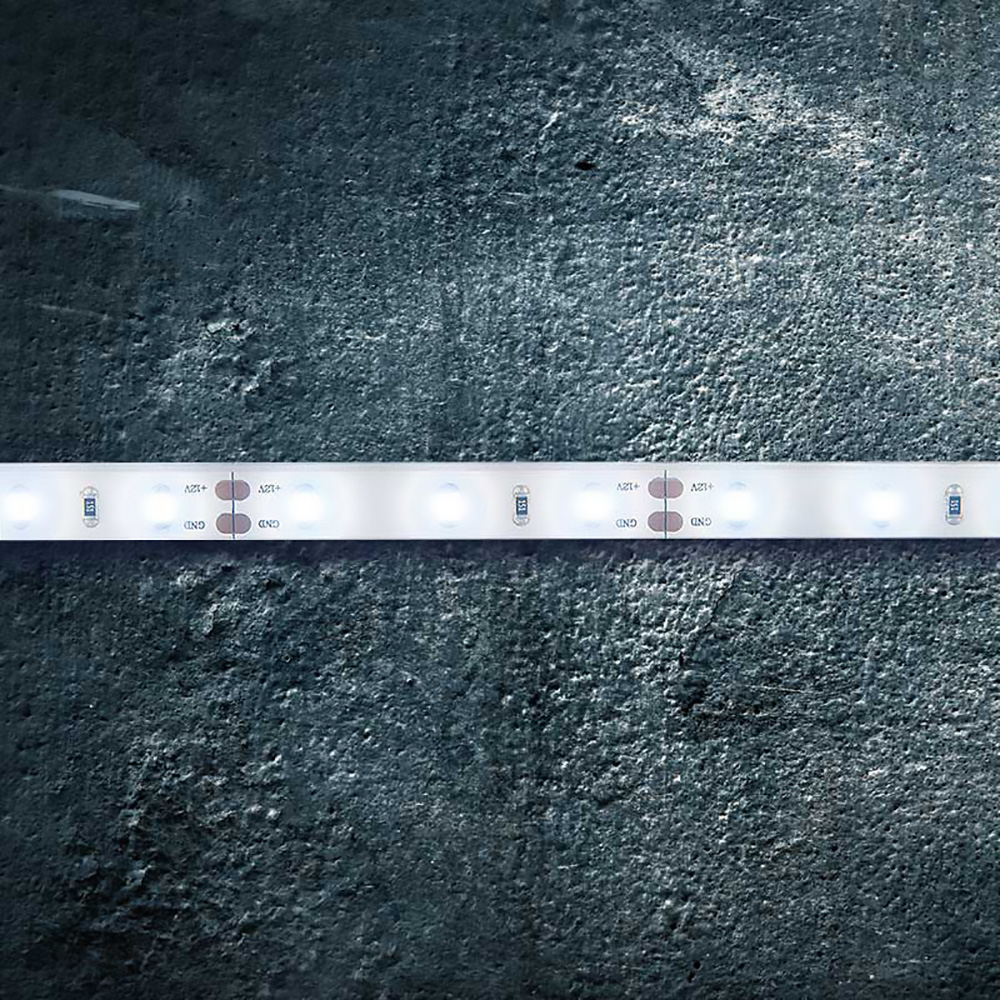

120 SMD LEDs – Super-bright, energy and space saving

+

60 SMD LEDs – Super-bright, energy and space saving
120 SMD LEDs guarantee a large-area and bright lighting in the smallest space indoors and outdoors. Despite low power consumption of max. only 9.6 W/m, a luminous flux of 826 lm is achieved. The color temperature is 4500 K (neutral white).

The service life of the LEDs is at least 36,000 h.

Sticks permanently - 3MTM adhesive tape

+
Sticks permanently – 3M-TM adhesive tape
The high-quality light strip is self-adhesive due to the 3MTM adhesive tape attached to the back. Even with strong temperature fluctuations or in humid environments, these resistant LED strips adhere permanently to the desired location.

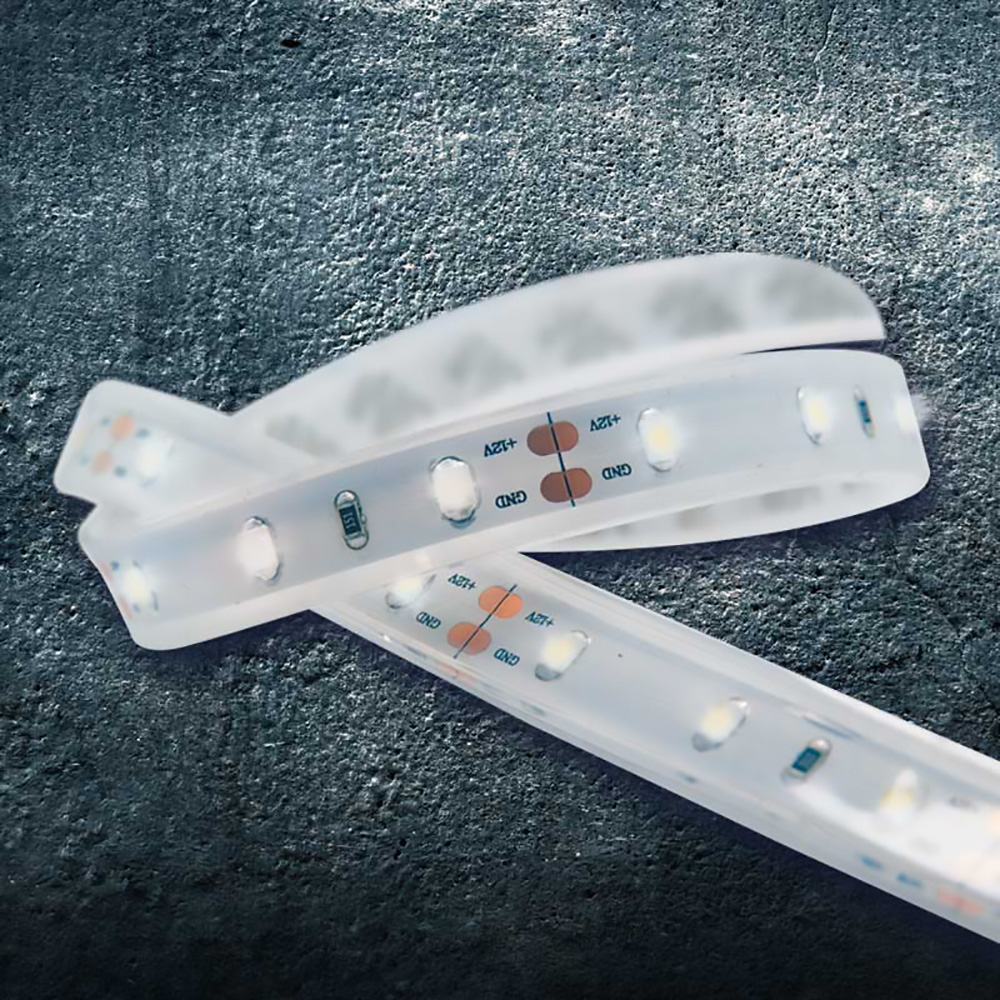

Ideal for vaulted surfaces and low installation heights

+
Ideal for vaulted surfaces and low installation heights
The extremely flexible LED strip is ideal for vaulted surfaces and low installation heights.

The length of the LED strip can be adapted flexibly. It can be shortened individually every 50 mm. Yet please consider that the cut LED strip will not meet the specified IP grade after being shortened.

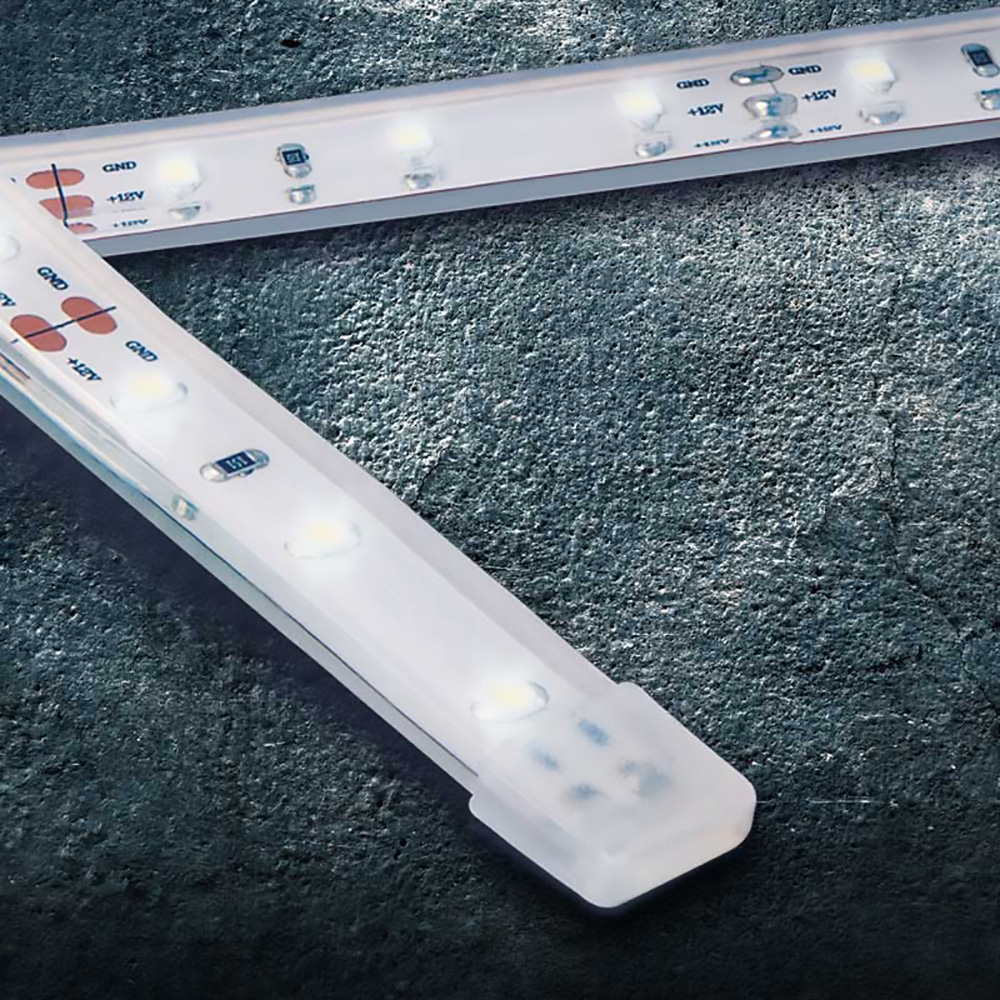

Withstands high mechanical stresses

+
Withstands high mechanical stresses
The bright SMD LEDs are protected from possible damage by a 5 mm thick silicone coating. Even high mechanical loads, caused by shocks or the like survive the Staudte Hirsch LED strips undamaged.

Individually shortenable

+
Individually shortenable
The length of the LED strip can be flexibly adjusted. It can be shortened individually every 100 mm. However, you should note that the cut LED strip no longer has the specified IP degree after shortening.

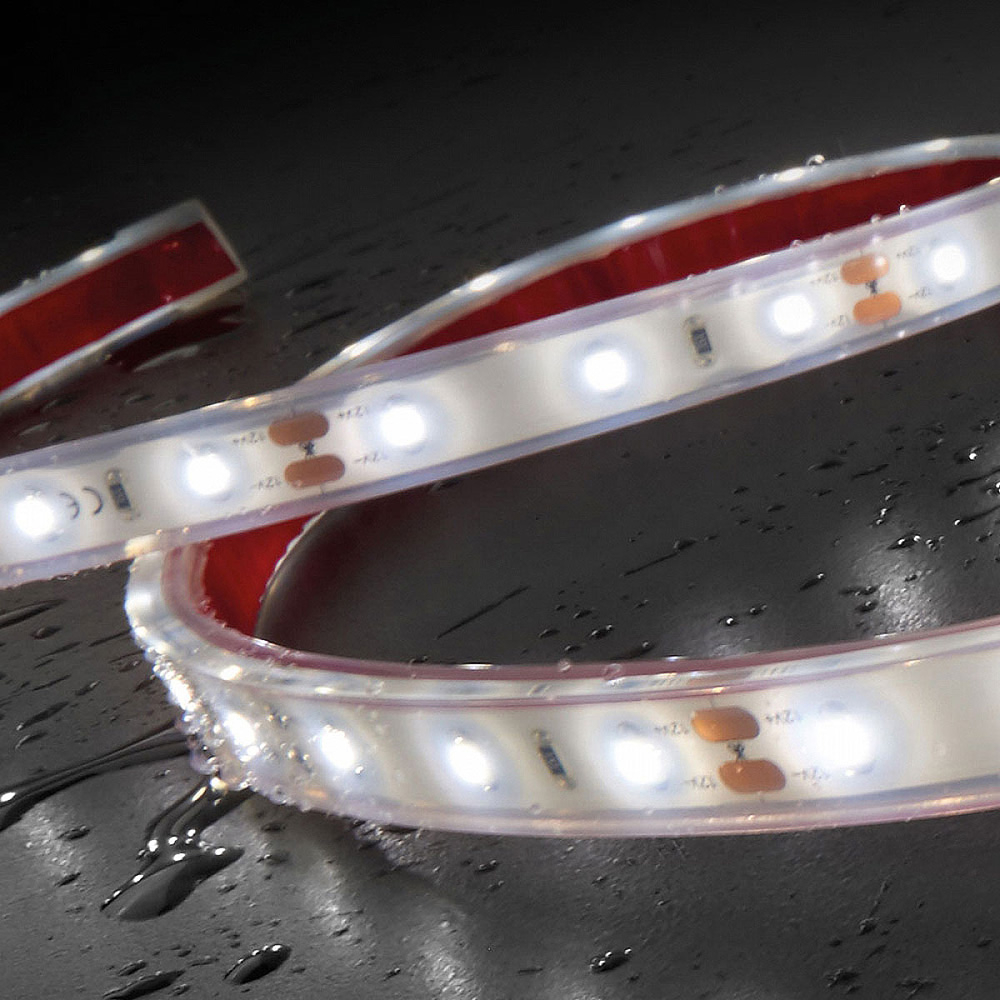

Water resistant according to IP 65 due to potting

+
Housing protected against dust, rain and jet water IP 65

The LED strip is suitable for both indoor and outdoor use. Due to the potting, the LED strip is protected against dust and water according to IP 65.

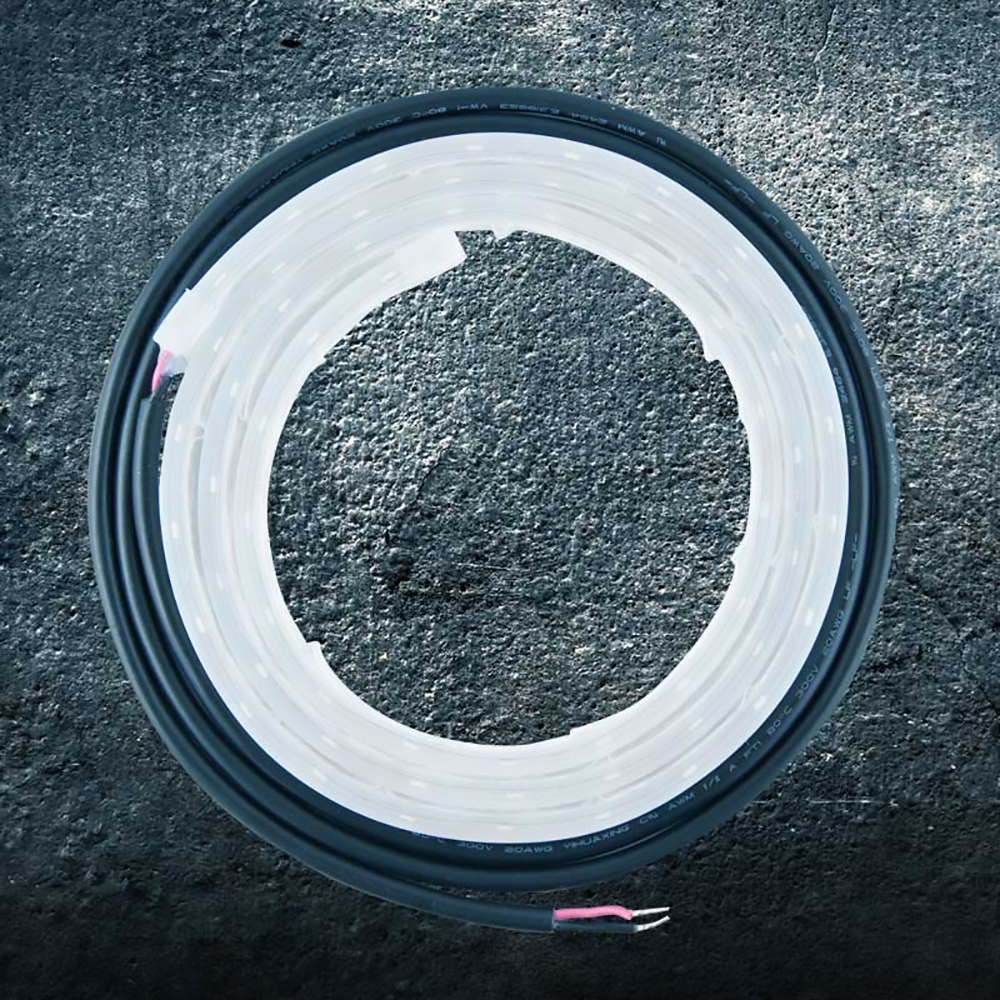

Easy connection - Pre-assembled with 1 m connection cable

+
Easy connection - Pre-assembled with 1 m connection cable
Pre-assembled with a 1 m twin cable, which is already stripped and pre-tinned at the end, uncomplicated connection is possible.

OEM Service – White Label Solutions on request

+
OEM/White Label Service: Customised solutions on request

Do you wish our products in another configuration? Please call us or send us an e-mail. We will be happy to customize our products according to your specifications or develop individual solutions for you.
To the contact form >

3 year manufacturer warranty

+
3 year manufacturer warranty

Products of IVT and Staudte Hirsch are manufactured to a high quality and following strict quality guidelines. We are certain about the longevity so that we add another year to the statutory manufacturer warranty free of charge (rechargeable batteries excluded).

Delivery content

+
  • LED Strip SH-5.622, 24 V DC, 2 m, with connection cable

Recommended use

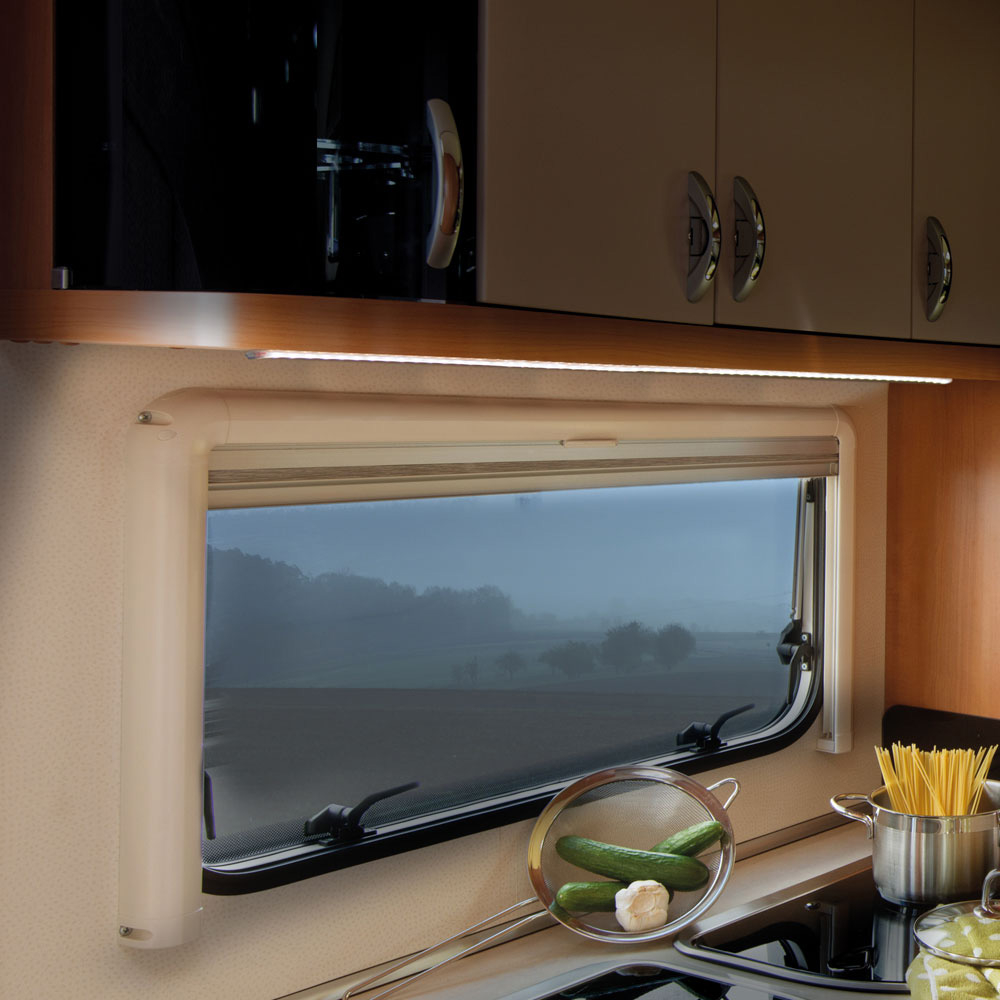

Suitable for trucks Suitable for coaches Suitable for motorhomes Suitable for caravans Suitable for motorboat Suitable for sailing boat Suitable for 24 V solar systems

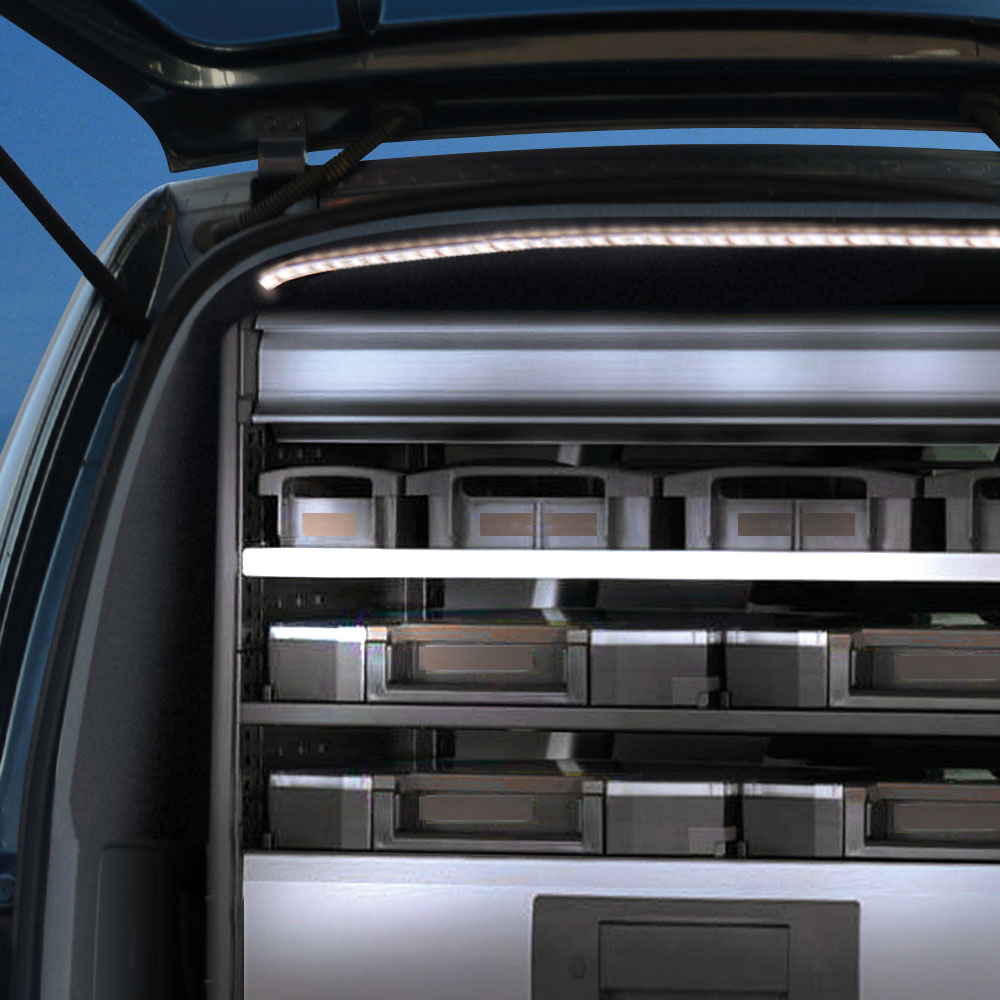

Due to its low energy consumption of only 9.6 W, the Staudte Hirsch LED strip is ideally suited for installation in vehicles and boats, as well as for operation as part of a solar system with an operating voltage of 24 V.

Technical Data

Operation voltage 24 V DC
Light source 120 SMD LED 3528
LED distance 16 mm
Power consumption (max.) 9.6 W/m
Luminous flux  (max.) 826 lm
Efficiency 86 lm/W
Color temperature 4500 K
neutral white
Color rendering index CRI 80
Working life LED > 36,000 h
Dimable By reducing the
supply voltage
Protection class lll
Protection type IP 65
Temperature range -25 °C to +70 °C
Mounting 3MTM adhesive tape
Connection cable 1 m twin wire, open ends
Dimensions (L x W x H)     2000 x 12 x 5 mm
Weight 150 g
(without connection cable)
