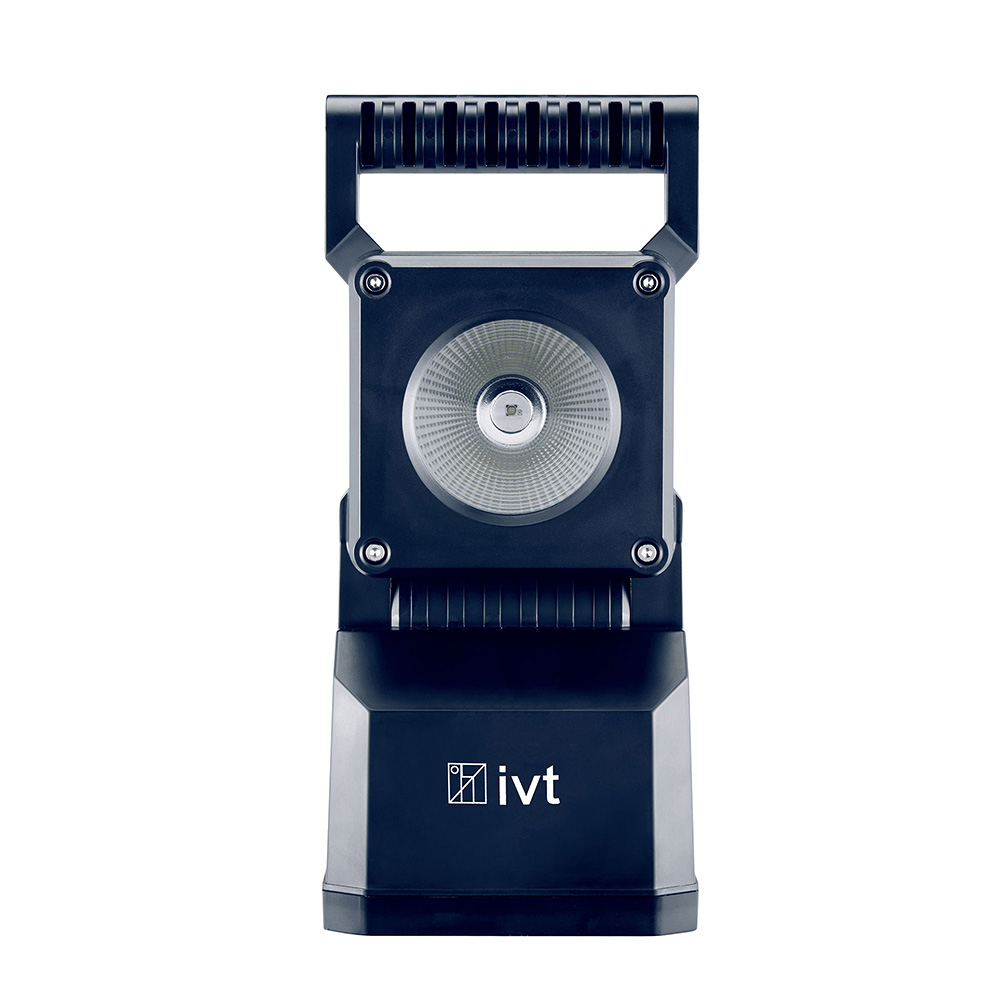

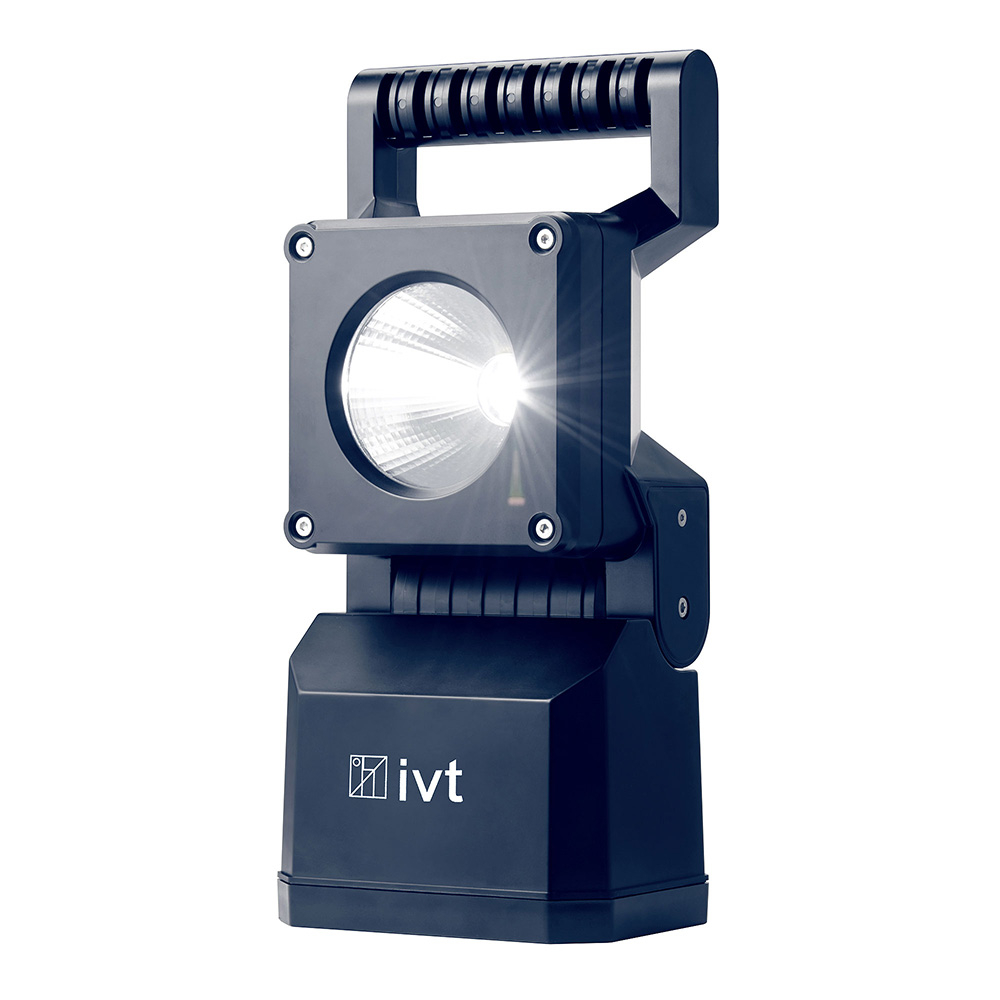

LED Work Lamp IVT PL-828, 5 W, 350 lm

LED Work Lamp IVT PL-828, 5 W, 350 lm

  • 5 W high-performance LED (350 lm)
  • 3 lighting modes (100 %, 50 %, flashing mode)
  • Wide beam angle 70°
  • Runtime max. 16 h
  • Powerful 4400 mAh Li-ion battery
  • Emergency light function
  • 120 ° swiveling lamp head
  • Sturdy splash-proof housing (IP 54)
  • Overcharge and deep discharge protection

Item no. 312224 | EAN 4030072312608

108,90 EUR

VAT incl.

Become a sales partner
Request an offer
Description  |  Features & Functions  |  Technical data  |  Accessories  |  Variants  |  Downloads

Sturdy Work Lamp with efficient Li-Ion battery and powerful 5 W LED


The robust IVT Work Lamp PL-828, 5 W is equipped with a powerful 5 W LED and an extremely efficient and light 4400 mAh Li-Ion battery. As a result, the lamp provides excellent work light for at least 4 hours at full output. In dimmed or flashing mode, the operating time is extended to 8 or 16 hours.

Due to the 2 brightness levels and the 120° swiveling lamp head, the light beam can be individually adapted to the needs of the user.

In addition, the PL-828, 5 W work lamp is equipped with an emergency light function, which makes it an indispensable safety factor in the event of a power failure.

The solid housing made of impact-resistant plastic is protected against the ingress of dust and splash water according to IP 54. This makes the IVT Work Lamp PL-828, 5 W a reliable companion – even when used under adverse conditions.

With the help of the wall bracket, which is optionally available as an accessory, the work lamp and charging cradle can be stored safely and always within reach. If the light is used as an emergency light, the metal bracket is also recommended as a stable mounting option.

5 W CREE LED 350 lm Lighting time 4 hours, 100 % LED Lighting time 8 hours, 50 % 16 hours flashing light Li-Ion battery rechargeable Schutzart IP 54 Emergency light function  CE 3 years warranty

Important characteristics and features

Optimum illumination of the working area

+
The robust PL-828 work lamp convinces with optimal illumination of the working area

Craftsmen appreciate the wide beam angle (70°), the powerful 5 W Cree LED and the highly efficient Li-Ion battery for numerous applications in trade and industry.

At maximum brightness level, the light lasts for 4 hours. In dimmed mode, the PL-828 work lamp reliably provides glare-free working light for a whole working day.

Mode Function Beam angle Luminosity Runtime
1 Flood light 70° 100 % 4 h
2 Flood light 70° 50 %     8 h
3 Flashing mode 70° 100 % 16 h
The robust PL-828 work lamp convinces with optimal illumination of the working area

Craftsmen appreciate the wide beam angle (70°), the powerful 5 W Cree LED and the highly efficient Li-Ion battery for numerous applications in trade and industry.

At maximum brightness level, the light lasts for 4 hours. In dimmed mode, the PL-828 work lamp reliably provides glare-free working light for a whole working day.

Mode Function
1 | Flood light Beam angle 70°
Luminosity 100 %
Runtime 30 h
2 | Flood light Beam angle 70°
Luminosity 100 %
Runtime 30 h
3| Flashing mode Beam angle 70°
Luminosity 100 %
Runtime 30 h

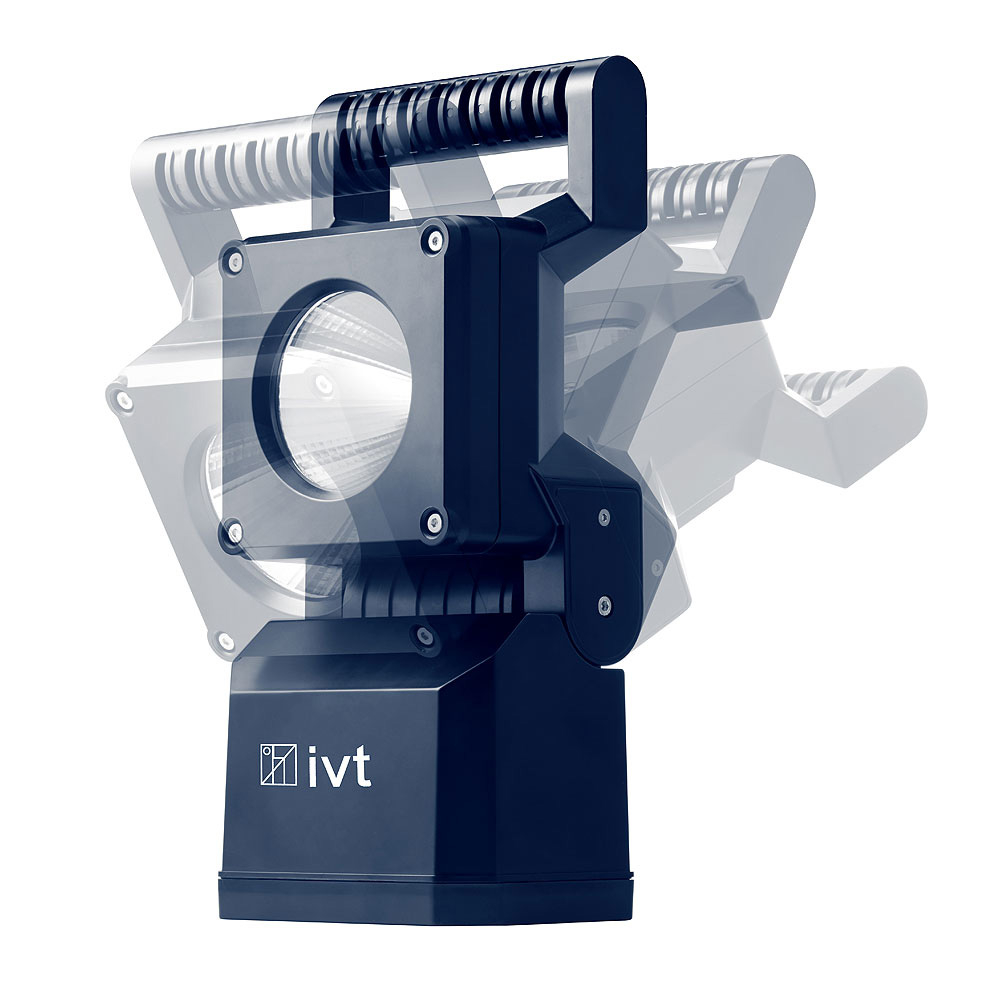

120° swiveling lamp head

+
120° swiveling lamp head
In case the LED lamp is used in the workshop or as portable working light its light beam can be aligned individually to the working area thanks to the 120° continuously swiveling lamp head.

Reliable emergency light in the case of power outage

+
Reliable emergency light in the case of power outage
The integrated emergency light function ensures reliable emergency lighting in the event of a power failure, e.g. in public buildings, halls, stables, in the basement, in rooms and corridors without daylight or in darkness.

Functionality: In case of a power outage, the rechargeable lamp becomes an emergency light thanks to its emergency light function. It has to be connected to the mains net, however. If the mains power cuts off the lamp automatically turns on. If the mains power is restored the lamp switches off again.

Warning light for securing danger zones and accident scenes

+
16 hours flashing light

The flashing mode, in combination with the optionally available yellow diffuser, allows for the use as a warning light. Thus, with the PL-828, 5 W you can warn of danger or accident scenes in the road traffic, for example.

Note on charging the work lamp

+
Note on charging the work lamp
In order to guarantee the IP 54 protection, the work lamp can only be charged in the charging cradle.

The lamp can be charged either via the 230 V plug-in power supply included in the delivery content or via the optionally available 12/24 V car charging adapter at the vehicle's on-board socket.

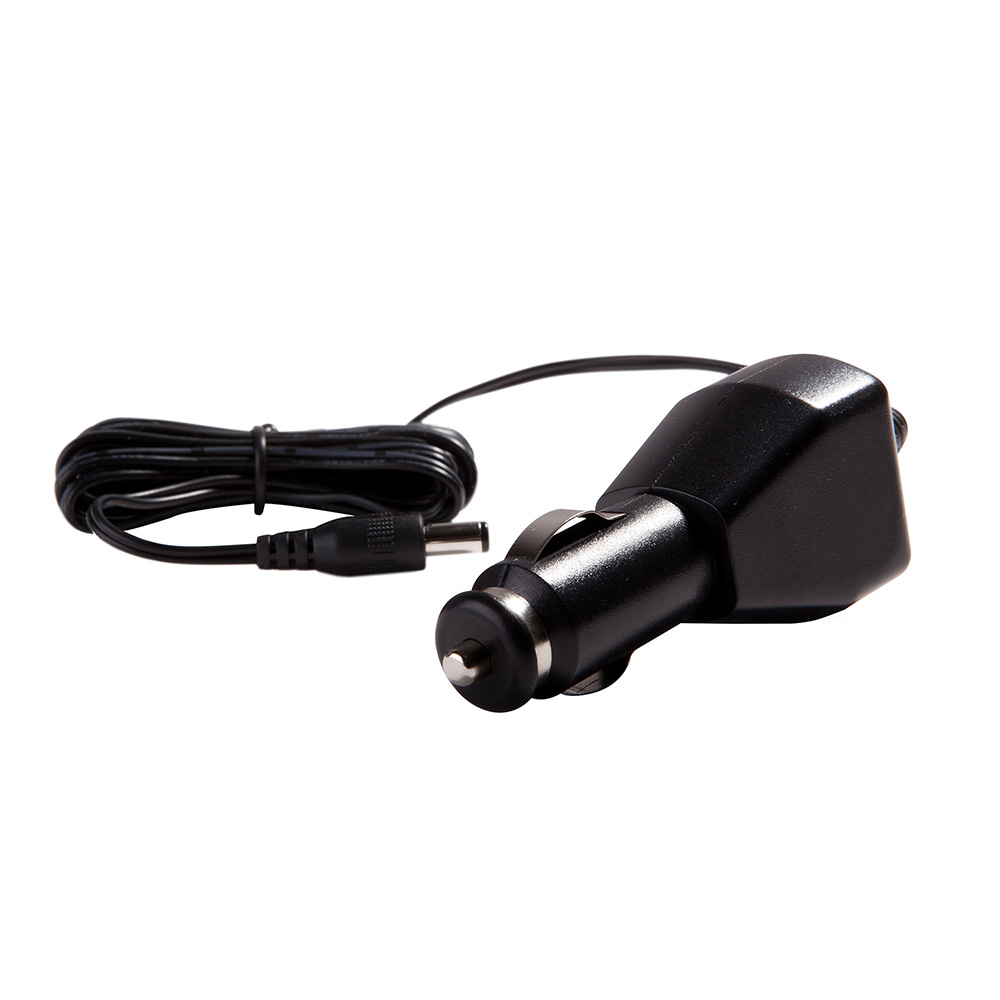

Optional accessories: 12 V/24 V car charging adapter
Optional accessories: 12 V/24 V car charging adapter
Item no. 559030
To the product >>

Easy to use rotary knob – clear LED display

+
Easy to use rotary knob – clear LED display
The large rubberised push-button switch makes it easy to select the desired light mode or switch the light on/off, even when wearing work gloves.

When the battery capacity is low, the control LED flashes. The battery must be recharged.

Sturdy housing for extreme working conditions – IP 54

+
Schutzart IP 54

The sturdy housing is protected against foreign objects and splash water in accordance with IP 54 and is made of impact-proof plastic. The light source is protected against possible damage by a solid ring of hard rubber. All this, turns the PL-828, 5 W into the perfect companion for tasks under extreme condition.

Construction and equipment of the work lamp

+
Construction and equipment of the work lamp
Equipment
  • Large stable carrying handle
  • 5 W Cree LED with 2 brightness levels
  • Beam angle 70°
  • 120° swiveling lamp head
  • Sturdy, splash water-protected housing (IP 54)  made of impact-proof plastic
  • Maintenance-free Li-Ion battery 7.4 V, 4400 mAh

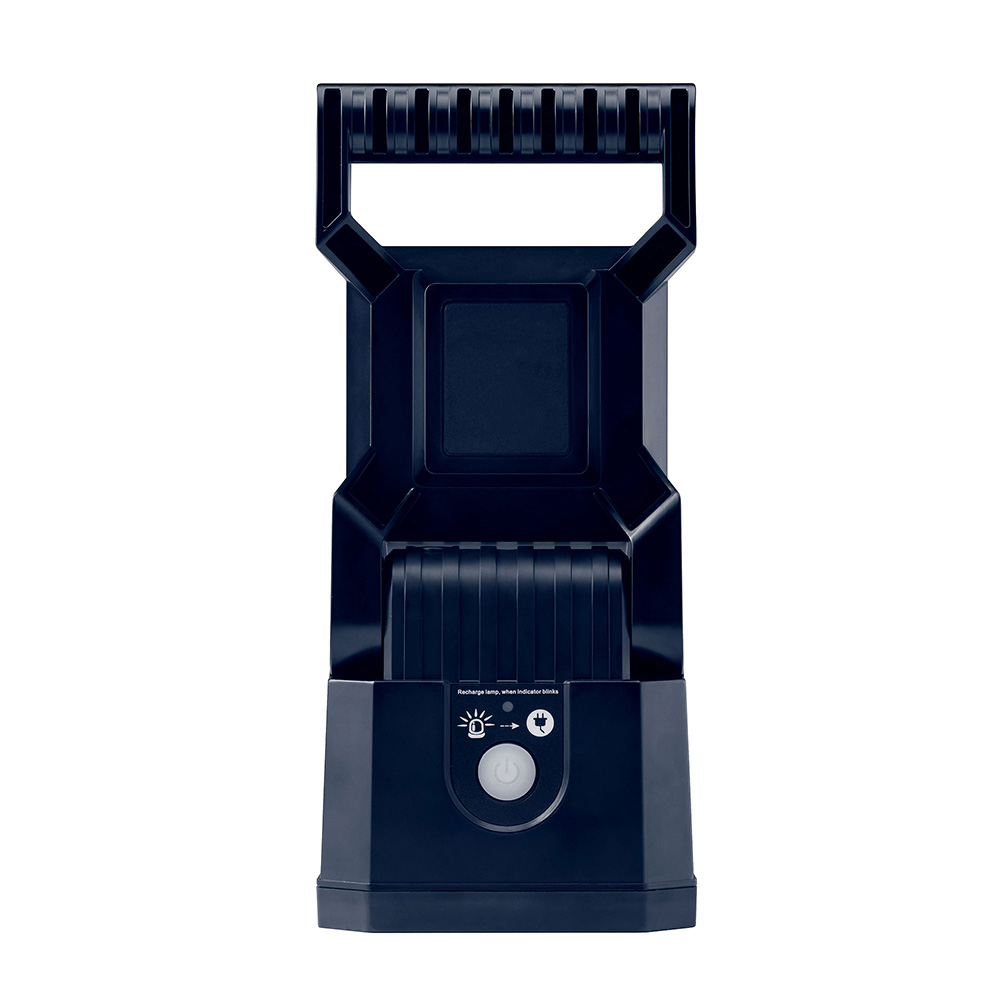

Rear side
  • Easy to use push button for selection of the lighting modes
  • Optical battery indicator

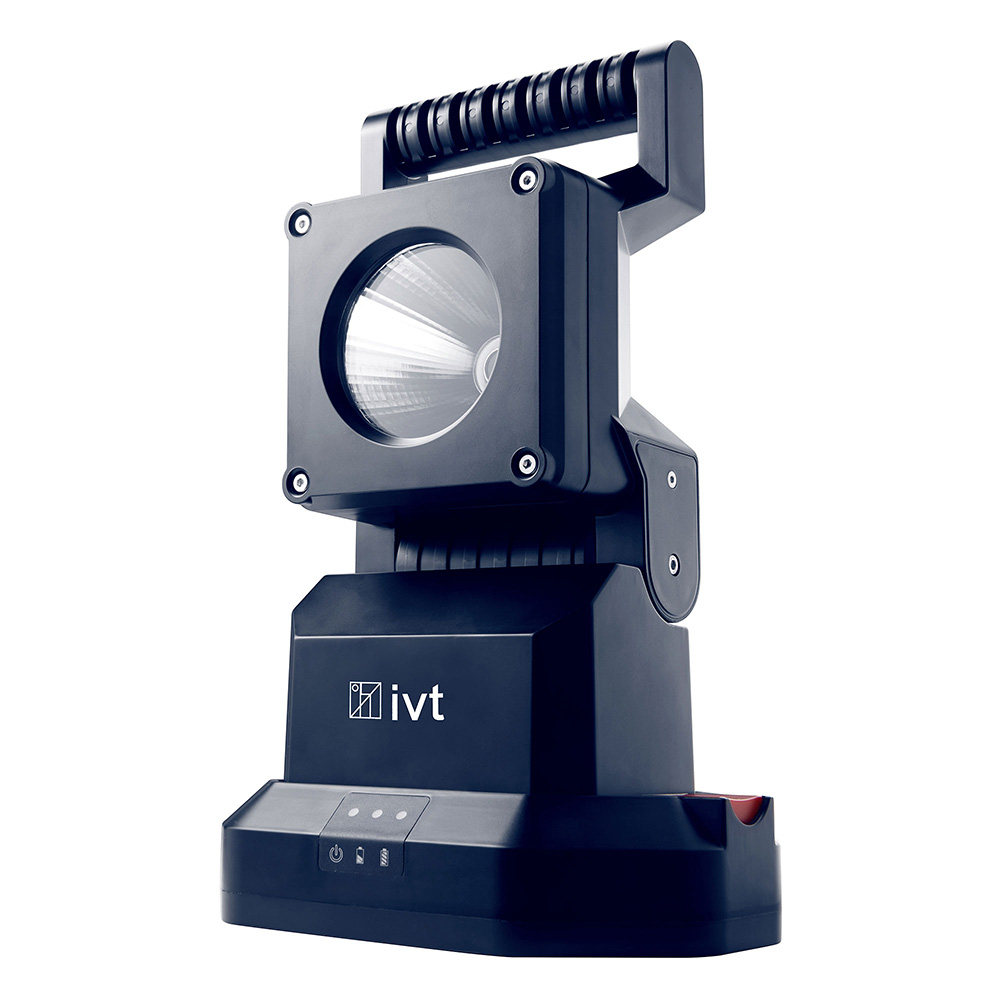

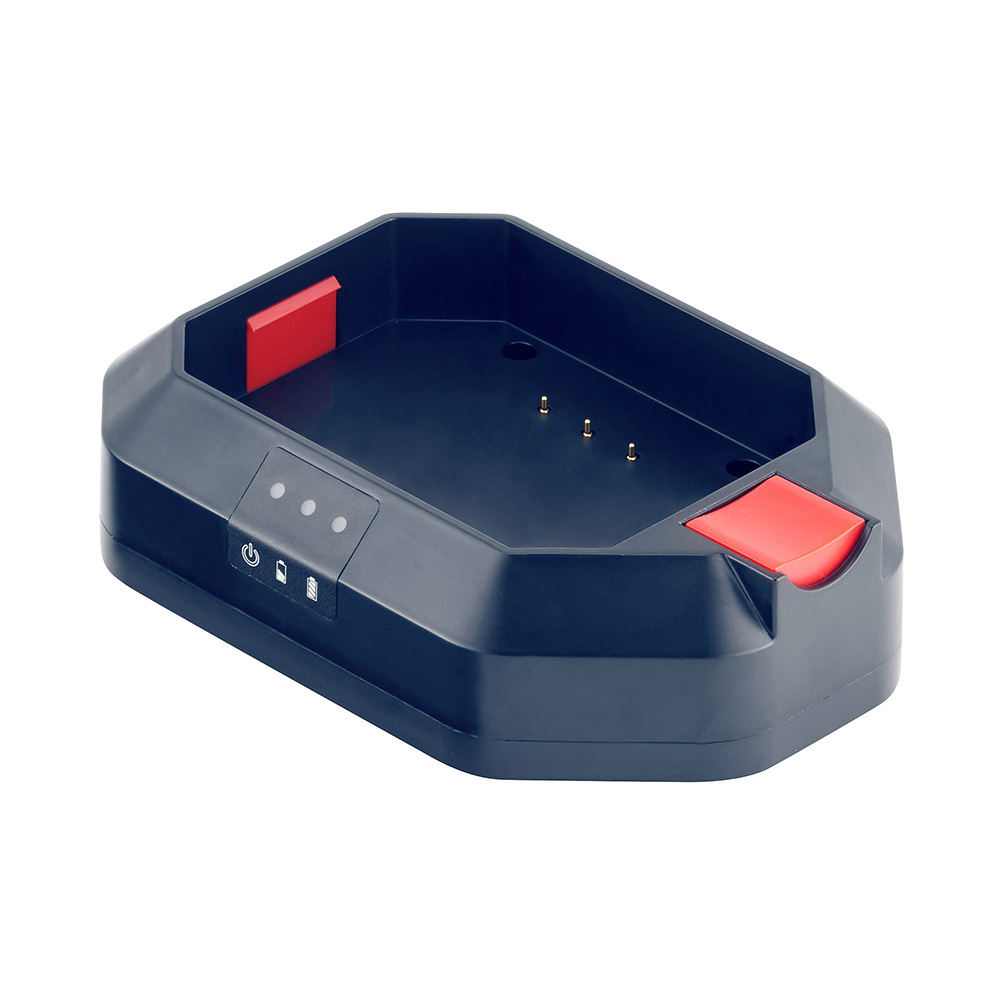

Charging cradle
  • Stable charging cradle with lock
  • Charging control display

Optional accessories

+

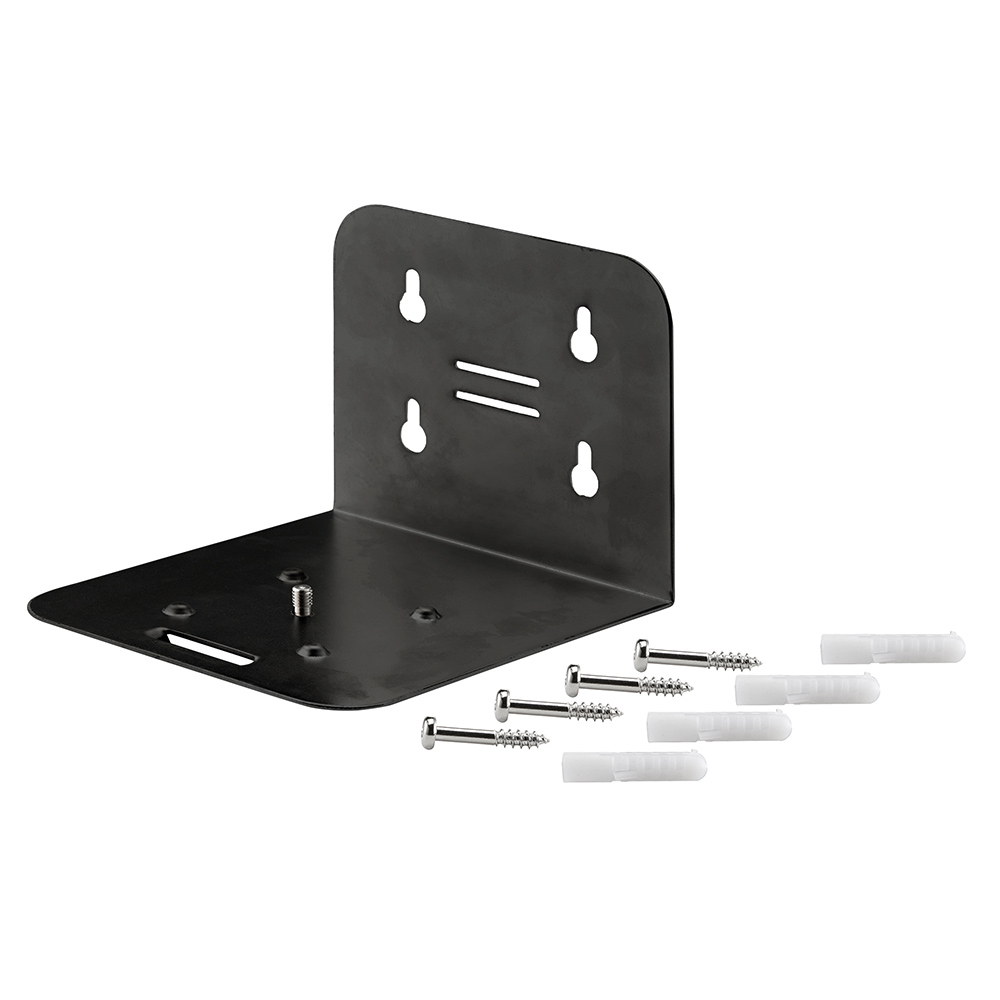

Optional accessories: Wall/Car Mount
Wall/Car Mount
With this sturdy metal wall mount, the LED work lamp and its charging cradle can be fixed securely and always within reach.
Item no. 559010
To the product >>

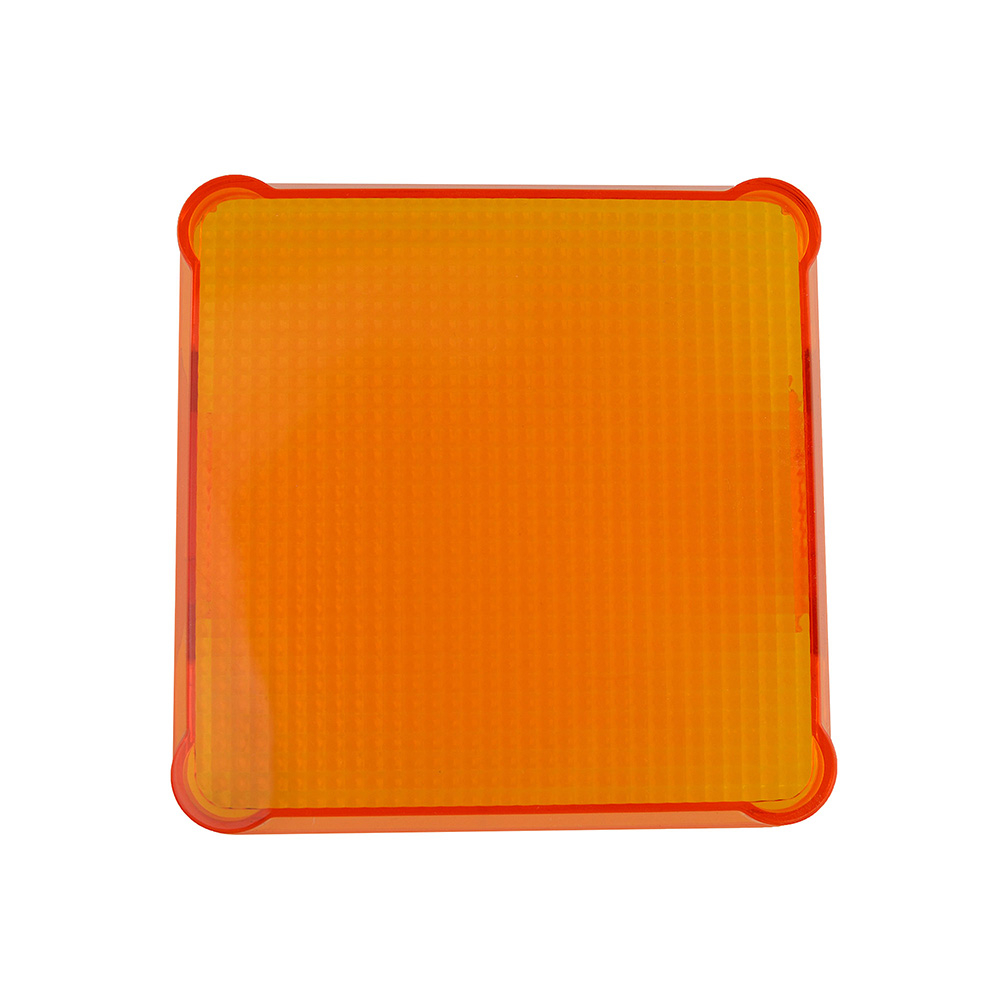

Optional accessories: Diffuser (yellow)
Diffuser (yellow)
The yellow diffusion plate in conjunction with the flashing function allows the work lamp to be used as a signal light.
Item no. 312225
To the product >>

Optional accessories: 12/24 V Car charging adapter
12/24 V Car charging adapter
Matching charging adapter for safe charging in vehicles with 12 V or 24 V on-board voltage.
Item no. 559030
To the product >>
Charging at different places of use

If the IVT LED work lamp PL-828 is to be used and charged at different locations, it is recommended to purchase additional charging cradle and power supply units.

Optional accessories: Charging cradle for PL-828, 5 W
Charging cradle for PL-828, 5 W
Item no. 312226
To the product >>

Optional accessories: 230 V Plug-in power unit 12 V/1000 mA
230 V Plug-in power unit 12 V/1000 mA
Item no. 559050
To the product >>

3 year manufacturer warranty

+
3 years warranty

IVT products are manufactured to a high quality and following strict quality guidelines. We are certain about the longevity so that we add another year to the statutory manufacturer warranty free of charge. Rechargeable batteries and batteries are excluded from this warranty.

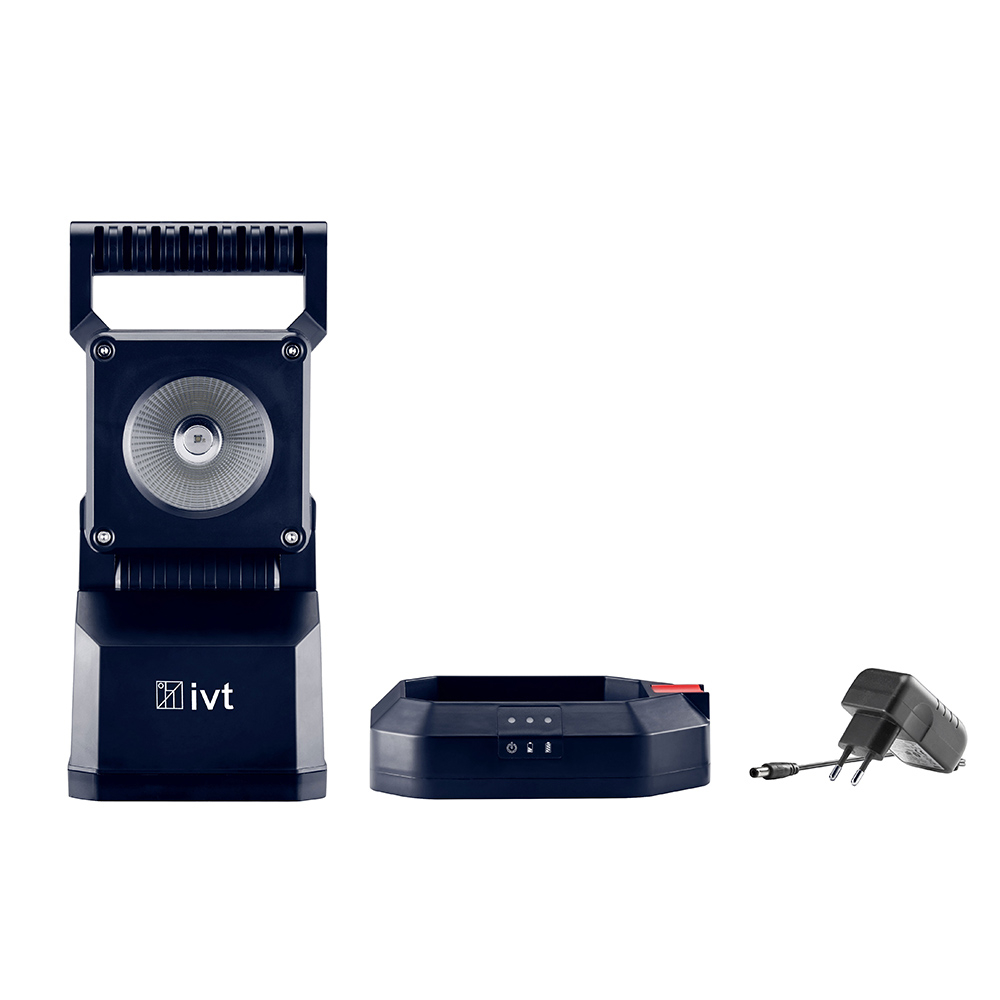

Delivery content

+
  • LED Work lamp PL-828, 5 W
  • Wall bracket
  • 230 V plug-in power supply
  • Instruction manual in DE, GB

Note: The accessories can also be ordered separately.

LED Work Lamp PL-828: Sturdy Work Lamp with efficient Li-Ion battery

Technical Data

Current supply Lithium-ion battery
7.4 V, 4400 mAh
Light sources Cree LED
Power consumption (max.) 5 W
Luminous flux (max.) 350 lm
Efficiency 70 lm/W
Color temperature 6500 K
daylight white
Service life of light source 50,000 h
Lighting modes 1: Brightness level 1 (100 %)
2: Brightness level 2 (50 %)
3: Flashing mode
Lighting range (max.) 150 m
Operation time (max.) 16 h
Beam angle 70°
Inclination of lamp head 120°
Emergency light function Yes
Charging adapter
Plug-in power unit		 Input: 100 - 240 V AC, 50/60 Hz
Output: 12 V DC, max. 1000 mA
Car Charging adapter 12/24 V DC
Charging time 10 h
Charging control display Yes
Deep discharge protection Yes
Overcharge protection Yes
Protection class lll
Type of protection IP 54 (lamp)
IP 20 (charging cradle)
Temperature range -10 °C bis +40 °C
Material Plastic
Color Blue
Dimensions (L x W x H)     95 x 122 x 272 mm (lamp)
45 x 130 x 173 mm (charging cradle)
Weight 1.10 kg (lamp)
0.25 kg (charging cradle)
