Important characteristics and features

High quality 3 W LED – Runtime up to 35 h

The work lamp is equipped with a 3 W LED (Cree or Luxeon), which provides 20 h of day-bright light in the maximum performance level. The luminous flux in this mode is 240 lm.

If you require lower brightness the runtime can be extended significantly by means of the two lower performance levels – at 70 % the PL-850, 3 W provides light for 25 h, at 30 % even for 30 h.

Mode	Function	Beam angle	Luminosity	Runtime	Lighting range
1	Focus light	20°	30 %	30 h	50 m
2	Focus light	20°	70 %	25 h	100 m
3	Focus light	20°	100 %	20 h	150 m
4	Flashing mode	20°	100 %	35 h	150 m

Mode	Function
1 \| Focus light	Beam angle 20° Luminosity 30 % Runtime 30 h Lighting range 50 m
1 \| Focus light	Beam angle 20° Luminosity 70 % Runtime 25 h Lighting range 100 m
1 \| Focus light	Beam angle 20° Luminosity 100 % Runtime 20 h Lighting range 150 m
4 \| Flashing mode	Beam angle 20° Luminosity 100 % Runtime 35 h Lighting range 150 m

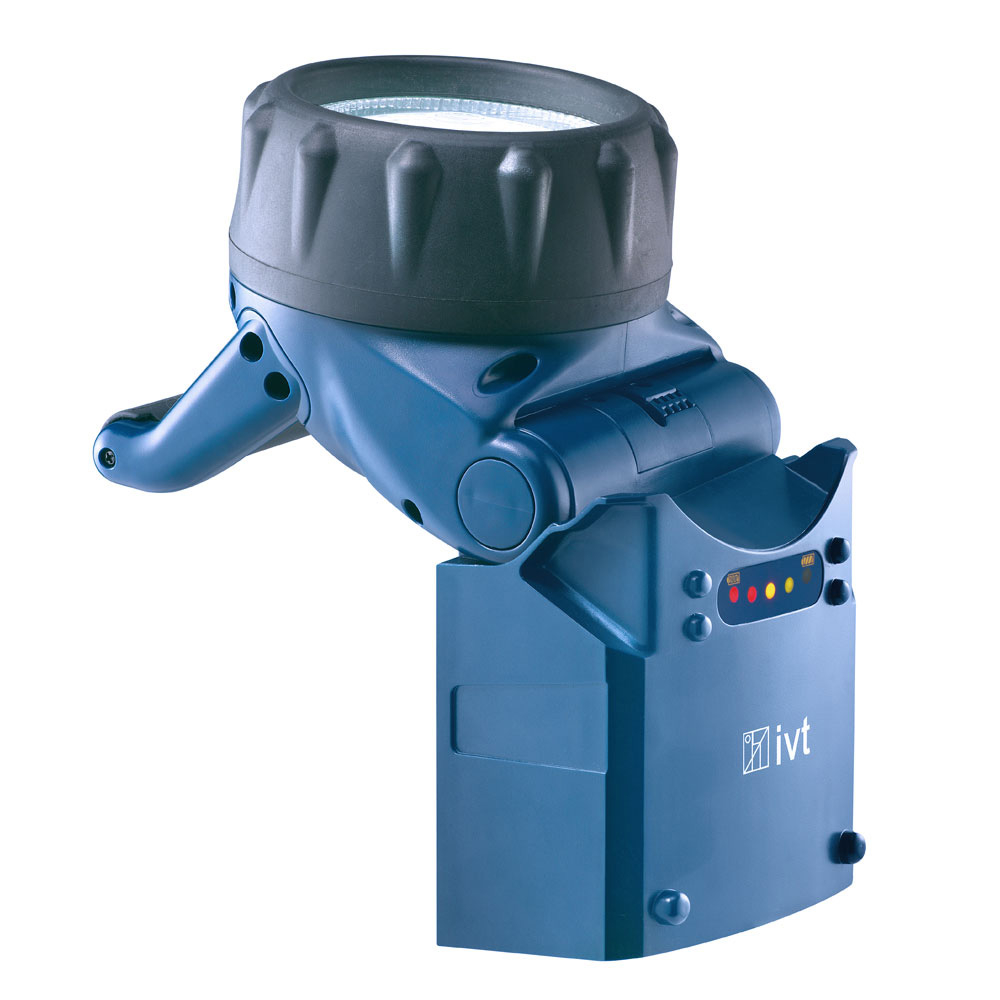

105° swiveling lamp head

In the case the rechargeable lamp is used in the workshop or as portable working light its light beam can be aligned individually to the working area thanks to the 105° continuously swiveling lamp head.

Reliable emergency light in the case of power outage

If connected to the mains net the rechargeable lamp it becomes an emergency light in the case of power outage thanks to its emergency light function. If the mains power is off the lamp automatically turn on in the previously chosen mode. If the mains power is restored the lamp shuts off again.

Warning light for securing danger zones and accident scenes

The lamp’s flashing mode in combination with the included orange diffuser allows for the use as a warning light. Thus, with the PL-850, 3 W you can warn of danger zones and accident scenes in the road traffic, for example.

Maintenance-free lead battery with 4500 mAh

Thanks to the maintenance-free 4500 mAh lead battery with its low self-discharge the work lamp is always ready for use. The integrated protection against overcharging and deep discharge ensures the long duty cycle of your battery.

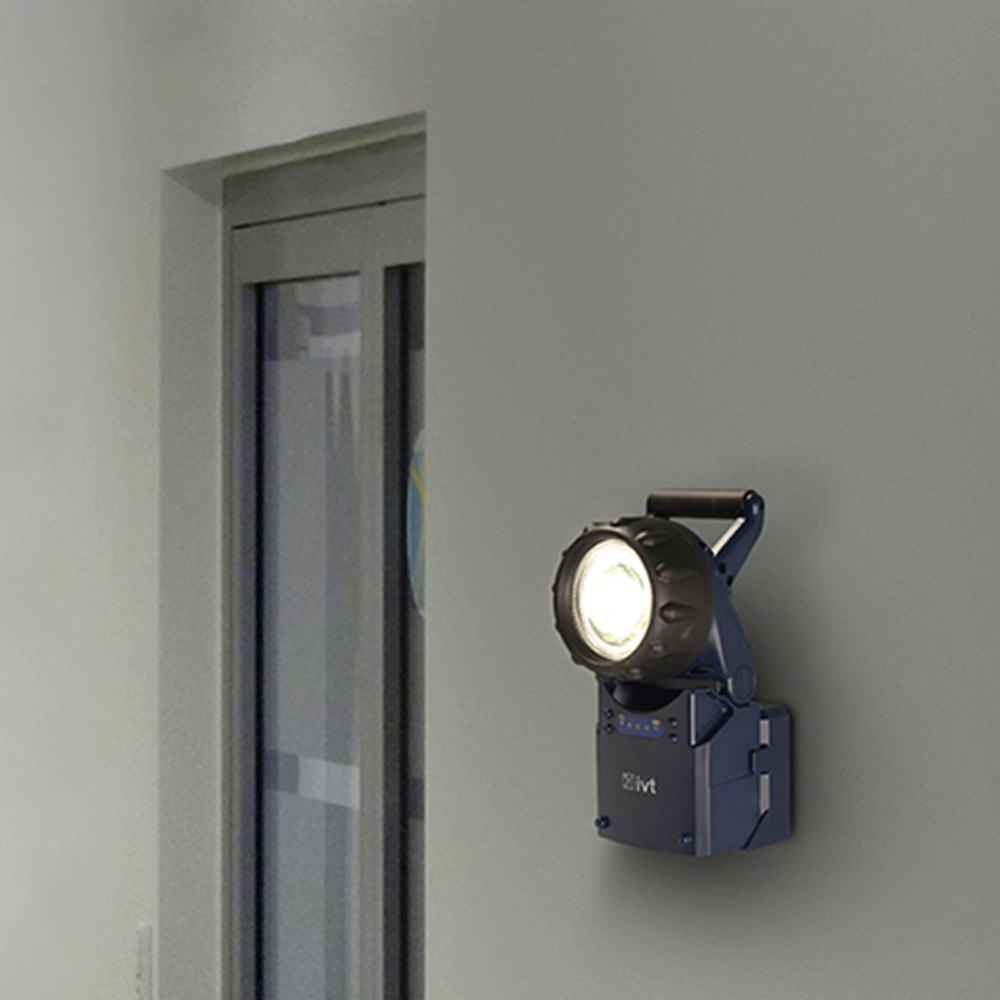

The practical wall bracket of the PL-850, 3 W serves for both, storing and charging the device safely.

On the go the lamp can be charged by means of the included 230 V plug-in power supply or the 12 V car charging adapter on you vehicle’s cigarette lighter.

For vehicles with 24 V on-board voltage, a 12 V/24 V car charging adapter is available as an optional accessory.

Optional accessories: 12 V/24 V car charging adapter
Item no. 559030
To the product >>

Easy to use rotary knob – clear LED display

With the help of the large rotary switch, the desired lighting mode can be conveniently selected, even with work gloves. Reading the current charging status of the battery is made easy by the by the 5 LEDs beneath the lamp’s head.

Sturdy housing for extreme working conditions – IP 44

The sturdy housing is protected against foreign objects and splash water in accordance with IP 44 and is made of impact-proof plastic. The light source is protected against possible damage by a solid ring of hard rubber. All this, turns the PL-850, 3 W into the perfect companion for tasks under extreme condition.

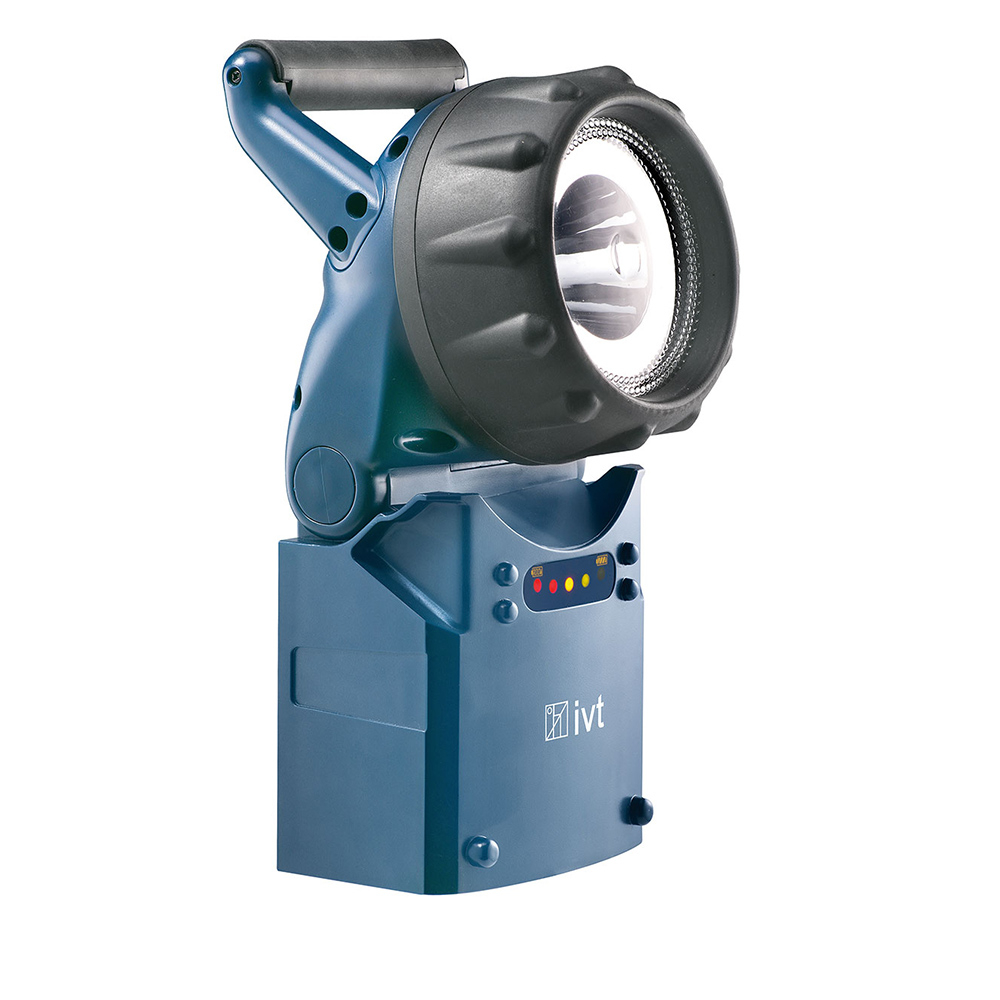

Construction and equipment of the work lamp

Equipment

Stabile rubberized handle
Solid rubber ring for lens protection
3 W Cree/Luxeon LED with 3 performance levels
105° swiveling lamp head
Sturdy, splash water-protected housing (IP 44) made of impact-proof plastic
Maintenance-free 4.5 Ah lead battery
Plastic nobs allow for a safe stand even in horizontal position
Optical indicator of the battery condition

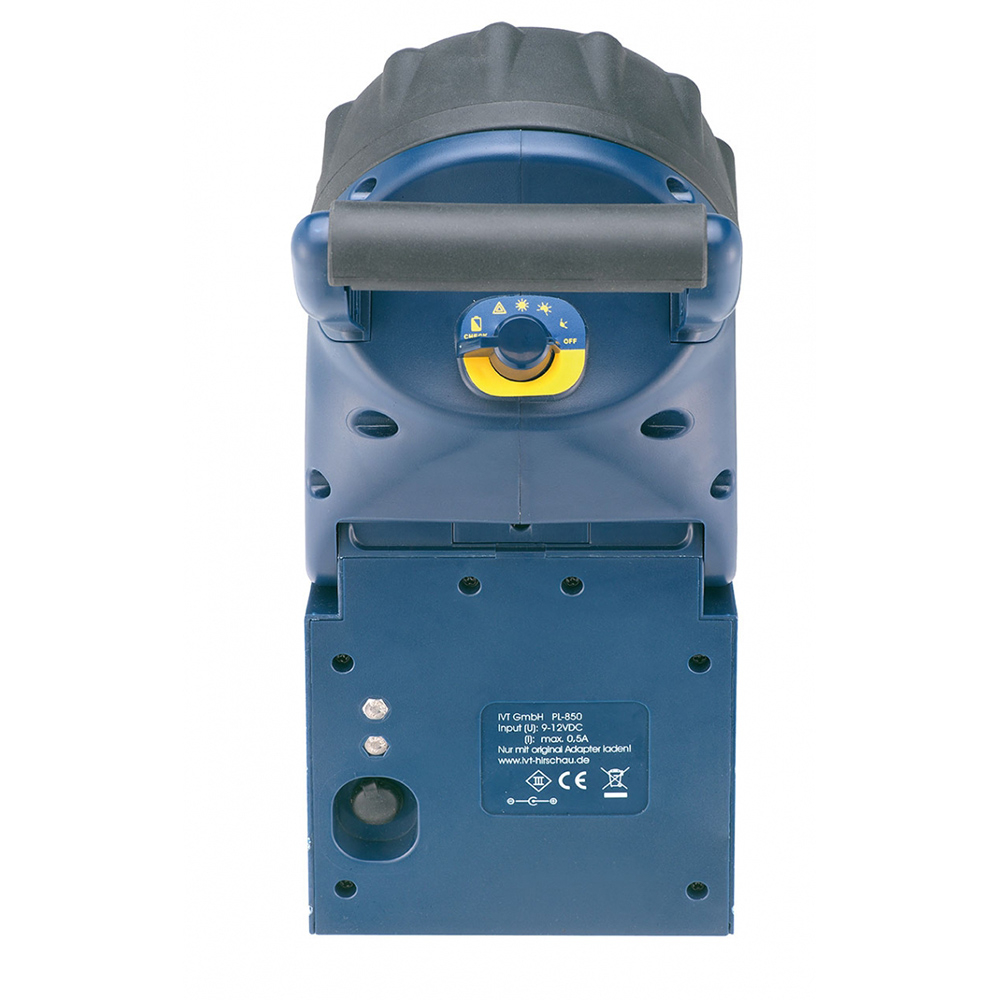

Rear side

Easy to use rotary knob for selection of the lighting modes
Splash water-protected charging socket

3 year manufacturer warranty

IVT products are manufactured to a high quality and following strict quality guidelines. We are certain about the longevity so that we add another year to the statutory manufacturer warranty free of charge. Rechargeable batteries and batteries are excluded from this warranty.

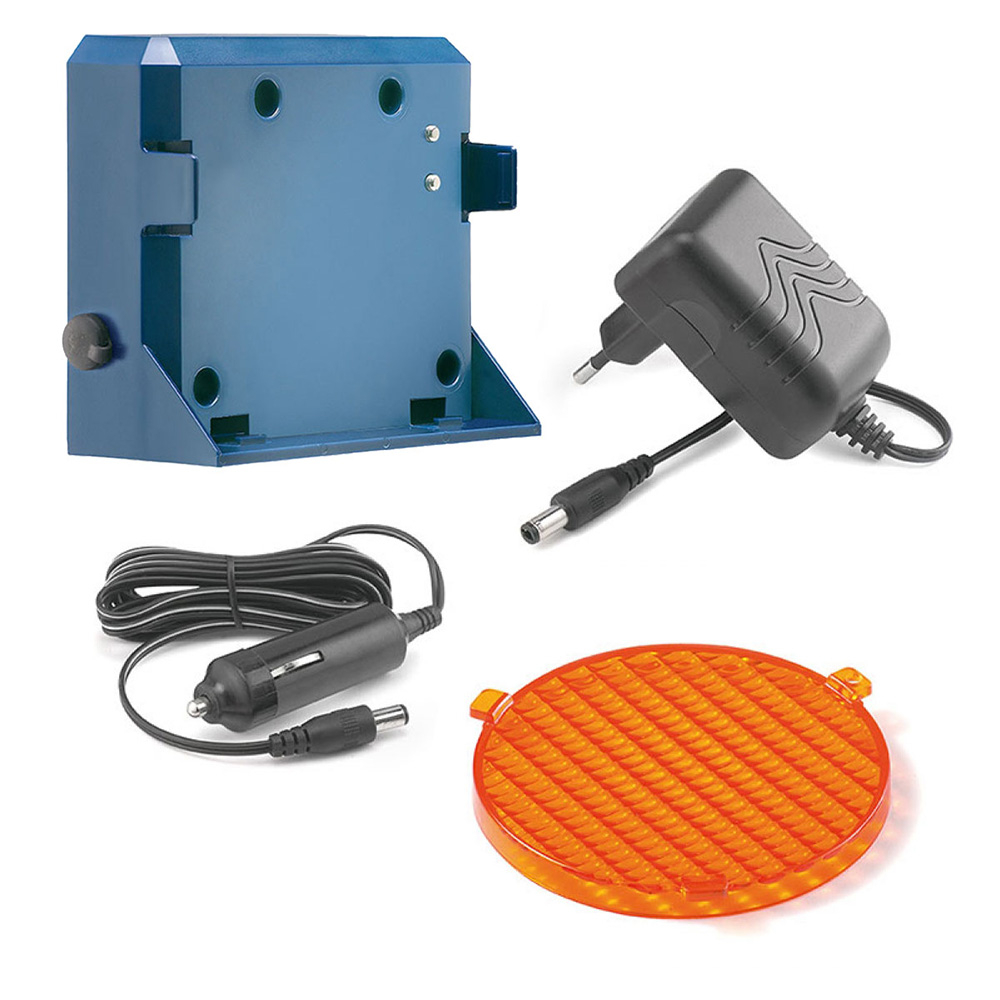

Delivery content

Work lamp PL-850, 3 W
Wall bracket
12 V plug-in power supply
12 V car charging adapter
Diffusing plate (orange)
Mounting material
Instruction manual in DE, GB, FR, NL

Note: The accessories can also be ordered separately.

LED Work Lamp IVT PL-850: 30 h glare-free work light

Technical Data

Current supply	Lead battery 6 V, 4.5 Ah maintenance-free
Light sources	Cree/Luxeon LED
Power consumption (max.)	3 W
Luminous flux (max.)	240 lm
Efficiency	100 lm/W
Color temperature	5300 - 6500 K daylight white
Lighting modes	1: Focus light 30 % 2: Focus light 70 % 3: Focus light 100 % 4: Flash light
Lighting range (max.)	150 m
Operation time (max.)	35 h
Beam angle	20°
Inclination of lamp head	105°
Emergency light function	Yes
Charging adapter Plug-in power unit	100 - 240 V AC, 50/60 Hz
Car Charging adapter	12 V DC
Charging time	14 h
Charging control display	Yes
Deep discharge protection	Yes
Overcharge protection	Yes
Protection class	lll
Type of protection	IP 44
Temperature range	-10 °C to +50 °C
Material	Plastic
Color	Blue, black
Dimensions (L x W x H)	287 x 127 x 120 mm (lamp) 132 x 112 x 55 mm (wall bracket)
Weight	1.58 kg (lamp) 0.10 kg (wall bracket)
