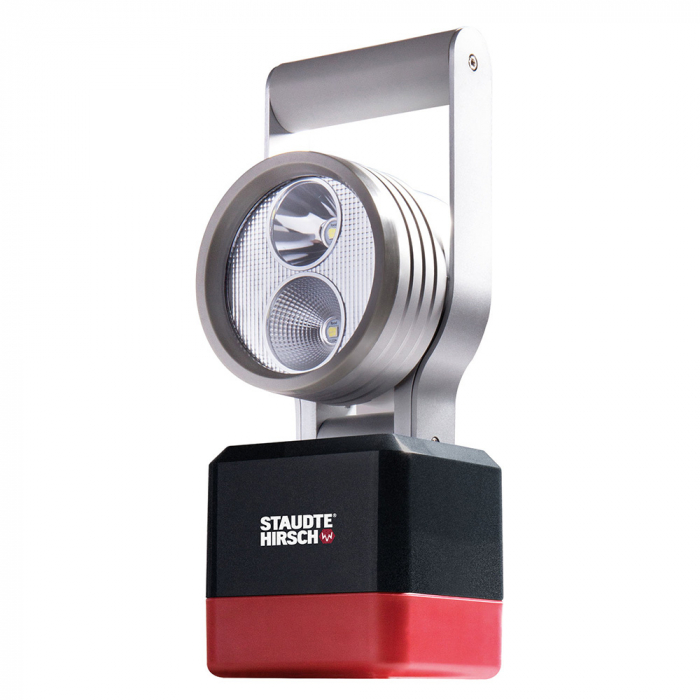

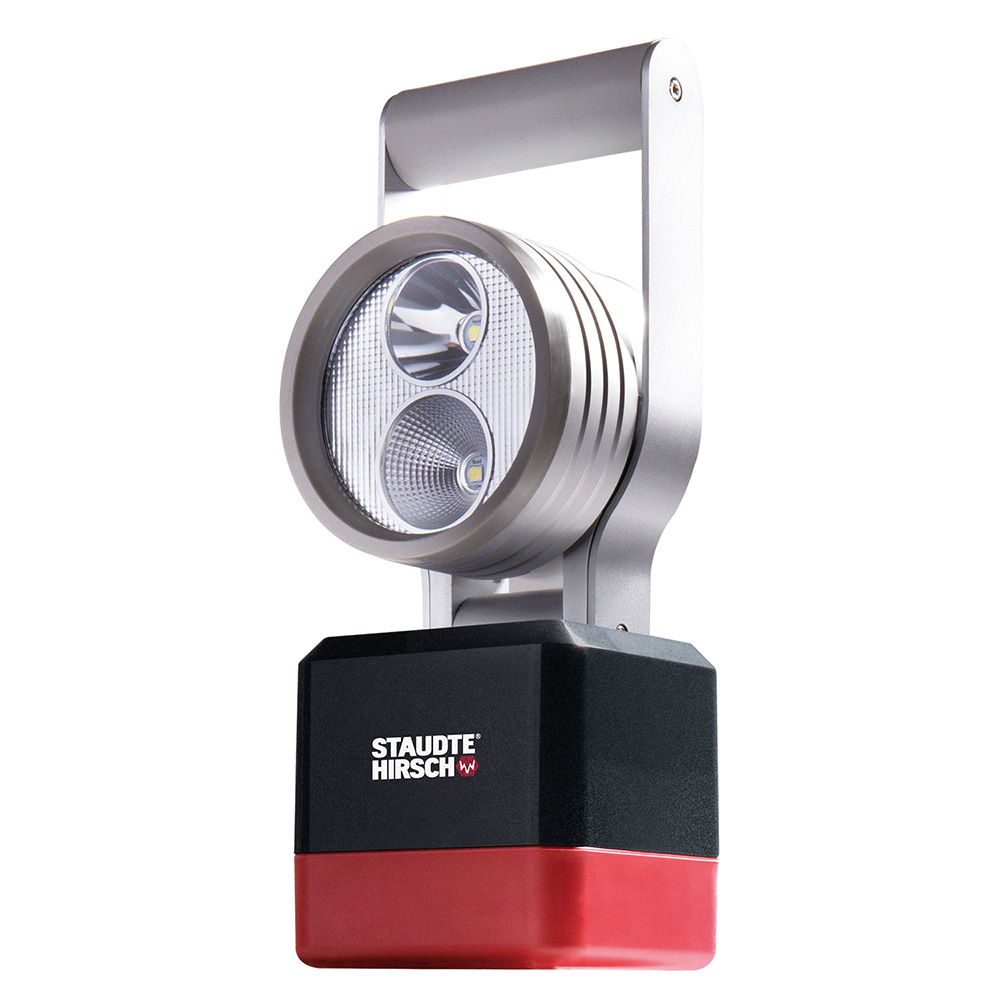

LED Work Lamp Staudte Hirsch SH-5.100, 2 x 8 W, 1040 lm

LED Work Lamp Staudte Hirsch SH-5.100, 2 x 8 W, 1040 lm

  • 2 x 8 W Cree LEDs (1040 lm each)
  • 8000 mAh lithium-ion battery
  • Run time of up to 16 h
  • Light range up to 250 m
  • 5 lighting modes, including focus light and flood light
  • 110° swivelable lamp head
  • Extremely robust housing with IP 54
  • Emergency light function
  • Flash light function
  • Stable, slip-proof, lightweight and handy

Item no. 551000 | EAN 4030072551007

229,00 EUR

VAT incl.

Become a sales partner
Request an offer
Description  |  Features & Functions  |  Technical data  |  Accessories  |  Variants  |  Downloads

Excellent in functionality and luminance –
LED work light for crafts and industry


he rechargeable SH-5.100 LED Work Lamp is for mobile lighting both indoors and outdoors, and has been designed for professional work use. Its double beam principle ensures intensive and even illumination of the work area.

Two daylight-white high-performance LEDs from Cree guarantee an extremely bright light, whilst the high-quality lithium-ion battery ensures a long run time. Thanks to the swiveling lamp head, emergency light function and the 5 lighting modes, it is versatile in use. It is also approved for use in road traffic as a warning light.

By virtue of the materials used and the first-class manufacture, the Staudte Hirsch Work Lamp SH-5.100 is of a quality that pays for itself under the harshest conditions.

Light source: 2 x 8 W Cree LED, 1040 lm each Focus light: beam angle 10°, lighting range up to 250 m Floodlight: beam angle 90°, lighting range up to 75 m Operation time: 6 hours at full brightness Operation time: 11 hours at half brightness Flashing light function, operation time up to 16 hours High-quality and maintenance-free: Li-Ion battery 8 Ah, 7.4 V Housing protected against dust and splash water IP 54 Emergency light function CE approved: all EU-wide requirements for safety, health and environmental protection are complied with 3 year manufacturer warranty

Important characteristics and features

Features & Functions

Double beam technology – You see better with two eyes

+
With its double-beam principle, the SH-5.100 Work Lamp always provides the perfect light. This is because the double beam technology (2 x 8 W XHP50 LEDs from Cree) combines several lighting options within one Work Lamp:

A precision focus light and a wide-area flood light.

Double beam technology 2 x 8 W (1040 lm each) Focus light: smooth reflector, Flood light: ribbed reflector
Double beam technology
2 x 8 W (1040 lm each)
Upper LED: precision focus light
Lower LED: wide-area flood light   		 Focus light | smooth reflector
for focused lighting
Flood light |  ribbed reflector
for broad illumination
With its double-beam principle, the SH-5.100 Work Lamp always provides the perfect light. This is because the double beam technology (2 x 8 W XHP50 LEDs from Cree) combines several lighting options within one Work Lamp:

A precision focus light and a wide-area flood light.

Double beam technology 2 x 8 W (1040 lm each)
Double beam technology
2 x 8 W (1040 lm each)
Upper LED: precision focus light
Lower LED: wide-area flood light
Focus light: smooth reflector, Flood light: ribbed reflector
Focus light | smooth reflector
for focused lighting
Flood light |  ribbed reflector
for broad illumination

Cree-XHP50 – 8 W LEDs of the latest generation

+
Equipped with the latest LED technology, the SH-5.100 guarantees extremely bright light. The 2 daylight-white (6500 K) high-performance LEDs from Cree, with a peak light output of 130 lm/W, provide unique power.

When the Cree Extreme High Power LED is operated at the maximum approved current, it emits a light quantity that is twice that of the brightest comparable LED on the market to date! At full brightness, its luminosity is 1040 lm.

This extreme brightness is achieved through optimization of light conversion and thermal resistance. This increases both the lumen rating and the service life of an LED.

The two XHP50 LEDs in the SH-5.100 thus each achieve a service life of around 50,000 hours, even with high currents and high temperatures.
Good to know
The light output (lm/W = lumen per Watt) indicates the economy of a lamp.
The more lumen (light) per Watt (energy expended), the better the efficiency.

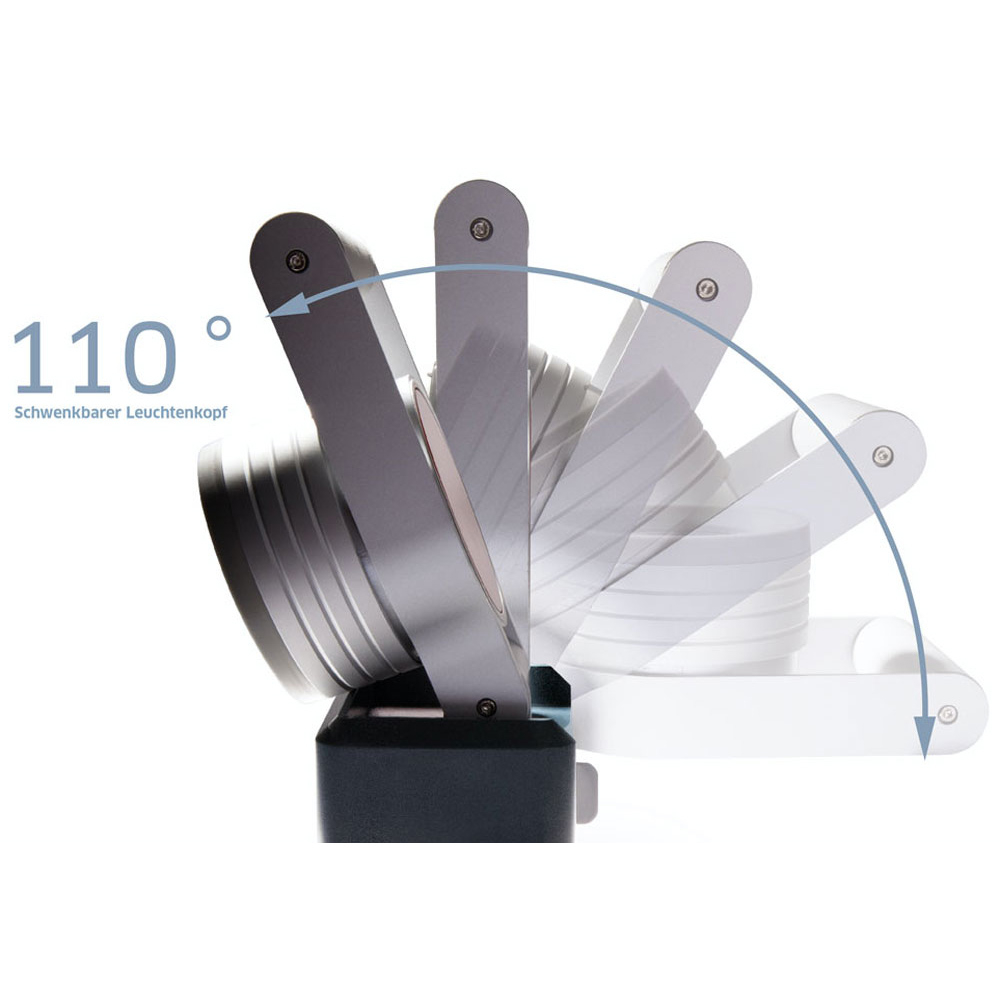

110° swivelable lamp head

+
LED Work Lamp Staudte Hirsch SH-5.100, swivelable lamp head
With the swiveling lamp head, you can direct the beam of the SH-5.100 individually – for example, directly focused on your field of work, or over a wide area to illuminate a space. The angle of inclination is 110°

Lighting modes – Versatile application possibilities

+
5 different lighting modes guarantee you the best possible illumination

Mode Function Beam angle Luminosity Runtime Lighting range
1 Flood light 90° 100 % 6 h 75 m
2 Flood light 90° 50 % 11 h 50 m
3 Focus light 10° 100 % 6 h 250 m
4 Focus light 10° 50 % 11 h 120 m
5 Flashing mode 90° 50 % 16 h 50 m
5 different lighting modes guarantee you the best possible illumination

Mode Function
1 | Flood light Beam angle 90°
Luminosity 100 %
Runtime 6 h
Lighting range 75 m
2 | Flood light Beam angle 90°
Luminosity 50 %
Runtime 11 h
Lighting range 50 m
3 | Focus light Beam angle 10°
Luminosity 100 %
Runtime 6 h
Lighting range 250 m
4 | Focus light   Beam angle 10°
Luminosity  50 %
Runtime 11 h
Lighting range
5 |Flashing mode Beam angle 90°
Luminosity  50 %
Runtime 16 h
Lighting range 50 m

Emergency light function – Safety in power cuts

+
LED Work Lamp Staudte Hirsch SH-5.100, Emergency light function
If the SH-5.100 is in the charging cradle when the power supply fails, thanks to the integrated emergency light function it automatically switches on. This is on condition that the charging cradle is connected to the mains and the lamp is switched on in the desired mode.

In the event of a power failure, the work lamp thus becomes a reliable source of light, for example in rooms and corridors without windows and emergency power supply.

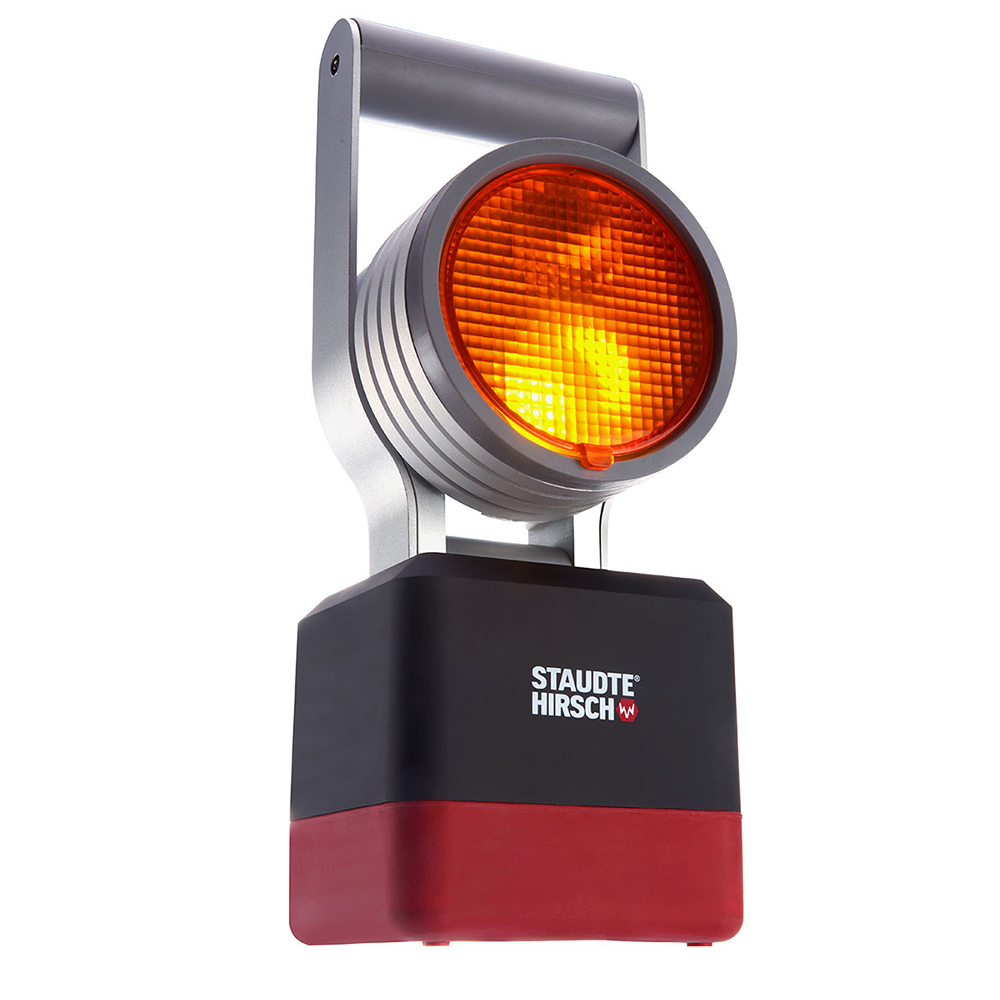

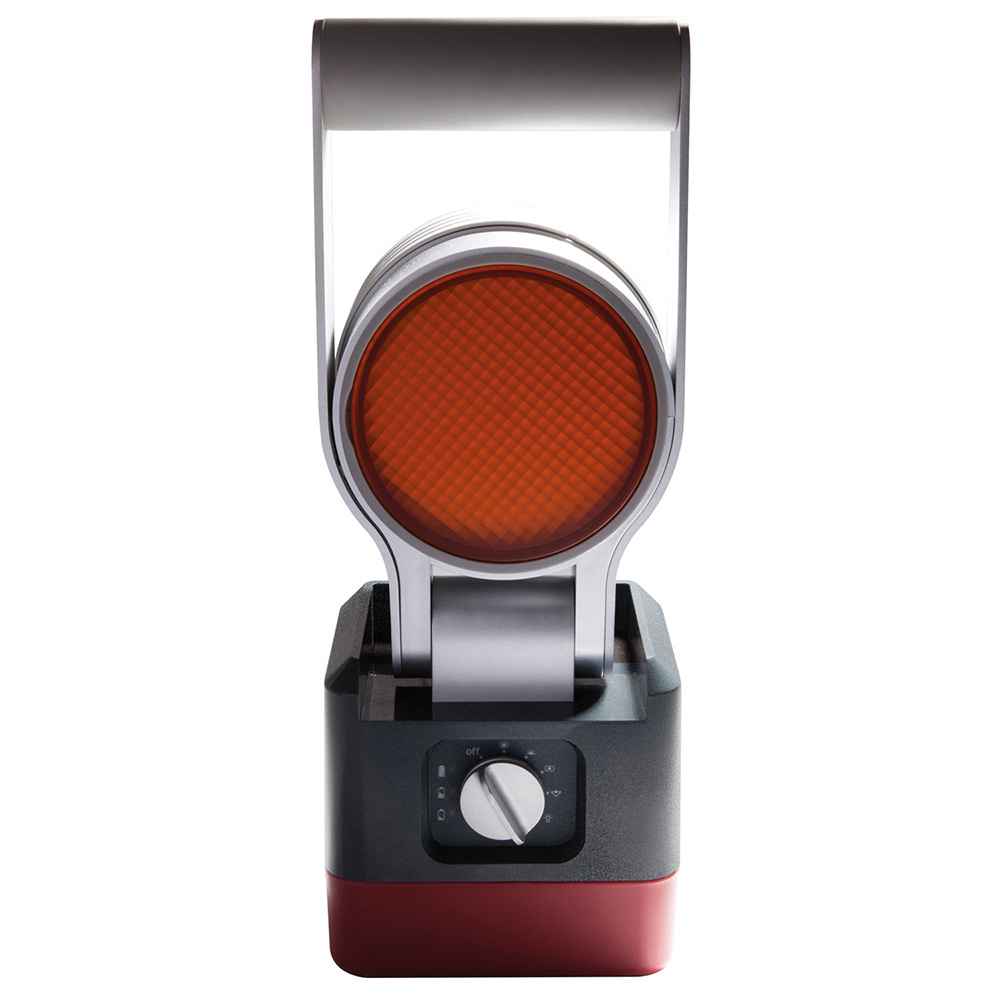

Reliable warning light in road traffic – to secure hazards

+
LED Work Lamp Staudte Hirsch SH-5.100, to secure hazards
With the flashing light function and the orange diffusing plate that is included in the scope of delivery, the SH-5.100 is also ideally suitable for use as a warning light, for example to give warning of hazards or to secure construction sites.

Lightweight lithium-ion battery with 8000 mAh

+

High-quality and maintenance-free: Li-Ion battery 8 Ah, 7.4 V

Due to its high-quality 8000 mAh lithium-ion battery, the SH-5.100 Work Lamp is your reliable companion. With a run time of 11 h at half power and 6 h at full power, you can cover almost a full working day with just one battery charge.

The battery can be charged by means of a 100 - 240 V AC plug-in power unit or a 12/24 V DC car charging adapter. Thanks to the battery’s low self-discharge, the SH-5.100 remains always ready for use, even if used only sporadically. Protection against overcharging and deep discharge ensures that the battery has a long service life.

Benefits of Li-ion battery technology
?  High energy density
?  Maintenance-free
?  No loss of performance through memory effect
?  Low self-discharge
?  Lightweight
?  High-performance
?  Long-life

Robust housing made of shock-resistant plastic with IP 54

+
LED Work Lamp Staudte Hirsch SH-5.100, robust housing IP54
The housing, which conforms to protection category IP 54, is protected from dust and plashed water, and is extraordinarily robust. The SH-5.100 can thus be used even under extreme conditions.

The body is manufactured from high-quality, shock-resistant plastic. The lamp head has been reinforced with a solid aluminum ring. A wide, solid rubber ring and the scratchproof glass protect the lens from possible damage.

It is perfectly adapted to the everyday world of professional work.

Rubber-coated carrying handle – magnetic storage tray

+
Rubber-coated carrying handle – magnetic storage tray
The robust, rubber-coated carrying handle has been developed for convenient carrying. The magnetic storage tray below the lamp head will keep even the smallest screw safe.

Easy-to-use rotary switch

+
LED Work Lamp Staudte Hirsch SH-5.100, Easy-to-use rotary switch
It is perfectly adapted to the everyday world of professional work. With the easy-to-use rotary switch, it is easy and safe to operate even when wearing gloves.

The current charge status of the battery can be read at any time, via three 3 LEDs which are fitted to the rear.

Slip-proof base – thanks to rubber footing

+
Slip-proof base – thanks to rubber footing
The portable lamp stands stable and secure, even on smooth or sloping surfaces – thanks to the balanced distribution of weight and the rubber-footed base.

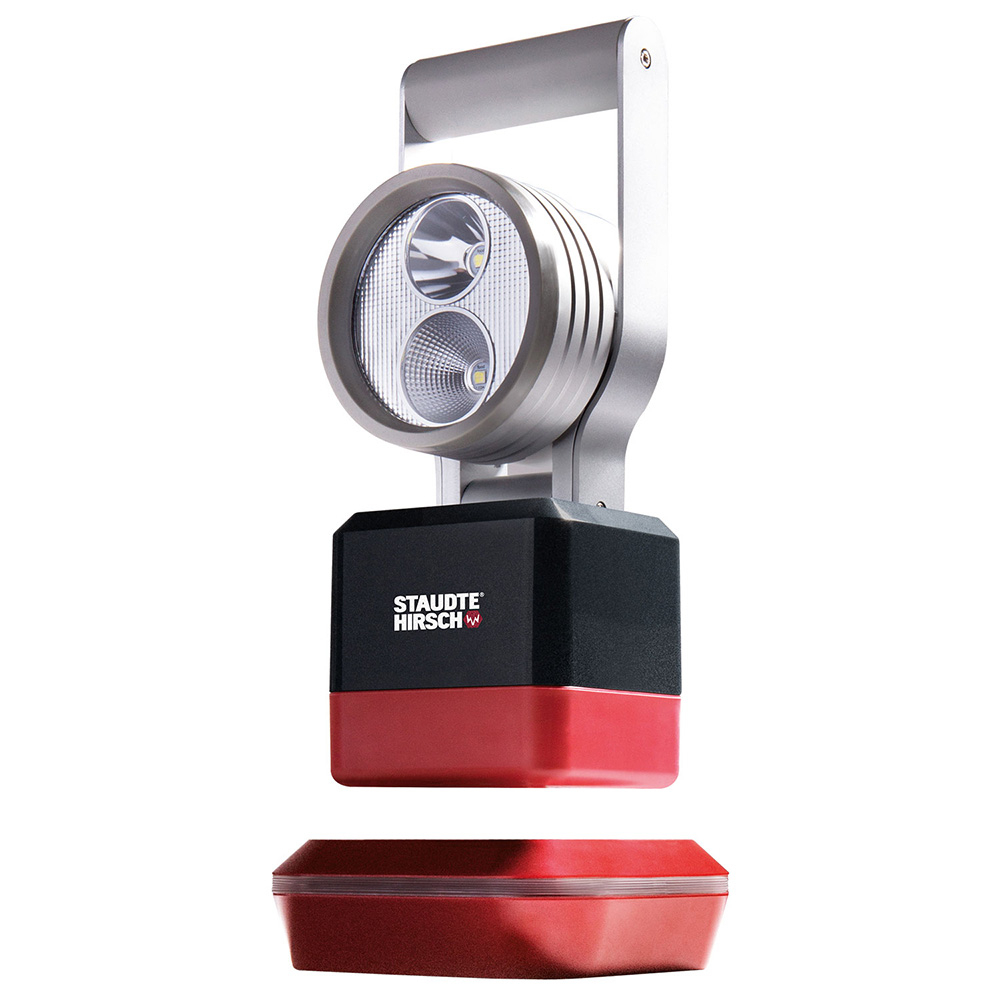

Charging cradle with charge control indicator

+
Charging cradle with charge control indicator
The SH-5.100 can be safely stored and charged in the charging cradle. A 230 V plug-in power supply and a 12 V/24 V car charger adapter are included in the scope of delivery.

During the charging process, the LEDs of the charging cradle light up red. A fully charged battery is indicated by green LEDs.

Construction and equipment of the work lamp

+
Construction and equipment of the work lamp
Equipment
  • Solid aluminum ring
  • Rubber lens protector
  • Scratch-proof glass
  • 2 x 8 W Cree LEDs (1040 lm each)
  • Upper LED: precision focus light with full and half luminosity
  • Lower LED:  wide-area flood light with full and half luminosity,
  • Warning light with flashing function
  • 110° swivelable lamp head
  • Magnetic storage tray below the lamp head
  • Robust housing made of shock-resistant plastic with IP 54
  • 8000 mAh lithium-ion battery
  • Slip-proof base thanks to rubber footing
  • Charging cradle with charge control indicator

Rear
  • Storage space for diffusing plate at the back of the lamp
  • Easy-to-use rotary switch to select the lighting modes
  • Visual charging status indicator

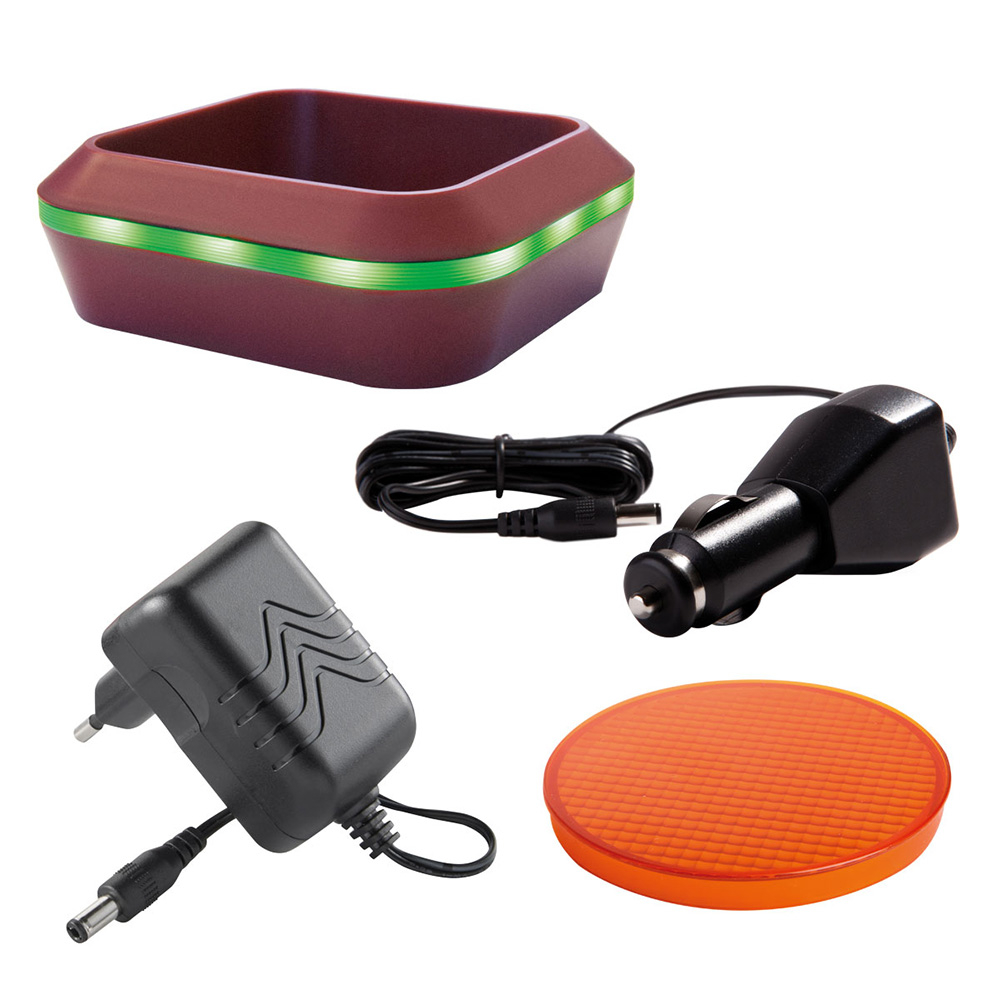

Included accessories
  • Charging Cradle with charging status indicator
  • Plug-in power unit
  • Car charging adapter
  • Diffusing plate (orange)

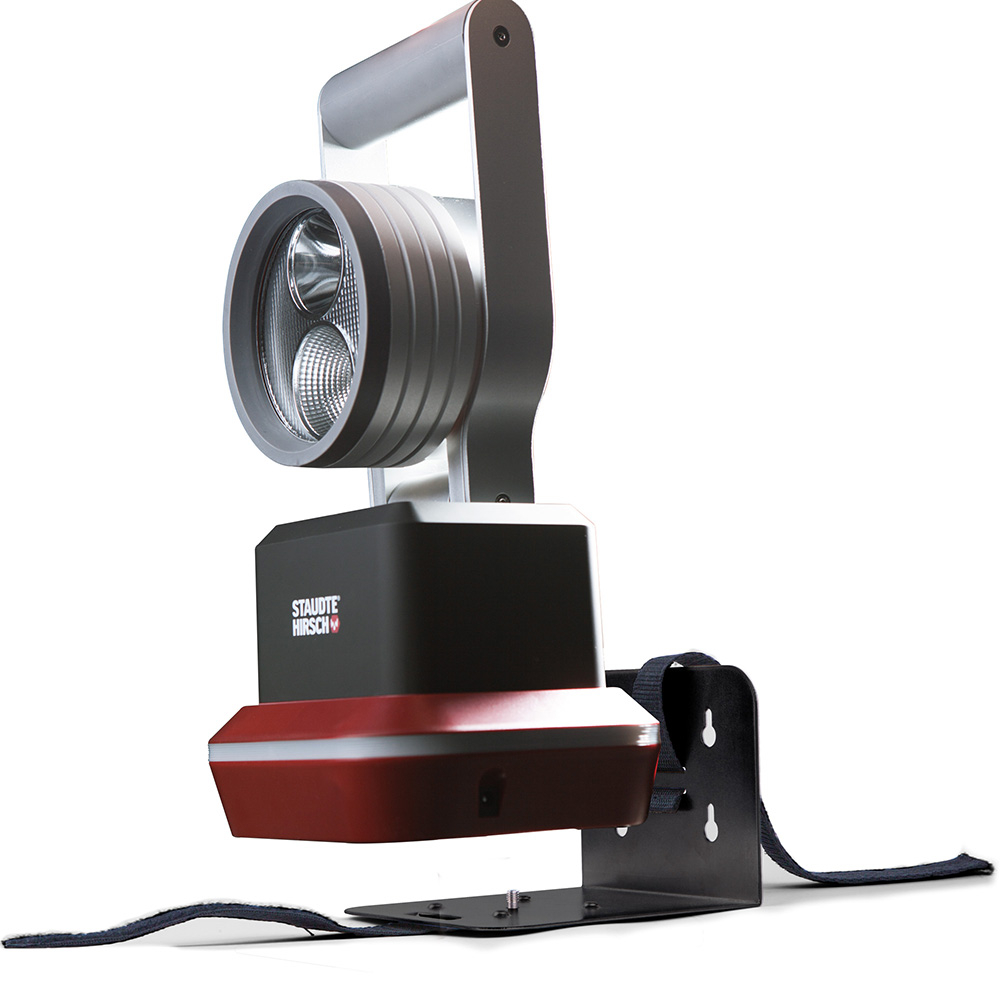

Useful accessory: Wall/Car Mount

+
Wall/Car Mount SH-5.901

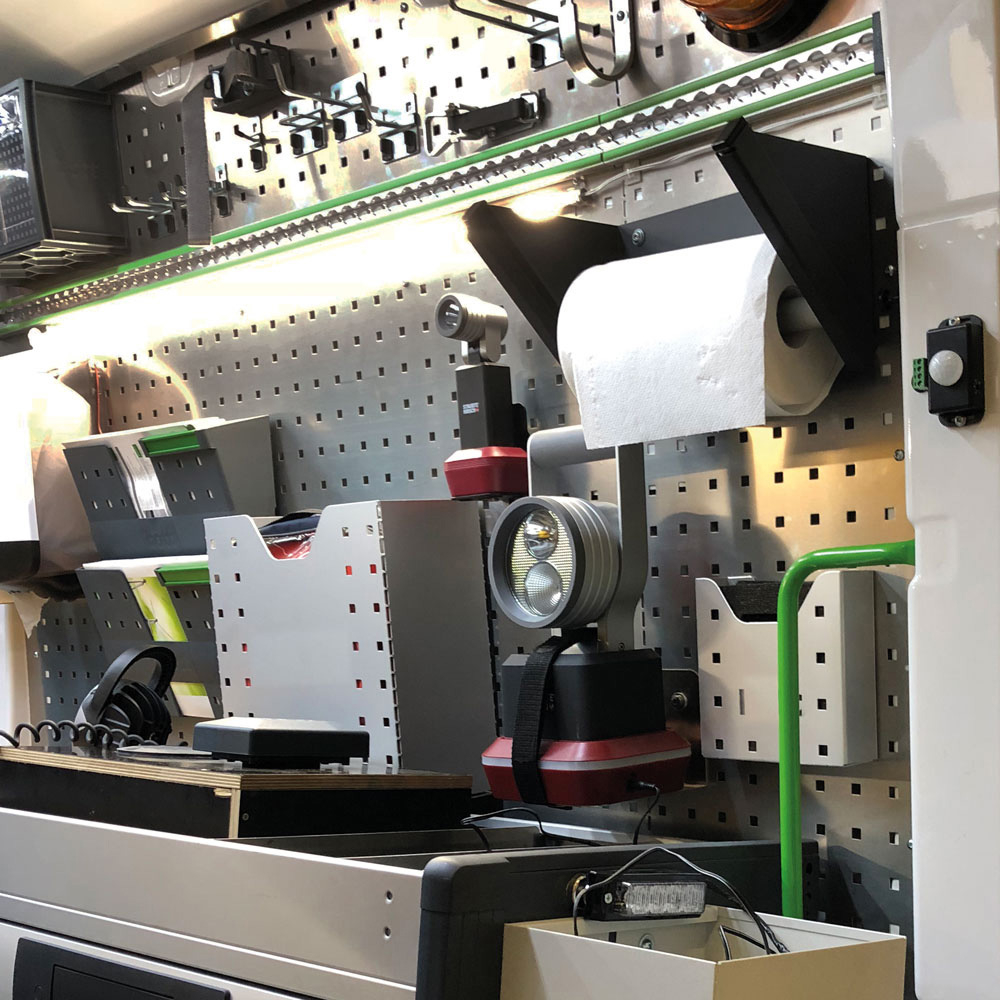

With the metal holder, the work lamp and charging cradle can be securely fixed in buildings or vehicles.

The Charging Cradle SH-5.900 is firmly fixed onto the mount by a locking screw. The lamp itself can be quickly secured and removed with aid of the durable mounting strap. For a guaranteed judder-proof hold and a straight fit, the Wall/Car Mount’s bearing surface is equipped with 4 guide stubs.

If you want to use the Work Lamp as an emergency light in public buildings like hospitals, the SH-5.901 commends itself as the ideal mounting device.


Wall/Car Mount SH-5.901
Item no. 559010
To the product >

3 year manufacturer warranty

+
3 year manufacturer warranty

Products of IVT and Staudte Hirsch are manufactured to a high quality and following strict quality guidelines. We are certain about the longevity so that we add another year to the statutory manufacturer warranty free of charge (rechargeable batteries excluded).

Delivery content

+
  • LED Work Lamp SH-5.100
  • Charging Cradle
  • Diffusing plate (orange)
  • Plug-in power unit
  • Car charging adapter
  • Instruction manual in DE, GB, FR, NL, ES, PL

Note: The accessories can also be ordered separately.

LED Work Lamp Staudte Hrisch SH-5.100: Excellent in functionality and luminance

Technical Data

Current supply Li-Ion battery
7.4 V, 8000 mAh
Light sources 2 x Cree XHP50 LED
Power consumption (max.) 8 W
Luminous flux (max.) 1040 lm
Efficiency 130 lm/W
Color temperature 6500 K
daylight white
Working life LED 50,000 h
Lighting modes 1: Flood light 100 %
2: Flood light 50 %
3: Focus light 100 %
4: Focus light 50 %
5: Flash light
Lighting range (max.) 250 m
Operation time (max.) 16 h
Beam angle 90° (Flood light)
10° (Focus light)
Inclination of lamp head 110°
Emergency light function Yes
Charging adapter
Plug-in power unit
100 - 240 V AC, 50/60 Hz
Car Charging adapter 12/24 V DC
Charging time 8 h
Charging control display Yes
Deep discharge protection Yes
(6.2 V ± 0.1 V)
Overcharge protection Yes
(8.4 V ± 0.1 V)
Protection class lll
Type of protection IP 54
Temperature range -25 °C to +50 °C
Material ABS, PC, TPE plastic, aluminum
Color Black, red, silver
Dimensions (L x W x H)     121 x 119 x 319 mm (lamp)
150 x 164 x 55 mm (charging cradle)
Weight 1.46 kg (lamp)
0.33 kg (charging cradle)
