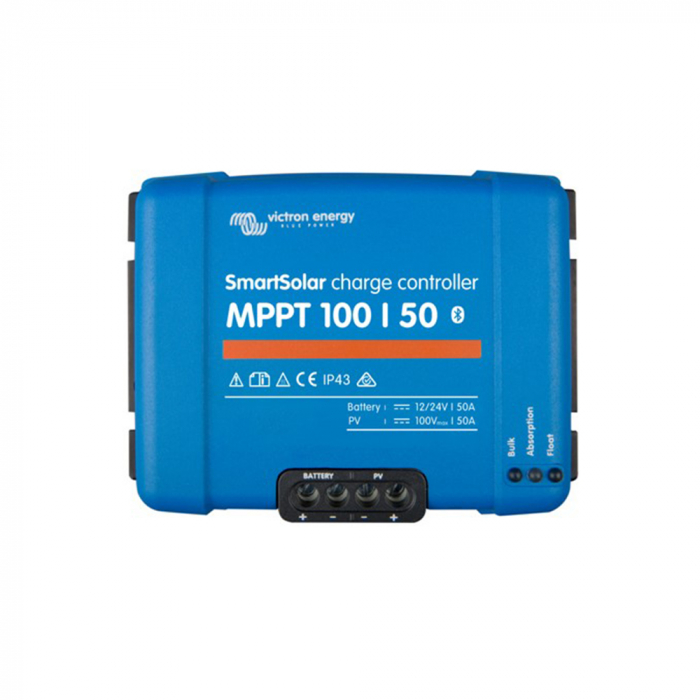

MPPT Solar Controller Victron SmartSolar 100/50
MPPT Solar Controller Victron SmartSolar 100/50

MPPT Solar Controller Victron SmartSolar 100/50

  • Built-in Bluetooth Smart
  • Comprehensive electronic protection
  • Display of data in real time
  • Internal temperature sensor
  • Excellent efficiency 98 %

Item no. 200085 | EAN 8719076040194

257,19 EUR

VAT incl.

Become a sales partner
Request an offer
Description  |  Features & Functions  |  Technical data  |  Compatible with  |  Variants  |  Downloads

Smart monitoring – control and configuration

The solar charger is supplied with energy via solar panels and then stores it in batteries. Using the latest and fastest technology, the Victron SmartSolar maximises this energy production and directs it intelligently to fully charge the batteries in as short a time as possible.

MPPT technology System voltage 12 V/24 V DC CE

Important characteristics and features

Built-in Bluetooth Smart: no dongle required

+
The wireless solution for setting up, monitoring and updating the controller using Apple and Android smartphones, tablets or other devices.

VE.Direct

+
For a wired data connection with a Color Control panel, a Venus GX, a PC or other devices.

Ultra-fast Maximum Power Point Tracking (MPPT)

+
Especially under overcast skies, when the light intensity is constantly changing, an extremely fast MPPT controller improves the energy yield by up to 30 % compared to PWM charging controllers and by up to 10 % compared to slower MPPT controllers.

Advanced Maximum Power Point detection for partial shading

+
In the event of partial shading, two or more maximum power points (MPP) may be present on the current-voltage curve. Conventional MPPTs tend to adjust to a local MPP. However, this may not be the optimal MPP. The innovative algorithm of the SmartSolar device will always maximize the energy yield by adjusting to the optimal MPP.

Outstanding efficiency

+
  • No cooling fan
  • Maximum efficiency at over 98 %
  • Full output current up to 40 °C

Flexible charging algorithms

+
Fully programmable charging algorithm (see also the software page on the Victron website) and eight pre-programmed algorithms that can be selected via a rotary knob (see operating instructions for more details).

Comprehensive electronic protection

+
  • Overheating protection and load reduction at high temperatures
  • PV reverse current protection
  • Protection against PV short circuit and PV reverse polarity

Internal temperature sensor

+
Equalises constant and float charge voltages according to temperature.

Options for displaying data in real time

+
Apple and Android smartphones, tablets and other devices.
VictronConnect App >>

Personal consultation

+
Personal consultation

Do you have any questions? Our expert staff will be happy to advise you on all questions regarding inverters, voltage converters, solar technology, charging technology as well as mobile light. Please contact us.

Phone:  +49 9622 719910
E-mail:   info@ivt-hirschau.de

Delivery content

+
  • MPPT Solar Controller Victron SmartSolar 100/50
Customised Solar Island Systems from IVT: Download questionnaire

Technical Data

Battery voltage 12 V | 24 V (automatic selection
Type of charge control MPPT
Nominal charging current 50 A
PV power 12 V (nominal) 700 W
PV power 24 V (nominal) 1400 W
PV open circuit voltage (max.) 100 V
Short-circuit current 60 A
Efficiency (max.) 98 %
Self-consumption 10 mA
Charging voltage, constant Default: 14.4 V/28.8 V (adjustable)
Charging voltage, maintenance Default: 13.8 V/27.6 V (adjustable)
Charging algorithm Multi-stage, adaptive
Protection Reverse polarity battery, PV, output
Temperature compensation -16 mV/°C or -32 mV/°C
Temperature sensor Yes (internal)
Operation temperature range -30 °C to +60 °C
Humidity 95 % non-condensing
Data communication VE.Direct (Info on VICTRON website)
Housing
Colour Blue (RAL 5012)
Power connections 13 mm²/AWG6
IP protection IP 43 (electrical components)
IP 22 (connection area)
Dimensions (L x W x H) 186 x 130 x 70 mm
Weight 1.3 kg
