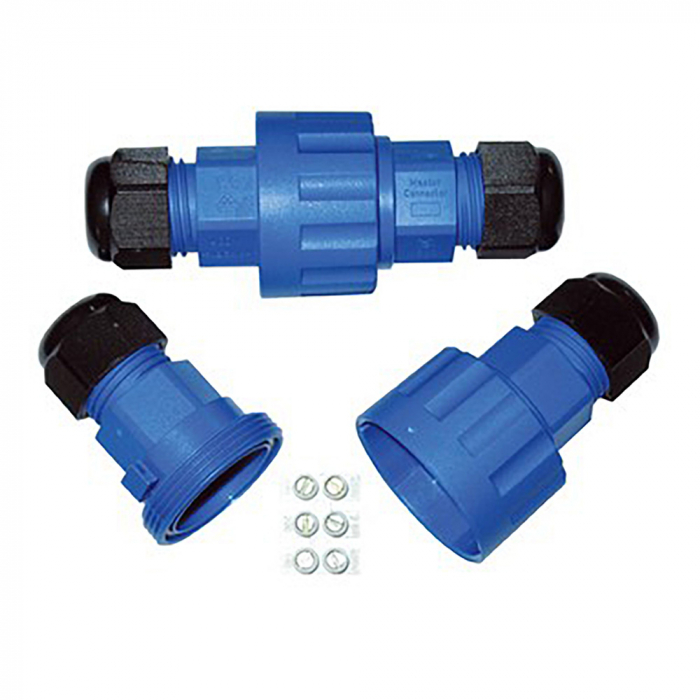

PN-Master Connector IP 68-3

Safe and quick connection of solar cables

Suitable for wet zones and subterranean applications due to its special sealing.

The lamella construction ensures easy and safe handling. Two cables with different diameters (between 6-13 mm) can be connected without difficulty.

The PN-Master Connector IP 68-3 is dust and waterproof.

Delivery content

• PN-Master Connector IP 68-3

Technical Data

Cross-section	2.5 mm2
Nominal voltage (U0/U)	1000 V DC (MC)
Protection type	IP 68
Cable diameter	6 - 13 mm, up to H07 RN-F 3G2.5 mm2
Connections	3-pole connection terminal
DIN standard	DIN VDE 0606-1
Temperature range	-20 °C to +80 °C (MC)
Colour	Blue
Dimensions	Ø 4.1 x 10 cm
Weight	300 g
