Phaesun® Energy Generation Kit Flex Rise 60 W, 12 V

Versatile solar island system kit – ideal for camping, caravanning, boating and much more thanks to semi-flexible solar module

Stand-alone solar systems convert sunlight into electricity.

The electricity generated is stored in a battery so that consumers such as refrigerators, pond pumps and lighting always have sufficient energy available.

The classic components of an off-grid solar system consist of one or more solar modules, solar charge controller, battery and voltage converter.

An inverter enables the connection of 230 V consumers to the 12/24 V battery. This creates a self-sufficient and environmentally friendly power supply away from the mains.

This kit contains all components that reliably provide a mobile or stationary power supply: A semi-flexible, ultra-light Phaesun^® solar module Semi Flex 60, a high-quality charge controller as well as connection cables and accessories for easy installation.

The weather-resistant Semiflex module is suitable for harsh weather conditions and can even be used in salt water environments. The dark blue back-contact cells are unbeaten in terms of efficiency. The charge controller ensures the best energy flow.

Do you also need a suitable battery or inverter?
Our expert team of technicians will be happy to advise you - by phone or e-mail.

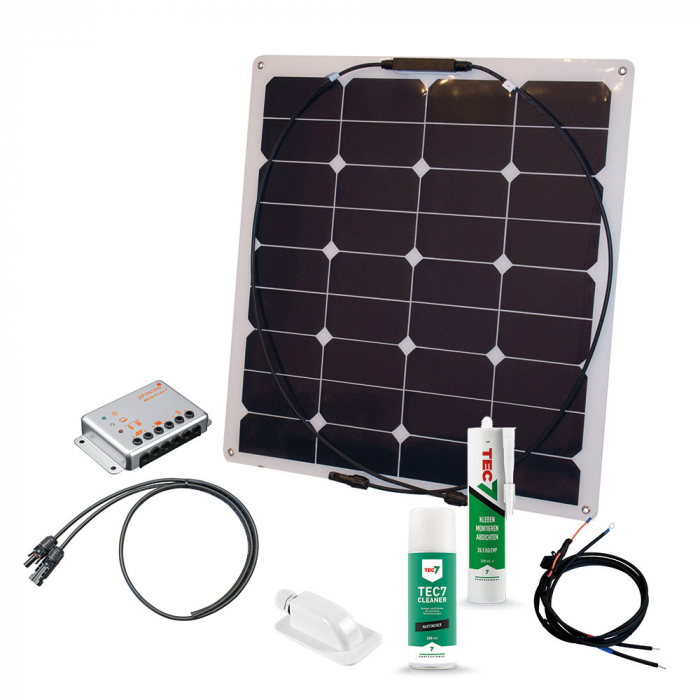

Delivery content

• Solar module 60 W/12 V
• Solar charge controller 10 A, 12/24 V
• Module cable QuickCab4-2,5/5
• Battery cablel with 15 A fuse
• Roof Duct Water Proof One white
• Tec7 Glue Cartridge
• Tec7 Cleaner

Suitable battery and inverter on request.

Technical Data

Solar module
System voltage	12 V DC
Power	60 W
Voltage (max.)	18.6 V
Current (max.)	3.24 A
Open circuit voltage	22.3 V
Short circuit voltage	3.5 A
Number of cells	32 x mono
Module type	Monocrystalline
Solar charge controller
System voltage	12/24 V
Load current (max.)	10 A
Module voltage (max.)	30/50 A
Power consumption active	< 4 mA
Battery type	Lead-acid, Lead-gel, Lead-AGM
Weight	Set complete: 6.95 kg

---
