Phaesun® Energy Generation Kit Solar Rise 300 W, 12 V

Island solar systems – Complete solution for self-sufficient power supply for garden houses, fishing huts, mobile chicken coops, etc.

Stand-alone solar systems convert sunlight into electricity.

The electricity generated is stored in a battery so that consumers such as refrigerators, pond pumps and lighting always have sufficient energy available.

The classic components of an off-grid solar system consist of one or more solar modules, solar charge controller, battery and voltage converter.

An inverter enables the connection of 230 V consumers to the 12/24 V battery. This creates a self-sufficient and environmentally friendly power supply away from the mains.

With this off-grid solar kit, you can enjoy the convenience of a reliable power supply. Use it to power AC consumers at home or for professional use at work or in the workshop.

The expandable kit includes high-quality crystalline solar modules, long-life batteries, solar charge controller with MPP tracker and all components for safe installation.

The set can be used, for example, to power refrigerators, cordless phones, laptops, lighting, televisions, fans and a variety of tools or machines.

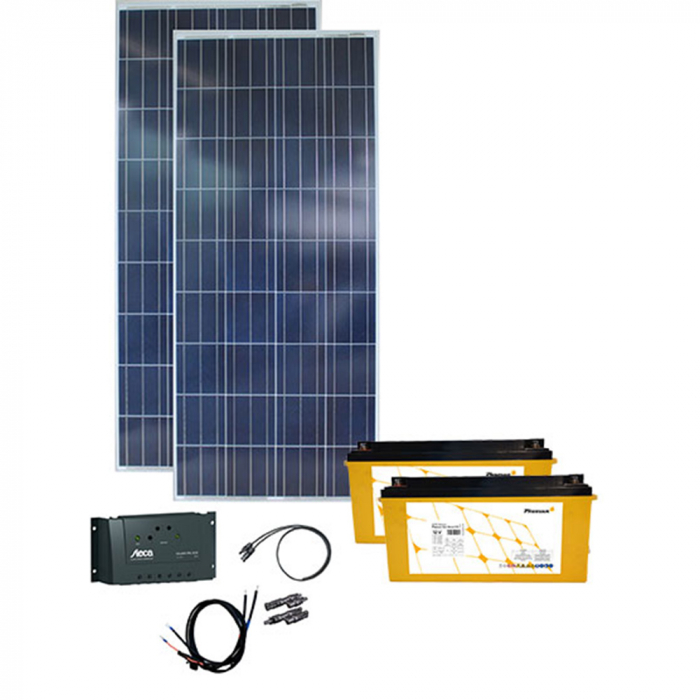

Delivery content

• 2 x Solar module 165 W, 12 V
• Solar charge controller 20 A, 12 V
• 2 x  AGM Battery 175 Ah, 12 V
• QuickCab4-6/10
• Parallel set QuickClip4
• Battery cable with 20 A fuse

Suitable inverter on request.

Technical Data

Solar module
System voltage	12 V DC
Power	165 W
Voltage (max.)	19.4 V
Current (max.)	8.51 A
Open circuit voltage	23.5 V
Short circuit voltage	8.8 A
Number of cells	36 x poly
Module type	Polycrystalline
Solar charge controller
Type	PWM
System voltage	12/24 V
Load current (max.)	20 A
Module current (max.)	20 A
Power consumption active	< 4 mA
Battery
Battery type	AGM
Rated voltage	12 V DC
Nominal capacity	156 Ah
Load current (max.)	45 A
Weight	Set complete: 150 kg

---
