Phaesun® Energy Generation Kit Solar Up Four 60 W, 12 V

Island solar systems – Complete solution for self-sufficient power supply for garden houses, fishing huts, mobile chicken coops, etc.

Stand-alone solar systems convert sunlight into electricity.

The electricity generated is stored in a battery so that consumers such as refrigerators, pond pumps and lighting always have sufficient energy available.

The classic components of an off-grid solar system consist of one or more solar modules, solar charge controller, battery and voltage converter.

An inverter enables the connection of 230 V consumers to the 12/24 V battery. This creates a self-sufficient and environmentally friendly power supply away from the mains.

The set allows for an easy operation of 12 V DC consumers such as light, radio, or 12 V pond pumps etc. If you connect a 230 V AC inverter, you can also supply any electrical device just as if you were on the grid.

With this kit you can easily operate 12 V consumers such as lamps, radios or small pond pumps.

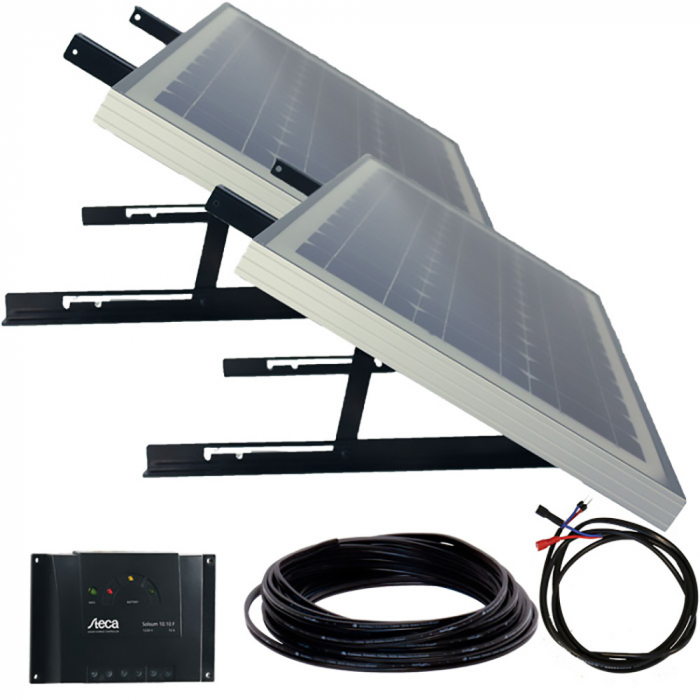

Delivery content

• 2 x Solar module 30 W/12 V
• Solar charge controller 6 A, 12/24 V
• Battery cable with 15 A fuse
• Module cable set Standard4
• Module support structures Mono Axial
• Installation material

Suitable battery and inverter on request.

Technical Data

Solar module
System voltage	12 V DC
Power	30 W
Voltage (max.)	20 V
Current (max.)	1.5 A
Open circuit voltage	24 V
Short circuit voltage	1.62 A
Number of cells	36 x mono
Module type	Monocrystalline
Solar charge controller
Type	PWM
System voltage	12/24 V
Module power (max.)	60 Wp
Load current (max.)	6 A
Module current (max.)	6 A
Power consumption active	< 4 mA
Battery type	Lead Gel
Weight	Set complete: 8.4 kg

---
