Phaesun® Energy Generation Kit Solar Up Two 100 W, 12 V

Island solar systems – Complete solution for self-sufficient power supply for garden houses, fishing huts, mobile chicken coops, etc.

Stand-alone solar systems convert sunlight into electricity.

The electricity generated is stored in a battery so that consumers such as refrigerators, pond pumps and lighting always have sufficient energy available.

The classic components of an off-grid solar system consist of one or more solar modules, solar charge controller, battery and voltage converter.

An inverter enables the connection of 230 V consumers to the 12/24 V battery. This creates a self-sufficient and environmentally friendly power supply away from the mains.

For the slightly higher power requirements, this kit is ideal.

In summer, the set provides about 500 - 600 Wh daily with an average of 5 - 6 hours of sunshine, in dark winter weeks the output drops to 1 - 1.5 h average power output.

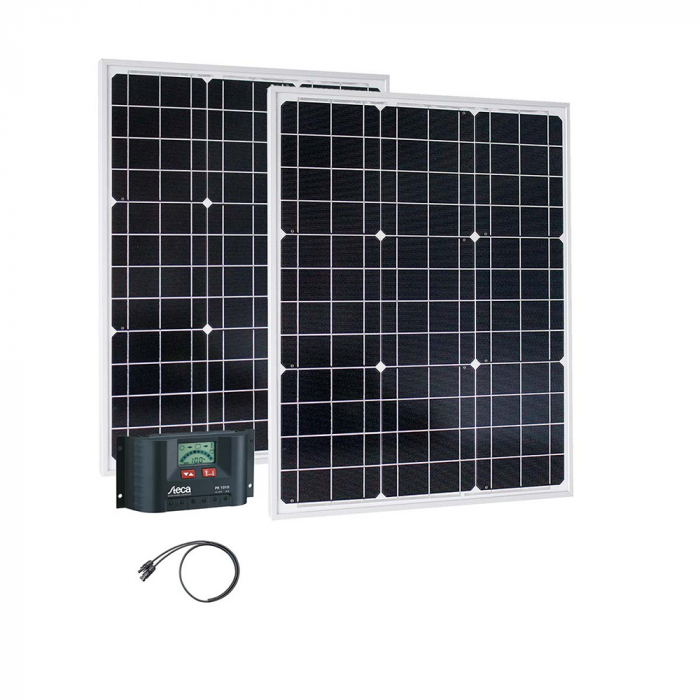

Delivery content

• 2 x Solar module 50 W / 12 V
• Solar charge controller 10 A / 12/24 V
• QuickCab4-2.5/10
• Parallel set QuickClip4
• Battery cable with 15 A fuse

Suitable battery and inverter on request.

Technical Data

Solar module
System voltage	12 V DC
Power	50 W
Voltage (max.)	17.6 V
Current (max.)	2.84 A
Open circuit voltage	21.6 V
Short circuit voltage	3.07 A
Number of cells	36 x mono
Module type	Monocrystalline
Solar charge controller
Type	PWM
System voltage	12/24 V
Module voltage	12 V: 6.9 V - 17.2 V 24 V: 17.3 V - 43 V
Module power (max.)	300 Wp
Load current (max.)	10 A
Module current (max.)	10 A
Power consumption active	12.5 mA
Battery type	Lead Acid, Lead Gel, Lead AGM, LiFePO4
Weight	Set complete: 29.8 kg

---
