Phaesun® SPR Caravan Kit Solar Peak MPPT DUO, 240 W, 12 V

Solar island systems – Complete solution for self-sufficient power supply for camping, caravanning or on boats

Stand-alone solar systems convert sunlight into electricity.

The electricity generated is stored in a battery so that consumers such as refrigerators, coffee makers and lighting always have sufficient energy available.

The classic components of an off-grid solar system consist of one or more solar modules, solar charge controller, battery and voltage converter.

An inverter enables the connection of 230 V consumers to the 12/24 V battery. This creates a self-sufficient and environmentally friendly power supply away from the mains.

This set is the ideal solution for a power supply on the road. The set includes all components for installation on your motorhome.

The MPPT optimises the charging power and enables charging of the leisure and starter battery.

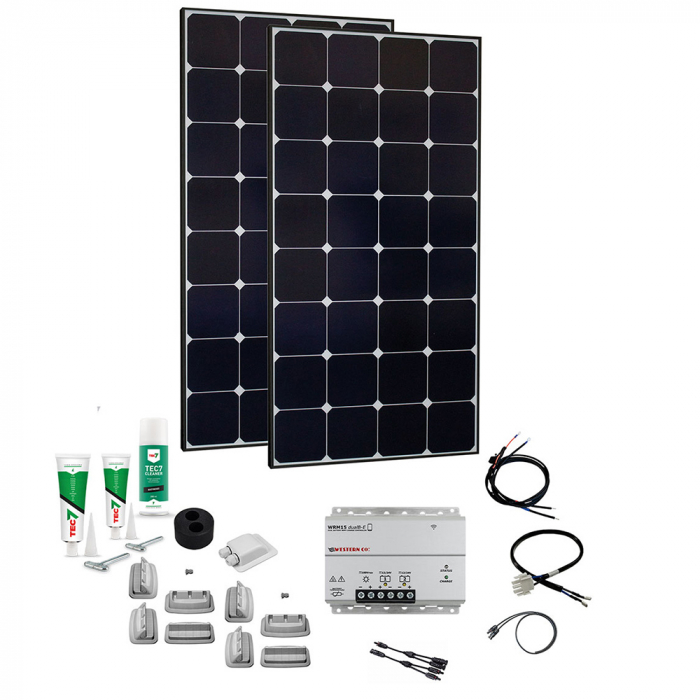

Delivery content

• 2 x Solar module 120 W/12 V
• Solar charge controller MPPT Western WRM15 dualB-E
• 2 x Module mounting kit Easy Mount One
• Tec7 Glue Set Easy Bond Two
• Module cable QuickCab4-2,5/5
• Adapter cable for EBL
• Y-adapter QuickClip
• Battery cable with 20 A fuse

Suitable battery and inverter on request.

Technical Data

Solar module
System voltage	12 V DC
Power	120 W
Voltage (max.)	20.1 V
Current (max.)	5.98 A
Open circuit voltage	24.1 V
Short circuit voltage	6.46 A
Number of cells	32 x mono
Module type	Monocrystalline
Solar charge controller
Charge controller type	MPPT
System voltage	12/24 V
Module power (max.)	620 Wp
Load current (max.)	20 A
Module current (max.)	20 A
Battery type	Lead-acid, Lead-gel, Lead-AGM, Lithium
Weight	Set complete: 21.8 kg

---
