Phaesun® SPR Caravan Kit Solar Peak MPPT LRM1218, 120 W, 12 V

Solar island systems – Complete solution for self-sufficient power supply for camping, caravanning or on boats

Stand-alone solar systems convert sunlight into electricity.

The electricity generated is stored in a battery so that consumers such as refrigerators, coffee makers and lighting always have sufficient energy available.

The classic components of an off-grid solar system consist of one or more solar modules, solar charge controller, battery and voltage converter.

An inverter enables the connection of 230 V consumers to the 12/24 V battery. This creates a self-sufficient and environmentally friendly power supply away from the mains.

This kit is easy to install on your caravan or sailing boat. It enables the operation of various 12 V consumers such as lamps, radio, TV/SAT, etc.

This kit is the ideal solution for sufficient power on board.

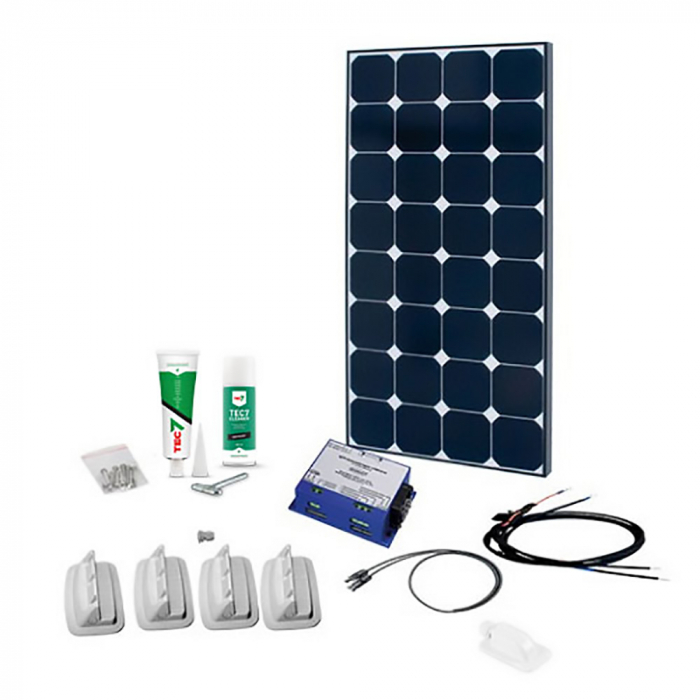

Delivery content

• Solar module 120 W/12 V DC
• Solar charge controller Schaudt MPPT LRM 1218
• Module mounting kit Easy Mount One
• Roof duct
• Tec7 Glue Set Easy Bond One
• Module cable QuickCab4/5
• Battery cable with 20 A fuse

Suitable battery and inverter on request.

Technical Data

Solar module
System voltage	12 V DC
Power	120 W
Voltage (max.)	20.1 V
Current (max.)	5.98 A
Open circuit voltage	24.1 V
Short circuit voltage	6.46 A
Number of cells	32 x mono
Module type	Monocrystalline
Solar charge controller
Charge controller type	MPPT
System voltage	12 V
Module power (max.)	275 Wp
Load current (max.)	20 A
Module current (max.)	20 A
Battery type	Lead-acid, Lead-gel, Lead-AGM
Weight	Set complete: 11.52 kg

---
