Phaesun® SPR Caravan Kit Solar Peak SOL101, 170 W, 12 V

Solar island systems – Complete solution for self-sufficient power supply for camping, caravanning or on boats

Stand-alone solar systems convert sunlight into electricity.

The electricity generated is stored in a battery so that consumers such as refrigerators, coffee makers and lighting always have sufficient energy available.

The classic components of an off-grid solar system consist of one or more solar modules, solar charge controller, battery and voltage converter.

An inverter enables the connection of 230 V consumers to the 12/24 V battery. This creates a self-sufficient and environmentally friendly power supply away from the mains.

This kit is easy to install on your caravan or sailing boat. It enables the operation of various 12 V consumers such as lamps, radio, TV/SAT, etc.

This kit is the ideal solution for sufficient power on board.

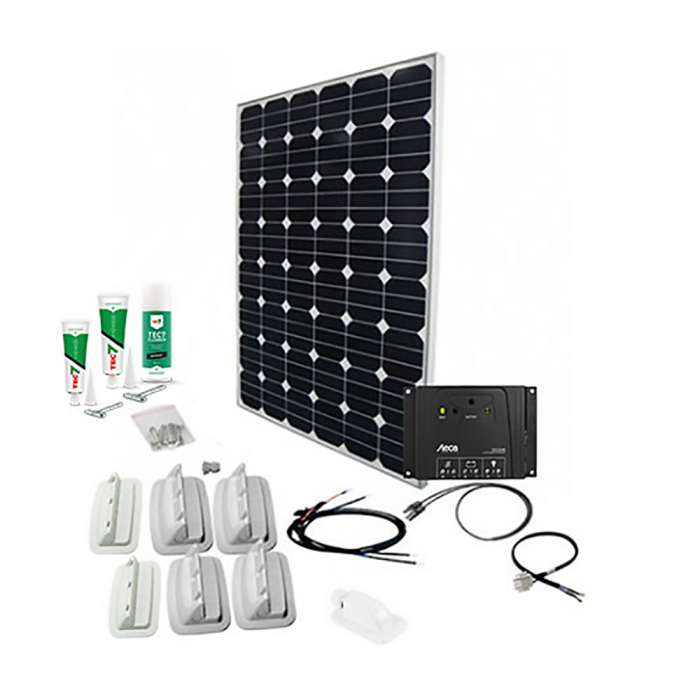

Delivery content

• Solar module Sun Peak SPR 170 W/12 V DC
• Solar charge controller Steca Solsum 1010
• Module mounting kit Easy Mount One and Easy Mount Two
• Roof duct
• Tec7 Glue Set Easy Bond Two
• Module cable QuickCab4-2,5/5
• Adapter cable for EBL
• Battery cable with 15 A fuse

Suitable battery and inverter on request.

Technical Data

Solar module
System voltage	12 V DC
Power	170 W
Voltage (max.)	19.8 V
Current (max.)	8.59 A
Open circuit voltage	23.8 V
Short circuit voltage	9.27 A
Number of cells	36 x 4 mono
Module type	Monocrystalline
Solar charge controller
Charge controller type	PWN
System voltage	12/24 V
Load current (max.)	6 A
Module current (max.)	6 A
Battery type	Lead-gel
Weight	Set complete: 14.6 kg

---
