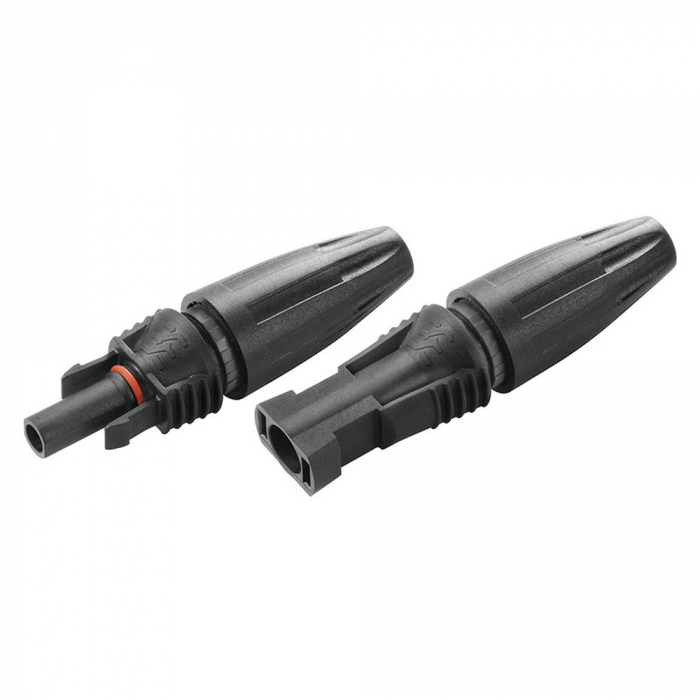

Photovoltaics Plug-in connector set female/male, 4 - 6 mm²
Photovoltaics Plug-in connector set female/male, 4 - 6 mm²

Photovoltaics Plug-in connector set female/male, 4 - 6 mm²

  • Mounting without crimping tool
  • PUSH IN technology
  • Reliable engagement
  • Protection degree IP65, in closed state
  • Standard-compliant quality, according to TÜV DIN EN 50521

Item no. 220500 | EAN 4050118225723

8,53 EUR

VAT incl.

Become a sales partner
Request an offer
Description  |  Technical data  |  Downloads

PV-Stick Set for safe and fast cabling of PV systems

The fastest, easiest and safest way to wire photovoltaic systems due to the simple PUSH-IN technology.

Assembly is carried out without crimping tools, thus avoiding assembly errors.

The photovoltaic connectors are TÜV-approved and comply with DIN EN 50521.

Delivery content
  • PV-Stick set plug/socket 4 - 6 mm2


Technical Data

Rated voltage 1000 V DC (IEC)
Rated current 30 A
Rated surge voltage 8000 V
Temperature range -40 °C to +85 °C
IP protection plugged IP 66
unplugged IP 2X
Protection class II
Cable type 2 Pfg1169/08.07
Conductor cross-section 4 mm2 - 6 mm2
Cable diameter 5.5 mm - 7.5 mm
Dimensions (L x W x H)    106 x 40 x 22 mm
Weight 31.94 g

Downloads

Operating instructions Photovoltaics Plug-in connector set female/male, 4 - 6 mm²
780.71 KB
