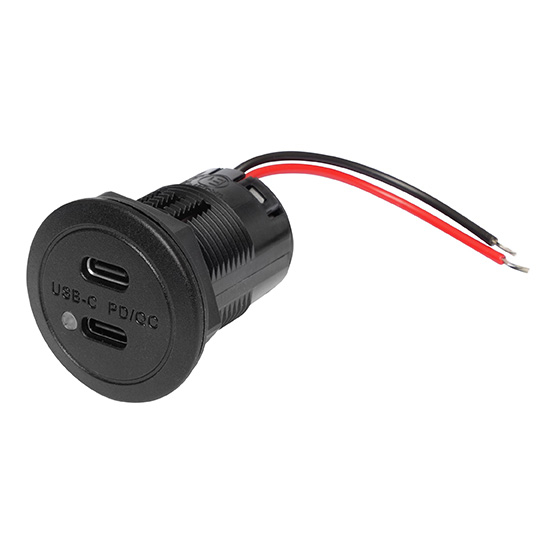

Power USB-C double socket PD/QC PRO CAR 12 - 24 V, max. 2 x 3 A, with LED

Power USB-C double socket PD/QC for vehicle electrical systems with 12 - 24 V

This USB-C dual socket has an integrated voltage converter and supports the fast charging methods Power Delivery (PD), Quick Charge (QC) and Programmable Power Supply (PPS).

Both outputs (USB-C1 and USB-C2) are independent of each other and can be used individually or together.

The USB dual socket is suitable for charging and operating smartphones, navigation devices, tablets, digital cameras, MP3 players, photo cameras, etc.

The connection is made via a pre-assembled cable.

The most important features

• Suitable for consumers with USB-C charging connection
• Charging protocols C sockets: Power Delivery (PD), Quick Charge, PPS
• Protection against short circuit, overload, overvoltage, reverse polarity and overtemperature
• Control LED to indicate the power supply
• Integrated voltage converter
• E1 approval, suitable for permanent installation


Recommended use




This Power USB-C double socket PD/QC is suitable for permanent installation in all vehicles with a 12 - 24 V system, e.g. for cars, vans, motorhomes, caravans, boats, trucks, buses, construction machinery, etc.

Delivery content

• Power USB-C double socket PD/QC PRO CAR 12 - 24 V, max. 2 x 3 A, with LED



Technical Data

Input voltage (max.)	8 - 30 V DC
Output voltage	at 12 V: 5 V/9 V/12 V at 24 V: 15 V and 20 V
Output current	2 x USB-C up to max. 2 x 3 A
Current consumption (max.)	5 mA (idle)
Overload protection	Yes
Overtemperature protection	Yes
Reverse polarity protection	Yes
E-approval	Yes
Housing	Makrolon (Polycarbonat)
Temperature load (max.)	130 °C
Connection cable	2 x 0.5 mm2, pre-assembled
Cable length	150 mm
Dimensions	Ø 36 mm Depth: 38.5 mm
