Remote Control Touchscreen IVT FB-04, cable-connected for DSW Inverters and MPPTplus+ Solar Controllers

Remote Control Touchscreen IVT FB-04, cable-connected for DSW Inverters and MPPTplus⁺ Solar Controllers

Suitable for MPPTplus⁺ solar controllers series
Suitable for Digital Sine Wave Inverters series
Management of the most important parameters
Permanent monitoring of the system
Data storage on SD card possible
Cable length 1.8 m

Item no. 200051 | EAN 4030072200516

198,00 EUR

VAT incl.

Become a sales partner
Request an offer

Description | Features & Functions | Technical data | Compatible with | Downloads

Comfortable control and monitoring of up to 4 devices

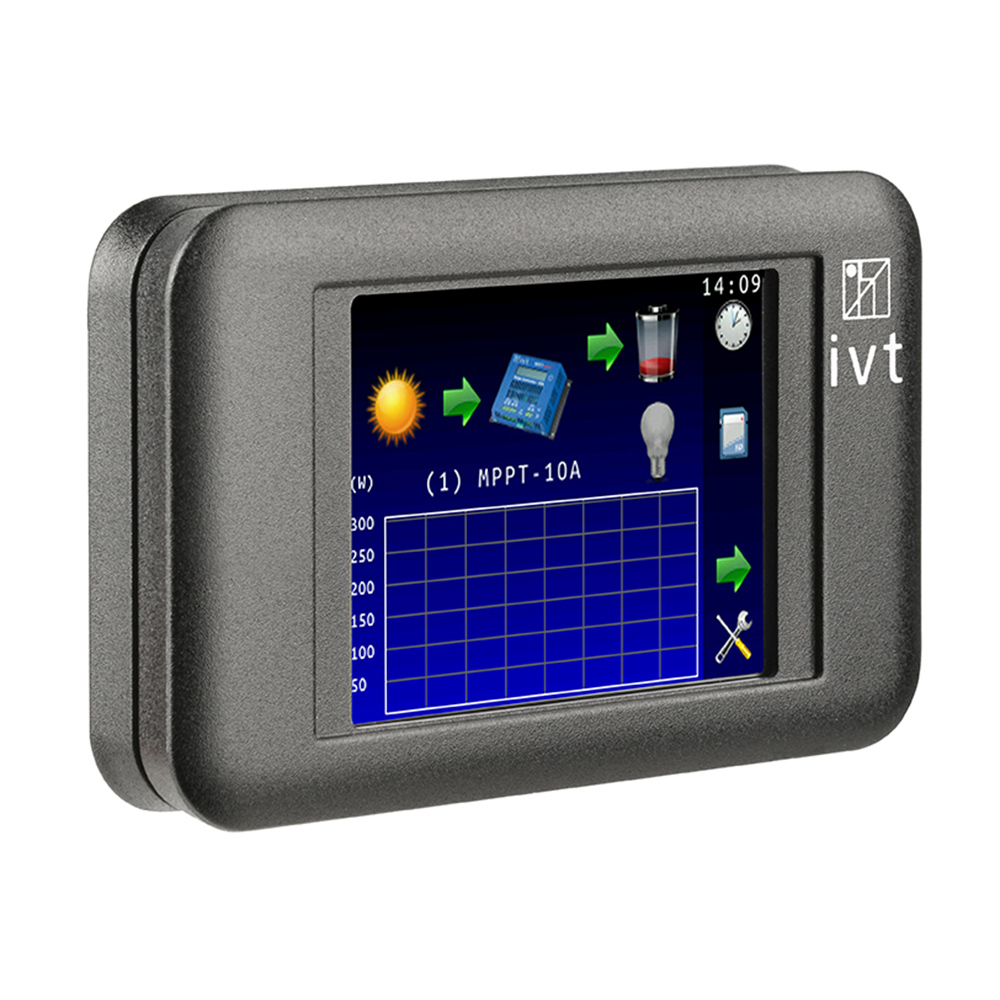

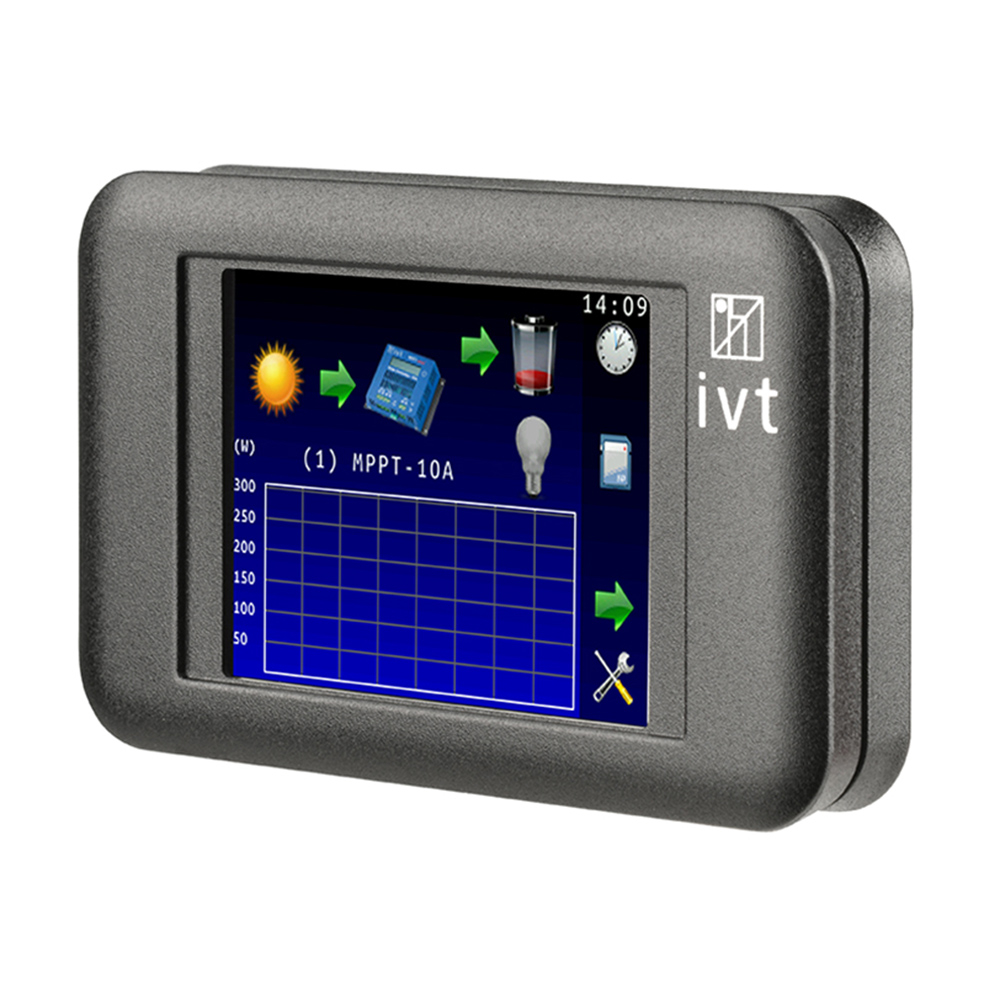

The Remote Control Touchscreen FB-04 (cable) is compatible with all solar controllers of the MPPTplus⁺ series as well as the inverters of the DSW series. With the remote control, up to 4 devices can be individually controlled and monitored regardless of location. The devices only have to be connected to each other via USB cable.

For automatic on/off switching of your inverters and solar controllers, a timer function is integrated. A maximum of 2 operating times can be programmed independently of each other. The most important operating parameters are operated and monitored via the color LCD touch screen.

The cable remote control is powered by the supplied USB cable.

Important characteristics and features

Remote control: MPPTplus⁺ solar controller

With the help of the remote control you can set the charging end voltage, the deep discharge protection and the temperature compensation as well as evaluate and monitor the solar power. The charging current can be limited, which is especially important when charging smaller batteries.

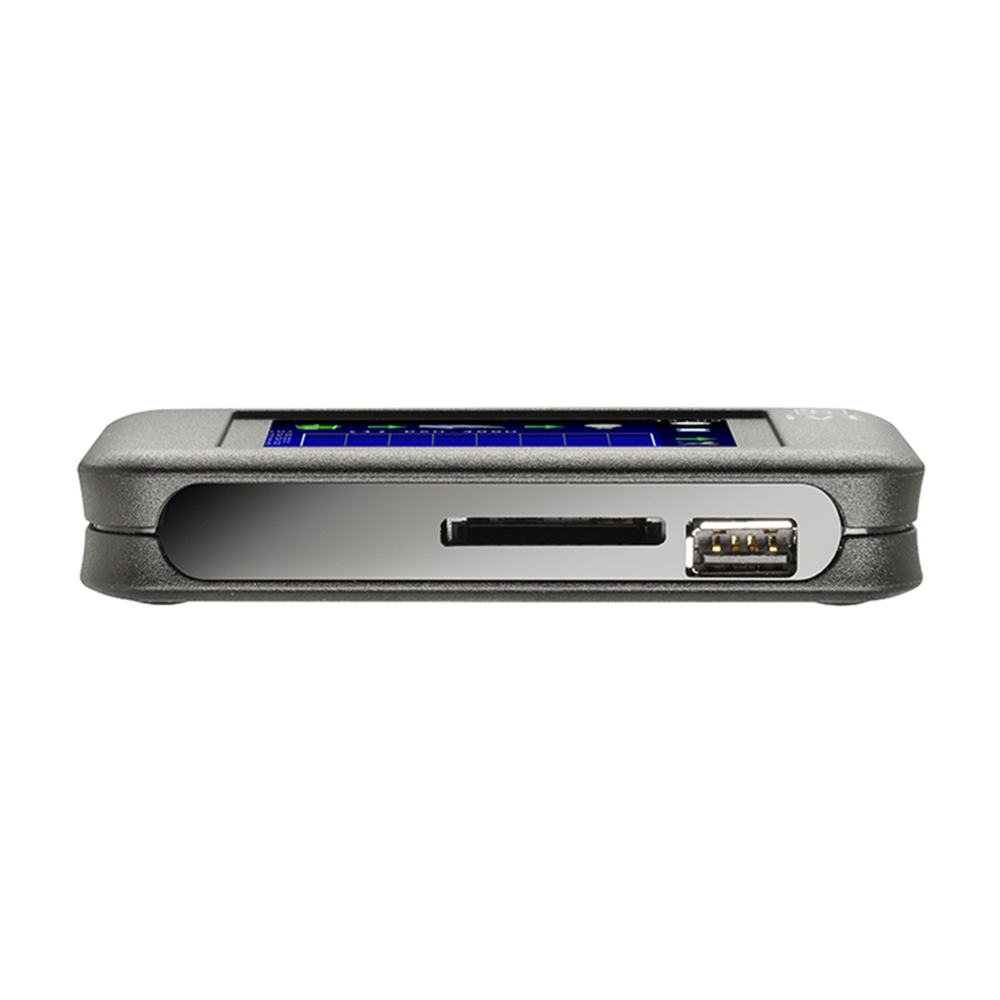

The operating data can be saved on a standard SD/SDHC memory card and output as a text file (*.txt).

Remote control DSW inverter

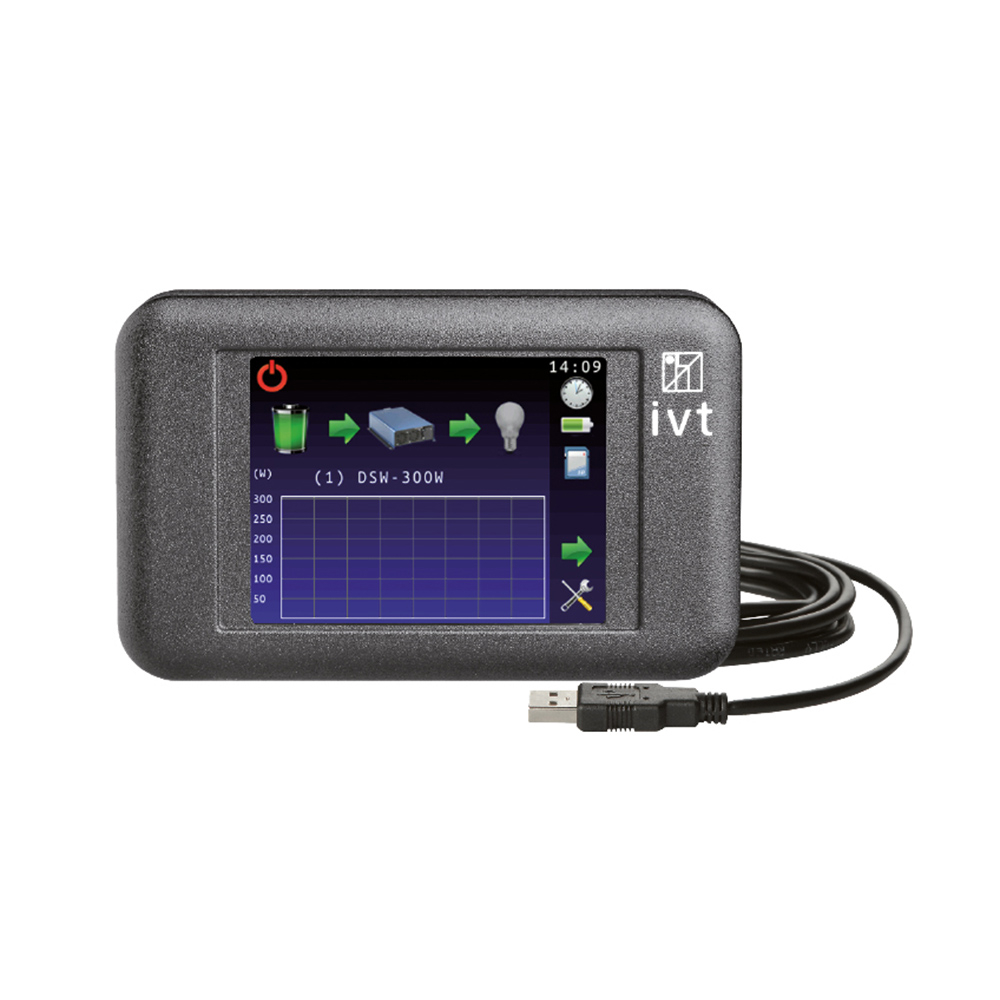

By means of the remote control it is possible to check the status of the connected battery on the input side and to query the output parameters (output voltage, output current and output power) on the output side. Furthermore, the deep discharge protection can be parameterized individually and the load output can be switched on or off by means of the remote control.

The operating data can be saved on a standard SD/SDHC memory card and output as a text file (*.txt).

Data recording of the most important operating data

The most important operating data of the inverter or the solar controller can be saved in real time on a memory card (SD or SDHC) and imported via conventional spreadsheet programs. The parameters are recorded at 5 minute intervals. On the PC, the imported data can be evaluated and further processed (e.g. create graphics).

Data recording MPPTplus⁺ solar controller
Remote control FB-04 and Webbox-LCD

Date (Date)
Time (Time)
Solar power (Ps)
Solar current (Is)
Battery voltage (Ub)
Battery (charge) current (lb)
Load current (II)

Data logging DSW inverter
Remote control FB-04 and Webbox LCD

Date (Date)
Time (Time)
Output power (Ps)
Output voltage (Uo)

Important note on data recording

The functions of the remote control can only be used when the inverter and solar controller are in active operating mode.
The power supply to the remote control is interrupted as soon as the power saving functions (sleep, standby) respond.

3 year manufacturer warranty

IVT products are manufactured to a high quality and following strict quality guidelines. We are certain about the longevity so that we add another year to the statutory manufacturer warranty free of charge. Rechargeable batteries and batteries are excluded from this warranty.

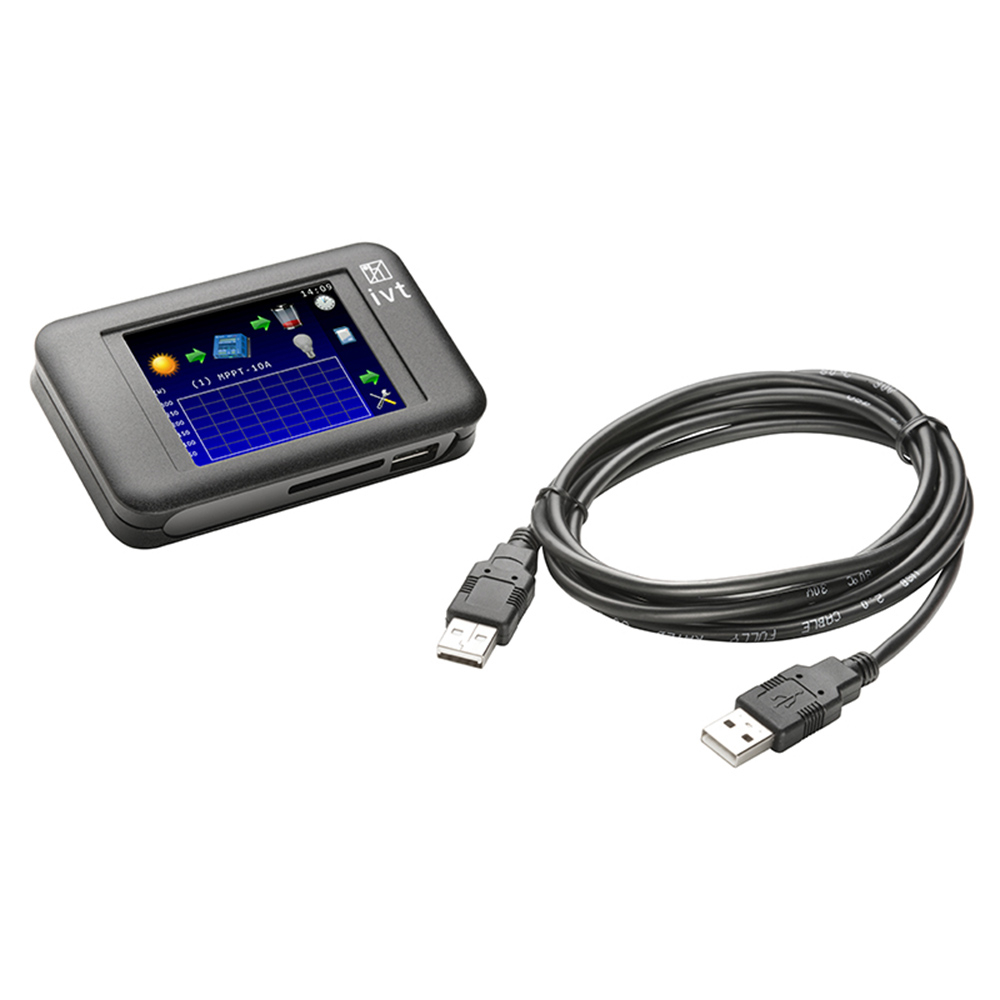

Delivery content

Remote Control FB-04
USB cable
Instruction manual DE, GB

The memory card is not included in the delivery.

Technical Data

Operating voltage	10 V
Power consumption	45 mA
Storage battery	CR1220
Connection cable	USB Type A
Cable length	1.8 m
Memory card	SD/SDHC
Housing	Plastic
Dimensions (L x W x H)	105 x 65 x 20 mm
Weight	95 g
