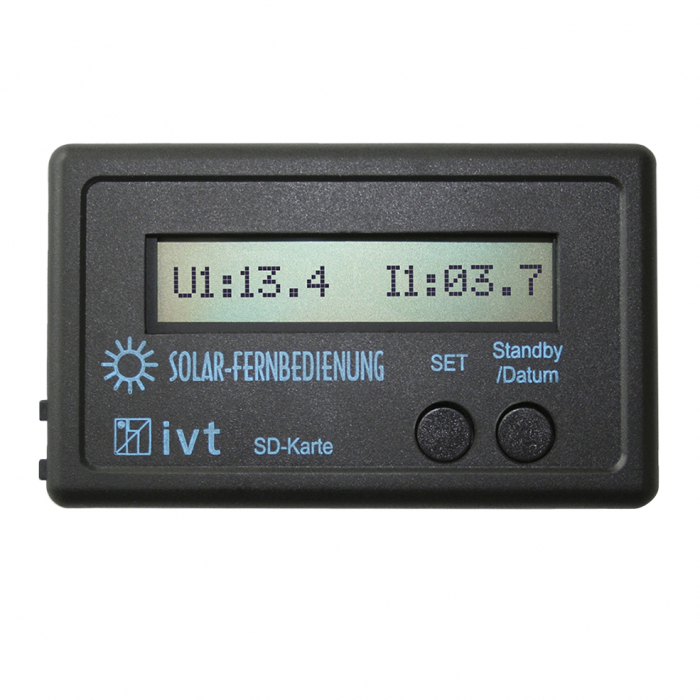

Remote Display for MPPT Solar Charge Controller IVT

Monitoring and evaluation via remote display

By means of the remote display for MPPT solar charge controllers, you can display the current operating data during runtime. Furthermore, it is possible to save the operating parameters with date and time as a *.txt file on an SD card1 and evaluate them later on a PC if necessary.

The data recording takes place in 10 second intervals

• Date (DATE)
• Time (TIME)
• Battery voltage (U1)
• Battery current (I1)
• Solar voltage (Us)
• Solar current (ls)

Delivery content

• Remote display for MPPT solar charge controller
• Connecting cable
• Operating instructions DE, GB, FR, NL

Technical Data

Typ. voltage	10 V DC
Internal current consumption active	15 mA
Internal current consumption standby	< 1 mA
Updating of display	In approx. 3-second steps
Storage battery type	CR2032
Connection cable length	3 m
Dimensions (L x W x H)	100 x 60 x 28 mm
Weight	100 g

---

Compatible with
