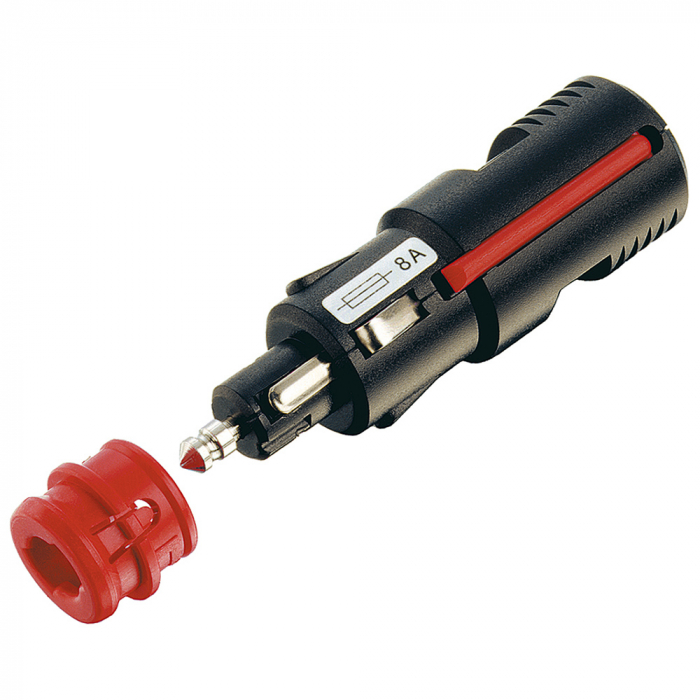

Safety universal plug PRO CAR with screwed strain relief 12 - 24 V/8 A
Safety universal plug PRO CAR with screwed strain relief 12 - 24 V/8 A

Safety universal plug PRO CAR with screwed strain relief 12 - 24 V/8 A

  • Load capacity max. 8 A.
  • Voltage range 12 - 24 V
  • Suitable for cigarette lighter / power sockets and standard sockets
  • Lockable compensating sleeve
  • With screw contacts up to 2.5 mm²

Item no. 300020 | EAN 4030072300209

6,22 EUR

VAT incl.

Become a sales partner
Request an offer

Safety universal plug with screwed strain relief 12 - 24 V / 8 A

Suitable for cigarette lighter / power sockets (inner Ø 21 mm) and standard sockets (inner Ø 12 mm). With screw contacts up to 2.5 mm², fixable compensating sleeve by bayonet locking and pull-out tool.

Delivery content
  • Safety universal plug PRO CAR with screwed strain relief 12 - 24 V/8 A

CE

Technical Data

Input voltage (max.) 24 V
Current load (max.) 8 A
Temperature load (max.) 110 °C
Dimensions Length 84 mm
Ø  24 mm
Weight 25 g
.
