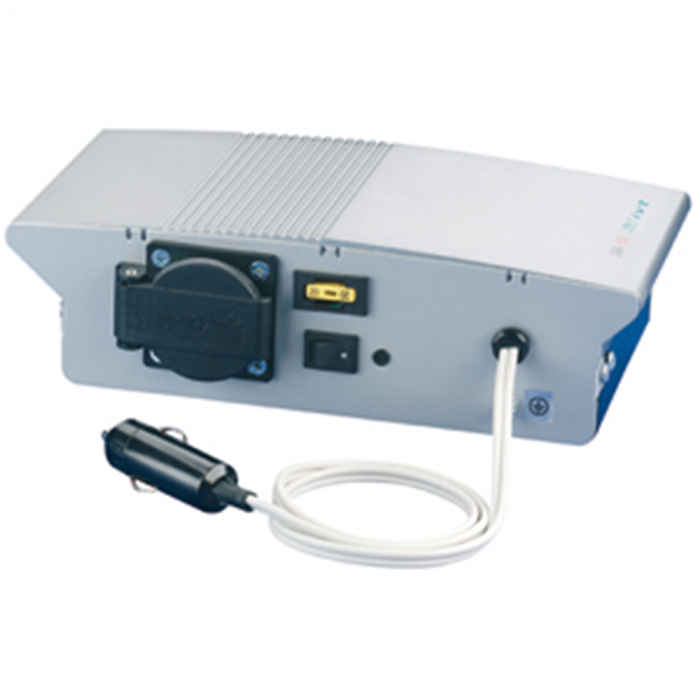

Sinus Inverter IVT SW-150, 24 V, 150 W

Real sine wave alternating voltage 230 V/50 Hz
Flexible connection via 24 V car adapter
Galvanic isolation of input and output stage
Extensive protection functions
Power start function
E-certification
Low power consumption
Compact design, particularly light

Item no. 430001 | EAN 4030072430012

160,28 EUR

VAT incl.

Become a sales partner

Request an offer

Important characteristics and features

Features & Functions

Real sine wave alternating voltage 230 V/50 Hz

The precise control converts a 12 V or 24 V direct voltage into a pure sine wave output voltage of 230 V/50 Hz

Graphic true sine wave

The digital control converts a 12 V or 24 V direct voltage into a pure sine wave output voltage of 230 V/50 Hz

Graphic true sine wave

Microprocessor-controlled electronics

A microprocessor forms the heart of the inverter. This control centre monitors the most important parameters of the of the electronic system, such as the input voltage and frequency. This ensures constant stability of the output voltage.

Continuous power 150 W – peak output power 300 W

Especially with loads that require a high inrush current, the start does not always run smoothly. For this reason, the SW-150 is designed to provide twice the continuous output power for short periods.

Note: To determine the appropriate inverter, you will need your total power requirement. This is the sum of the power (W or VA) of the individual loads. We recommend that you allow for a power reserve of 30 - 40 % upwards.

Power start function for loads with high inrush current

The SW inverter is also equipped with the power start function.

Advantage: loads with a high inrush or starting current are controlled several times in quick succession with the maximum output power of the inverter, thus facilitating reliable start-up of powerful loads.

Flexible connection via 24 V car adapter

The SW-150 can be used flexibly in different vehicles. If required, the car adapter plug is simply plugged into the 24 V socket of the vehicle or boat, a fixed installation is not mandatory.

E-certification: Suitable for permanent installation in vehicles

The sine wave inverters meet the legal requirements of the ECE regulations and therefore have the E-certification. They are suitable for permanent installation in all vehicles with road approval, such as passenger cars, utility vehicles or other vehicles with 24 V on-board voltage.

Galvanic isolation of the input and output stage

Galvanic isolation
Thanks to galvanic isolation, there is no electrical conductive connection between the input and output circuit. Therefore, no additional personal protection device ( RCD or DI circuit breaker) is required even for commercial use when only one 230 V consumer is connected.

Please note:
If a multiple socket outlet is connected and several 230 V consumers are used at the same time, the German trade associations stipulate that each additional consumer must be protected with a separate RCD or DI circuit breaker. Please obtain information from your trade association or on the Internet at: www.dguv.de

Extensive protection functions

IVT inverters of the SW series operate absolutely reliably and safely even under the toughest conditions. As standard, they are protected against overload, short circuit and overheating. An imminent deep discharge of the battery is indicated by optical prewarning (LED) and prevented by automatic shutdown.

Safe output – 230 V grounding-type socket

Output socket suitable for plug type: F, C
The IVT SW-150 sine wave inverter is equipped as standard with a 230 V earthed socket, suitable for plug types C (Europlug) and F (Schuko plug^®) commonly used in Germany and most European countries.

Compact design, particularly light

Conventional inverters are often equipped with large ring transformers. As a result, these are heavy and unwieldy. In contrast, the microprocessor-controlled IVT inverters operate digitally thanks to innovative technology: large, heavy components are eliminated and replaced by small and powerful components.

The valuable inner workings of the inverter are protected by a sturdy housing. The SW series inverters can be used as a stand-alone unit or mounted on a wall.

3 year manufacturer warranty

IVT products are manufactured to a high quality and following strict quality guidelines. We are certain about the longevity so that we add another year to the statutory manufacturer warranty free of charge. Rechargeable batteries and batteries are excluded from this warranty.

Delivery content

Sine wave inverter SW-150, 24 V
Instruction manual DE, EN, FR, NL

Recommended use

Technical Data

Input
Nominal voltage DC	24 V
Voltage range DC	22 - 30 V
Nominal input current	6.25 A
Input current (max.)	12.5 A
Deep discharge protection voltage	21 V
Deep discharge protection voltage, adjustable	No
Advance warning of deep discharge protection switch-off	23 V
Switch-on voltage	25 V
Nominal power consumption, idle	4 W
Output
Output voltage AC (- 8 %/+5 %)	225 V
Frequency (± 1 %)	50 Hz
Wave form	Sinusoidal
Continuous output current	0.67 A
Continuous output power	150 VA
Peak output power (max. 2 s)	300 VA
Power factor	cos phi > 0.8
Nominal efficiency	> 88 %
General
Input connector	24 V DC car adapter
Output connector	Isolated ground socket
Suitable for plug type	F, C
Output connector USB (type A)	No
Temperature range	-25 °C to +60 °C
Sleep function	No
Standby function	No
Galvanic isolation (input/output)	Yes
Power start function	Yes
E-certification	Yes
Remotely controllable	No
Fan cooling	No
Dimensions (L x W x H)	120 x 245 x 70
Weight	1.3 kg
