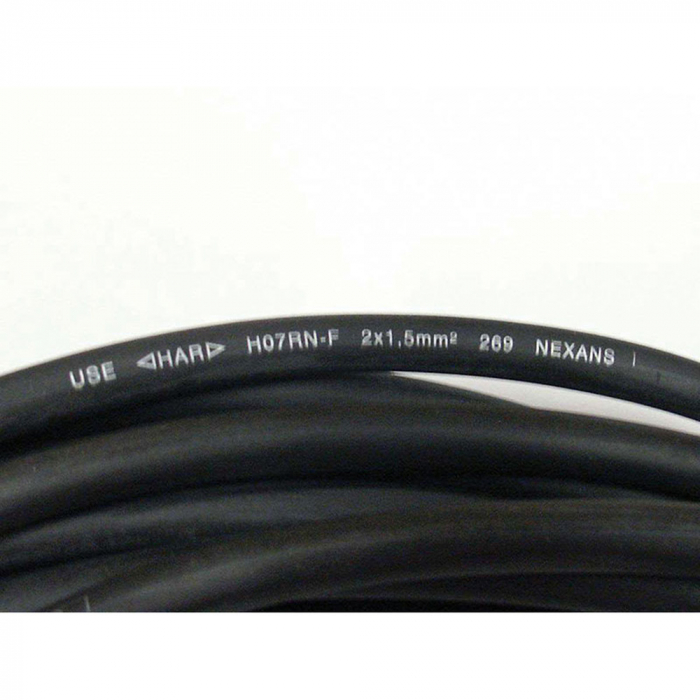

Solar Cable H07RN-F 2 x 1.5 mm²

Individually usable solar cable

Use this solar cable H07RN-F 2 x 1.5 mm² to connect your solar module with the corresponding device, e.g. to connect a solar charger.

The solar cable consists of flexible and water-repellent materials.

It can be used for outdoor and indoor installation. Not suitable for unprotected installation in the ground.

Delivery content

• Solar cable H07RN-F 2 x 1.5 mm², 10 m

Technical Data

Outer diameter	Minimum value 5.7 mm Maximum value 7.1 mm
Cores	2
Rated voltage [U0/U]	450 / 750 V
Conductor cross section	1.5 mm2
Cable type	H07RN-F
Material	Cross-linked synthetic elastomer Type EM 2
Insulation	Cross-linked synthetic elastomer Type EI 4
Temperature range	-25 °C to +55 °C
Colour	Black
Length	10 m
Weight	500 g
