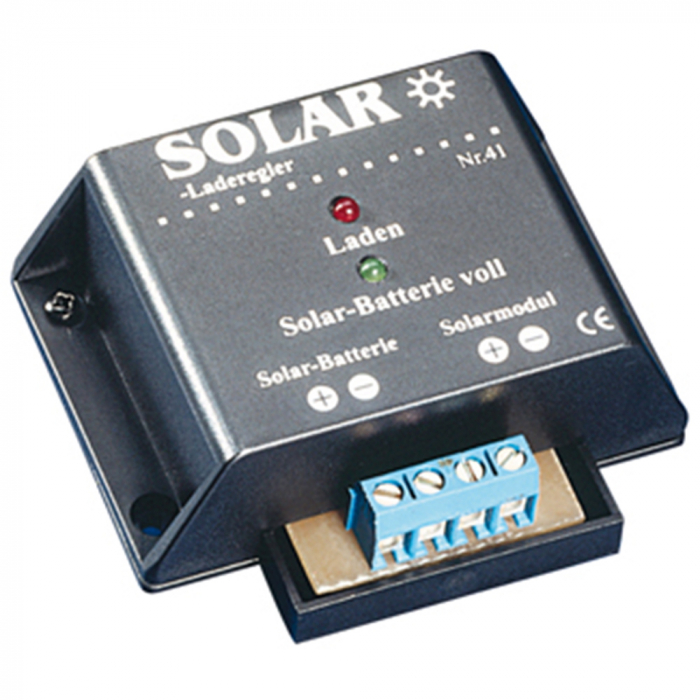

Solar Charge Controller IVT 12 V, 4 A

Serial solar charge controller – Small cost-effective, reliable

The IVT Solar Controller 12 V, 4 A is an uncomplicated and extremely reliable device for charging lead-acid and lead-gel batteries within smaller solar systems. It charges the battery according to the PWM charging method. 2 LEDs indicate if the battery is full or if is still being charged.

The charge controller is protected against overcharging and is equipped with a reverse current block as standard.

Delivery content

• Solar Charge Controller 12 V, 4 A
• Operation instructions DE, GB, FR, NL



Technical Data

Battery system voltage	12 V
Supported battery types	Lead-acid, lead-gel
Type of charge control	PWM serial
Maximum panel power	55 W
Maximum panel voltage	22 V
Maximum panel/ charging  current	4 A
Load current	-
Internal current consumption	2.5 mA
Operation temperature range	-10 °C to +50 °C
Display	LED
Housing	Plastic
Dimensions (L x W x H)	66 x 60 x 25 mm
Weight	40 g
Charging parameters
Cut-off voltage	13.8 V
Trickle charging	13.8 V

---
