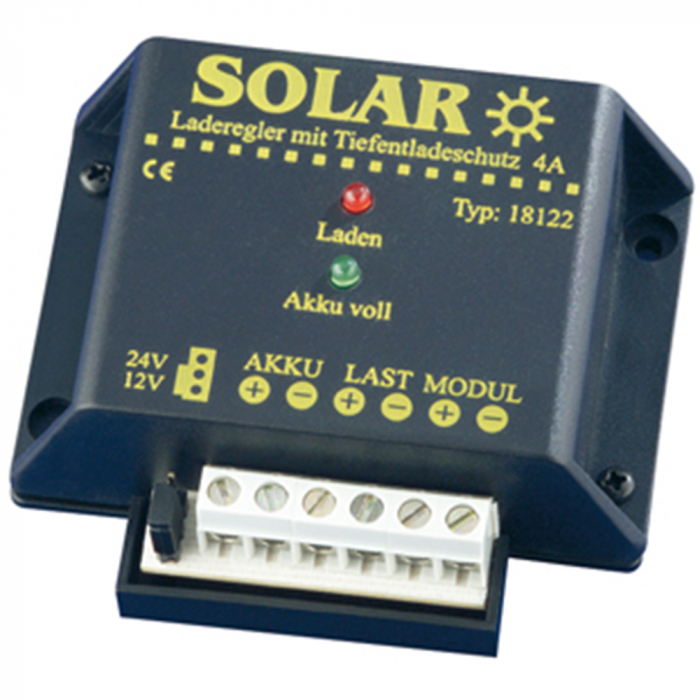

Solar Controller IVT 12 V/24 V, 4 A with deep discharge protection

The solar controller can be used for 12 V as well as for 24 V battery systems. At this, the switching of the system voltage is performed by a plug-in jumper.

Solar charge controllers that work according to the PWM charging method the battery with maximum current at the beginning of the charging process. As soon as the respective charging end voltage is reached, the current flow is stopped so that overcharging does not occur.

After this first charging step, the battery is usually not yet fully charged. A drop in the battery voltage is to be expected. Therefore, the charging current starts again when the voltage falls below a defined value. This process is repeated until the battery is fully charged.

Protection against overcharging
As soon as the final charging voltage is reached, the solar charge controller switches off the charging current. This prevents overcharging and damage to the solar battery.

Protection against deep discharge with automatic load disconnection or load connection
The integrated deep discharge protection ensures that the solar controller automatically switches off the load output when the battery voltage drops below the minimum voltage. Once the battery has been recharged and the battery voltage rises above the reset voltage, the solar charge controller automatically reconnects the load output.

Reverse current inhibit
The solar charge controller is equipped with a reverse current block as standard. If the solar power is too low, e.g. at dusk or at night, the reverse current block prevents the battery from being discharged back via the solar module.

The small controller is additionally equipped with a load output. 12 V/24 V DC loads can be connected directly to the solar charge controller.

Do you have any questions? Our expert staff will be happy to advise you on all questions regarding inverters, voltage converters, solar technology, charging technology as well as mobile light. Please contact us.

Phone:  +49 (0) 9622 719910
E-mail:   info@ivt-hirschau.de

IVT products are manufactured to a high quality and following strict quality guidelines. We are certain about the longevity so that we add another year to the statutory manufacturer warranty free of charge. Rechargeable batteries and batteries are excluded from this warranty.

• Solar Controller 12 V/24 V, 4 A, with deep discharge protection
• Operating instructions in DE, GB, FR, NL
