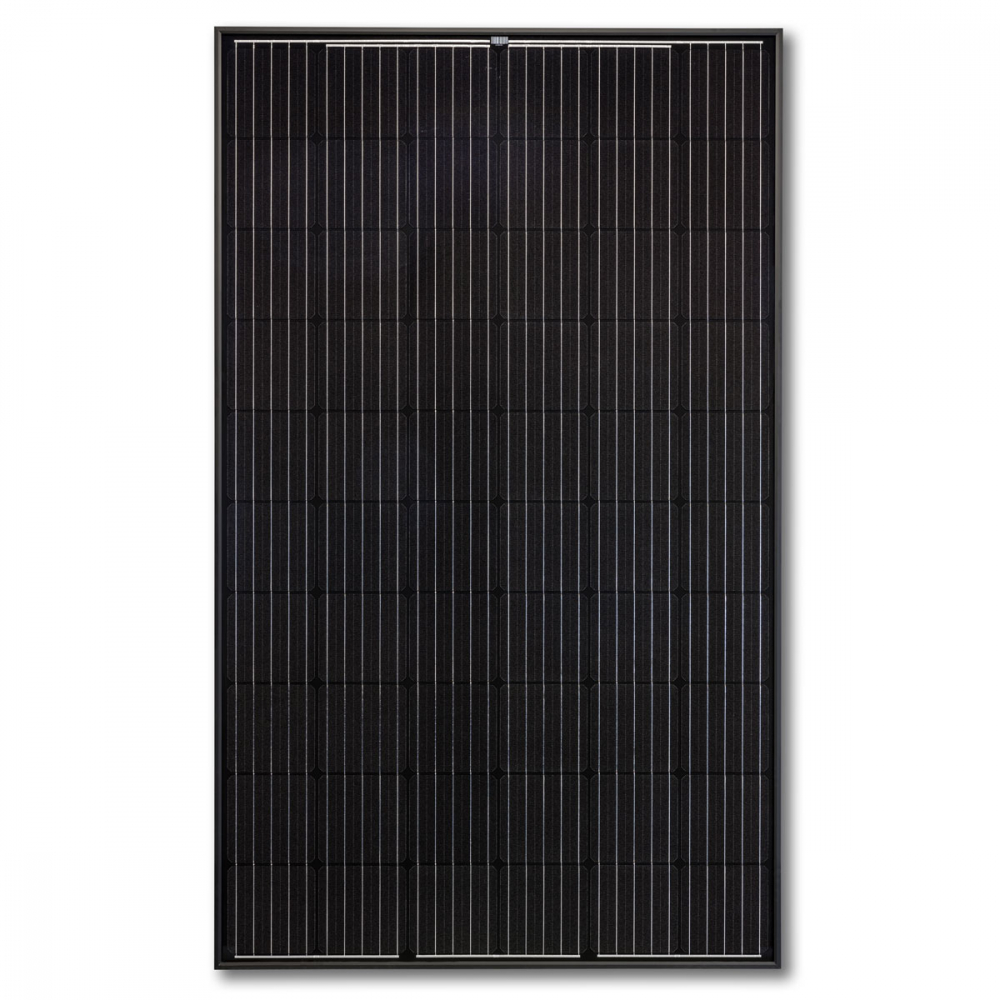

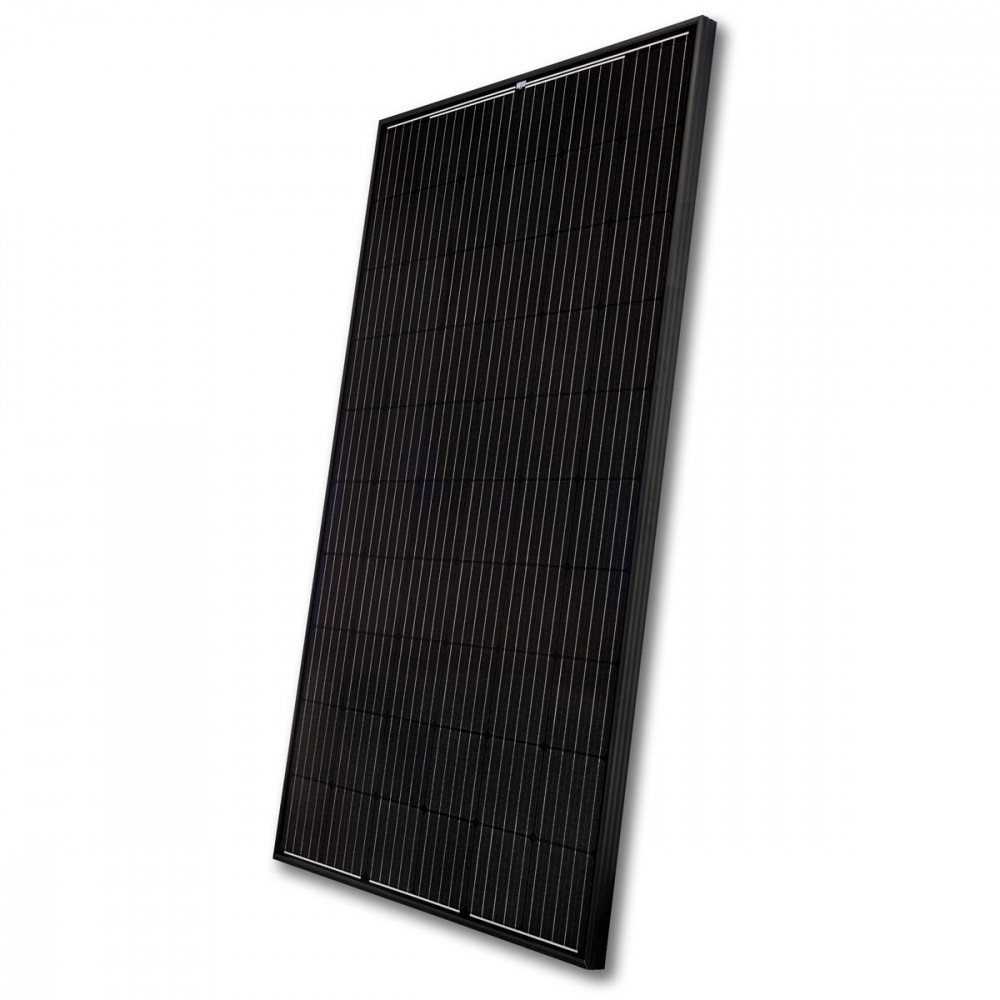

Solar Module Heckert Solar NeMo® 2.0 60 M monocrystalline 325 Wp, black

Solar power – environmentally friendly and self-sufficient power supply

The self-supply of electricity is one of the main reasons for the purchase of a photovoltaic system.

Monocrystalline modules are just the right choice, if e.g. garden houses or fishermen's hut to be equipped with a solar system.

Because of the high silicon content of the solar cells these modules have a very effective efficiency and thus achieve a higher solar yield.

The NeMo^® solar module is manufactured in Germany, is TÜV-certified according to the latest IEC standard and is produced with green electricity. It has also been successfully tested in the fields of salt fog corrosion and ammonia resistance.
VDE certificate solar module NeMo® >

The NeMo^® 2.0 60 M solar module is characterized by a stable and long-lasting modular design and reliable performance.

Delivery content

• Solar module NeMo^® 2.0 60 M 325 Wp monocrystalline
• Connection cable
• Mounting instruction DE

Technical Data

Power	325 Wp
Voltage (max.)	At max. power 33.13 V
Current (max.)	At max. power 9.89 A
Open circuit voltage	40.94 V
Short circuit current	10.22 A
Cells	60 monocrystalline cells, 5 busbar
Efficiency cell	19.4 %
System voltage (max.)	1000 V DC
Reverse current	20 A
Temperature coefficient	Performance: -0.40 % Voc -0.31 % | Isc 0.05 %
Glass	3.2 mm anti-reflective coated ESG glass
Frame	38 mm black anodised aluminium frame
Protection class	II
Solarbox	GZX 156 K IP 67
Module type	Monocrystalline
Module cable	4 mm2 | TE Connectivity PV4-S Stäubli MC4 plug +/- IP 68
Certificates	TÜV IEC 61215:2016 61730:2016
Dimensions (L x W x H)	1670 x 1006 x 38 mm
Weight	18.3 kg

---
